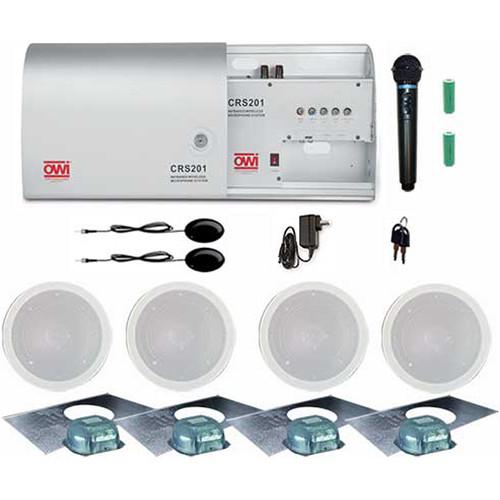

User Manual for OWI Inc. Infrared Wireless Microphone System with One Handheld Mic and Four IC6 In-Ceiling Speakers

• Product category: Assistive Listening Systems OWI Inc.
• Brand: OWI Inc.
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OWI Inc. Assistive Listening Systems

Product description

• CRS201 Infrared Wireless Microphone System The CRS201 Infrared Wireless Microphone System from OWI Inc. is suitable for classrooms, boardrooms, training, and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. Because the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires.The CRS201 system can simultaneously control two infrared wireless microphones, and each device can adjust its volume by independent controls to obtain the best audio effects for each individual room layout.Students pay greater attention and retain more when they clearly hear the presentation. Systems can be individually designed to offer communication solutions for classroom amplification, hard of hearing students, or any other difficult listening situation.
  • With the CRS201 wireless system, people in the back of the room can hear just as well as those sitting up front
  • A CRS201 system with two speakers can cover at least 400 ft² and a four-speaker CRS201 system can cover approximately 800 ft²
  • CRS201 Infrared Wireless Microphone System accepts three different line-level inputs
  • It can also control two infrared wireless microphones at the same time
  • Each source can have its volume adjusted by independent controls to get the immersive audio effects for each room layout
  • Each room can be customized with two or four ceiling or surface mounted speakers (available separately)
  • Line out feature - 3.5mm mini jack
  • Brushed aluminum finish
  UPC: 092087110512
• Infrared Handheld Microphone for OWI Classroom System (Channel 2) This OWI Infrared Wireless Handheld Microphone is designed for use with the OWI infrared classroom systems. The microphone features an on/off switch and cardioid polar pattern. UPC: 092087917890
• Handheld Microphone Battery for use with CRS-HHMIC2 The OWI Inc. Rechargeable AA Ni-MH Battery 1600MAh 1.2 V is an economical way to power all your AA needs. They offer reliable performance in a variety of situations.
  Ni-MH chemistry
  • Nickel-metal hydride offers an economical solution for rechargeable batteries for a variety of applications.
  UPC: 092087917906
• CRS-HHMCS Replacement Power Adapter The Owi Inc. CRS-HHMCS Replacement Power Adapter is a reliable wall wart for use with the Owi Inc. proprietary charging station.
  Replacement Power Adapter
  • Proprietary wall wart for use with the HHMCS Microphone Charging Station
  Durable Construction
  • Sturdy heavy-duty plastic for reliable continuous use
  UPC: 092087917913
• In-Ceiling Speaker (Pair) The OWI IC6 In-Ceiling Speaker (Paintable white) is perfect for use in commercial settings. Play music, broadcast pages or other audio with this 2-Way system. The included Kwik Klamps provide for fast and easy installation. The IC6 works indoors only.
  • Works in covered outdoor
  • The speaker is paintable white
  UPC: 092087910136

• CRS Amplifier/Mixer

• 2 x IR Sensor

• 2 x 1/4" Phono Jack to 3.5 Mini Adapter

• Power Cord

• 2 x Key

• 1 Year Warranty

• 5-Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CRS201 Infrared Wireless Microphone System

  Supported IR Carrier Frequency	2.06 MHz and 2.56 MHz
  Frequency Deviation Range	+40 kHz
  Input Sensitivity	150 mV (unbalanced)
  Signal to Noise Ratio	Line: >70 dB (unbalanced) Wireless Mic: >100 dB
  THD	<0.5% (at 1 kHz)
  Frequency Response	60 Hz - 14 kHz, ±3 dB
  Output Power	2 - 30 W
  Operating Voltage	110 VAC, 60 Hz
  Input Impedance	47 kOhms
  Maximum Power Consumption	70 W
  Finish	Brushed aluminum
  Dimensions (W x H x D)	13.8 x 10.2 x 4.1" (350 x 258 x 103 mm)
  Weight	13.9 lb (6.3 kg)

  Box Dimensions (LxWxH)	16.0 x 12.0 x 8.0"

• Infrared Handheld Microphone for OWI Classroom System (Channel 2)

  Box Dimensions (LxWxH)	10.1 x 1.9 x 0.9"

• Handheld Microphone Battery for use with CRS-HHMIC2

  Chemistry

  Ni-MH Rechargeable AA

  Box Dimensions (LxWxH)	4.0 x 2.2 x 0.4"

• CRS-HHMCS Replacement Power Adapter

  Box Dimensions (LxWxH)	2.8 x 2.4 x 1.7"

• In-Ceiling Speaker (Pair)

  System	2-Way
  Impedance	8 Ohms
  Sensitivity	86.5dB
  Power Taps	N/A
  Maximum Power	50W
  Frequency Response	45Hz-20KHz
  Crossover	4KHz
  Woofer	6.5" Paper coated polyurethane surround
  Tweeter	0.5" Hard dome
  Dimensions	9 x 2 1/2" (diameter x height) (23 x 6.4cm)
  Weight	2.9 lbs (1.32kg)

  Box Dimensions (LxWxH)	20.5 x 10.0 x 5.5"
