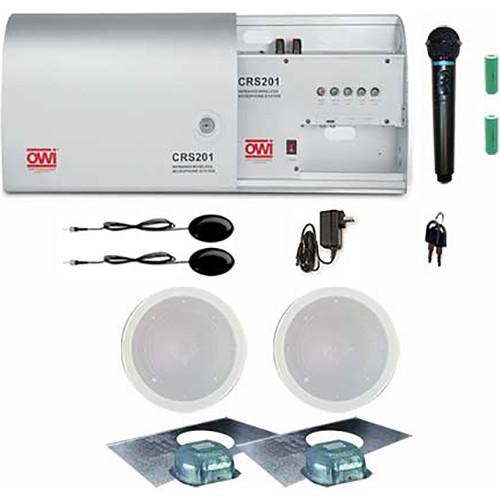

User Manual for OWI Inc. Infrared Wireless Microphone System with One Handheld Mic and Two IC6 In-Ceiling Speakers Click to enlarge the picture
Contents of the user manual for the OWI Inc. Infrared Wireless Microphone System
- Product category: Assistive Listening Systems OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Assistive Listening Systems
|
User manual for the OWI Inc. Infrared Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The Infrared Wireless Microphone System from OWI Inc. is suitable for classrooms, boardrooms, training, and meeting rooms. It includes a CRS201 infrared wireless microphone system, one handheld mic with two batteries, charger, and two IC6 in-ceiling speakers. - CRS201 Infrared Wireless Microphone System The CRS201 Infrared Wireless Microphone System from OWI Inc. is suitable for classrooms, boardrooms, training, and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. Because the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires.The CRS201 system can simultaneously control two infrared wireless microphones, and each device can adjust its volume by independent controls to obtain the best audio effects for each individual room layout.Students pay greater attention and retain more when they clearly hear the presentation. Systems can be individually designed to offer communication solutions for classroom amplification, hard of hearing students, or any other difficult listening situation.
- With the CRS201 wireless system, people in the back of the room can hear just as well as those sitting up front
- A CRS201 system with two speakers can cover at least 400 ft2 and a four-speaker CRS201 system can cover approximately 800 ft2
- CRS201 Infrared Wireless Microphone System accepts three different line-level inputs
- It can also control two infrared wireless microphones at the same time
- Each source can have its volume adjusted by independent controls to get the immersive audio effects for each room layout
- Each room can be customized with two or four ceiling or surface mounted speakers (available separately)
- Line out feature - 3.5mm mini jack
UPC: 092087110512 - Infrared Handheld Microphone for OWI Classroom System (Channel 2) This OWI Infrared Wireless Handheld Microphone is designed for use with the OWI infrared classroom systems. The microphone features an on/off switch and cardioid polar pattern. UPC: 092087917890
- Handheld Microphone Battery for use with CRS-HHMIC2 The OWI Inc. Rechargeable AA Ni-MH Battery 1600MAh 1.2 V is an economical way to power all your AA needs. They offer reliable performance in a variety of situations.
- Ni-MH chemistry
- Nickel-metal hydride offers an economical solution for rechargeable batteries for a variety of applications.
UPC: 092087917906 - CRS-HHMCS Replacement Power Adapter The Owi Inc. CRS-HHMCS Replacement Power Adapter is a reliable wall wart for use with the Owi Inc. proprietary charging station.
- Replacement Power Adapter
- Proprietary wall wart for use with the HHMCS Microphone Charging Station
- Durable Construction
- Sturdy heavy-duty plastic for reliable continuous use
UPC: 092087917913 - In-Ceiling Speaker (Pair) The OWI IC6 In-Ceiling Speaker (Paintable white) is perfect for use in commercial settings. Play music, broadcast pages or other audio with this 2-Way system. The included Kwik Klamps provide for fast and easy installation. The IC6 works indoors only.
- The speaker is paintable white
UPC: 092087910136 In the Box Bundle Items CRS201 Infrared Wireless Microphone System txcttrtsacetbfeqcdbxwwyxbbdu - 2 x 1/4" Phono Jack to 3.5 Mini Adapter
Infrared Handheld Microphone for OWI Classroom System (Channel 2) 2 x Handheld Microphone Battery for use with CRS-HHMIC2 CRS-HHMCS Replacement Power Adapter 2 x In-Ceiling Speaker (Pair) Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. Infrared Wireless Microphone System with One Handheld Mic and Two IC6 In-Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CRS201 Infrared Wireless Microphone System
| Supported IR Carrier Frequency | 2.06 MHz and 2.56 MHz | | Frequency Deviation Range | +40 kHz | | Input Sensitivity | 150 mV (unbalanced) | | Signal to Noise Ratio | Line: >70 dB (unbalanced)
Wireless Mic: >100 dB | | THD | <0.5% (at 1 kHz) | | Frequency Response | 60 Hz - 14 kHz, ±3 dB | | Output Power | 2 - 30 W | | Operating Voltage | 110 VAC, 60 Hz | | Input Impedance | 47 kOhms | | Maximum Power Consumption | 70 W | | Finish | Brushed aluminum | | Dimensions (W x H x D) | 13.8 x 10.2 x 4.1" (350 x 258 x 103 mm) | | Weight | 13.9 lb (6.3 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 8.0" | - Infrared Handheld Microphone for OWI Classroom System (Channel 2)
| | | Box Dimensions (LxWxH) | 10.1 x 1.9 x 0.9" | - Handheld Microphone Battery for use with CRS-HHMIC2
| Chemistry | Ni-MH Rechargeable AA | | | | Box Dimensions (LxWxH) | 4.0 x 2.2 x 0.4" | - CRS-HHMCS Replacement Power Adapter
| | | Box Dimensions (LxWxH) | 2.8 x 2.4 x 1.7" | - In-Ceiling Speaker (Pair)
| System | 2-Way | | Impedance | 8 Ohms | | Sensitivity | 86.5dB | | Power Taps | N/A | | Maximum Power | 50W | | Frequency Response | 45Hz-20KHz | | Crossover | 4KHz | | Woofer | 6.5"
Paper coated polyurethane surround | | Tweeter | 0.5"
Hard dome | | Dimensions | 9 x 2 1/2" (diameter x height) (23 x 6.4cm) | | Weight | 2.9 lbs (1.32kg) | | | | Box Dimensions (LxWxH) | 20.5 x 10.0 x 5.5" |
