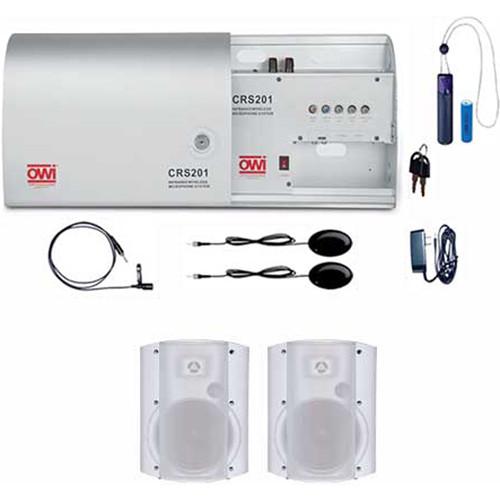

OWI Inc. Infrared Wireless Microphone System

User Manual for OWI Inc. Infrared Wireless Microphone System with One Pendant Mic, One Lapel Mic, and Two White P6278 Patio Blaster P Series Speaker

• Product category: Assistive Listening Systems OWI Inc.
• Brand: OWI Inc.
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OWI Inc. Assistive Listening Systems

Product description

• CRS201 Infrared Wireless Microphone System The CRS201 Infrared Wireless Microphone System from OWI Inc. is suitable for classrooms, boardrooms, training, and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. Because the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires.The CRS201 system can simultaneously control two infrared wireless microphones, and each device can adjust its volume by independent controls to obtain the best audio effects for each individual room layout.Students pay greater attention and retain more when they clearly hear the presentation. Systems can be individually designed to offer communication solutions for classroom amplification, hard of hearing students, or any other difficult listening situation.
  • With the CRS201 wireless system, people in the back of the room can hear just as well as those sitting up front
  • A CRS201 system with two speakers can cover at least 400 ft² and a four-speaker CRS201 system can cover approximately 800 ft²
  • CRS201 Infrared Wireless Microphone System accepts three different line-level inputs
  • It can also control two infrared wireless microphones at the same time
  • Each source can have its volume adjusted by independent controls to get the immersive audio effects for each room layout
  • Each room can be customized with two or four ceiling or surface mounted speakers (available separately)
  • Line out feature - 3.5mm mini jack
  • Brushed aluminum finish
  UPC: 092087110512
• CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System The OWI CRS-PMIC Pendant Microphone is a wireless neck-worn cardioid microphone for use with the OWI CRS-101 IR wireless microphone and speaker system. The CRS-PMIC features an adjustable lanyard for securing the pendant mic around the neck. A microphone input connects optional OWI headset and lapel microphones for even further flexibility and hands-free microphone operation. A AA battery, not included, is required for operation. UPC: 092087917586
• CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic The OWI CRS-PBAT3.7 Replacement Rechargeable Battery replaces the battery included with the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917609
• CRS-PENCH Charger for the CRS-PMIC Pendant Microphone The OWI CRS-PENCH Charger is used to recharge the battery on the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917593
• CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone The OWI CRS-LMIC Lapel Microphone connects to the CRS-PMIC IR (Infrared) Pendant Microphone for hands-free, unobtrusive microphone operation during presentations, speeches, etc. Its low-profile, cardioid element attaches to shirt lapels for easy concealment and hands-free microphone operation. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917616
• P6278PW Patio Blaster P Series Speaker (White) OWI's P6278PW Patio Blaster P Series Speaker (White) is a weatherized 2-Way speaker system for use indoors or out. Play your favorite music or other audio from this wall or ceiling mountable speaker, via the included "U" Bracket. Extruding feet allow for upward tilt of the speaker.
  • 2-Way speaker system
  • Weatherized Speaker
  • "U" Bracket for wall or ceiling mounting
  • Plastic enclosure
  • Aluminum grill material
  UPC: 092087915322

• CRS Amplifier/Mixer

• 2 x IR Sensor

• 2 x 1/4" Phono Jack to 3.5 Mini Adapter

• Power Cord

• 2 x Key

• Lanyard

• 1 Year Warranty

• 90-Day Warranty

• 1 Year Warranty

• Windscreen

• 1 Year Warranty

• 5-Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CRS201 Infrared Wireless Microphone System

  Supported IR Carrier Frequency	2.06 MHz and 2.56 MHz
  Frequency Deviation Range	+40 kHz
  Input Sensitivity	150 mV (unbalanced)
  Signal to Noise Ratio	Line: >70 dB (unbalanced) Wireless Mic: >100 dB
  THD	<0.5% (at 1 kHz)
  Frequency Response	60 Hz - 14 kHz, ±3 dB
  Output Power	2 - 30 W
  Operating Voltage	110 VAC, 60 Hz
  Input Impedance	47 kOhms
  Maximum Power Consumption	70 W
  Finish	Brushed aluminum
  Dimensions (W x H x D)	13.8 x 10.2 x 4.1" (350 x 258 x 103 mm)
  Weight	13.9 lb (6.3 kg)

  Box Dimensions (LxWxH)	16.0 x 12.0 x 8.0"

• CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System

  Box Dimensions (LxWxH)	4.9 x 2.7 x 0.7"

• CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic

  Box Dimensions (LxWxH)	2.0 x 1.0 x 0.6"

• CRS-PENCH Charger for the CRS-PMIC Pendant Microphone

  Power

  Voltage: Input - 110VAC/60Hz Output - 6VDC Output Current - 1000mA

  Box Dimensions (LxWxH)	3.1 x 1.7 x 1.2"

• CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Response	55Hz - 17kHz +/- 2dB
  Dynamic Range (Typical)	Not Specified By Manufacturer
  Signal-to-Noise Ratio	60dB 1kHz @ 1Pa
  Maximum Input Sound Level	Not Specified By Manufacturer
  Power Requirements	From Pendant Mic 5VDC, 0.5mA (Max)
  Output Impedance	Not Specified By Manufacturer
  Output Connectors	1/8" (3.5mm) Mini
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	Not Specified By Manufacturer
  Weight	Not Specified By Manufacturer

  Box Dimensions (LxWxH)	3.5 x 1.8 x 0.3"

• P6278PW Patio Blaster P Series Speaker (White)

  System	2-Way
  Impedance	70V & 8 Ohms
  Sensitivity	86dB +/-3dB
  Maximum Power	45W
  Frequency Response	65Hz-20KHz
  Crossover	3.5KHz
  Woofer	6.5" Polypropylene rubber surround
  Midrange	N/A
  Tweeter	1 x 2" PEI
  Enclosure Material	Plastic
  Color	White
  Dimensions	9.5 x 8.5 x 11.25" (24.13 x 21.6 x 28.6cm)
  Weight	9.3 lbs (4.22kg)

  Box Dimensions (LxWxH)	19.0 x 13.0 x 11.0"
