User Manual for OWI Inc. IR20REC-KIT Dual-Channel Infrared Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the OWI Inc. IR20REC-KIT Dual-Channel Infrared Wireless
- Product category: Assistive Listening Systems OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Assistive Listening Systems
|
User manual for the OWI Inc. IR20REC-KIT Dual-Channel Infrared Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|

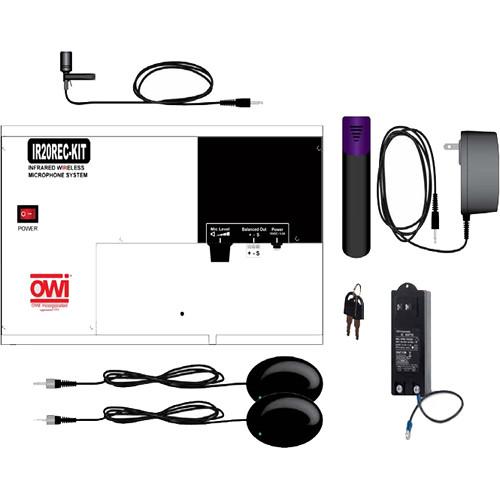

Product description The IR20REC-KIT Dual-Channel Infrared Wireless Microphone System from OWI Inc. is designed for educational and institutional use to enhance a presenter’s voice in all areas of the room. The system comprises an IR20REC-KIT Dual-Channel Receiver, two CRSIRS IR Sensors, one CRS-PMIC Pendant Microphone, one CRS-PBAT37 Rechargeable Battery, one CRS-PCH Pendant Microphone Charger, one CRS-LMIC Lapel Microphone, and two keys.
The system uses infrared technology, eliminating the interference and cross-talk from adjacent rooms that occurs in FM-based wireless products. The IR20REC-KIT is a building block for a voice enhancement system that can help presenters by reducing the effects of poor room acoustics and the weakening effect of voice traveling through air. When integrated with OWI’s wide range of amplified speakers, the IR20REC-KIT provides an effective and flexible voice reinforcement system. - CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System The OWI CRS-PMIC Pendant Microphone is a wireless neck-worn cardioid microphone for use with the OWI CRS-101 IR wireless microphone and speaker system. The CRS-PMIC features an adjustable lanyard for securing the pendant mic around the neck. A microphone input connects optional OWI headset and lapel microphones for even further flexibility and hands-free microphone operation. A AA battery, not included, is required for operation. UPC: 092087917586
- CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic The OWI CRS-PBAT3.7 Replacement Rechargeable Battery replaces the battery included with the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917609
- CRS-PENCH Charger for the CRS-PMIC Pendant Microphone The OWI CRS-PENCH Charger is used to recharge the battery on the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917593
- CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone The OWI CRS-LMIC Lapel Microphone connects to the CRS-PMIC IR (Infrared) Pendant Microphone for hands-free, unobtrusive microphone operation during presentations, speeches, etc. Its low-profile, cardioid element attaches to shirt lapels for easy concealment and hands-free microphone operation. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917616
In the Box Bundle Items CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System xczvstdrxdsdwqwybxsysftqtsweecfawsyba CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic CRS-PENCH Charger for the CRS-PMIC Pendant Microphone CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone
Also Includes - IR20REC Dual-Channel Receiver
- 2 x CRSIRS Infrared Sensors
- 2 x Keys
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. IR20REC-KIT Dual-Channel Infrared Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System
| | | Box Dimensions (LxWxH) | 4.9 x 2.7 x 0.7" | - CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic
| | | Box Dimensions (LxWxH) | 2.0 x 1.0 x 0.6" | - CRS-PENCH Charger for the CRS-PMIC Pendant Microphone
| Power | Voltage:
Input - 110VAC/60Hz Output - 6VDC
Output Current - 1000mA | | | | Box Dimensions (LxWxH) | 3.1 x 1.7 x 1.2" | - CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 55Hz - 17kHz +/- 2dB | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 60dB 1kHz @ 1Pa | | Maximum Input Sound Level | Not Specified By Manufacturer | | Power Requirements | From Pendant Mic
5VDC, 0.5mA (Max) | | Output Impedance | Not Specified By Manufacturer | | Output Connectors | 1/8" (3.5mm) Mini | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer | | | | Box Dimensions (LxWxH) | 3.5 x 1.8 x 0.3" |
