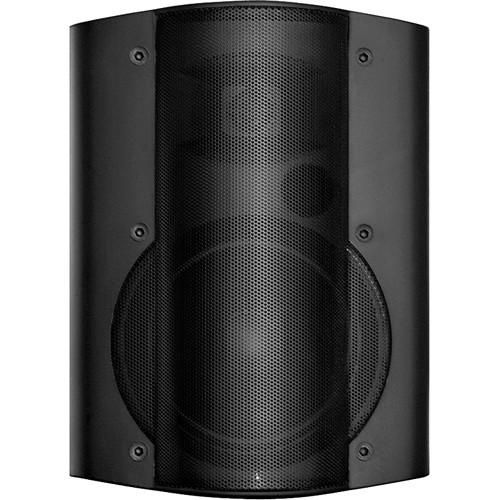

User Manual for OWI Inc. Low-Voltage Amplified Surface Mount Speaker Combination Click to enlarge the picture
Contents of the user manual for the OWI Inc. Low-Voltage Amplified Surface Mount
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. Low-Voltage Amplified Surface Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The black Low-Voltage Amplified Surface Mount Speaker Combination from OWI Inc. includes 1 AMPLV602B Low Voltage Amplified Surface Mount Speaker and 1 P602B Non-Amplified Surface Mount Speaker. - 2-way, 6.50" (16.51cm) woofer, 4Ω
- 1 self-amplified (AMPLV602) and 1 non-amplified (P602) surface mount speaker combo with 15VDC Level V power supply and mounting bracket
- Perfect for schools, hotels, conference rooms, and training rooms
- Maximum current protected
- One wire to ground protected
In the Box OWI Inc. Low-Voltage Amplified Surface Mount Speaker Combination (Black) Self-Amplified, Surface Mount, Low-Voltage Speaker Combo (Black) 4Ω 6.5" Passive Surface Mount Cabinet Speaker (Black) 15VDC Level V Power Supply Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. Low-Voltage Amplified Surface Mount Speaker Combination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMPLV6022 Specs | Impedance | 4 Ω | | Sensitivity | 83 dB (VR at maximum) | | Dispersion | 92° | | Power | 2 x 15 W | | Frequency Response | 80 Hz to 20 kHz | | Signal to Noise Ratio | > 80 dB | | Input | Configuration: RCA L / RLoad Impedance: 20 kΩ | | THD | < 0.2 % | | Power Supply | 15 VDC, UL listed, efficiency level 5 (ENERGY STAR certified) | | High Frequency Driver | 1.5 to 20 kHz | | Low Frequency Driver | 80 Hz to 6 kHz | | Material | Woofer: MicaTweeter: PEI | | Enclosure | High Impact Polystyrene (HIPS) | | Size | Woofer: 6.50” (16.51 cm)Tweeter: 0.79" (2.00 cm) | | Weight | 12.00 lb (5.44 kg) each | | | | Package Weight | 41.8 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 14.0" |
