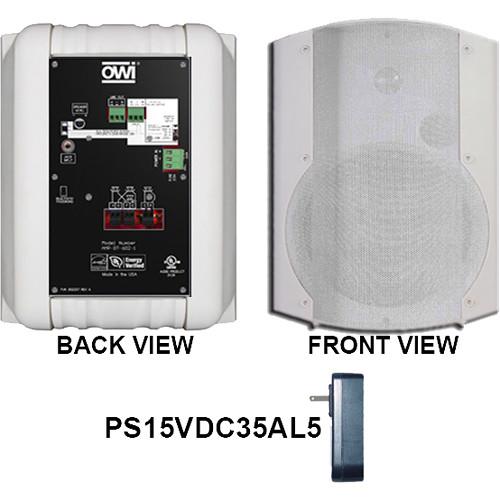

User Manual for OWI Inc. Self-Amplified Surface Mount Bluetooth Speaker Click to enlarge the picture
Contents of the user manual for the OWI Inc. Self-Amplified Surface Mount Bluetooth
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. Self-Amplified Surface Mount Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The white Self-Amplified Surface Mount Bluetooth Speaker from OWI Inc. is a two-way 6.5" speaker which features a woofer & tweeter, and can be mounted on a wall or ceiling. The speaker is Bluetooth capable, and its built-in amplifier delivers up to 40W of power directly to the speaker. One powered speaker can drive three additional speakers (P602, sold separately). One line can drive up to ten self-amplified speakers. This surface speaker has a "lower noise" feature, provides protection from shorts & overheating, and includes a 15V power supply. Applications include schools, hotels, conference rooms, training rooms, and more. - Two line-level input/sources
- Priority override feature
- Balanced line-level output
- Short-circuit and overheating protection
- Stereo/mono volume control
- Applications include schools, hotels, conference rooms, and training rooms
UPC: 092087110833 In the Box OWI Inc. Self-Amplified Surface Mount Bluetooth Speaker (White) 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker frqsussvrfeadttyzquwxyseeyyubt Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. Self-Amplified Surface Mount Bluetooth Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMP-BT-602-1W Specs | Material | Housing: High-impact polystyrene
Grill: Aluminum | | Minimum Load Impedance | 4 ohms (two 8-ohm speakers in parallel) | | Input Impedance | Priority In: 20 kOhms, minimum
Balanced Line In: 820 ohms, minimum
Mini-Jack: 2.3 kOhms, minimum
Dynamic Microphone: 300 ohms | | Bluetooth | Certified SIG Bluetooth Version 3.0
Frequency Range: 2.40 - 2.48 MHz
Supports: A2DP, AVRCP, HFP/HSP, and SPP
Password protected | | Dispersion | 92° | | Sensitivity | 86 dB (1 W / 1 m) | | Maximum Output Power | 40 W | | Nominal (RMS) Output Power | 20 W | | Frequency Response | 80 Hz - 20 kHz | | Crossover | 3.5 kHz | | High Frequency Driver | 1.5 - 6.0 kHz | | Low Frequency Driver | 80 Hz - 6 kHz | | Frequency Response | EQ Set to Flat: 50 Hz - 15 kHz
Bass: +10 dB @ 50 Hz
Treble: +10 dB @ 10 kHz | | THD + Noise | <1% @ 15 W, "A" weighted | | S/N | >90 dB | | Woofer | Size: 6.5" (16.5 cm)
Material: Mica/foam surround | | Tweeter | Size: 0.79" (2.0 cm)
Material: PEI | | Protection | Short-circuit
Over-current
Over-voltage
Over-temperature | | Input | 2 x Line-level | | Power | 15 VDC, 25 W
Max Input: 16.5 VDC | | Current | 1.667 A, peak | | Certificates | CE | | Dimensions | 9.50 x 8.46 x 11.30" (24.2 x 21.5 x 28.8 cm) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 30.0 x 23.0 x 14.0" |
