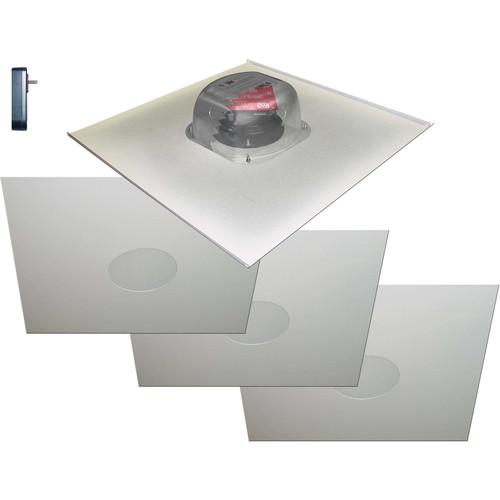

Product description The 4 speaker package of OWI Two Source, 6.5" Amplified Drop Ceiling Speakers is a self-powered speaker/amplifier combination on a 2 x 2 tile with backcan, and delivers up to 40 watts of amplification directly to the speaker. Each powered speaker can drive up to three additional non-amplified speakers, and one line can be daisy chained and drive up to 10 self-amplified speakers. The amplifier includes bass and treble controls for sonic flexibility. In this 4 speaker set, one speaker is loaded with the amplifier and three unamplified speakers are fed by it.
The amplifier is built onto a OWI IC6 in-ceiling speaker and inside a backan onto a 2x2 tile, and it features 2 line-level input sources. The set is designed to feature lower noise and protection from shorts and overheating. A 15 volt DC level 5 power supply is included. The self-powered speaker has a Bluetooth option. - Built onto the OWI IC6 in-ceiling speakers on a 2x2 tile in backcan
- 2 Line level input / sources
- Up to 40 watts of power - right at the speaker
- Includes Priority Override feature, good for emergency services
- Balanced line level output
- Includes a 3.5 mm jack line input
- Protected from shorts and overheating
- Optional Bluetooth capabilitty
UPC: 092087110598 In the Box OWI Inc. Two Source, 6.5" Amplified Drop Ceiling Speaker on Tile (4 Speaker Package) 2X2AMP-R2S61 Amplifier / Speaker Combination 3 x 2X2IC6NA Non Amplified Speaker PS15VDC35AL5 Level 5 Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. Two Source, 6.5" Amplified Drop Ceiling Speaker on Tile in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. 2X2AMP-R2S64 Specs | | | Woofer | Diameter: 6.5" (165 mm)
Height: 4.5" (114 mm) | | Speaker Weight | With amplifier: 3.15 lb (1.43 kg) | | Total Assembly Weight | With backcan and 2x2 tile: 9.0 lb (4.1 kg) | | | | Input Connection Type | 1/8" Mini (3.5 mm) | | Input Voltage | Nominal: (25 Watts) 15 V DC | | Input Current | Operating (15 VDC): 1.667 A / peak | | Input Volt-Amperes, Peak (15VDC) | 25 V A | | Input Voltage | Maximum: 16.5 VDC | | Frequency Response | EQ Set to Flat: 50 Hz to 15 kHz
Bass: +10 dB @ 50 Hz
Treble: +10 dB @ 10 Hz | | THD & Noise | <1% at 15 W, A Weighted | | S/N | >90 dB | | Maximum Power Output | 2 x 20 W or 40 W Total (28V in.) | | Standby Power | 1.5 W DC | | Sleep Mode | >1 W (AC Power) | | Protection Features | Short Circuit
Over Current
Over Voltage
Over Temperature | | Impedance | Min. Load Impedance: 4.0 ohm (two 8 ohm speakers in parallel)
Min. Input, priority in: 20,000 ohm
Min. Input, balanced line in: 820 ohm
Min. Input, mini jack: 2300 ohm
Dynamic Mic. Input: 300 ohm | | | | Input | 100 to 240 VAC, 50 to 60 Hz, 1.4 A | | Output | 15 VDC, 3.5 A | | Wire Gauge and Type | Min. 18 gauge
Up to 40' (12.2 m) max. length | | UL Listed | Energy Star | | Weight | 0.45 lb (0.2 kg) | | Dimensions (H x W x D) | 4.7 x 2.0 x 1.2" (119.4 x 5.8 x 30.5 mm) |
