User Manual for Oyen Digital 16TB Mobius Pro 2-Bay USB-C RAID HDD System Click to enlarge the picture
Contents of the user manual for the Oyen Digital 16TB Mobius Pro 2-Bay
- Product category: Hard Drive Arrays Oyen Digital
- Brand: Oyen Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oyen Digital Hard Drive Arrays
 |
User manual for the Oyen Digital 16TB Mobius Pro 2-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oyen Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oyen Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oyen Digital product will considerably shorten its lifespan!
|

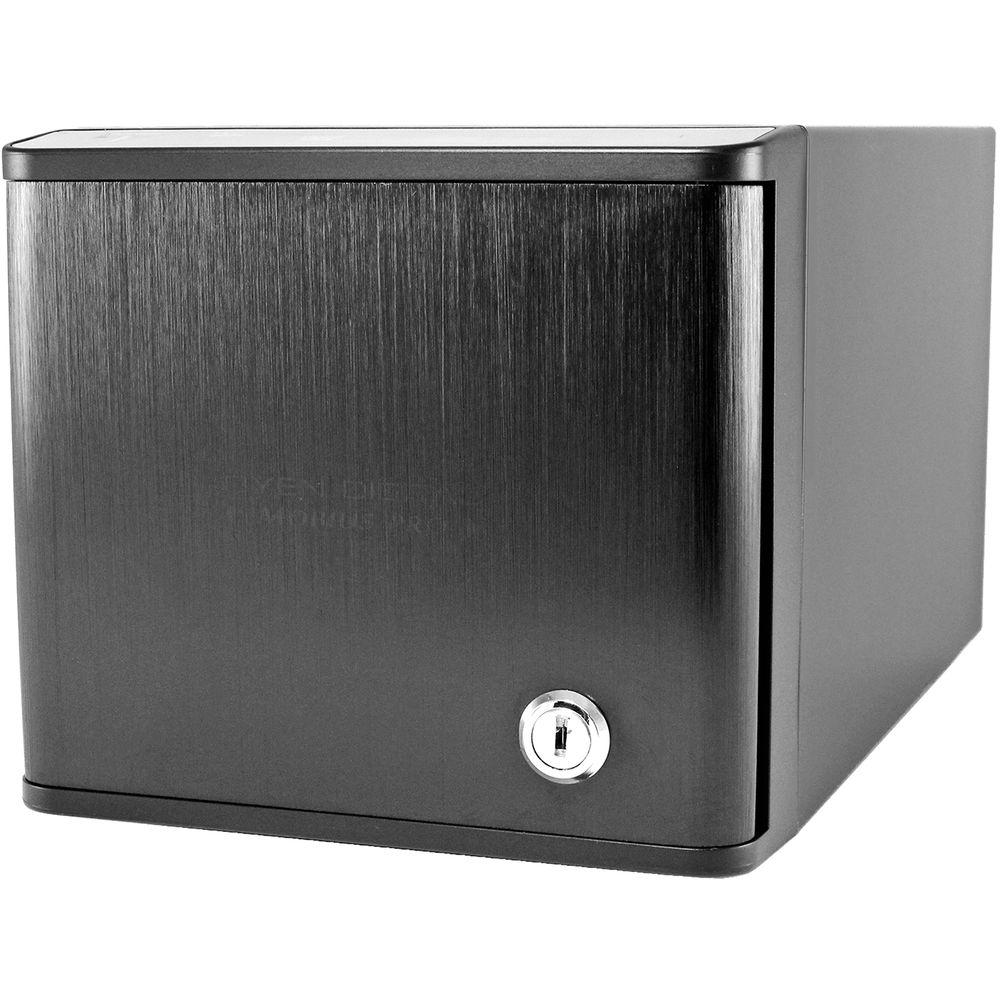

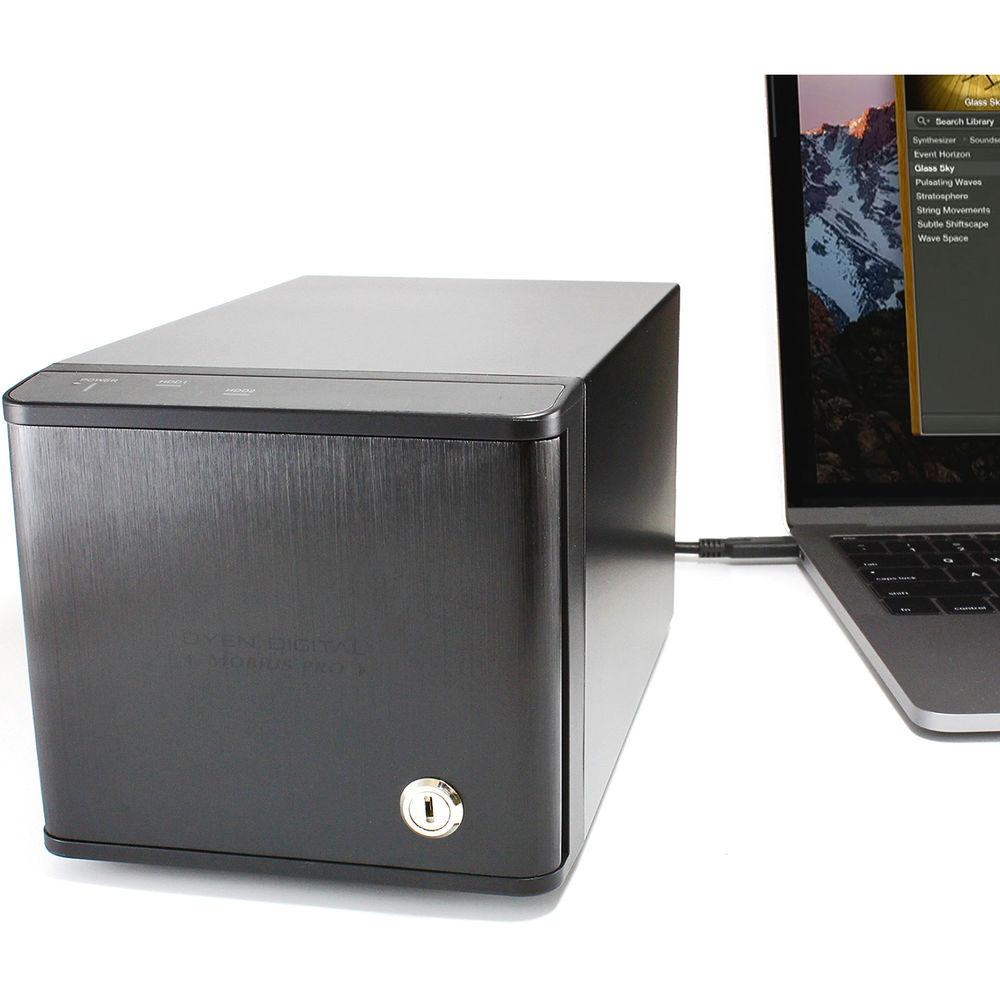

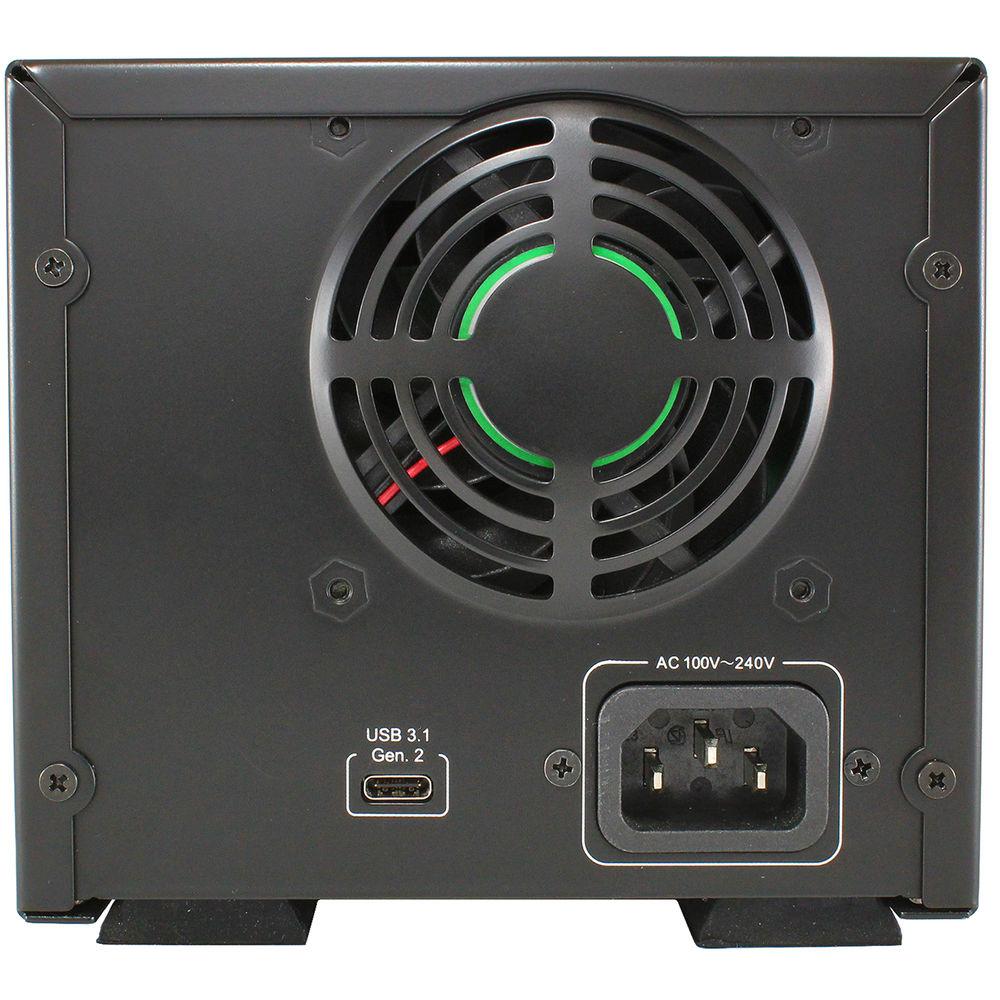

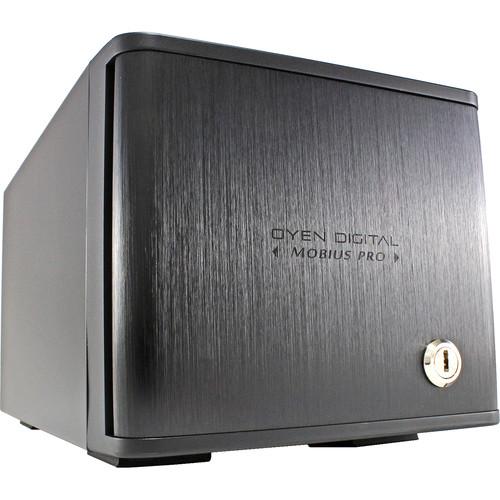

Product description RAID Arrays for Photography and Pro Video Read More The Mobius Pro 2-Bay USB-C RAID HDD System from Oyen Digital comes pre-installed with two 8TB Seagate 7200 rpm HDDs to offer a total storage capacity of 16TB. It is a dual-bay RAID enclosure featuring Type-C connectivity for compatibility with USB 3.1 / 3.0 and Thunderbolt 3. The Mobius Pro provides hardware RAID storage options such as RAID 0 (striping), RAID 1 (mirroring), JBOD (independent drives) and BIG (Non-RAID merged drives). Thanks to the trayless design, you can just pull the lever to insert or withdraw the HDDs, providing a simple way of HDD removal and installation. It also features a noiseless fan that exhausts hot air away from the internal HDDs to maximize airflow. The system's aluminum housing helps in maintaining optimal HDD operating temperature.You can set the RAID modes via the mode switch, connect the cable, and switch on the power for managing storage, speed, redundancy, or instant real-time backups. The LED indicators provide quick information about operating status and drive health/activity. - Configure RAID modes easily using mode switches
- Provides JBOD (Default, Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), and Combine modes
- Monitors system status via LED indicators

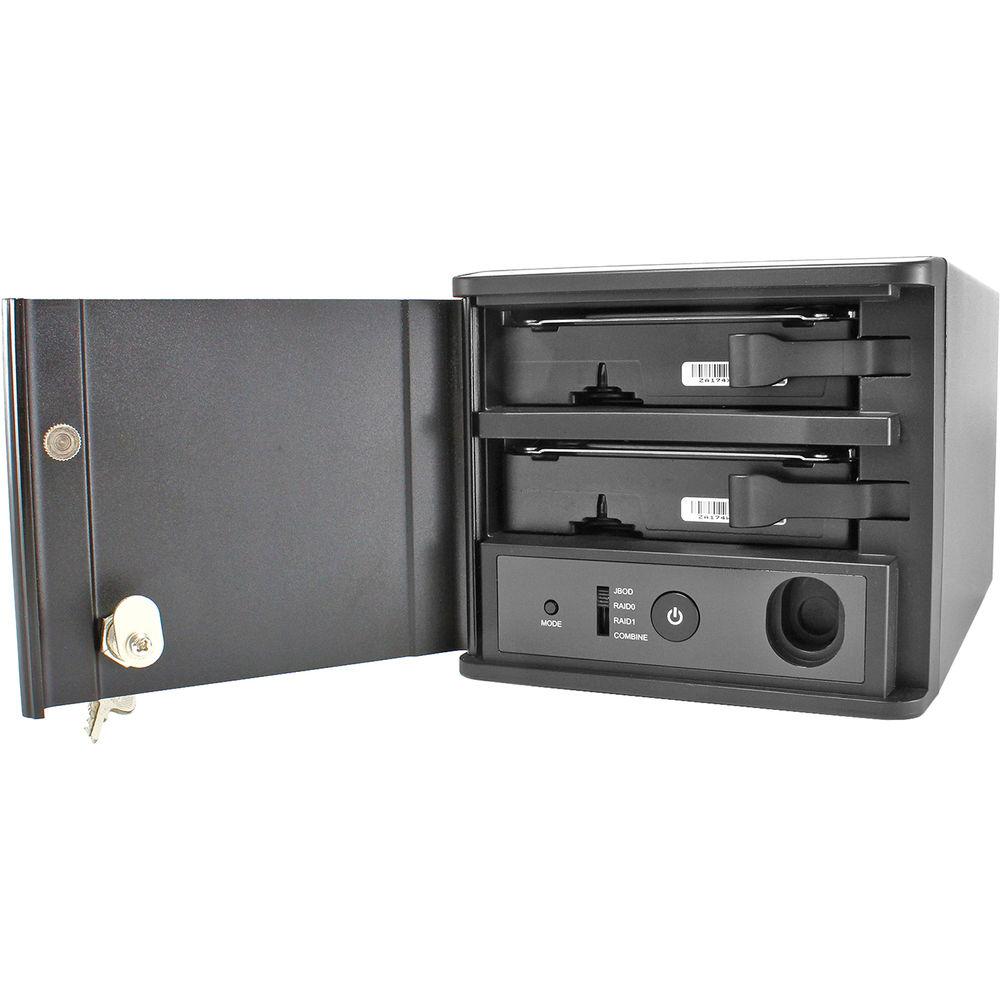

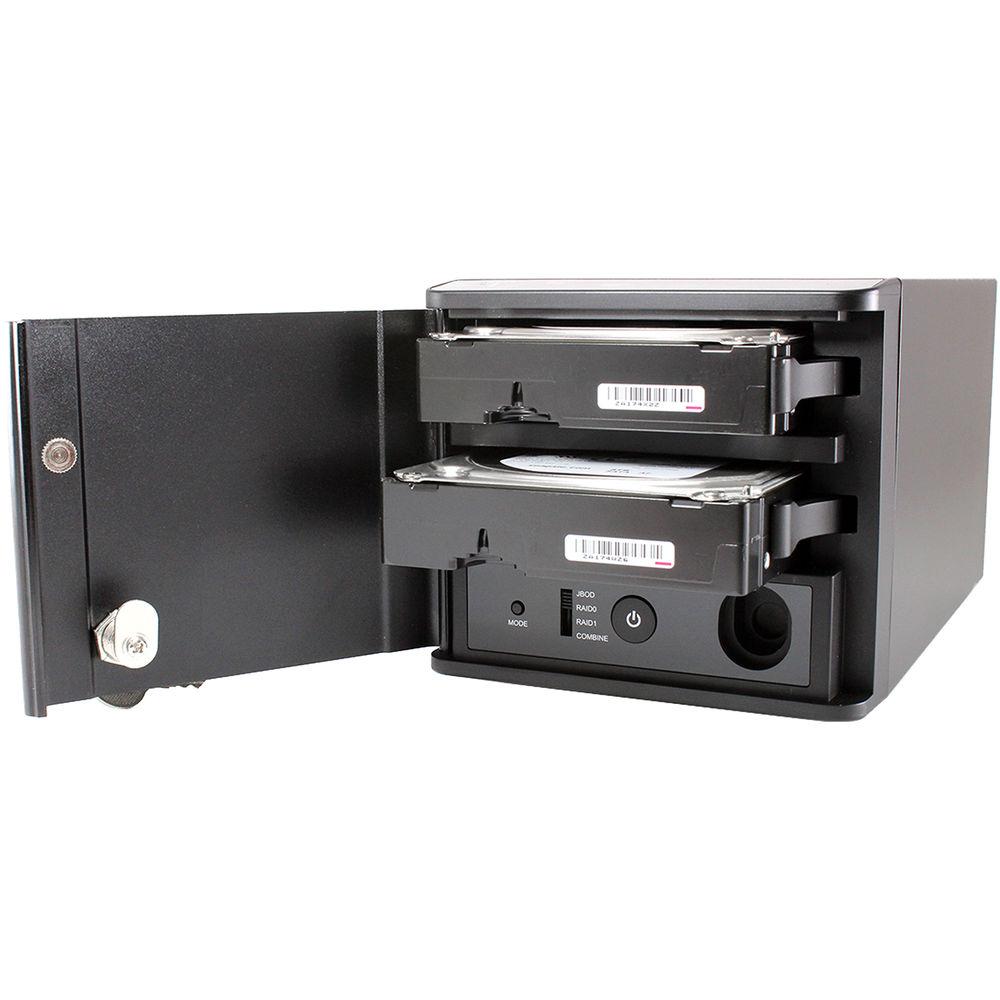

- Simple trayless hard drive insertion and removal
- Dissipates heat efficiently with an aluminum housing and a noiseless fan
UPC: 858737007010 In the Box Oyen Digital 16TB Mobius Pro 2-Bay USB-C RAID HDD System (2 x 8TB) USB Type-C Cable USB Type-C to Type-A Cable Power Cord Key Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital 16TB Mobius Pro 2-Bay USB-C RAID HDD System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital Mobius Pro Specs | Ports | USB Type-C (USB 3.1 Gen 2 10 Gb/s) | | Capacity | 16 TB (Formatted capacity will vary depending on the RAID mode selected) | | RAID Modes | JBOD (default), RAID 0, RAID 1, Combine (span) | | Chipset | ASMedia ASM1352R with UASP | | Fan | Hen Li Xin, model HD7015S12L, 27.0 dB(A) | | Power | Input: AC 100~240 V, 50 W | | Certifications | CE, FCC | | Requirements | Compatible with Windows, Mac, Linux | | Dimensions | 8.3 x 4.5 x 5.0" / 21.0 x 11.4 x 12.7 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 9.55 lb | | Box Dimensions (LxWxH) | 12.1 x 7.9 x 7.4" |
