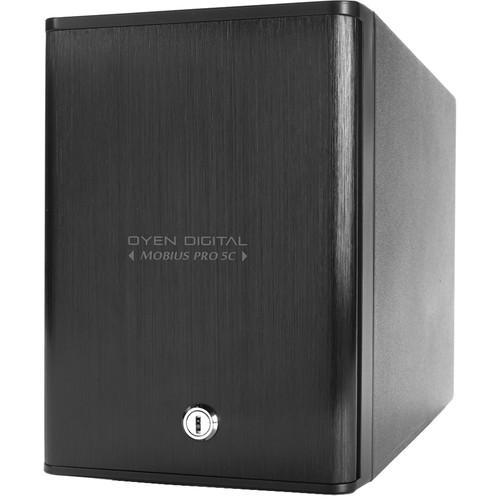

User Manual for Oyen Digital 20TB Mobius Pro 5C 5-Bay USB-C External Drive Array with SoftRAID Click to enlarge the picture
Contents of the user manual for the Oyen Digital 20TB Mobius Pro 5C
- Product category: Hard Drive Arrays Oyen Digital
- Brand: Oyen Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oyen Digital Hard Drive Arrays
 |
User manual for the Oyen Digital 20TB Mobius Pro 5C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oyen Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oyen Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oyen Digital product will considerably shorten its lifespan!
|

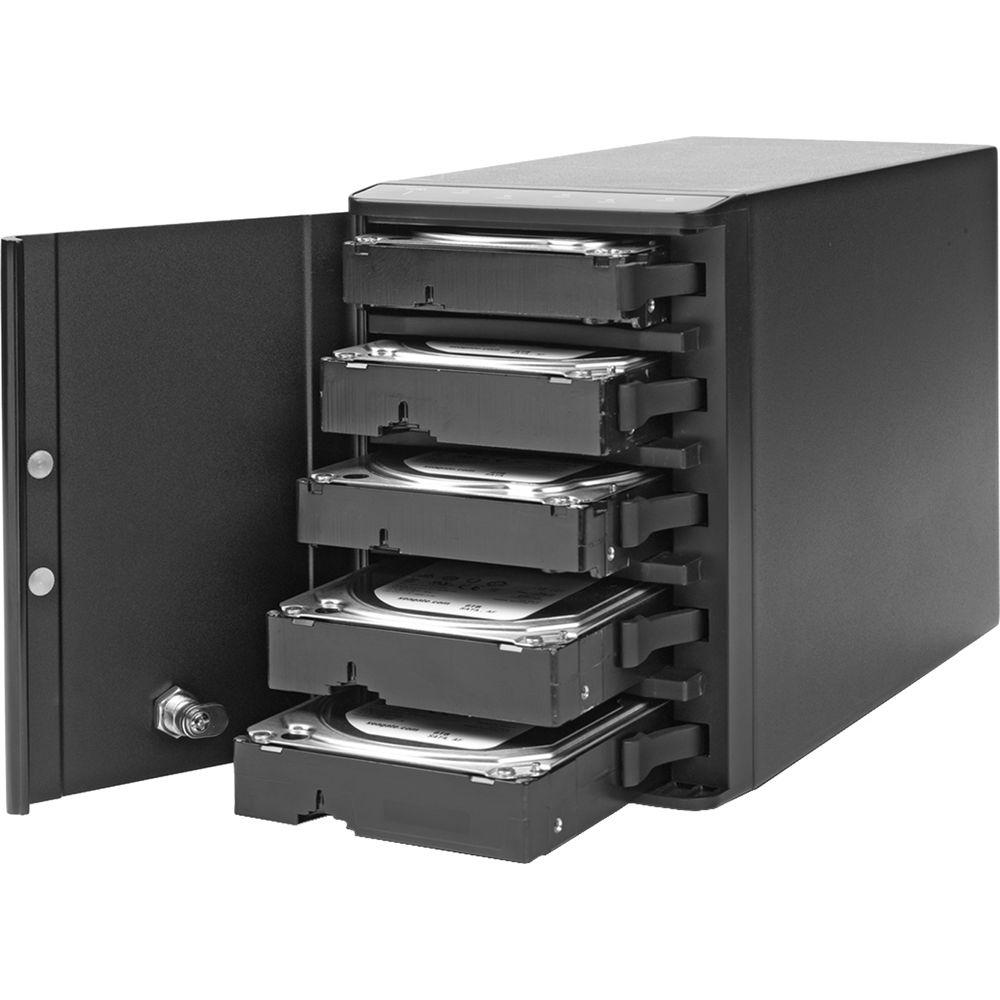

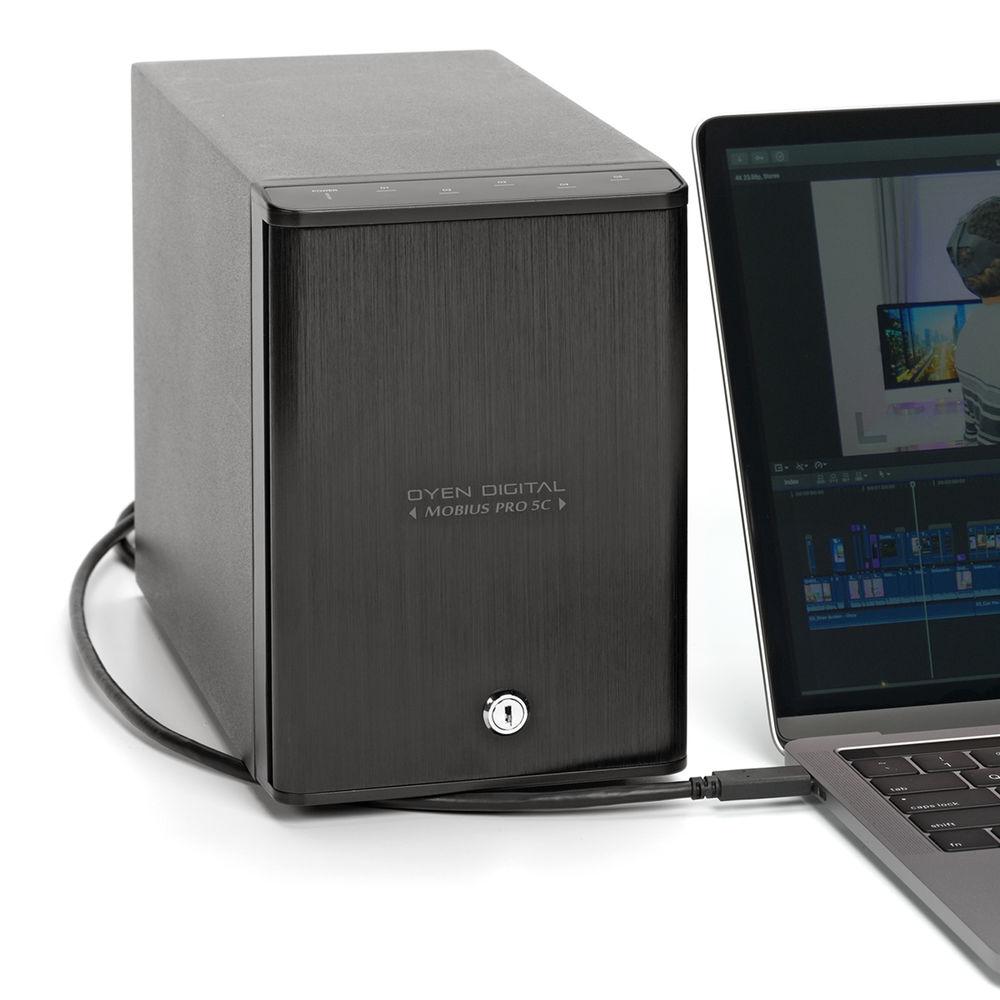

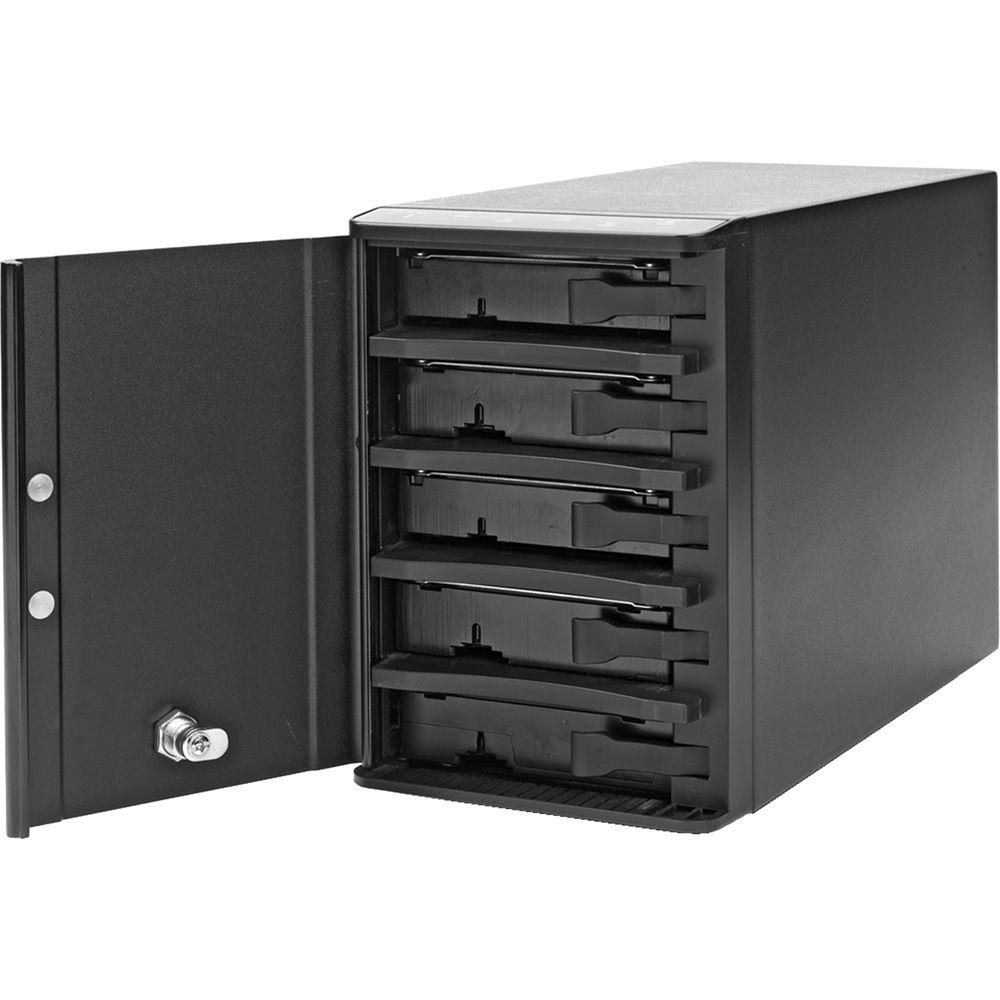

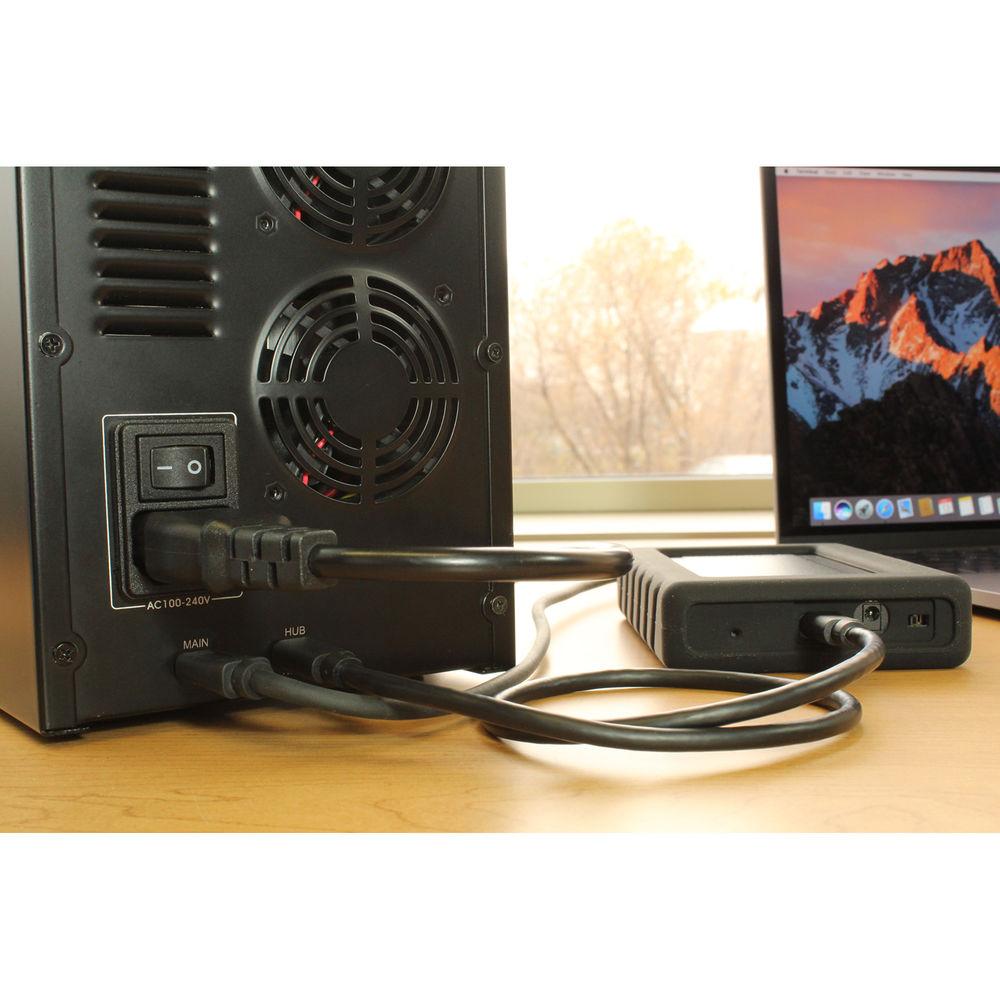

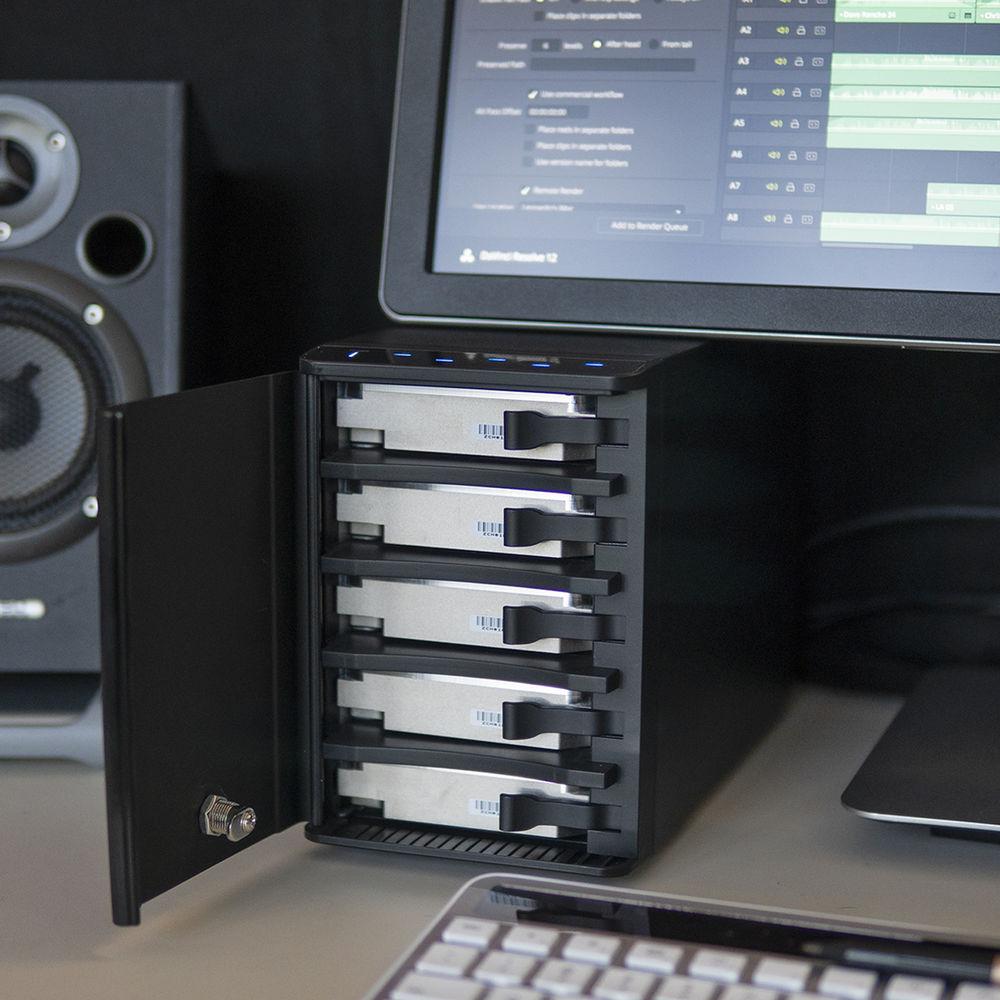

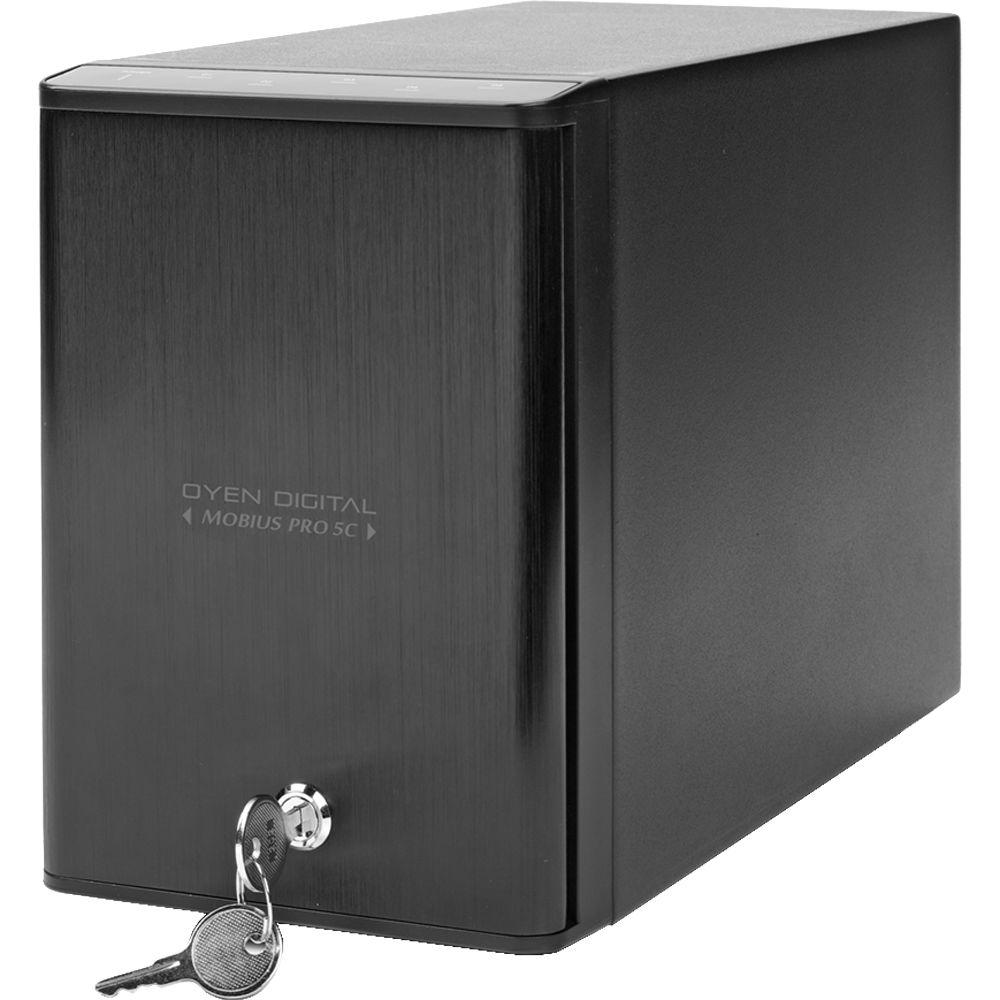

Product description RAID Arrays for Photography and Pro Video Read More Boost your data storage capacity with the 20TB Mobius Pro 5C 5-Bay USB-C External Drive Array with SoftRAID from Oyen Digital. Equipped with five 4TB enterprise hard drives and a pair of internal cooling fans, the trayless Mobius Pro 5C allows you to insert and remove drives by simply pulling a lever, while the lockable bay door provides added security. Compatible with macOS, Windows, and Linux, the array features a USB 3.1 Gen 2 Type-C port that's compatible with Thunderbolt 3, while a USB 3.1 Gen 1 Type-C hub port lets you daisy-chain additional storage or USB devices. The array includes a full version of SoftRAID for macOS, and is user-configurable for RAID 0, 1, 4, 5, and 10. - Airflow and Cooling

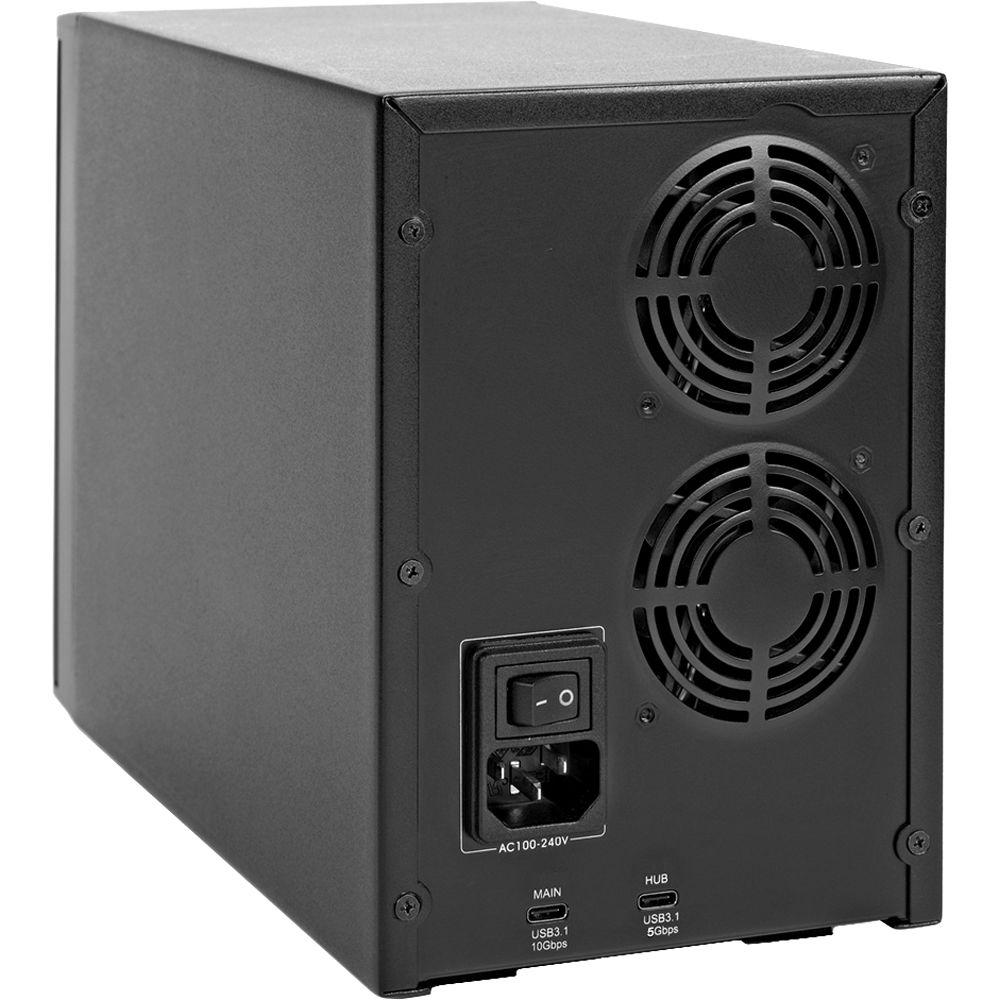

- Airflow is maximized due to the quiet dual fans that exhaust air away from the internal HDDs, enhancing internal air flow. The thermally efficient aluminum housing maintains optimal drive temperature, prolonging the life of the drives.
- Power
- The internal 150W power supply provides plenty of power for five HDDs as well as 15W of bus-power through the USB Type-C hub port for portable USB drives.
In the Box Oyen Digital 20TB Mobius Pro 5C 5-Bay USB-C External Drive Array with SoftRAID USB Type-C to USB Type-C Cable USB Type-C to USB Type-A Cable Power Cable Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital 20TB Mobius Pro 5C 5-Bay USB-C External Drive Array with SoftRAID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital 3N5-C-20TB-SR Specs | | | Number of Bays | 5 x 3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s))
1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s)) | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 4, 5 | | Operating System Support | Linux, Windows, macOS/OS X | | | | Total Raw Capacity | 20 TB (5 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Lockable Bay Door | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Certifications | CE, FCC, as per Manufacturer | | | | Material of Construction | Aluminum | | Cooling | 2 x Fans | | Noise Level | 13.8 dBA | | Bridge Chipset | ASMedia ASM1351
VIA VL820 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 10.5 x 5.1 x 7.4" / 266.7 x 129.5 x 188.0 mm |
