User Manual for Oyen Digital 60TB Mobius 5-Bay Thunderbolt 2 RAID with SoftRAID Click to enlarge the picture
Contents of the user manual for the Oyen Digital 60TB Mobius 5-Bay Thunderbolt
- Product category: Hard Drive Arrays Oyen Digital
- Brand: Oyen Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oyen Digital Hard Drive Arrays
 |
User manual for the Oyen Digital 60TB Mobius 5-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oyen Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oyen Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oyen Digital product will considerably shorten its lifespan!
|

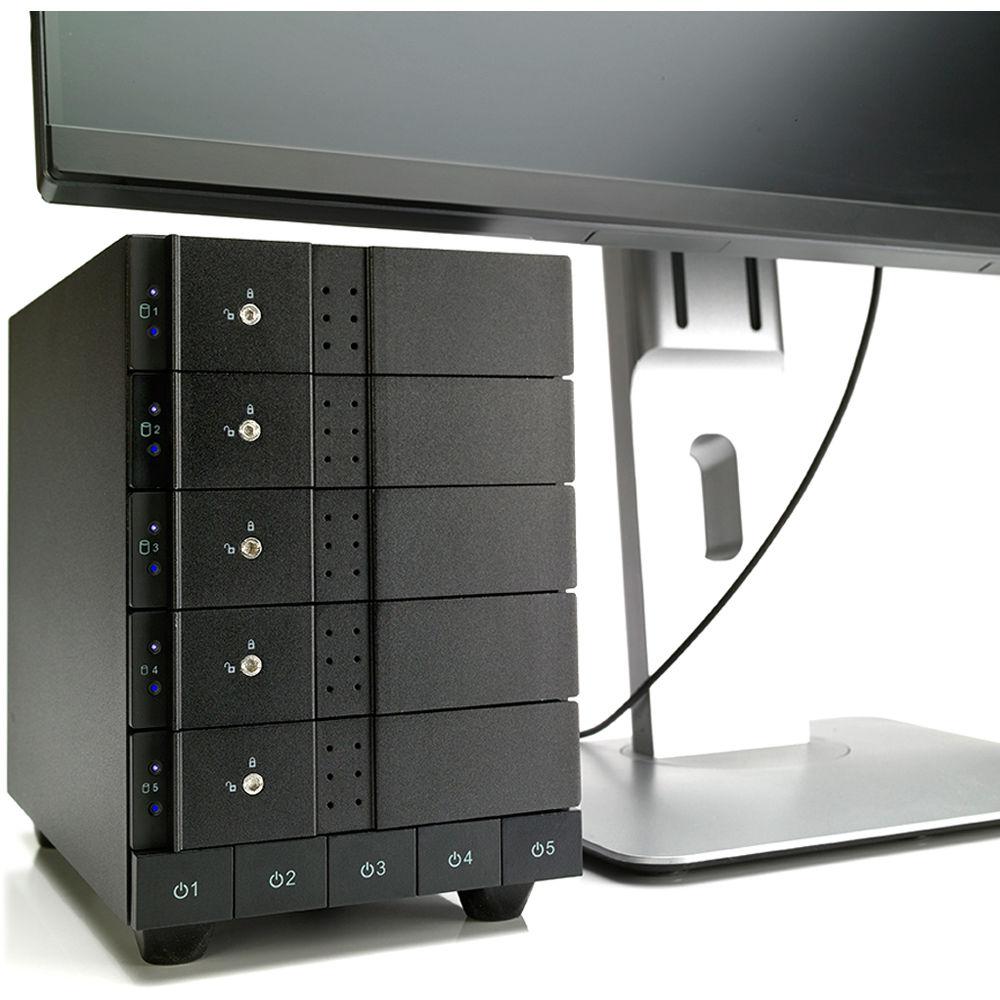

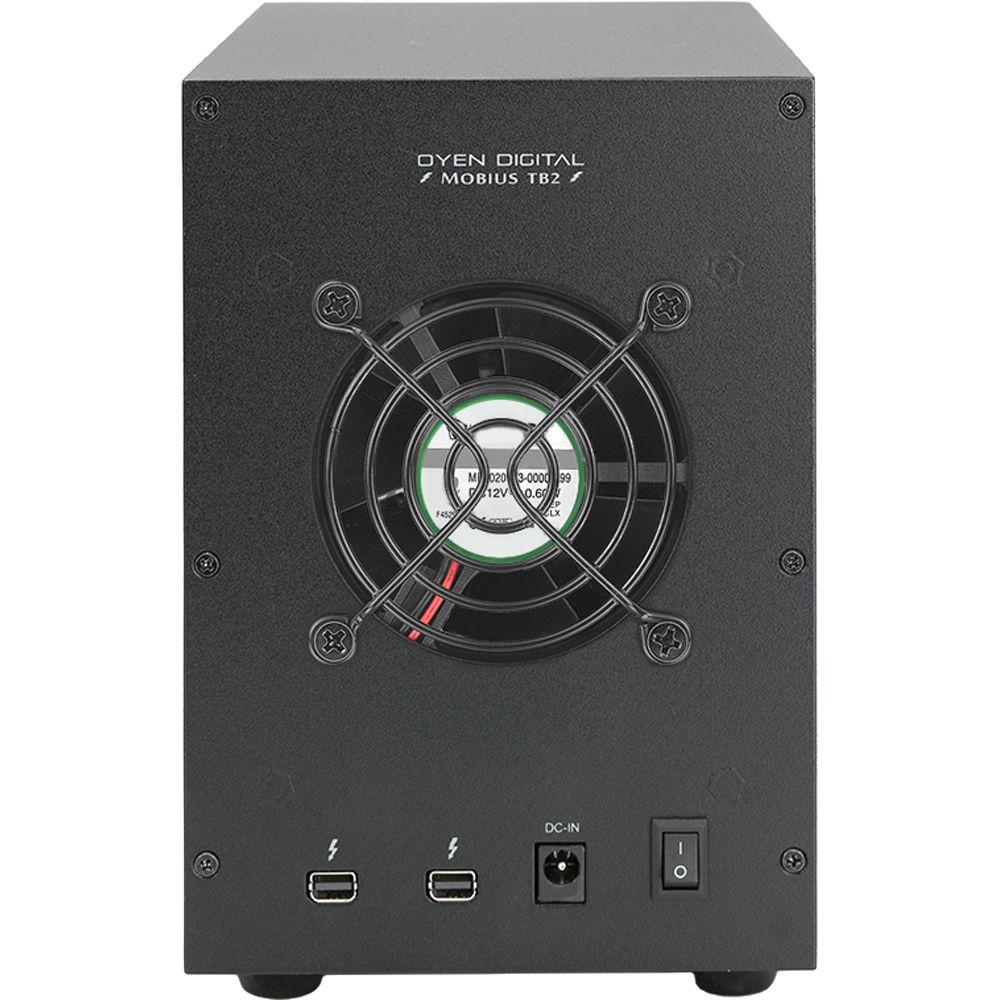

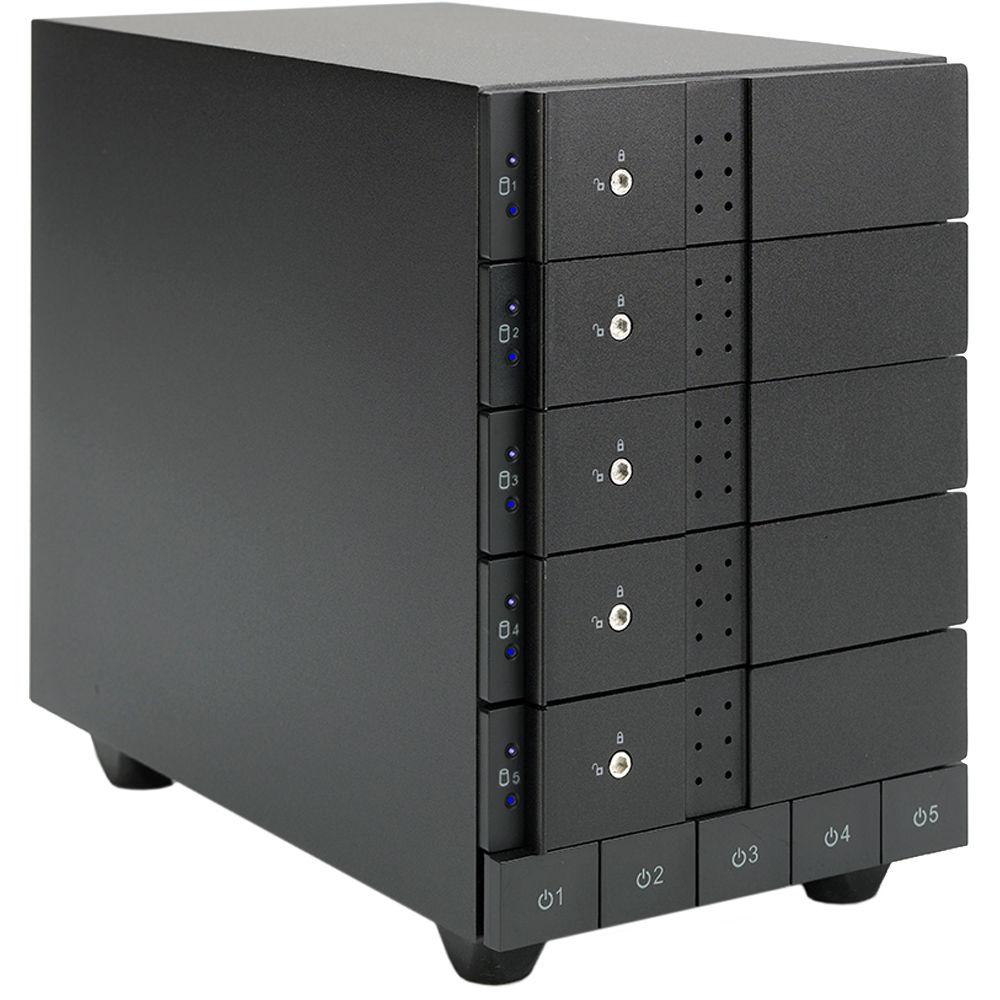

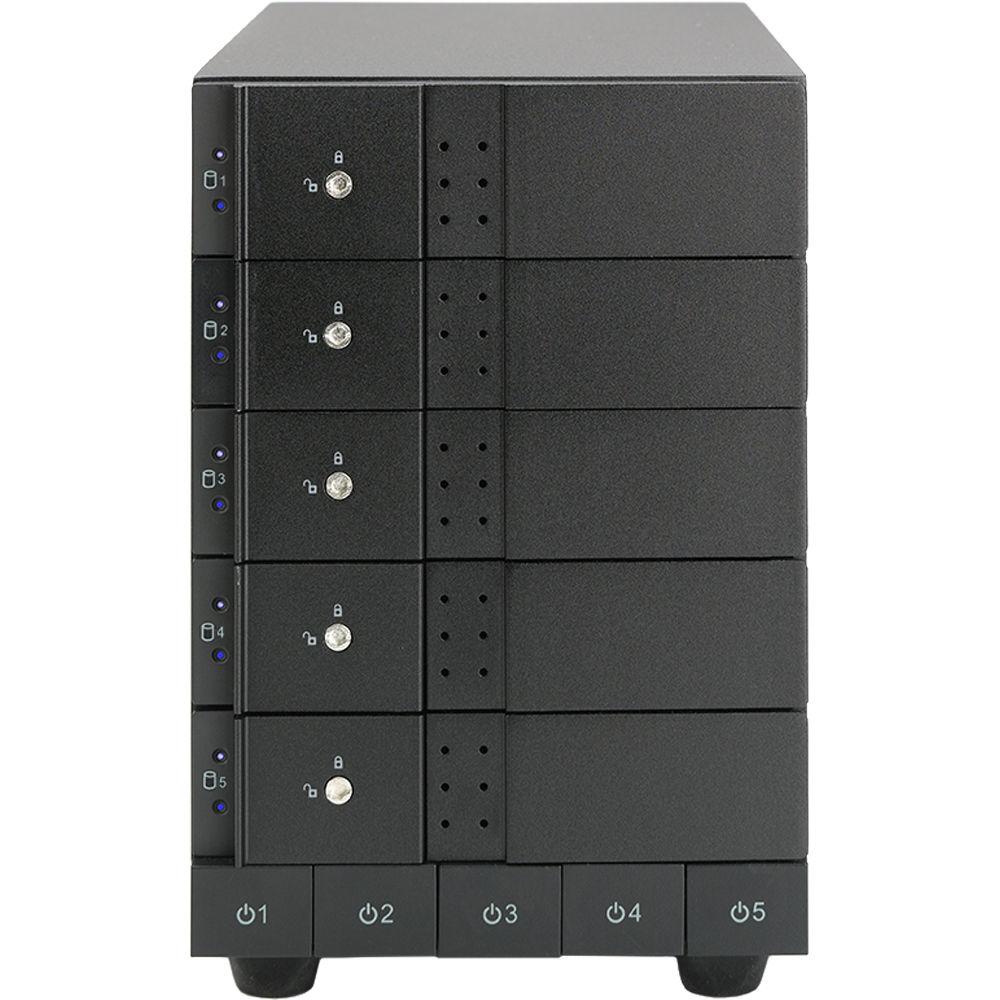

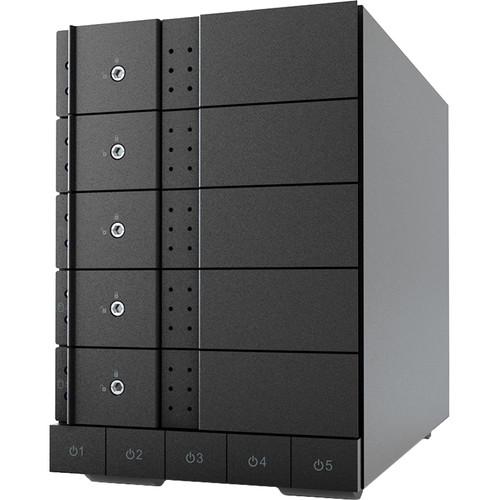

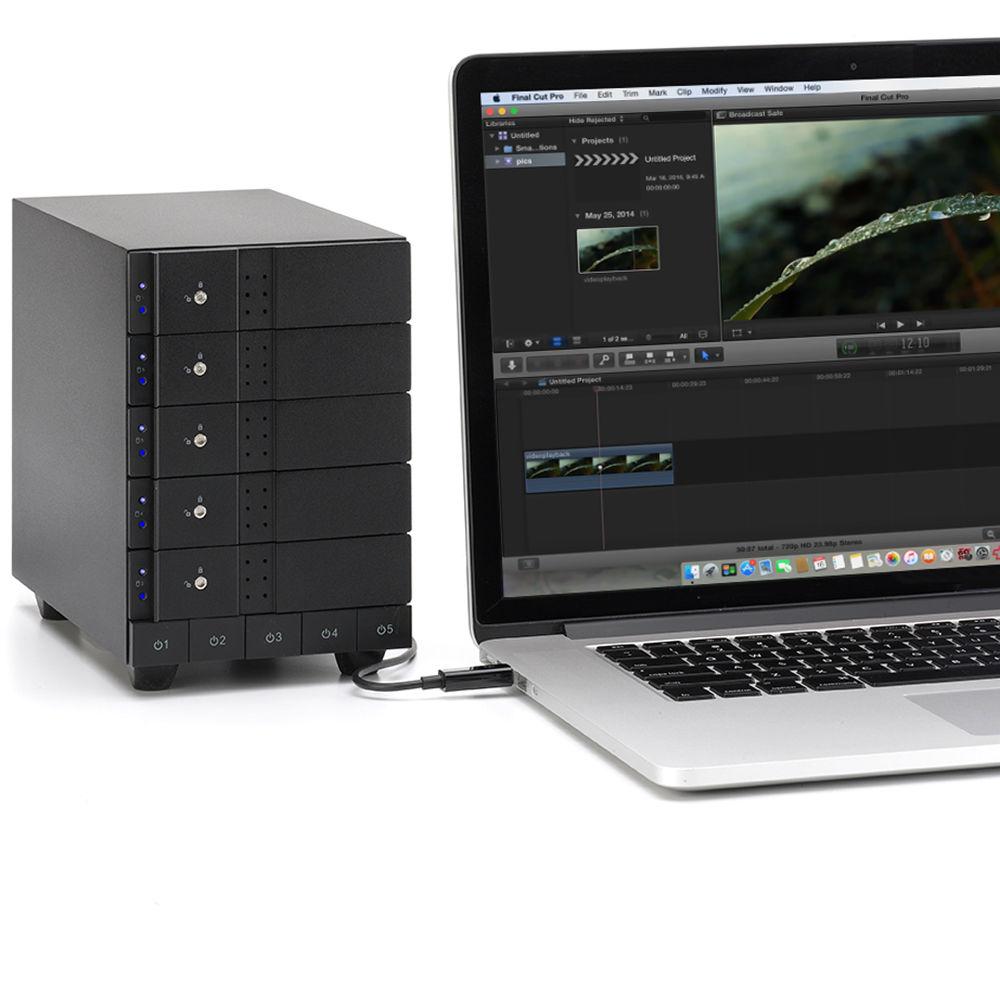

Product description RAID Arrays for Photography and Pro Video Read More The 60TB Mobius 5-Bay Thunderbolt 2 Enclosure from Oyen Digital is equipped with five 3.5"/2.5" SATA III drive bays that support hard drives and SSDs, as well as two Thunderbolt 2 ports which allow daisy-chaining with other Thunderbolt devices, including displays and external drives. It is designed for users who have demanding storage requirements.

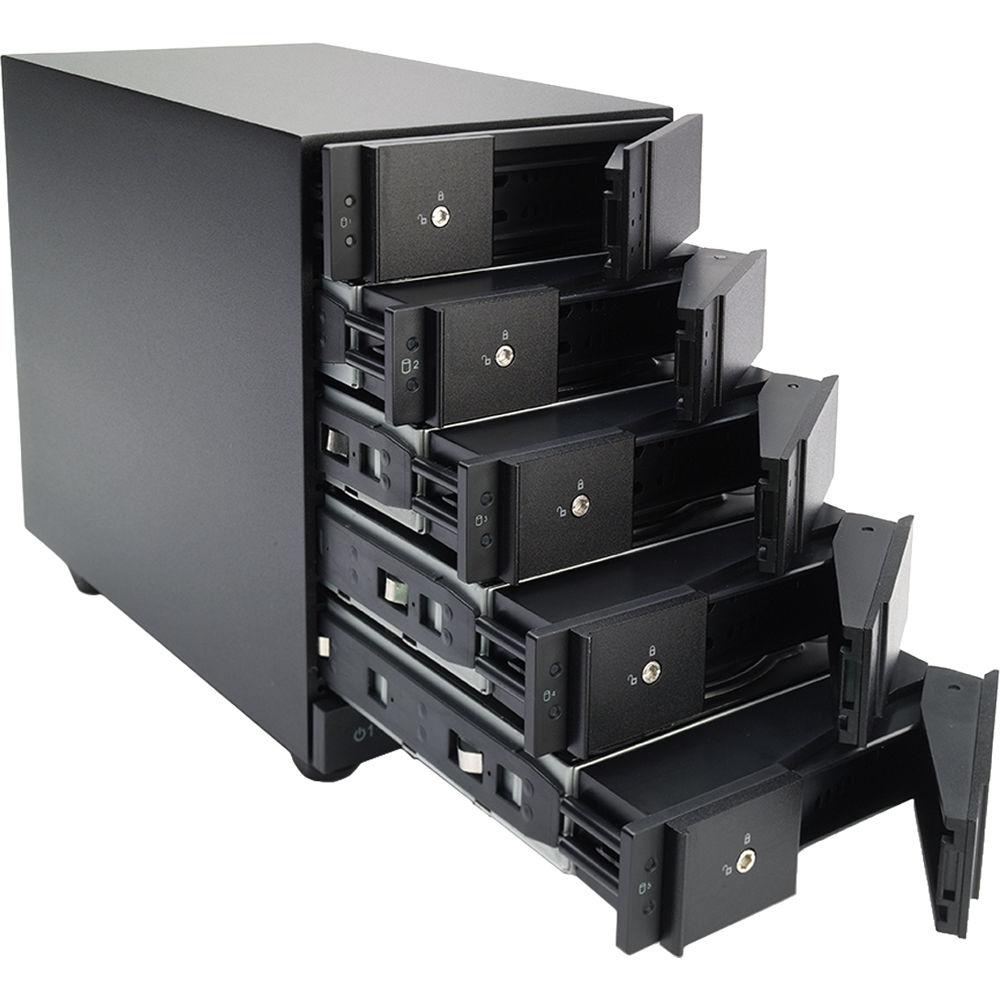

The Mobius' drive bays are removable and feature easy installation that is accomplished by sliding the handle to insert or withdraw each drive. While not designed as a hardware RAID, software RAIDs, such as SoftRAID, are supported. LEDs will display power, drive activity, and connection status, while the aluminum housing and 2000 rpm quiet fan help to efficiently dissipate heat and extend drive life. A secure key lock helps to avoid any accidental drive removal, while each drive bay features an independent power button, allowing them to be individually powered on and off.
The Mobius 5-Bay Thunderbolt 2 Enclosure includes a Thunderbolt cable, a power adapter, and a key set. It is protected by a limited 3-year warranty with free lifetime technical support. - Thunderbolt 2 interface for fast transfer speeds of up to 20 Gb/s
- Includes full version of SoftRAID for Mac. User configurable for RAID 0, 1, 4, 5 & 1+0
- Five removable trays for easy SSD and/or HDD installation
- Supports 3.5" or 2.5" SATA hard drives and solid-state drives
- LEDs for power, drive activity, and connection status
- Dissipates heat efficiently with an aluminum housing & quiet fan
- Secure key lock to avoid accidental drive removal
- Independent power buttons for each drive allows them to be powered on/off individually
In the Box Oyen Digital 60TB Mobius 5-Bay Thunderbolt 2 RAID with SoftRAID Thunderbolt Cable Power Adapter Key Set Free Lifetime Technical Support SoftRAID Full Version Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital 60TB Mobius 5-Bay Thunderbolt 2 RAID with SoftRAID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital Mobius Specs | | | Connections | 2 x Thunderbolt 2 (Mini DisplayPort) | | Drives Supported | 5 x 2.5/3.5" | | Drive Interface | SATA | | Form Factor | Not Specified by Manufacturer | | RAID Modes | 0, 0+1, 1, 5 | | | | Power Source | AC Adapter | | Wattage | Not Specified by Manufacturer | | AC Input Power Voltage | 100 to 240 VAC, 50 / 60 Hz | | | | Encryption | Not Specified by Manufacturer | | Security Features | Lockable Bay Door | | | | Material of Construction | Aluminum | | Cable Length | Not Specified by Manufacturer | | Cooling | 1 x 2000 rpm Fan | | Noise Level | 26 dBA | | Bridge Chipset | Intel DSL5520
ASMedia ASM1062 | | Monitoring | Not Specified by Manufacturer | | Dimensions | 4.6 x 6.8 x 8.5" / 11.7 x 17.3 x 21.6 cm | | Weight | Not Specified by Manufacturer |
