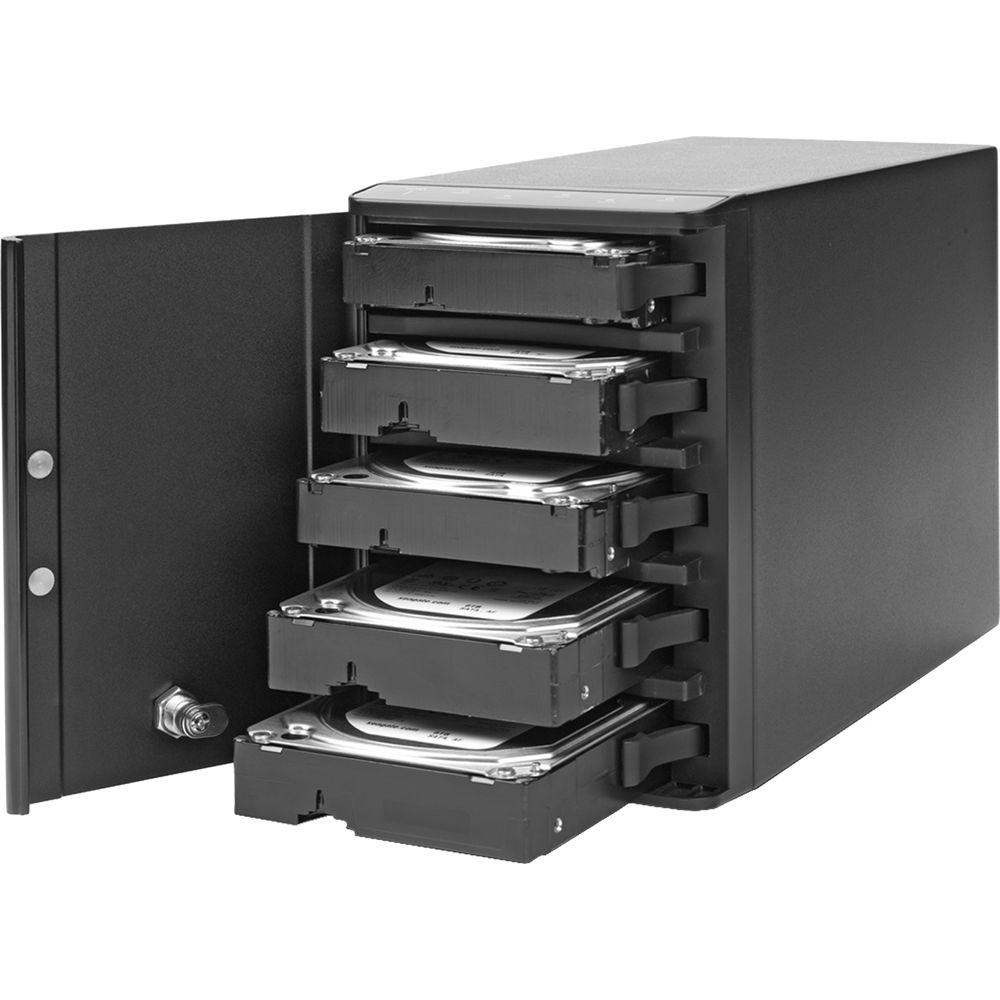

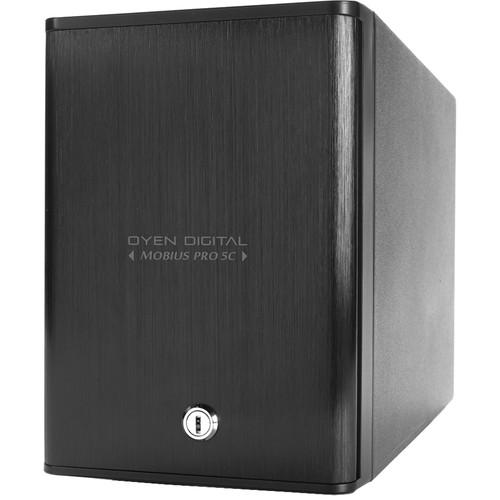

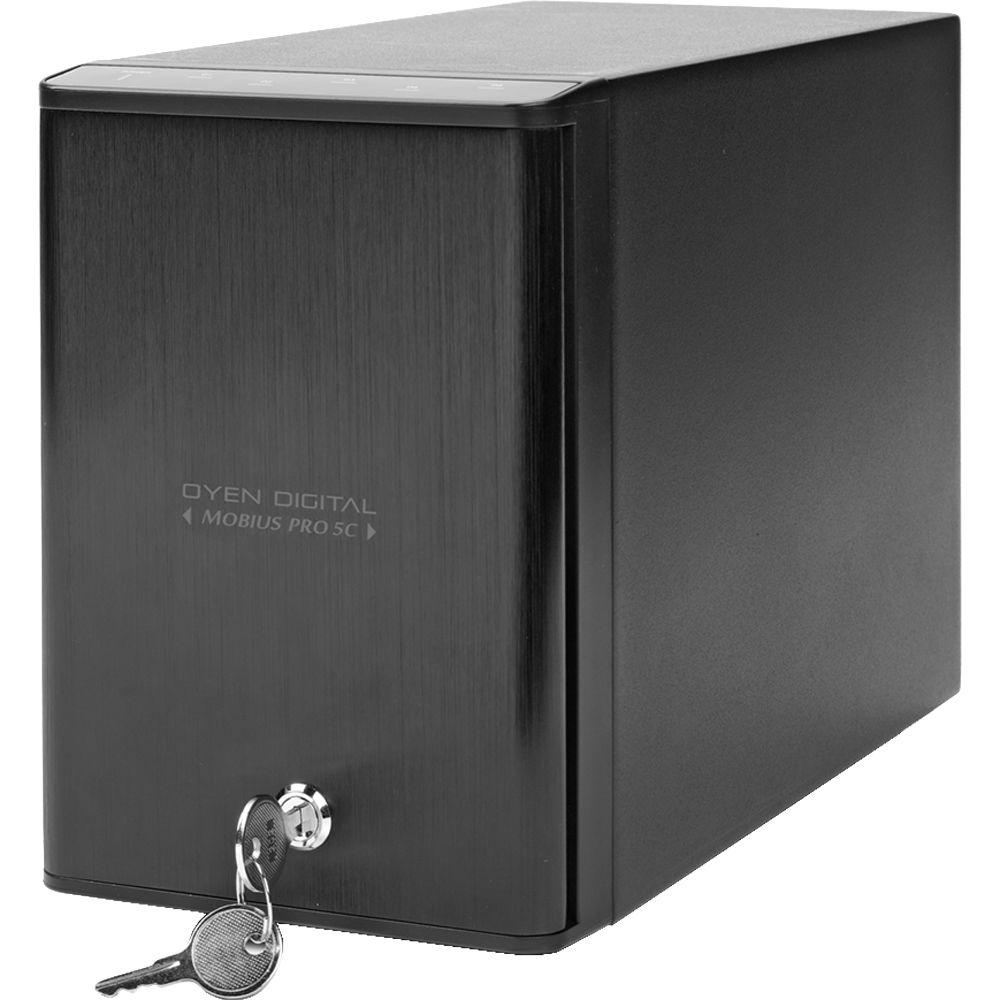

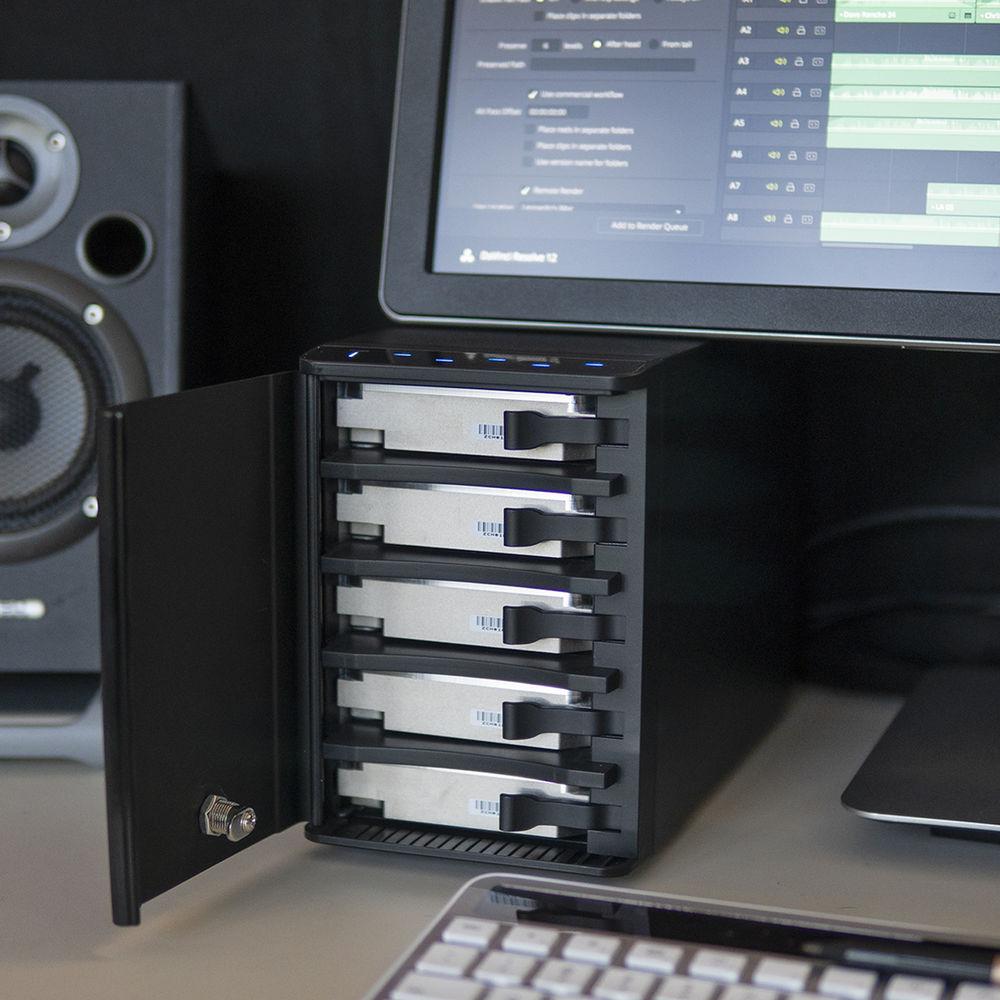

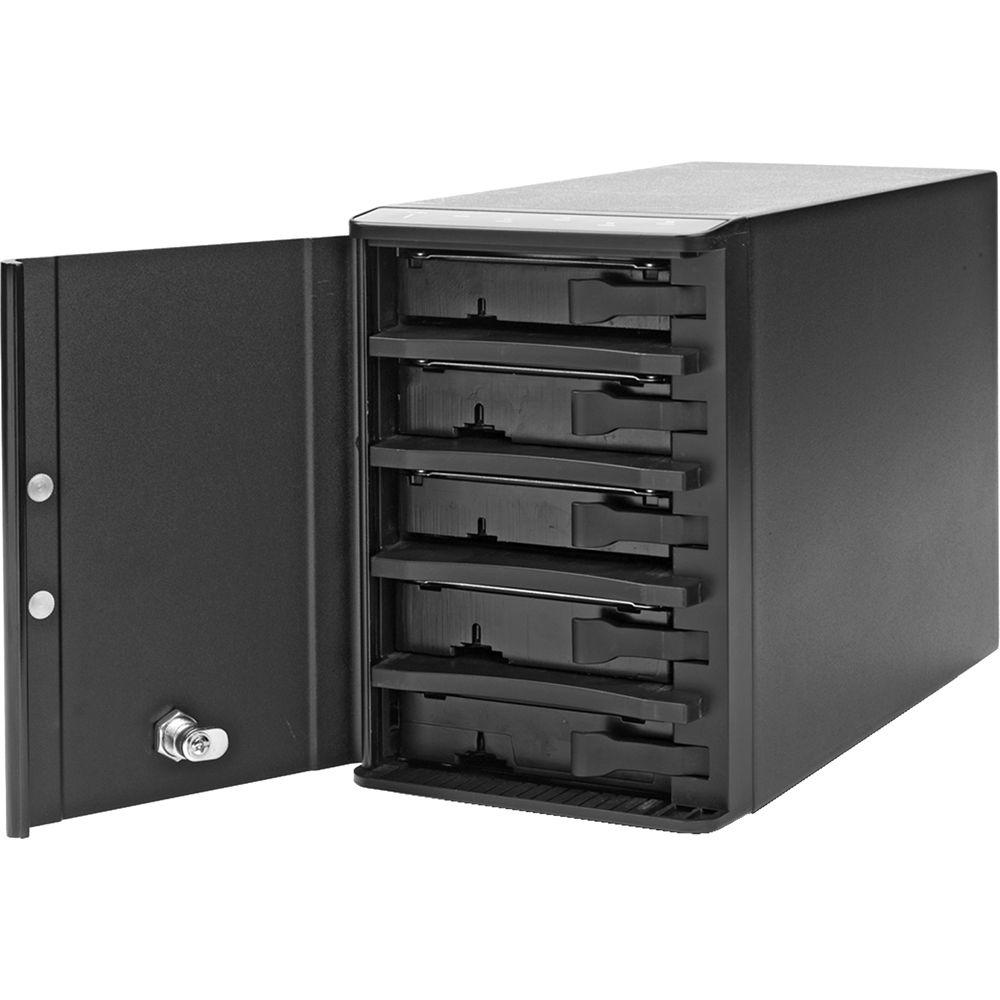

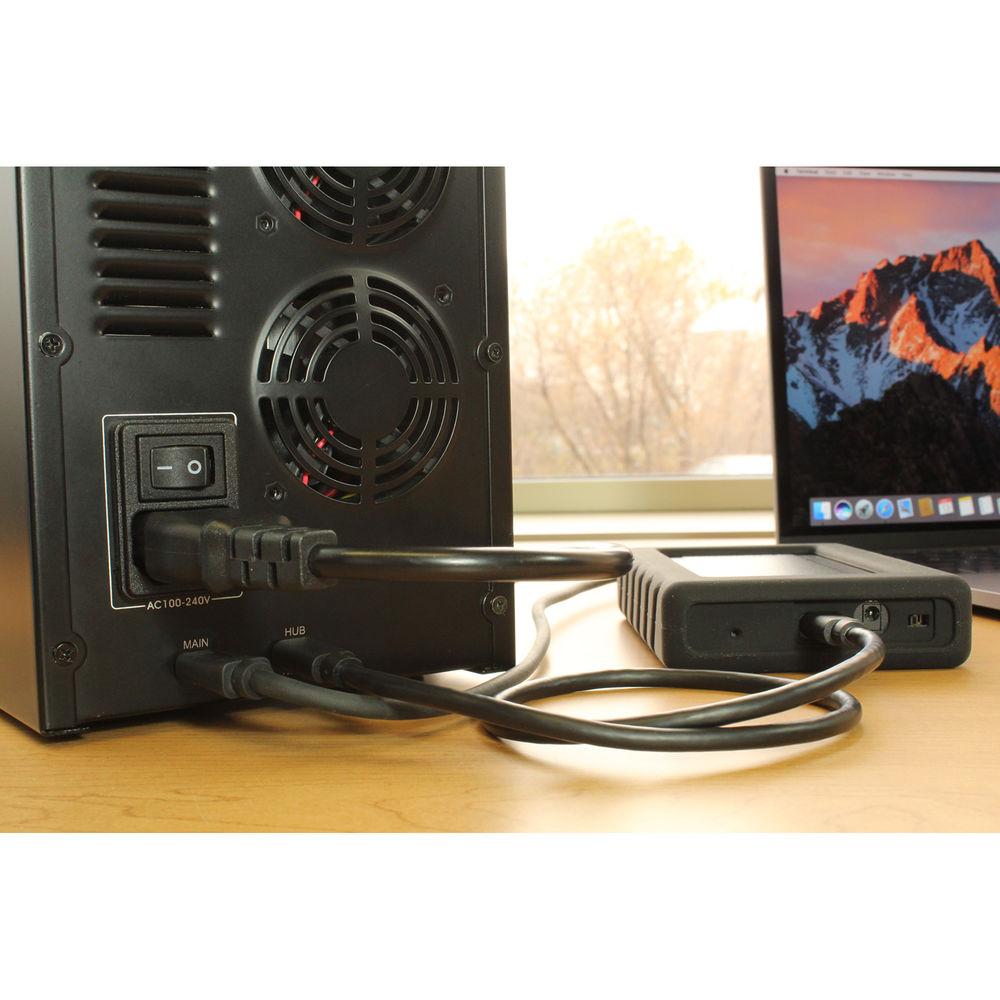

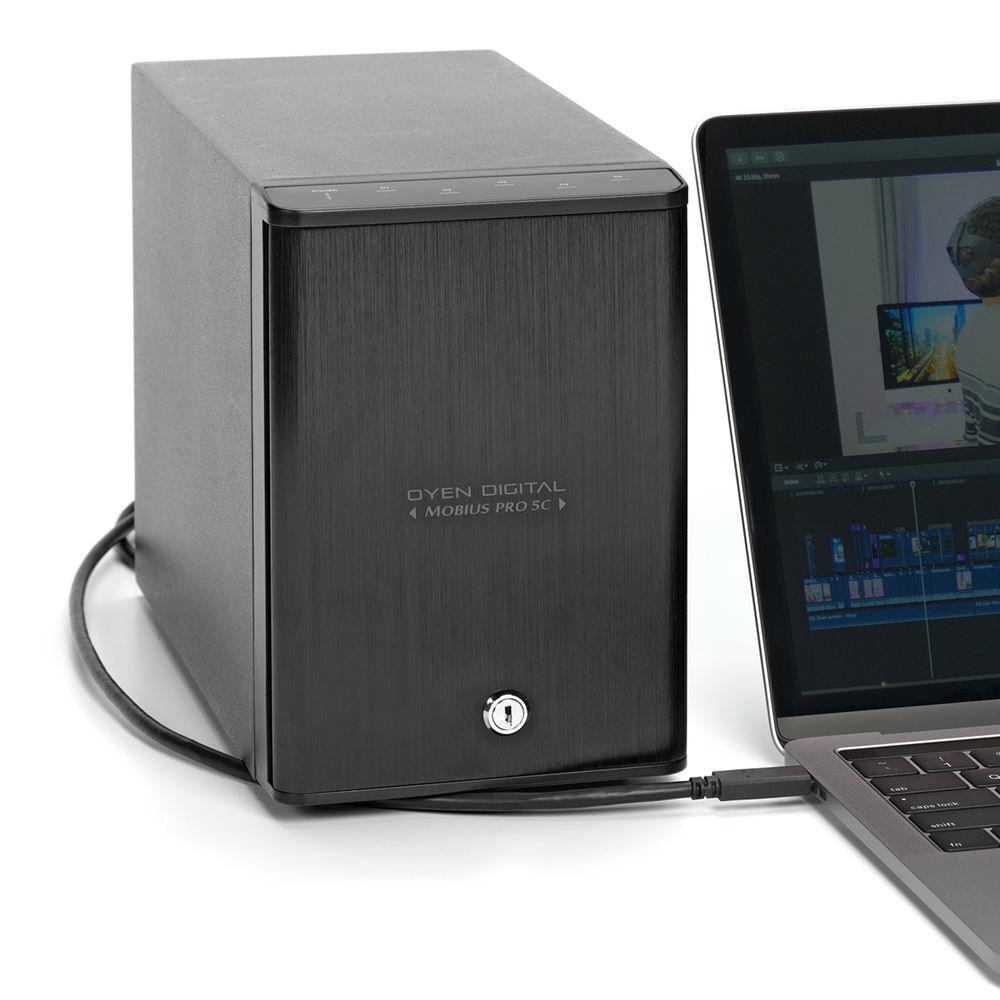

Product description RAID Arrays for Photography and Pro Video Read More Boost your data storage capacity with the 60TB Mobius Pro 5C 5-Bay USB-C External Drive Array from Oyen Digital. Equipped with five 12TB enterprise hard drives and a pair of internal cooling fans, the trayless Mobius Pro 5C allows you to insert and remove drives by simply pulling a lever, while the lockable bay door provides added security. Compatible with macOS, Windows, and Linux, the array features a USB 3.1 Gen 2 Type-C port that's compatible with Thunderbolt 3, while a USB 3.1 Gen 1 Type-C hub port lets you daisy-chain additional storage or USB devices. The array is compatible with RAID software applications such as Disk Utility for macOS, Storage Spaces for Windows, and SoftRAID. - Airflow and Cooling

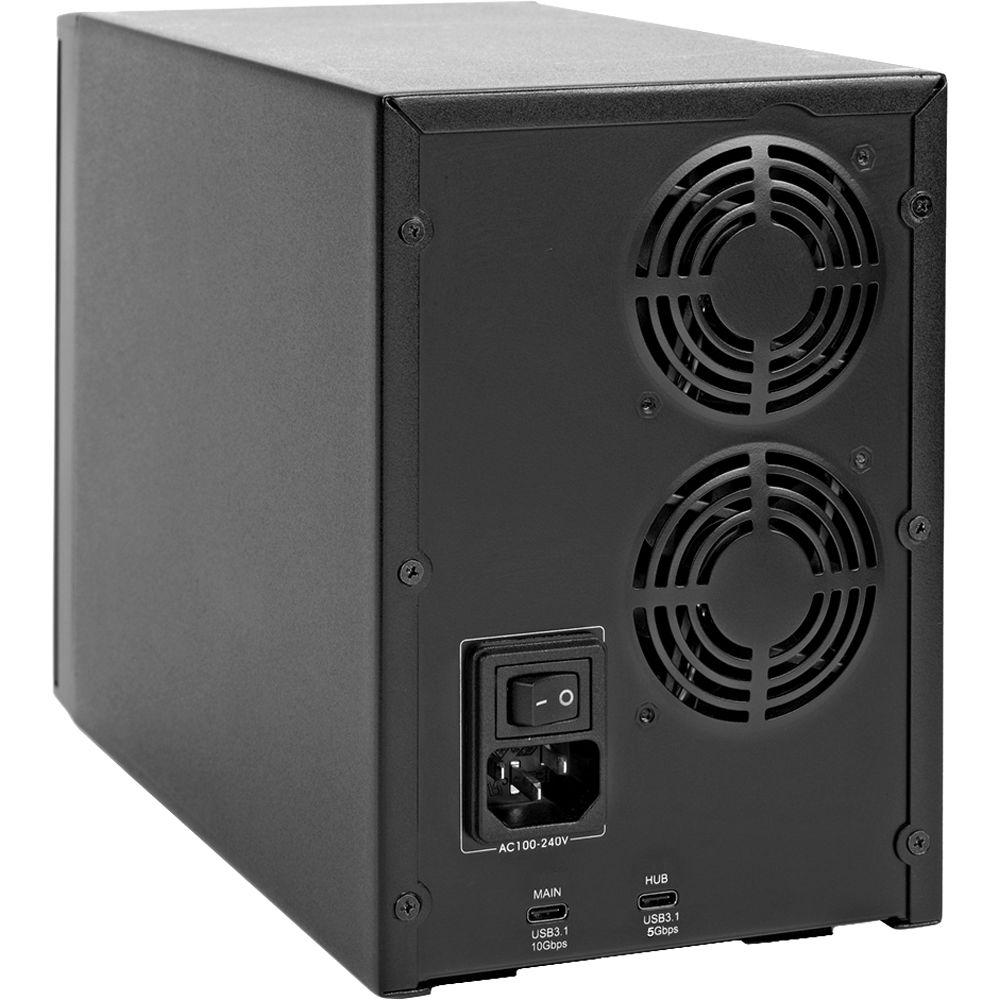

- Airflow is maximized due to the quiet dual fans that exhaust air away from the internal HDDs, enhancing internal air flow. The thermally efficient aluminum housing maintains optimal drive temperature, prolonging the life of the drives.
- Power
- The internal 150W power supply provides plenty of power for five HDDs as well as 15W of bus-power through the USB Type-C hub port for portable USB drives.
In the Box Oyen Digital 60TB Mobius Pro 5C 5-Bay USB-C External Drive Array USB Type-C to USB Type-C Cable USB Type-C to USB Type-A Cable Power Cable Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital 60TB Mobius Pro 5C 5-Bay USB-C External Drive Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital 3N5-C-60TB Specs | | | Number of Bays | 5 x 3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s))
1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s)) | | Form Factor | Desktop | | Operating System Support | Linux, Windows, macOS/OS X | | | | Total Raw Capacity | 60 TB (5 x 12 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 150 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Lockable Bay Door | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Certifications | CE, FCC, as per Manufacturer | | | | Material of Construction | Aluminum | | Cooling | 2 x Fans | | Noise Level | 13.8 dBA | | Bridge Chipset | ASMedia ASM1351
VIA VL820 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 10.5 x 5.1 x 7.4" / 266.7 x 129.5 x 188.0 mm |
