User Manual for Oyen Digital MiniPro 2.5" External Hard Drive Enclosure Click to enlarge the picture
Contents of the user manual for the Oyen Digital MiniPro 2.5" External Hard
- Product category: Hard Drive Enclosures & Docks Oyen Digital
- Brand: Oyen Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oyen Digital Hard Drive Enclosures & Docks
 |
User manual for the Oyen Digital MiniPro 2.5" External Hard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oyen Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oyen Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oyen Digital product will considerably shorten its lifespan!
|
Product description Compatible with Windows, Mac, and Linux, the MiniPro 2.5" External Hard Drive Enclosure from Oyen Digital is a portable enclosure for 2.5" hard drives and solid-state drives up to 15mm in height. This enclosure also has a thick metal body made from aluminum, which helps to provide increased protection and effective heat dissipation. It is equipped with both a 10 Gb/s micro-USB 3.1 Gen 2 port and a 6 Gb/s eSATA III port which are capable of delivering transfer speeds of up to 450 MB/s when paired with a solid-state drive. If your system doesn't have USB 3.1 Gen 2, which is also known as USB 3.1, the MiniPro is compatible with USB 3.1 Gen 1 (USB 3.0) and USB 2.0. Power is provided by the USB bus, or use the included AC adapter. Power can also be provided by an eSATAp port. General Features - 10 Gb/s USB 3.1 Gen 2 and 6 Gb/s eSATA III interfaces
- Integrated ASMedia 1351 & 1456 controller with UASP & TRIM
- Can be powered using the USB bus, an eSATAp port, or an AC adapter
- Backward compatible with USB 3.1 Gen 1 and USB 2.0
- Supports 2.5" SATA drives up to 15mm in height (note not support the 12V Seagate Constellation 15mm or WD Velociraptor)

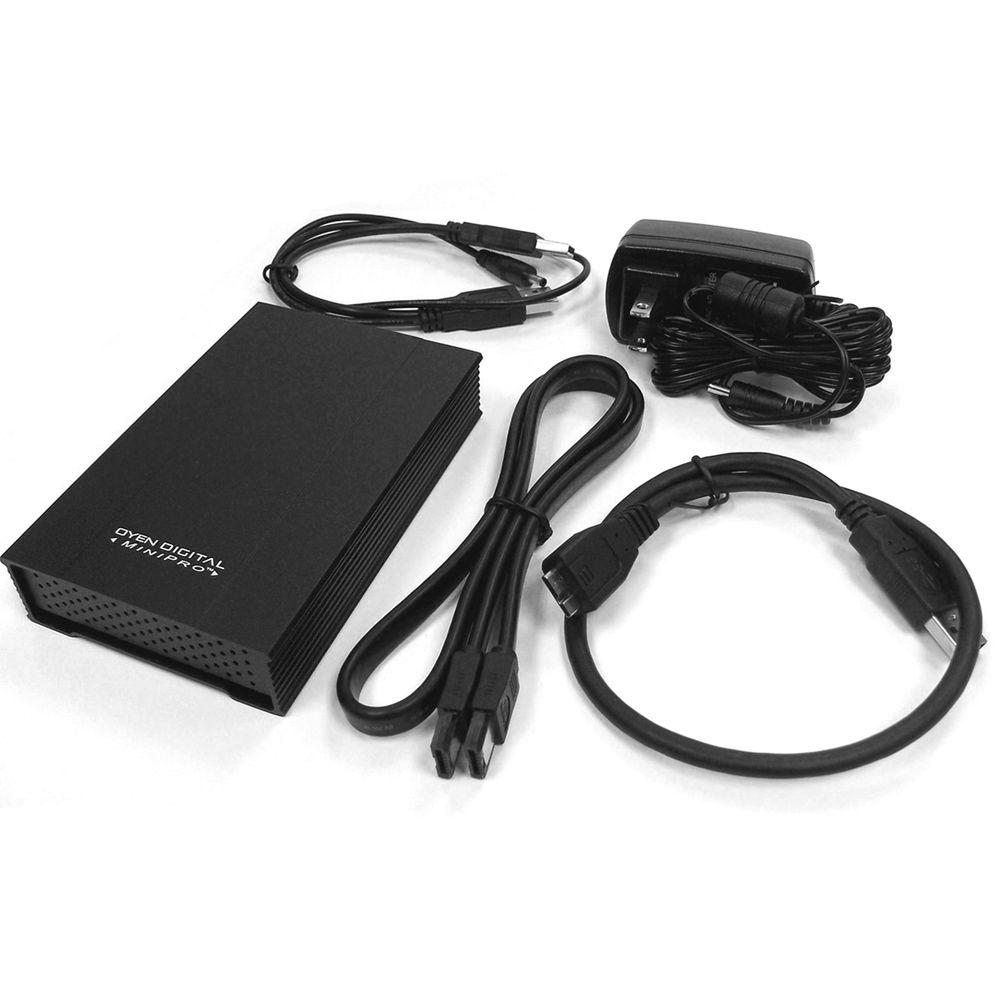

UPC: 855017006336 In the Box Oyen Digital MiniPro 2.5" External Hard Drive Enclosure (USB 3.1 Gen 2 & eSATA III) eSATA Cable Micro-USB to USB Type-A Cable DC to USB Power Cable AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital MiniPro 2.5" External Hard Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital E31M-BK Specs | | | Number of Bays | 1 x 2.5" | | Maximum 2.5" SATA Drive Height | 15 mm | | Connections | 1 x USB Micro-B (USB 3.1 Gen 2 (10 Gb/s))
1 x eSATA (SATA III (6 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Portable | | UASP Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | OS Compatibility | Windows 10
Windows 8
Windows 7
Windows Vista
Windows XP
macOS 10.4 or Later | | | | Power Source | AC Adapter, SATA, USB | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 90% | | | | Material of Construction | Aluminum | | Bridge Chipset | ASMedia 1351 (USB)
ASMedia 1456 (eSATA) | | Dimensions (W x H x D) | 4.9 x 3.2 x 1.0" / 12.4 x 8.1 x 2.5 cm | | Weight | 10 oz / 284 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.7 x 6.3 x 1.6" |
