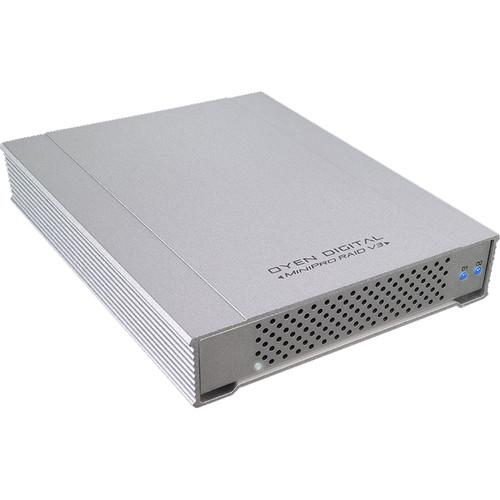

Product description RAID Arrays for Photography and Pro Video Read More The MiniPro RAID V3 10TB 2-Bay USB 3.1 Type-C RAID Array from Oyen Digital sports a USB 3.1 Type-C port, as well as two 5TB 2.5" / 15mm hard drives to provide a total capacity of 10TB for your Windows, Mac, and Linux systems. The drives spin at a rate of up to 5400 rpm and offer 128MB of cache. The onboard USB 3.1 Gen 2 port delivers speeds of up to 10 Gb/s and features a reversible connection, which lets you connect on the first try, and is also compatible with the Thunderbolt 3 interface. To maximize compatibility with your devices, Oyen Digital includes both a USB Type-C to Type-C cable and a USB Type-C to Type-A cable.

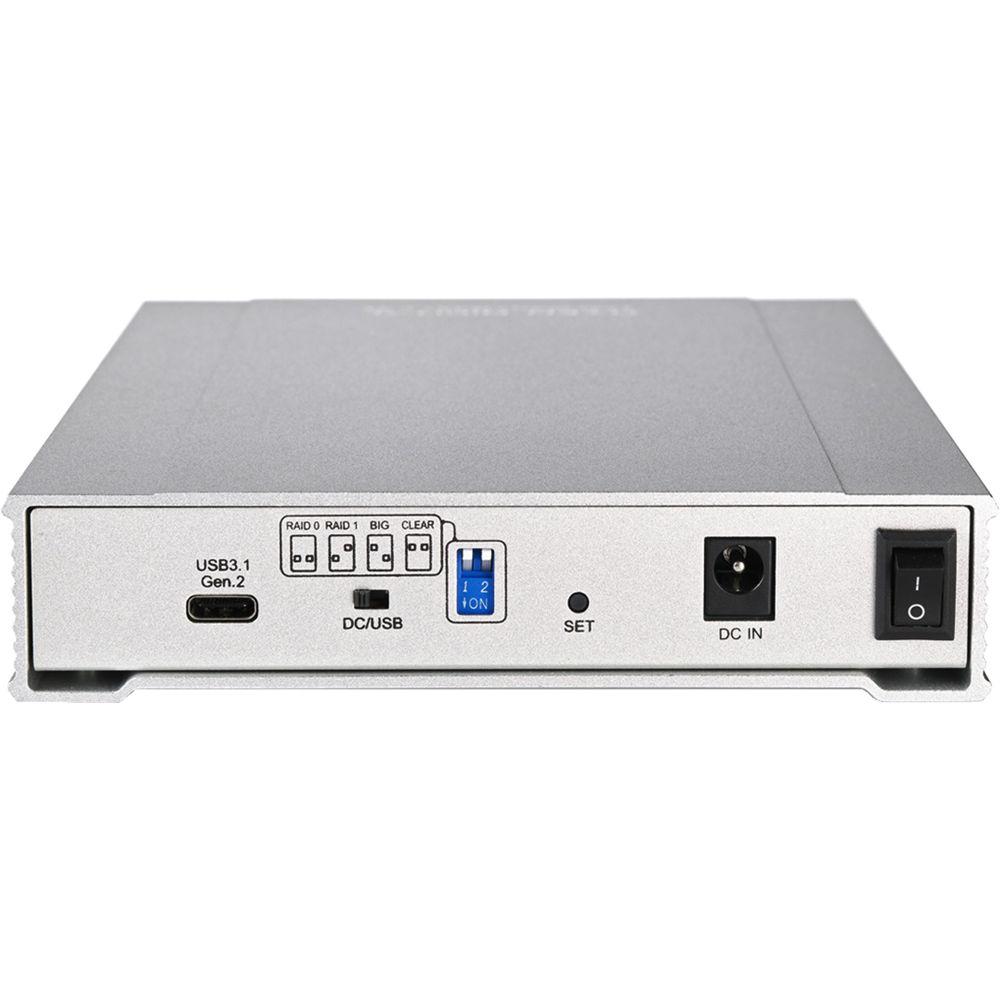

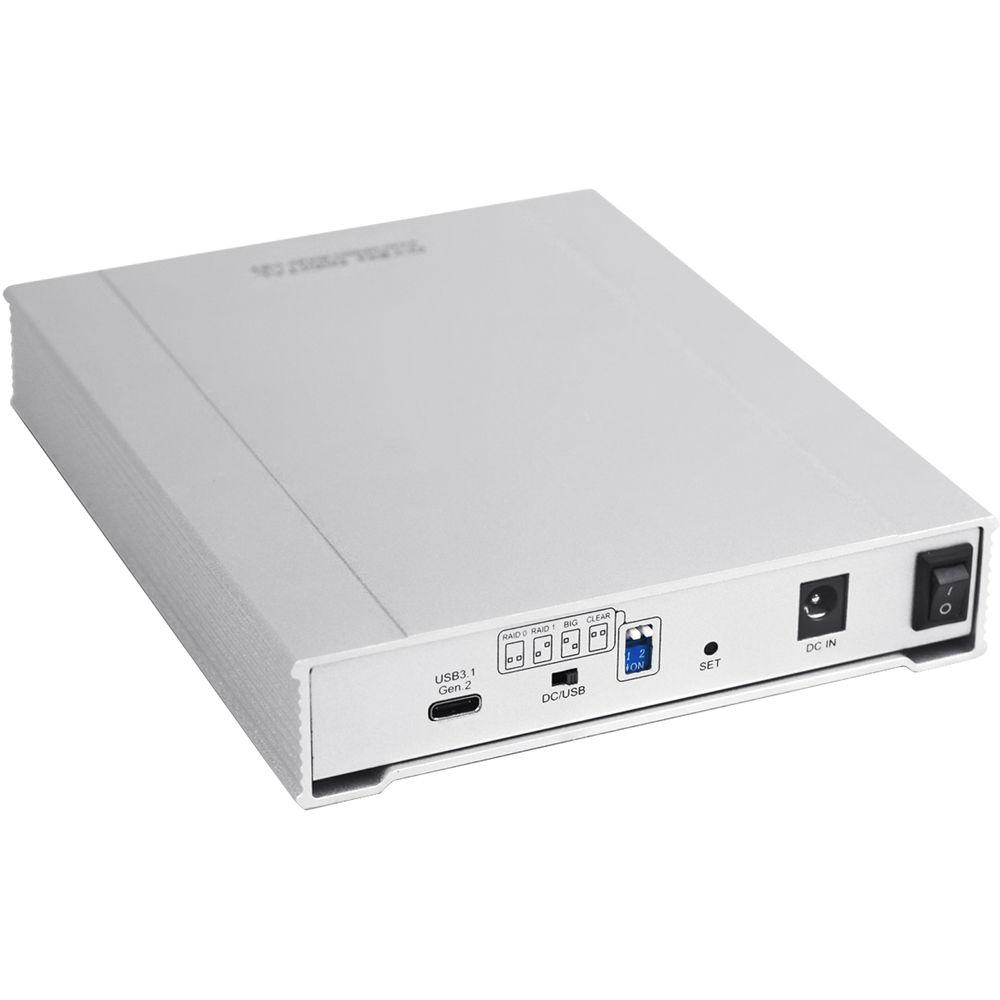

The fanless MiniPro RAID V3 supports RAID 0 (striping), RAID 1 (mirroring), JBOD (independent disks), and Span (non-RAID merged drives) modes. When the drives are set in RAID 0, the MiniPro is able to deliver reads of up to 226 MB/s and writes of up to 245.5 MB/s. This array is pre-formatted as exFAT and pre-configured in JBOD mode. You can switch between the different modes by using the integrated mode switches on the back of the array. General Features - USB 3.1 Type-C port with 10 Gb/s speeds (compatible with Thunderbolt 3)
- Bus-powered or external adapter power (included)
- Configurable hardware RAID controller for JBOD, RAID 0, RAID 1, and BIG modes
- Aluminum housing provides protection and heat dissipation
- LED indicators provide system status
- Power management technology: If the computer goes to sleep, the MiniPro will follow.
UPC: 855017006282 In the Box Oyen Digital MiniPro RAID V3 10TB 2-Bay USB 3.1 Type-C RAID Array (2 x 5TB) USB Type-C to Type-C Cable USB Type-C to Type-A Cable Package of Screws Screwdriver Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital MiniPro RAID V3 10TB 2-Bay USB 3.1 Type-C RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital V3 Specs | | | Number of Bays | 2 x 2.5" | | Maximum 2.5" SATA Drive Height | 15 mm | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 226 MB/s (Read in RAID 0)
245.5 MB/s (Write in RAID 0) | | RAID Modes | RAID 0, 1, JBOD, Single | | Operating System Support | Linux, Windows, macOS/OS X | | OS Compatibility | Windows 7 or Later
macOS 10.6 or Later
Linux 3.13 or Later | | | | Total Raw Capacity | 10 TB (2 x 5 TB) | | Type | Hard Disk Drive | | Rotational Speed | 5400 rpm | | Cache Memory per Drive | 128 MB | | Initial RAID Configuration | None | | Pre-Format | exFAT | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | CE, FCC, as per Manufacturer | | | | Material of Construction | Aluminum | | Bridge Chipset | ASMedia ASM1352R | | Dimensions (W x H x D) | 6.5 x 5.1 x 1.1" / 16.5 x 13.0 x 2.8 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.9 x 5.9 x 2.6" |
