User Manual for Oyen Digital MiniPro RAID V3 8TB 2-Bay USB 3.1 Type-C RAID Array Click to enlarge the picture
Contents of the user manual for the Oyen Digital MiniPro RAID V3 8TB
- Product category: Hard Drive Arrays Oyen Digital
- Brand: Oyen Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oyen Digital Hard Drive Arrays
 |
User manual for the Oyen Digital MiniPro RAID V3 8TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oyen Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oyen Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oyen Digital product will considerably shorten its lifespan!
|

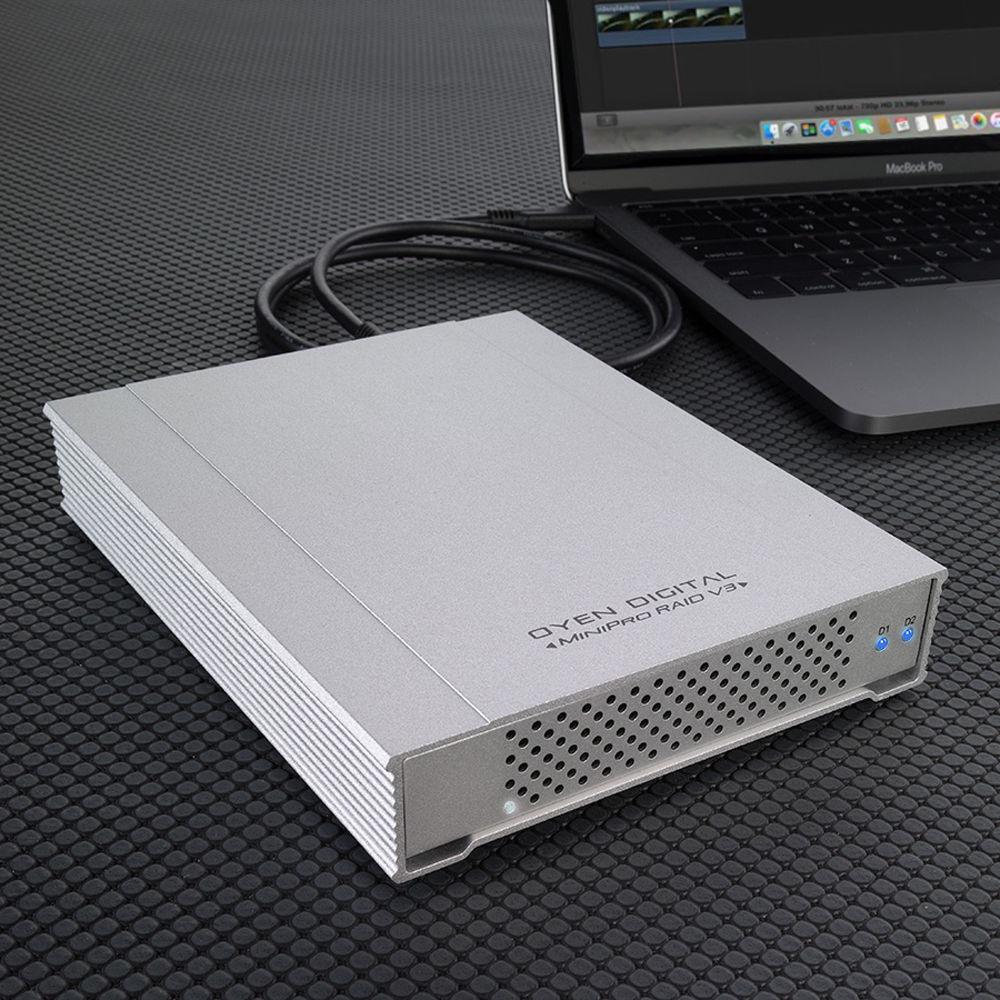

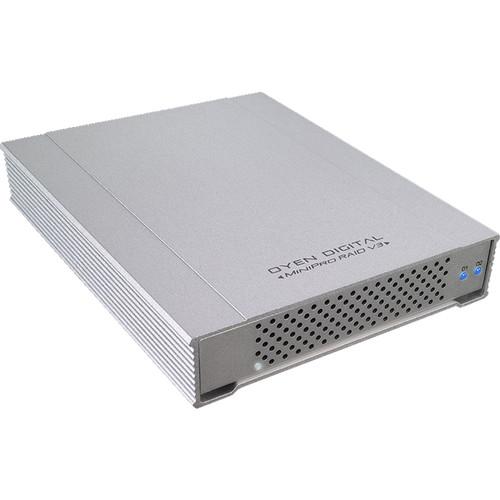

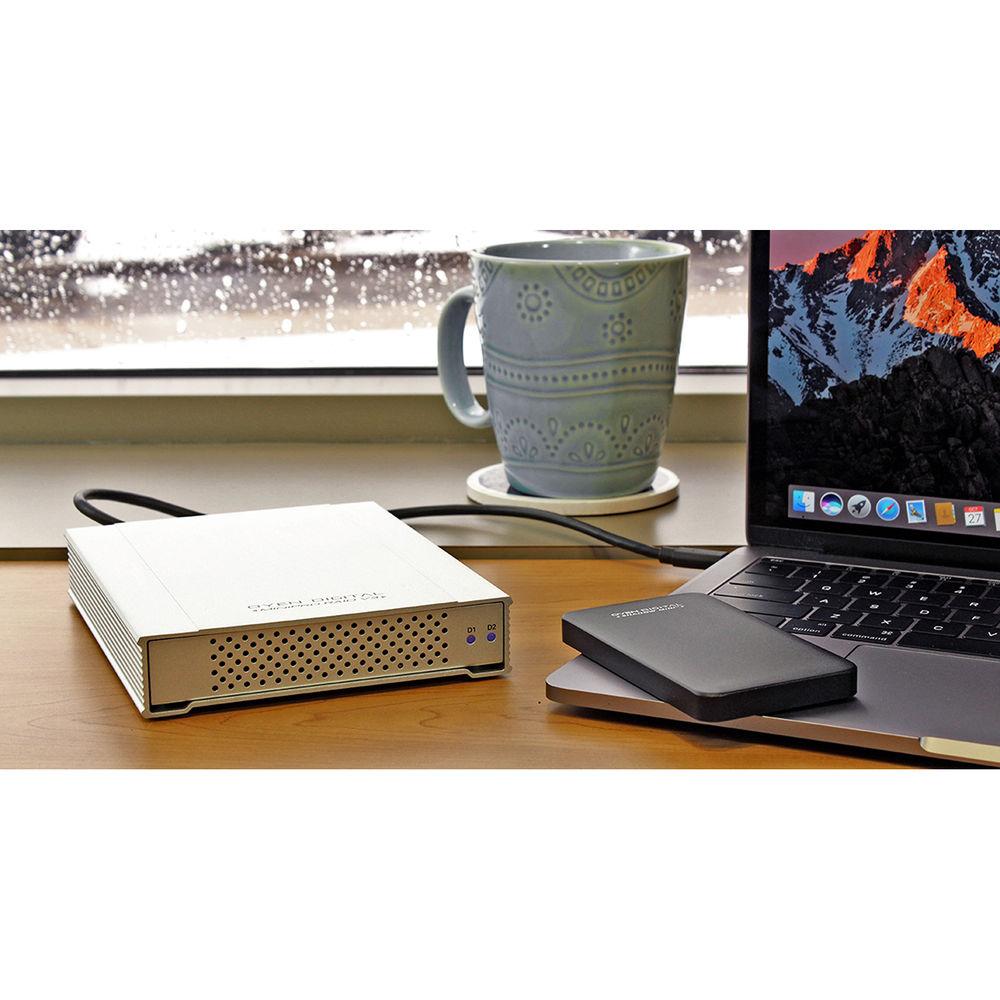

Product description RAID Arrays for Photography and Pro Video Read More The MiniPro RAID V3 8TB 2-Bay USB 3.1 Type-C RAID Array from Oyen Digital sports a USB 3.1 Type-C port, as well as two 4TB 2.5" / mm SSDs to provide a total capacity of 8TB for your Windows, Mac, and Linux systems. The drives are equipped with solid-state technology that provides faster access to your files when compared to a traditional spinning disk. The onboard USB 3.1 Gen 2 port delivers speeds of up to 10 Gb/s and features a reversible connection, which lets you connect on the first try, and is also compatible with the Thunderbolt 3 interface. To maximize compatibility with your devices, Oyen Digital includes both a USB Type-C to Type-C cable and a USB Type-C to Type-A cable.

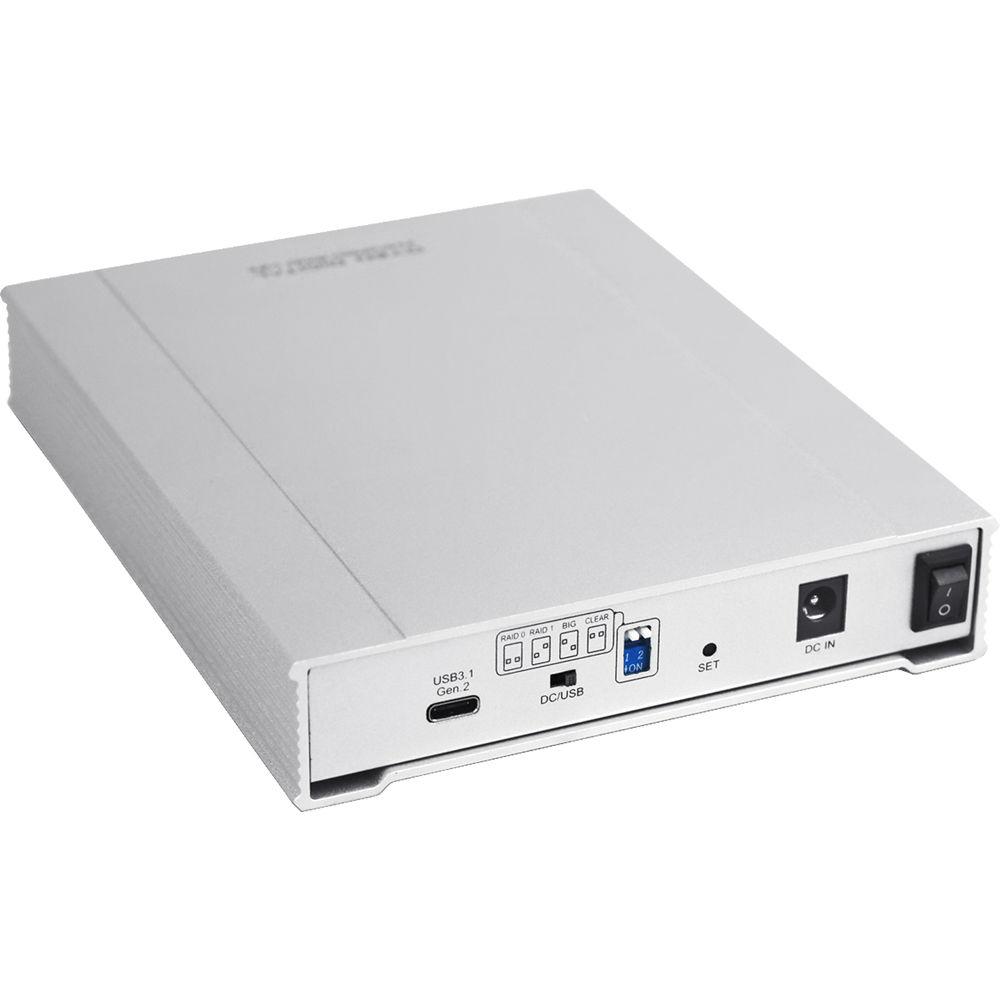

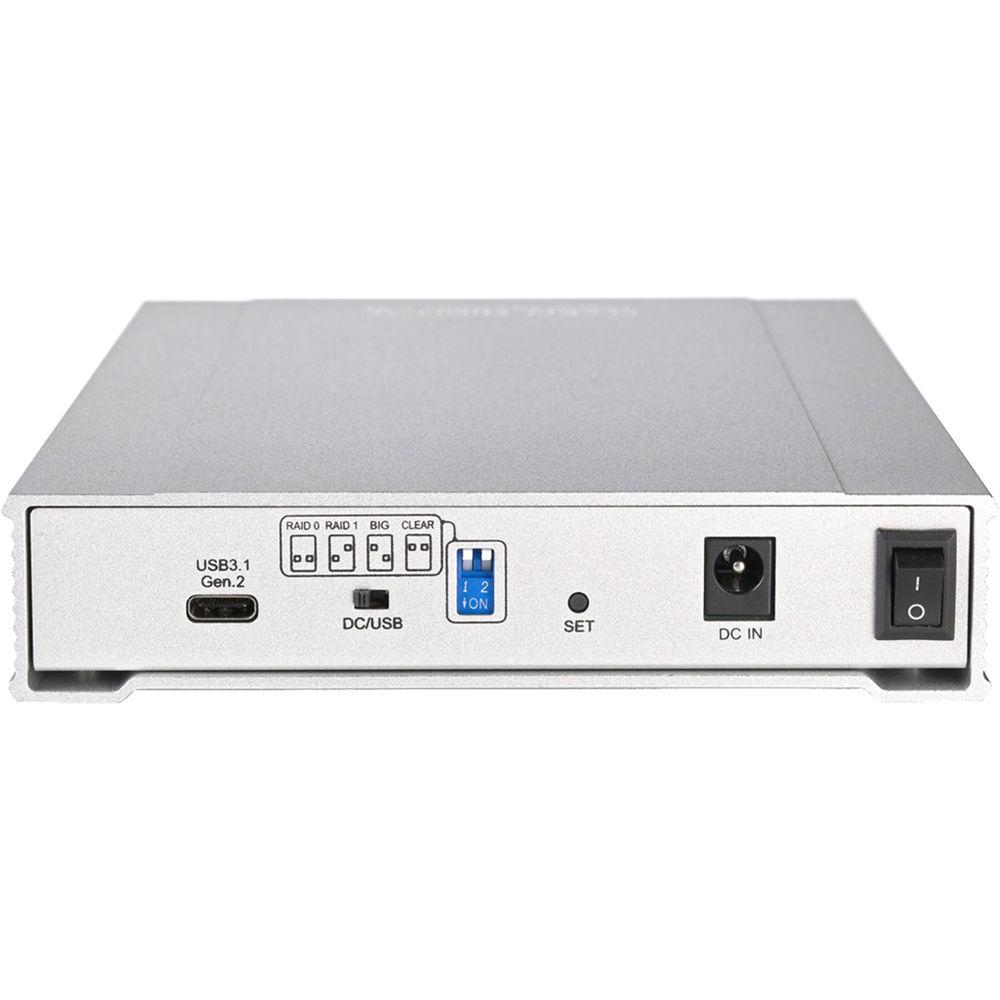

The fanless MiniPro RAID V3 supports RAID 0 (striping), RAID 1 (mirroring), JBOD (independent disks), and Span (non-RAID merged drives) modes. When the drives are set in RAID 0, the MiniPro is able to deliver reads of up to 814.2 MB/s and writes of up to 862.1 MB/s. This array is pre-formatted as exFAT and pre-configured in JBOD mode. You can switch between the different modes by using the integrated mode switches on the back of the array. General Features - USB 3.1 Type-C port with 10 Gb/s speeds (compatible with Thunderbolt 3)
- Bus-powered or external adapter power (included)
- Configurable hardware RAID controller for JBOD, RAID 0, RAID 1, and BIG modes
- Aluminum housing provides protection and heat dissipation
- LED indicators provide system status
- Power management technology: If the computer goes to sleep, the MiniPro will follow.
In the Box Oyen Digital MiniPro RAID V3 8TB 2-Bay USB 3.1 Type-C RAID Array (2 x 4TB) USB Type-C to Type-C Cable USB Type-C to Type-A Cable Package of Screws Screwdriver Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital MiniPro RAID V3 8TB 2-Bay USB 3.1 Type-C RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital MiniPro RAID V3 Specs | | | Number of Bays | 2 x 2.5" | | Maximum 2.5" SATA Drive Height | 15 mm | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 814 MB/s (Read in RAID 0)
862 MB/s (Write in RAID 0) | | RAID Modes | RAID 0, 1, JBOD, Single | | Operating System Support | Linux, Windows, macOS/OS X | | OS Compatibility | Windows 7 or Later
macOS 10.6 or Later
Linux 3.13 or Later | | | | Total Raw Capacity | 8 TB (2 x 4 TB) | | Type | Solid-State Drive | | Initial RAID Configuration | None | | Pre-Format | exFAT | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 to 80% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 90% | | Certifications | CE, FCC, as per Manufacturer | | | | Material of Construction | Aluminum | | Bridge Chipset | ASMedia ASM1352R | | Dimensions (W x H x D) | 6.5 x 5.1 x 1.1" / 16.5 x 13.0 x 2.8 cm | | Weight | 3 lb / 1.4 kg |
