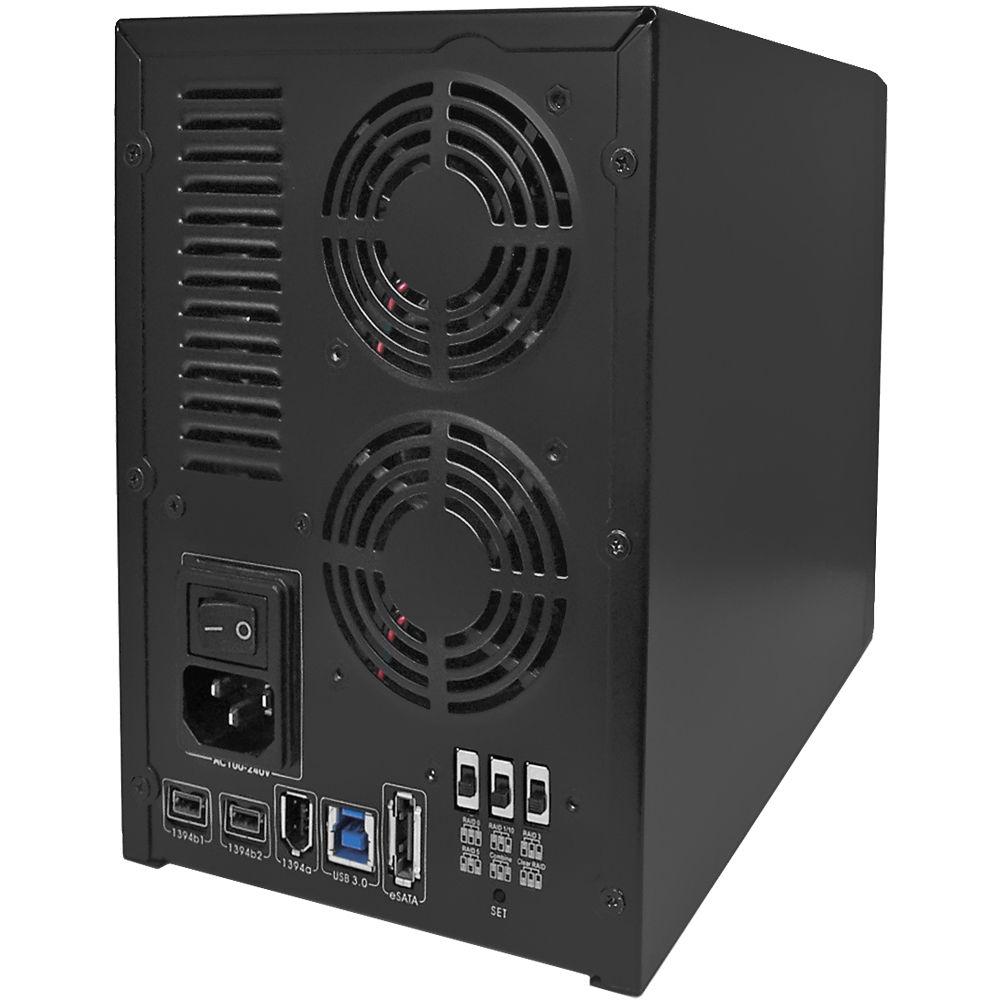

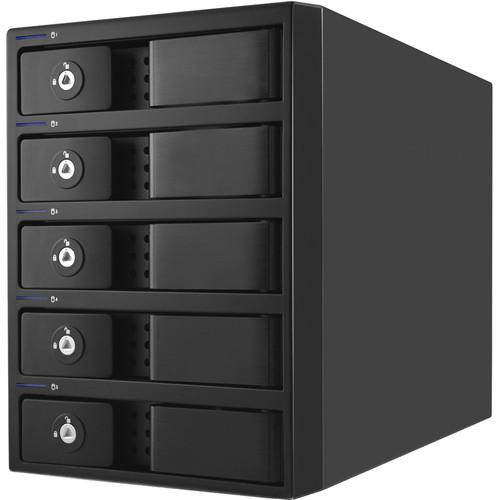

Product description The Mobius 5-Bay FireWire 800/eSATA/USB 3.0 RAID Enclosure from Oyen Digital is a powerful RAID storage management device with flexible connectivity and easy HDD access. It offers flexible RAID storage management options including RAID 0 (striping), RAID 1 (mirroring), RAID 10, RAID 3, RAID 5, JBOD (five independent disks) and Combine (span). The LED indicators provide easy verification of operating status and drive health/activity. The tray-less design provides a simple way of HDD removal and installation by simply pulling the handle to insert or withdraw the HDDs. Airflow is maximized due to the high quality, quiet fans that exhaust air away from the internal HDDs, enhancing internal airflow. The thermally efficient aluminum also maintains optimal HDD operating temperature, prolonging the life of the HDDs. Furthermore, the enclosure features powerful storage management. You can simply insert HDDs,set the RAID mode via the mode switch, connect the cables, and turn on the power for massive storage capacity, redundancy or instant real-time backups.
Note:Only enterprise-level drives should be used in this unit. Consumer-level drives may inhibit performance. - USB 3.0/FireWire 800/eSATA interface
- Supports up to five 3.5" SATA HDDs (enterprise drives recommended)
- Supports SATA hard drives and solid-state drives with up to 6 Gb/s transfer rates
- Configures RAID modes easily using mode switches
- Provides JBOD (default, non-RAID), RAID 0 (striping), RAID 1 (mirroring), RAID 10, RAID 3, RAID 5, and Combine
- Includes two FireWire 800 ports for flexibility via daisy chain

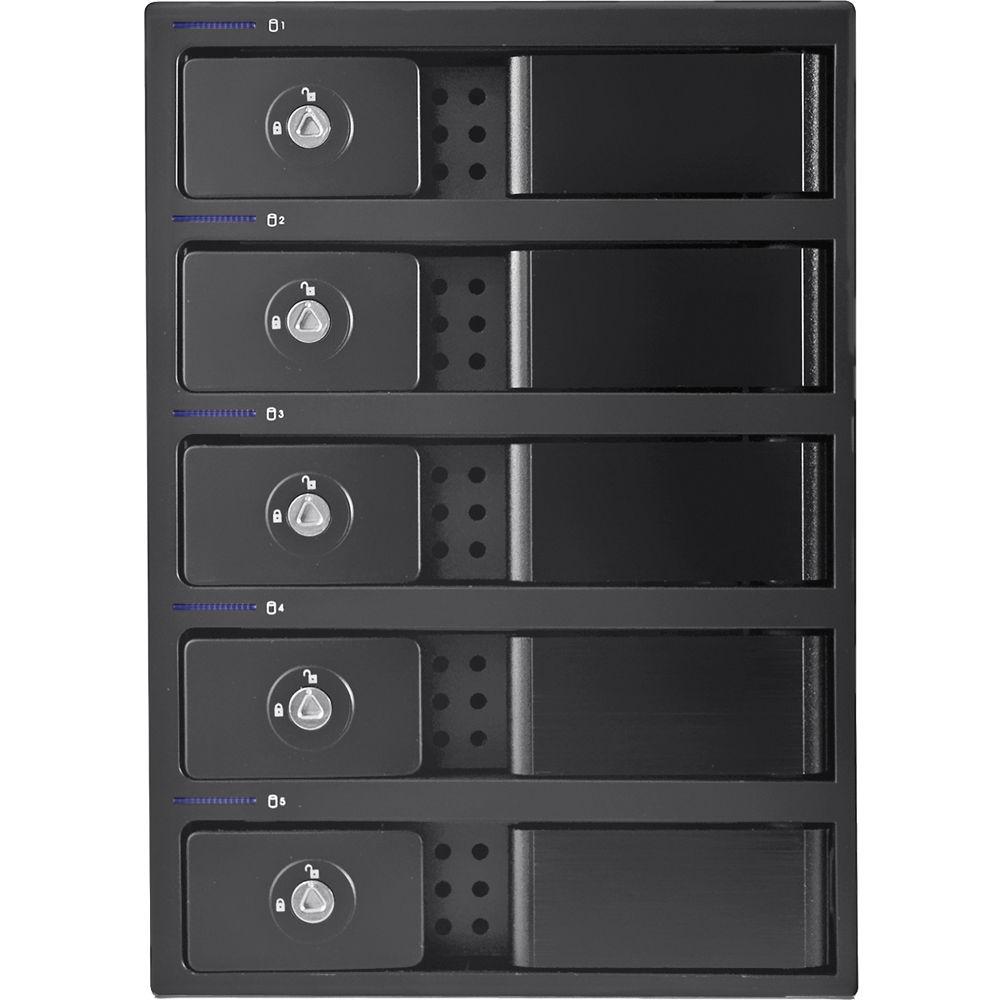

- Monitors system status via LED indicators

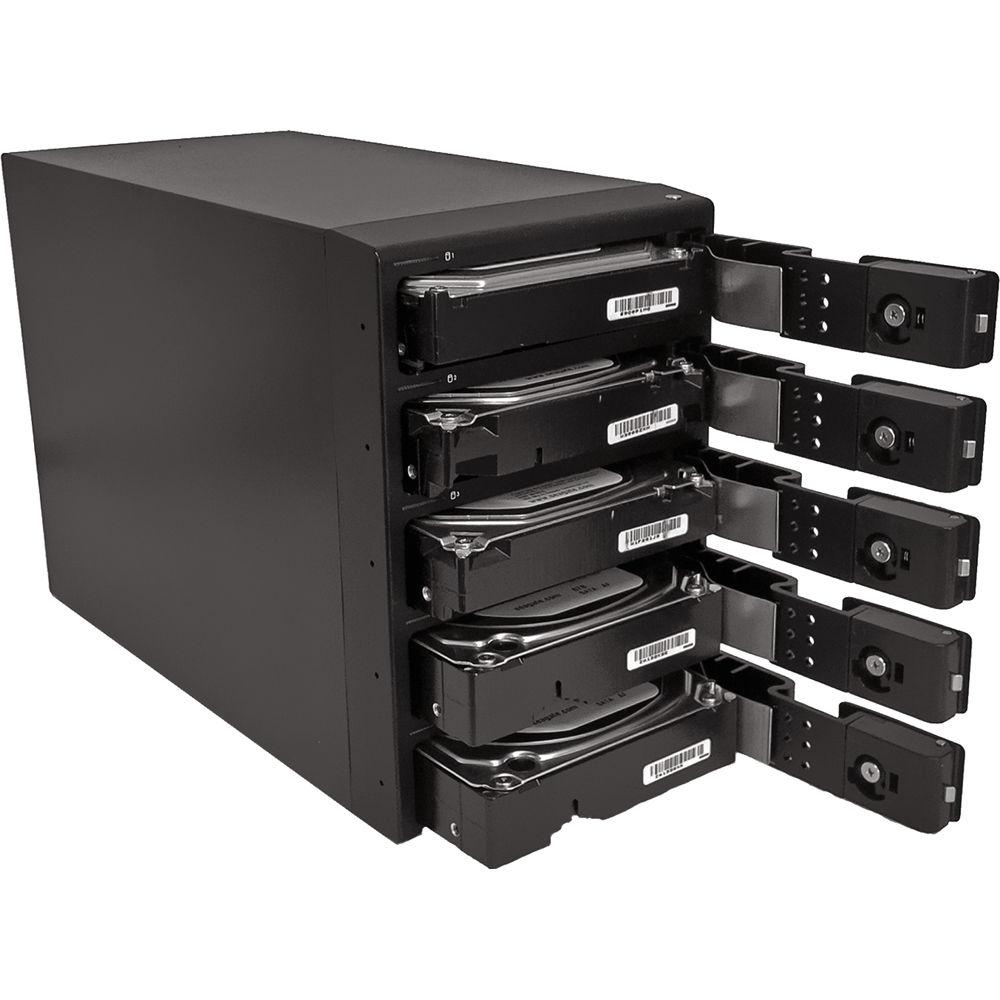

- Features effortless and tray-less hard drive insertion
- Dissipates heat efficiently with aluminum housing and quiet fans
UPC: 852673002641 In the Box Oyen Digital Mobius 5-Bay FireWire 800/eSATA/USB 3.0 RAID Enclosure USB 3.0 Cable FireWire 800 Cable eSATA Cable Power Cord Key Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital Mobius 5-Bay FireWire 800 eSATA USB 3.0 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

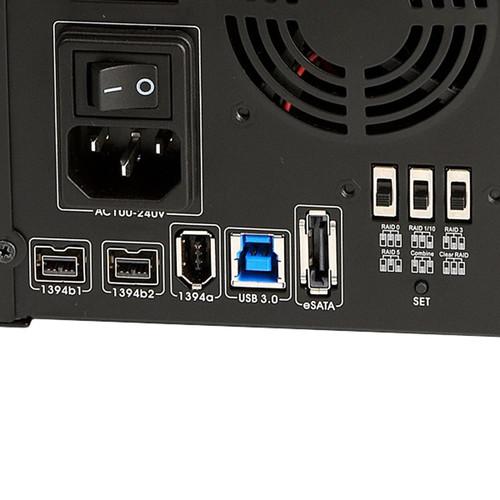

Technical parametersOyen Digital 3R5-EB3-M Specs | Number of Bays | 5 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA II (3 Gb/s))
1 x 9-Pin FireWire (FireWire 800) | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1, 3, 5, 10, JBOD, SPAN | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 150 W | | | | Bridge Chipset | JMicron JMB394
JMicron JMB355 | | Dimensions (W x H x D) | 10.3 x 5.4 x 7.3" / 26.2 x 13.7 x 18.5 cm | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 7.9" |
