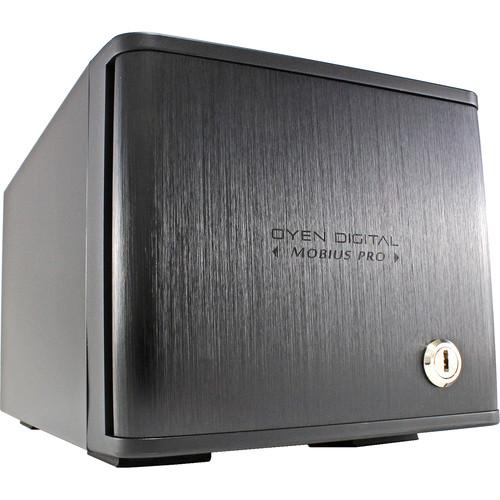

Product description The Mobius Pro 2-Bay USB 3.1 Gen 2 Type-C RAID Enclosure from Oyen Digital is a dual-bay RAID enclosure for Windows, Mac, and Linux. It offers users the choice of hardware-controlled RAID 0, which offers improved performance but no data redundancy, or RAID 1, which mirroring the contents of one drive to the other for 1:1 data redundancy, but at the cost of performance. If you don't need the benefits of a RAID, JBOD and SPAN modes are also available. JBOD lets you use each drive independently, which SPAN, which is also known as Combine or BIG, creates one large storage drive.

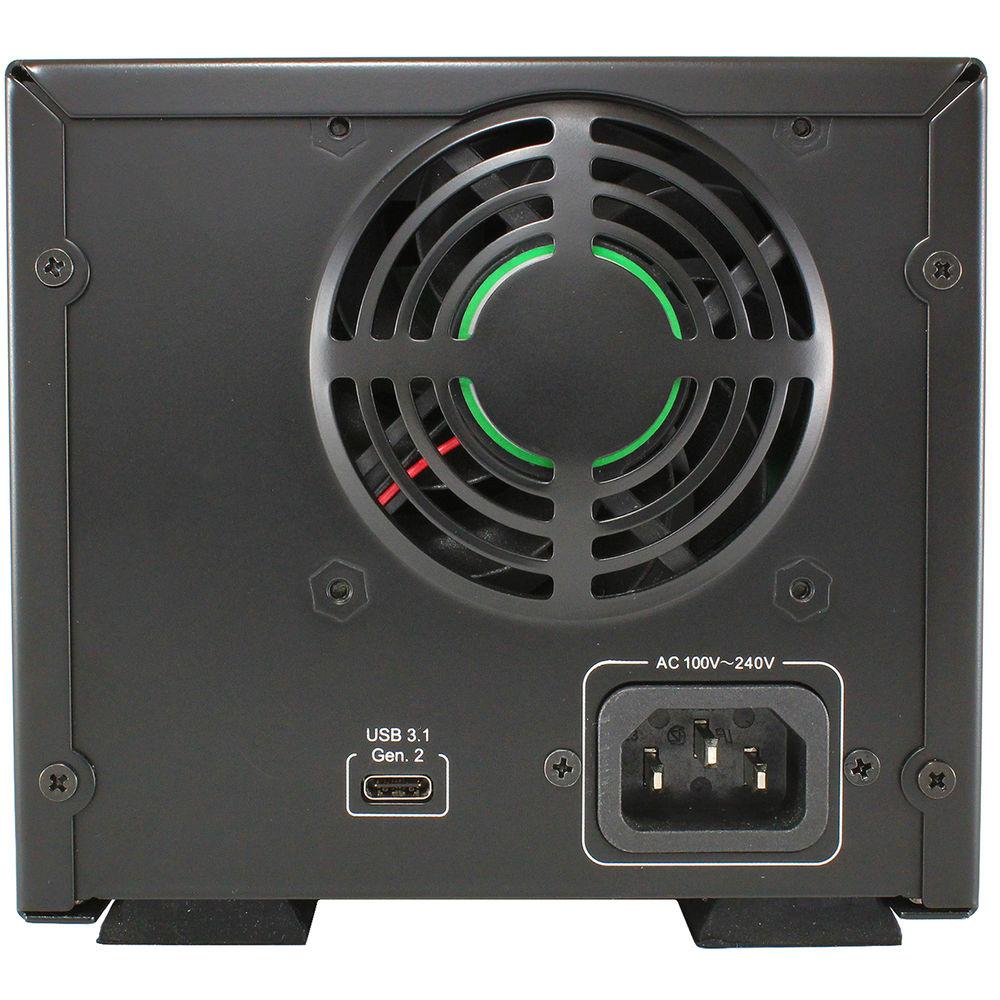

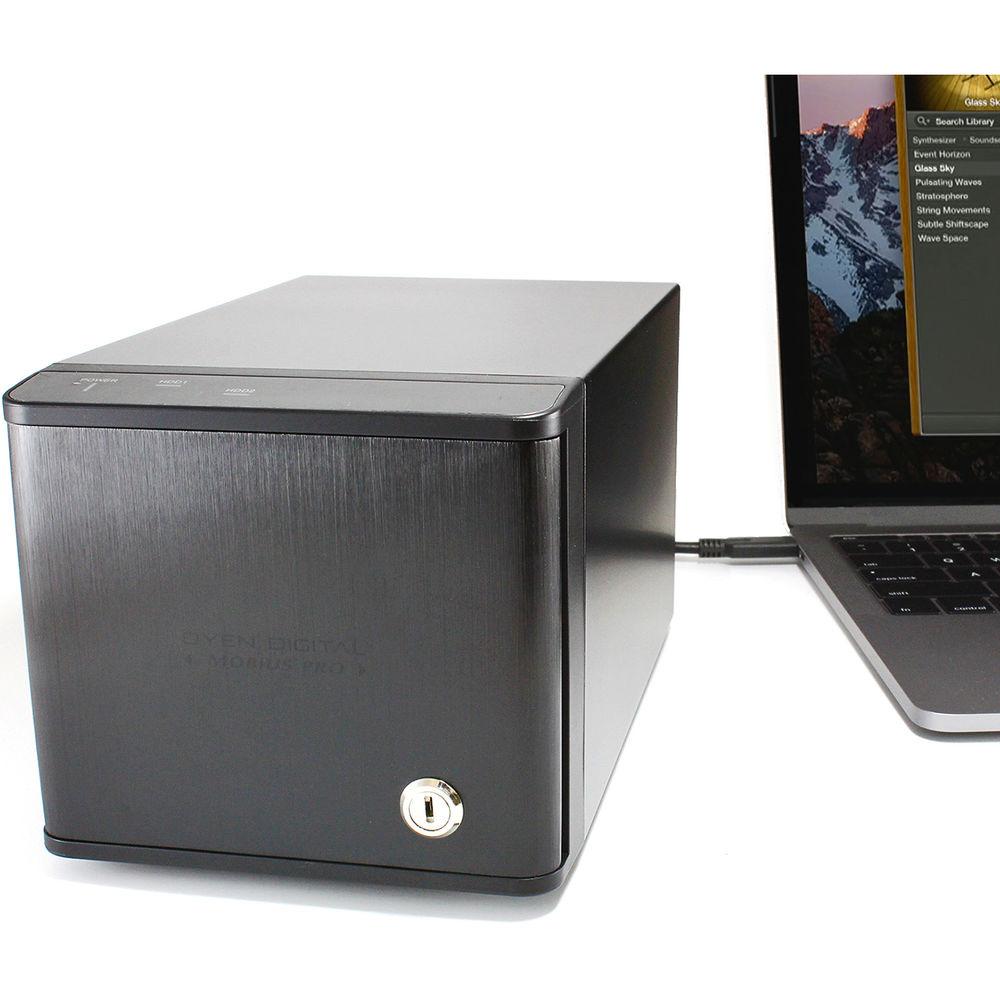

This enclosure connects to your system using a USB Type-C interface, which supports the 10 Gb/s USB 3.1 standard. If your system doesn't support USB 3.1, the Mobius Pro is backward compatible with 5 Gb/s USB 3.0. Since it uses the same connector as USB Type-C, this enclosure can also be used with Thunderbolt 3, but bear in mind that it will still run at USB 3.1 speeds. It is not compatible with Thunderbolt 2.

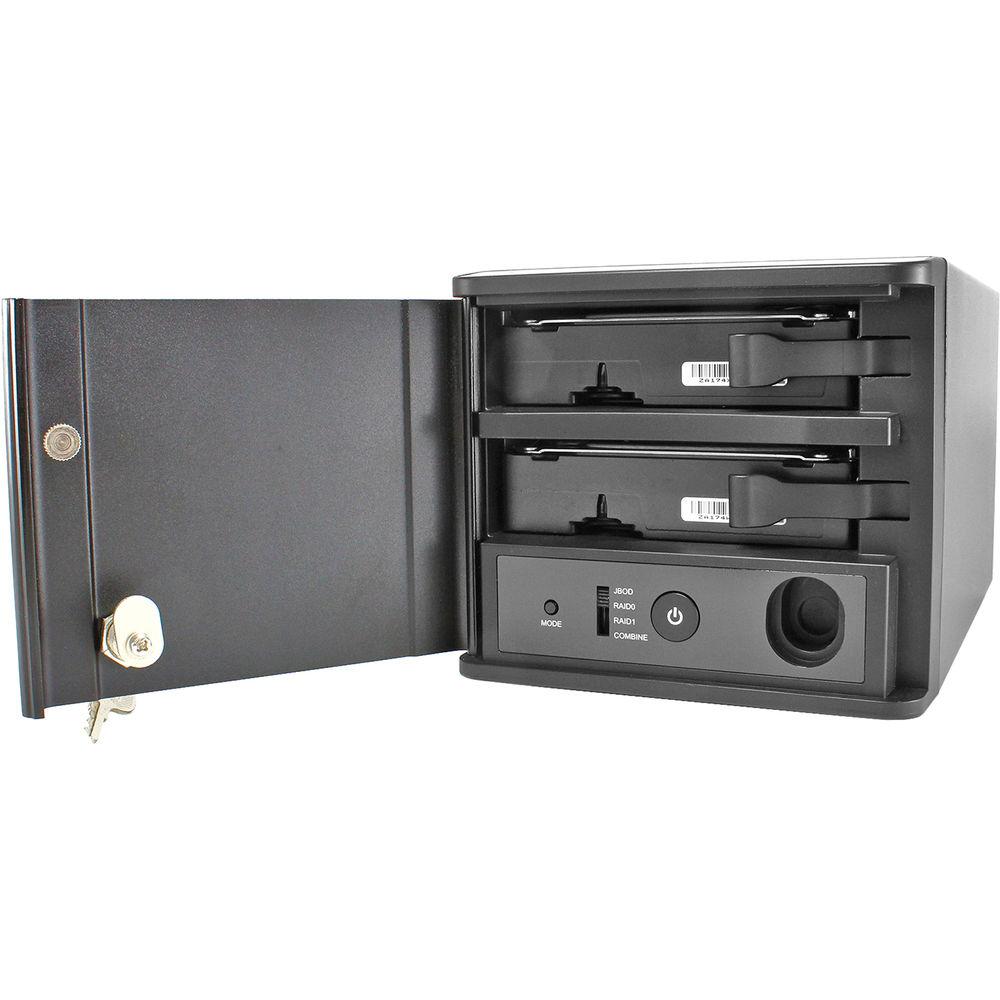

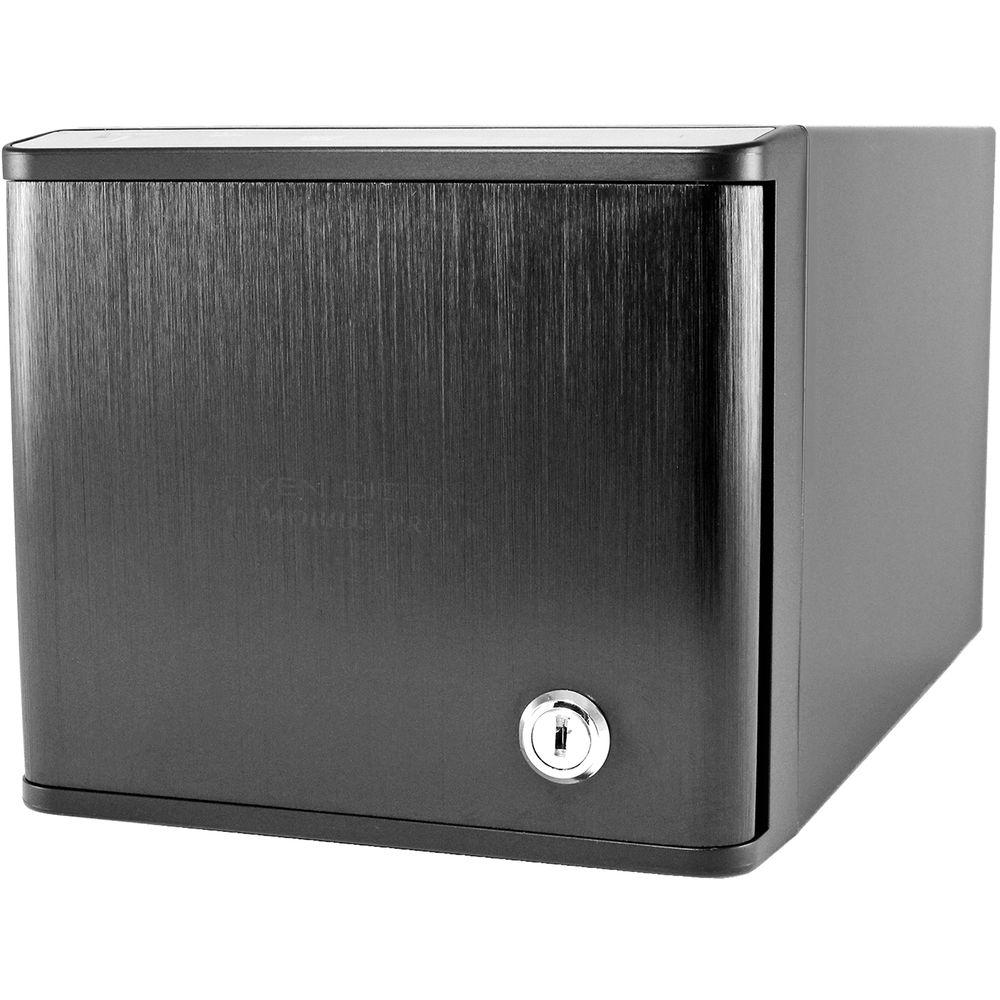

The Mobius Pro features a trayless design for a user-friendly drive insertion and removalprocess. It stays cool using a quiet exhaust fan, as well as thermally-efficient aluminum that helps maintain stable operating temperatures to prolong the life of the drives and enclosure. Using the integrated LEDs, you'll be able to monitor operational status and drive health/activity. Included is a USB Type-C to Type-C cable, a USB Type-C to Type-A cable, a power cord, and a key set for the lockable bay door. General Features - The USB Type-C interface is compatible with 10 Gb/s USB 3.1 Gen 2 (USB 3.1), 5 Gb/s USB 3.1 Gen 1 (USB 3.0), and Thunderbolt 3 only
- Supports one or two 3.5" SATA III or SATA II drives
- Configured the RAID modes using mode switches
- Select from JBOD (default, non-RAID), RAID 0 (striping), RAID 1 (mirroring), and Combine (SPAN)
- Monitor power and drive activity using LED indicators

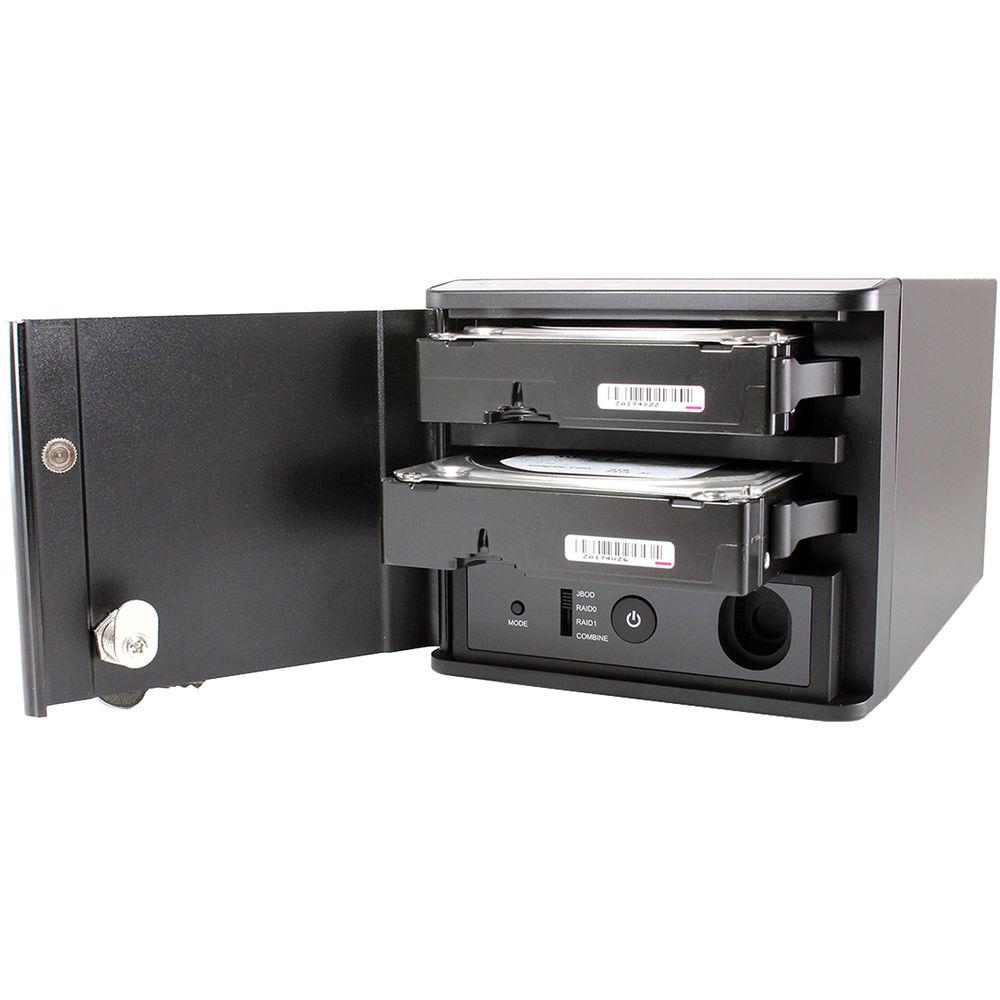

- Trayless hard drive insertion
- Dissipates heat efficiently with an aluminum housing & quiet fan
- Internal 50W power supply
- Includes USB Type-C to Type-C and Type-C to Type-A cables
UPC: 855017006725 In the Box Oyen Digital Mobius Pro 2-Bay USB 3.1 Type-C RAID Enclosure USB Type-C to Type-C Cable USB Type-C to Type-A Cable Power Cord Key Set Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oyen Digital Mobius Pro 2-Bay USB 3.1 Type-C RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOyen Digital Mobius Pro Specs | | | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA II, SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, JBOD, SPAN | | UASP Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | OS Compatibility | Windows 7 or Later
macOS 10.6 or Later
Linux 3.13 or Later | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 50 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Lockable Bay Door | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 to 80% | | | | Material of Construction | Aluminum | | Cooling | 1 x Fan | | Noise Level | 27 dBA | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 4.5 x 5.0 x 8.3" / 11.4 x 12.7 x 21.1 cm | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 12.2 x 7.9 x 7.6" |
