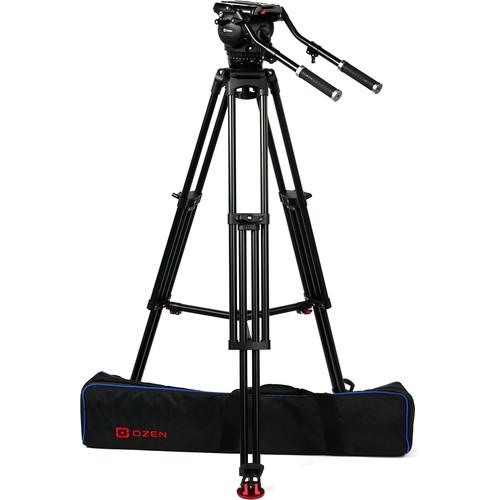

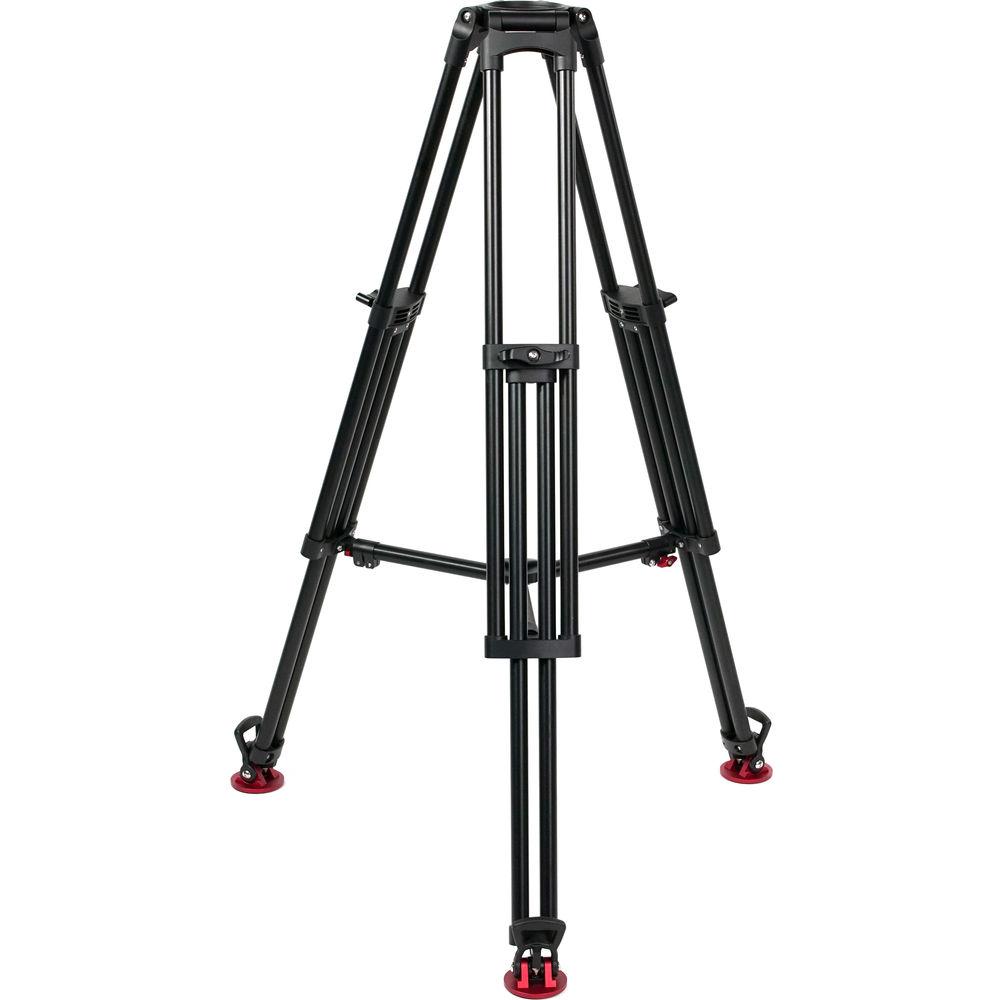

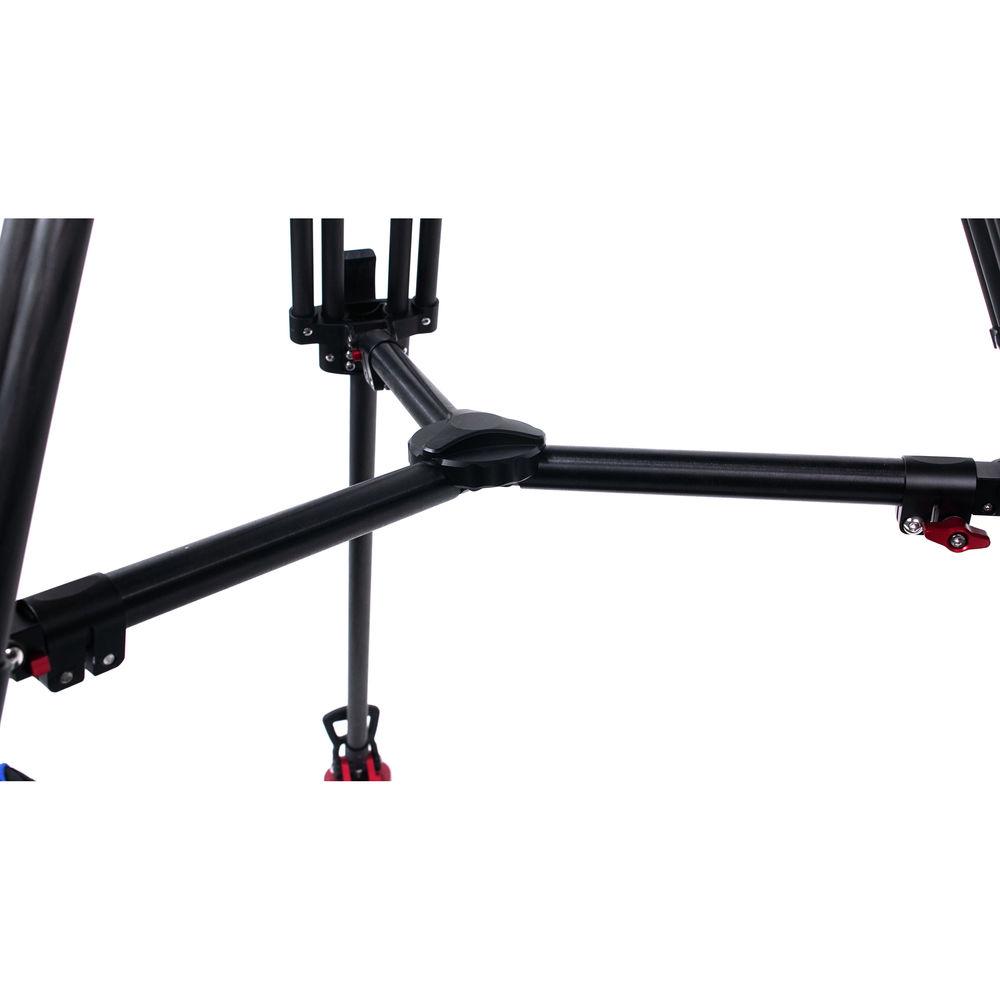

Product description Get a tripod system that stands up to the demands of ENG and EFP production with the 100AL1HD 100mm Aluminum Tripod & Agile 18S Fluid Head System with S-Loc camera interface from OZEN. Comprising a 100AL1HD 100mm single-stage, heavy-duty aluminum tripod and an Agile 18S fluid head, this system works with 4.4 to 48.4 lb payloads. It offers 16-step counterbalance, 7/7 + 0 pan/tilt fluid drag, and working heights ranging from 36.9 to 66.8". The 100AL1HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces. Included with the system is a SoftCase 100HD1, which has a carry strap and an internal pouch for storing the included telescopic pan bars. - 100AL1HD 100mm Single-Stage, Heavy-Duty Aluminum Tripod Give your camera solid feet to stand on with the 100AL1HD 100mm Single-Stage, Heavy-Duty Aluminum Tripod from OZEN. Designed for heavy-payload and high-fluid-drag applications, this single-stage tripod supports up to 99 pounds and offers working heights ranging from 28.7 to 58.6". For greater rigidity, the 22mm diameter heavy-duty aluminum tripod leg tubes are pin-secured to their anchors—no glued joints. Twist brake levers with positive stops are used to lock the legs into place. Moreover, the 100AL1HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces.
- For use with separately available 100mm fluid heads
- Aluminum tubes are pinned to their joints, not glued
- Flat and angled spreader positions
- Payload capacity of 99 pounds
- Twist brake levers with positive stops
- Agile 18S Fluid Head Smooth your pans and tilts with the Agile 18S Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 18S is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 16 steps. The Agile 18S's versatile design enables you to quickly change camcorder configurations within a payload range of 4.4 to 48.4 pounds.
The Agile 18S is equipped with a 7/7 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the S-Loc camera mounting interface, which enhances the front-to-rear balance adjustment range to accommodate exceptionally front- or back-heavy camera setups. - Ergonomic pan/tilt fluid drag and counterbalance controls
- Distinguishable, 90° opposed pan and tilt brakes
- Replaceable pan bar rosettes for longer fluid head usability
- Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
- Two telescopic pan bars included
- Soft Case for Single-Stage Heavy-Duty 100mm Systems for 100HD1 Tripod The OZEN Soft Case for Single-Stage Heavy-Duty 100mm Systems for 100HD1 Tripod is a spare/replacement part. Users will appreciate the internal pouch for storing a pan bar and carry strap.
- Replacement Soft Case 100HD1 included w/systems configured with 100AL1HD or 100CF1HD tripod
In the Box Bundle Items 100AL1HD 100mm Single-Stage, Heavy-Duty Aluminum Tripod dqbbevdstcuqfsbbyruabeyvfecuurtcxs - Replacement Contender Heavy-Duty Mid- Level Spreader Replacement In Case Of Loss Or Non-Warranteed D
- Limited 2-Year Warranty, Extendable to 4 Years with Product Registration
Agile 18S Fluid Head - Spare Camera Plate Screws
- Limited 2-Year Warranty; Extendable to 4 Years with Product Registration
Soft Case for Single-Stage Heavy-Duty 100mm Systems for 100HD1 Tripod Table of Contents
|
Upload User Manual
Have you got an user manual for the OZEN 100AL1HD 100mm Aluminum Tripod & Agile 18S Fluid Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 100AL1HD 100mm Single-Stage, Heavy-Duty Aluminum Tripod
| | | Head Mount Type | 100 mm Bowl | | Load Capacity | 99 lb / 44.91 kg | | Maximum Working Height | 58.6" / 148.84 cm (with Spreader) | | Minimum Working Height | 28.7" / 72.90 cm (with Spreader) | | Materials | Aluminum | | Weight | 11.2 lb / 5.08 kg | | | | Leg Lock Type | Twist Lock | | Leg Sections | 2 | | Feet Features | Rubber | | Spreader | Mid-Level | - Agile 18S Fluid Head
| | | Base Mount | 100 mm Half Ball | | | | Drag Control | Pan: Variable 7-Step Plus 0
Tilt: Variable 7-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
