Product description

• 100AL2 100mm Two-Stage Aluminum Tripod
  • OZEN Camera Support

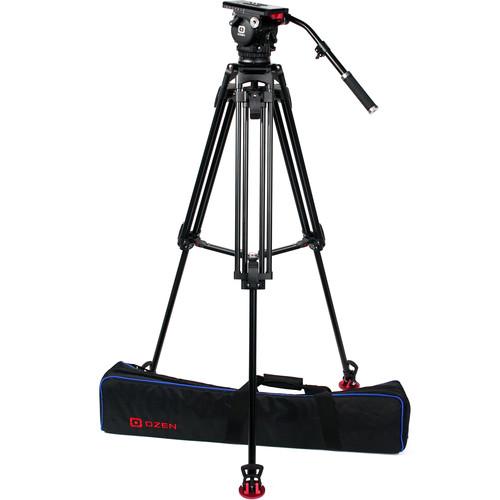

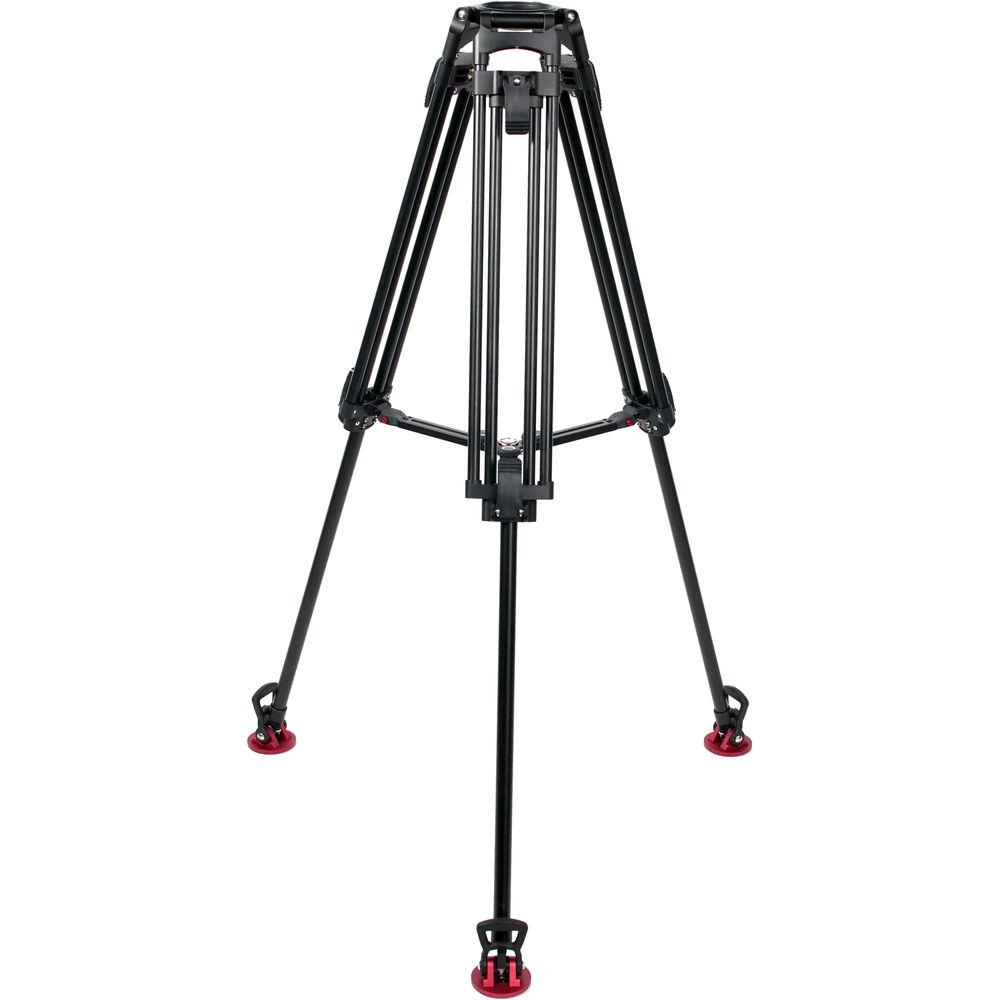

  Give your camera solid feet to stand on with the 100AL2 100mm Aluminum Tripod from OZEN. Designed for use with a separately available 100mm fluid head, this lightweight two-stage tripod supports a payload of 55 pounds and offers working heights ranging from 25.6 to 62.5" using the included, removable mid-level spreader. If you need to go even further up or down, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 23.6 to 65".

  For greater rigidity, the 100AL2's anodized aluminum leg tubes are pin-secured to their anchors—no glued joints. Highly visible twist-lock brakes are used to secure the legs into place. Moreover, the 100AL2 comes equipped with deep-tread rubber feet for better traction on smooth surfaces.
  • Payload capacity of 55 pounds

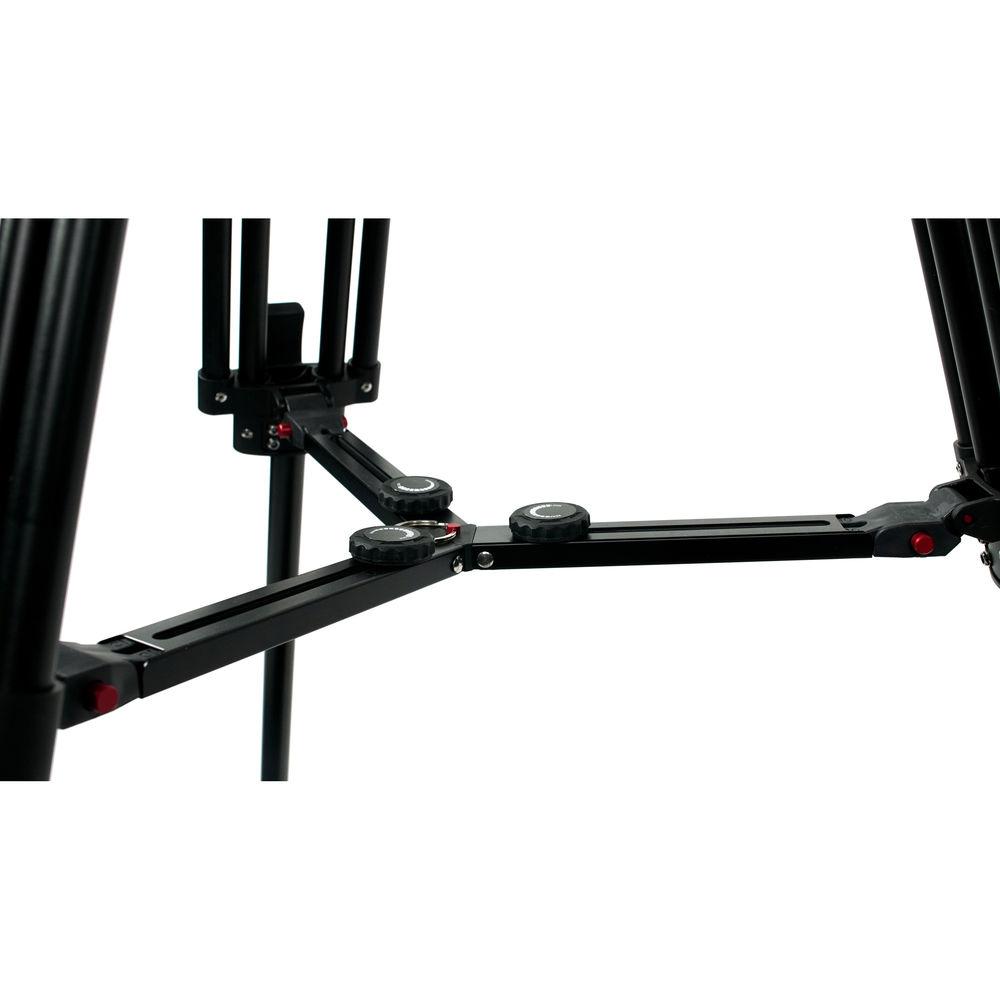

  • Removable MLS100 mid-level spreader and deep-tread rubber feet
  • Anodized aluminum tubes are pinned to their joints, not glued
  • Flip-lock brakes are operator-adjustable for wear
  • Compatible with Agile 10, 12, and 15 fluid heads (available separately)

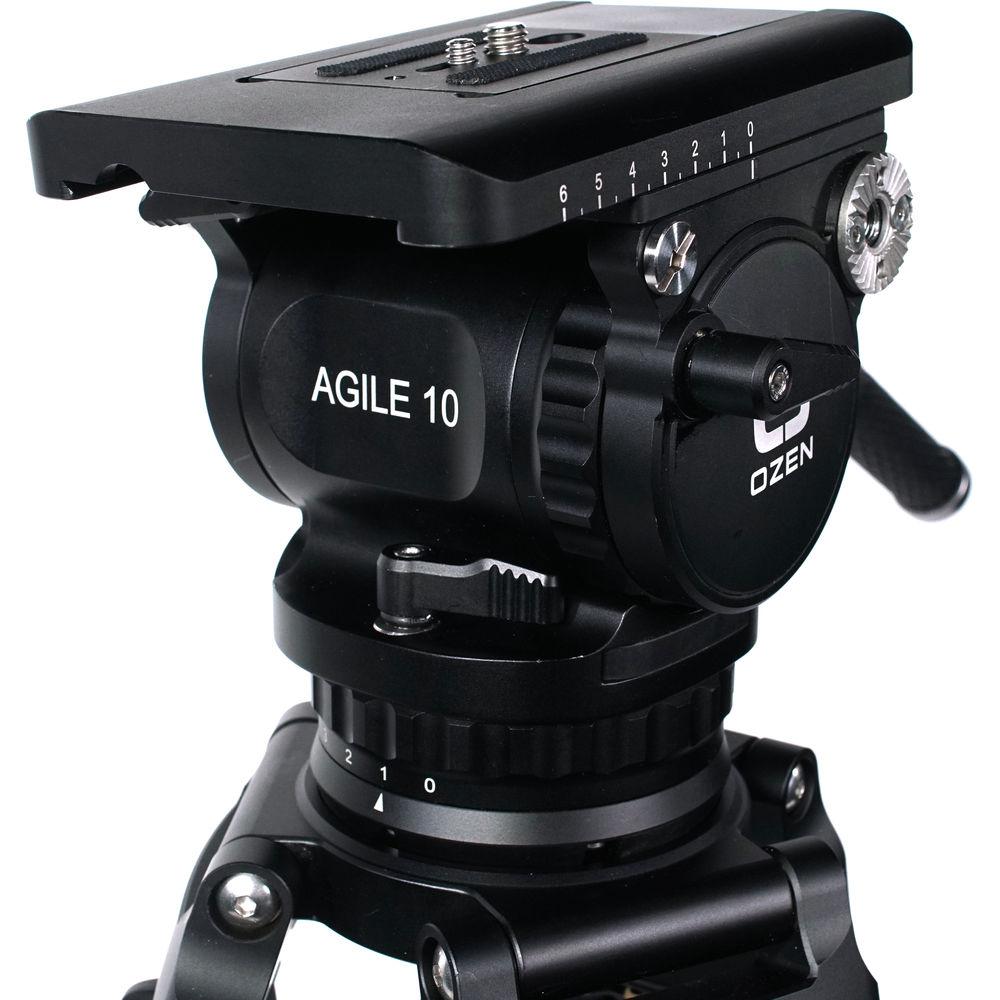

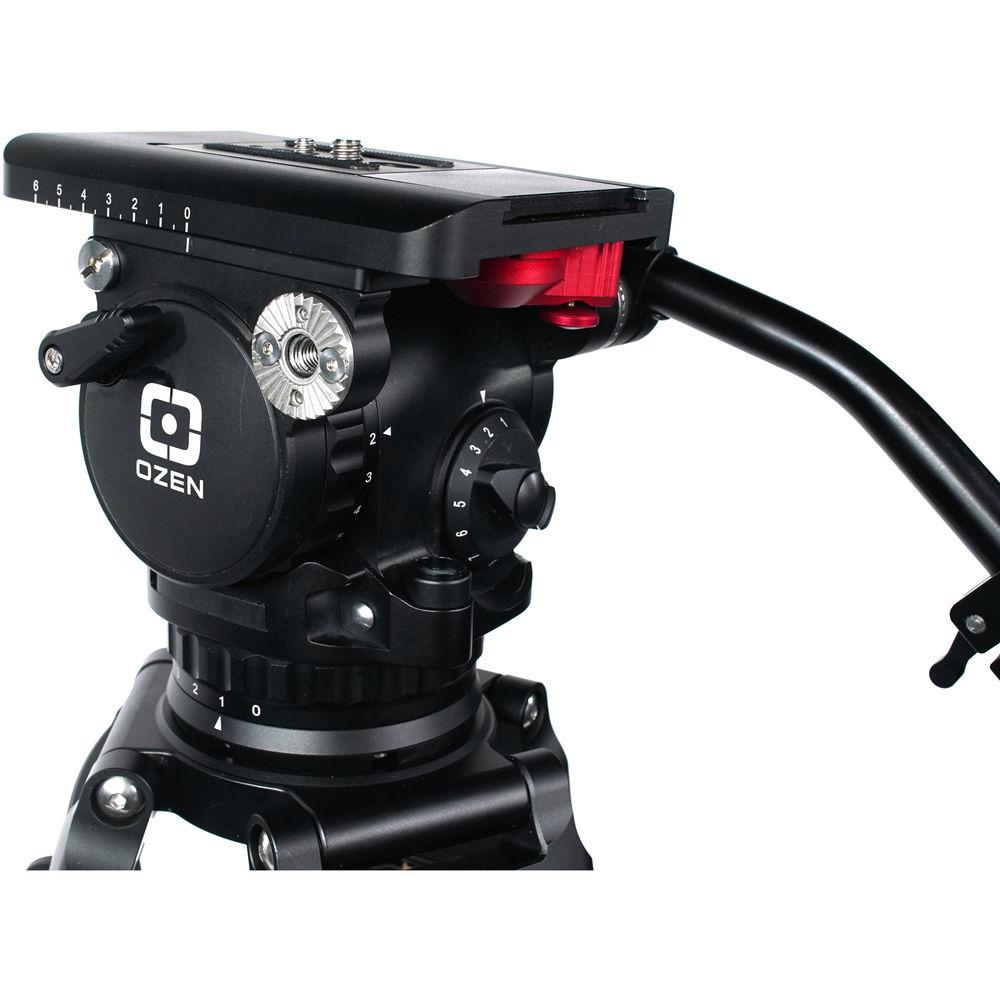

• Agile 10 Fluid Head Smooth your pans and tilts with the Agile 10 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 10 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 10 steps. The Agile 10's versatile design enables you to quickly change camcorder configurations within a payload range of 2.2 to 26.4 pounds.

  The Agile 10 is equipped with a 5/5 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows.
  • Ergonomic pan/tilt fluid drag and counterbalance controls
  • Distinguishable, 90° opposed pan and tilt brakes
  • Replaceable pan bar rosettes for longer fluid head usability
  • Illuminated bubble level
  • Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
  • Telescopic pan bar included

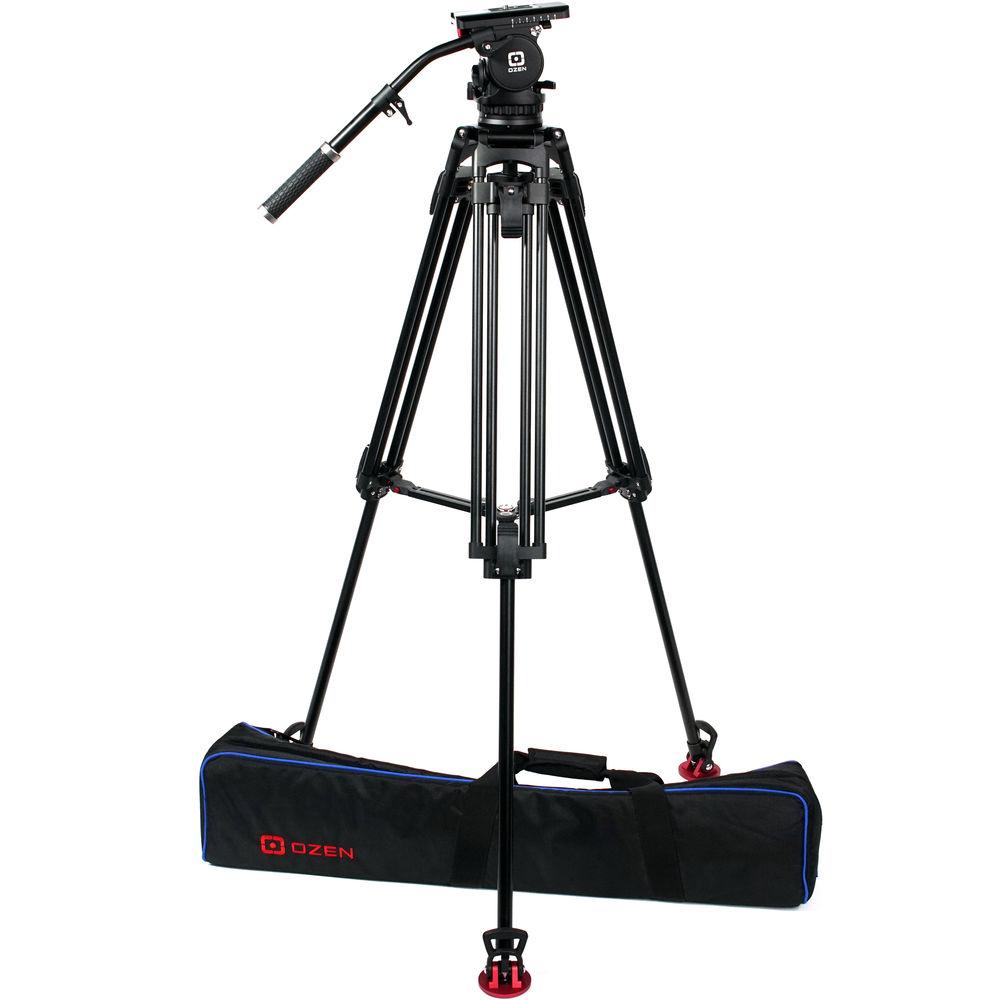

• Soft Case for Heavy-Duty 75mm and 100mm Systems The OZEN Soft Case is a replacement case for heavy-duty 75mm and 100mm systems. This is the case typically included with 75AL2HD, 75CF2HD, 100AL2, and 100CF2 tripod systems. The case has an internal pouch for storing a pan bar and carry strap.

• Mls100 Mid-Level Spreader Replacement In Case Of Loss Or Non-Warranteed Damage To Mls100 Spreader In

• Limited 2-Year Warranty, Extendable to 4 Years with Product Registration

• Camera Plate

• Telescopic Pan Bar

• Spare Camera Plate Screws

• Limited 2-Year Warranty; Extendable to 4 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 100AL2 100mm Two-Stage Aluminum Tripod

  Head Mount Type	100 mm Bowl
  Load Capacity	55 lb / 24.95 kg
  Maximum Working Height	62.5" / 158.75 cm with Optional Contender Spreader
  Minimum Working Height	25.6" / 65.02 cm with Optional Contender Spreader
  Materials	Aluminum
  Weight	9.4 lb / 4.26 kg

  Leg Lock Type	Flip Lock
  Leg Sections	3
  Feet Features	Rubber
  Spreader	Mid-Level

• Agile 10 Fluid Head

  Base Mount	100 mm Half Ball

  Drag Control	Pan: Variable 5-Step Plus 0 Tilt: Variable 5-Step Plus 0
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 01 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
