User Manual for OZEN 100CF2 100mm Carbon Fiber Tripod & Agile 12 Fluid Head System Click to enlarge the picture
Contents of the user manual for the OZEN 100CF2 100mm Carbon Fiber Tripod
- Product category: Tripod Systems OZEN
- Brand: OZEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OZEN Tripod Systems
 |
User manual for the OZEN 100CF2 100mm Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OZEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OZEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OZEN product will considerably shorten its lifespan!
|

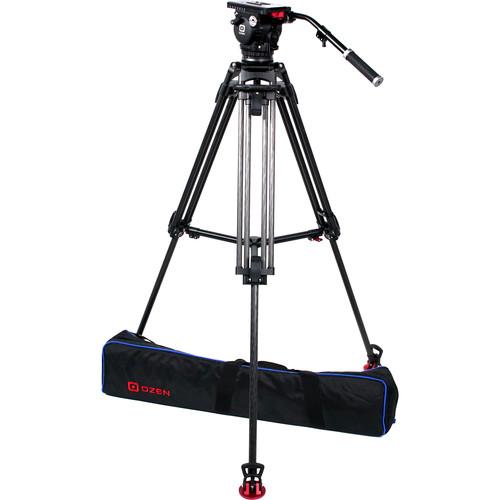

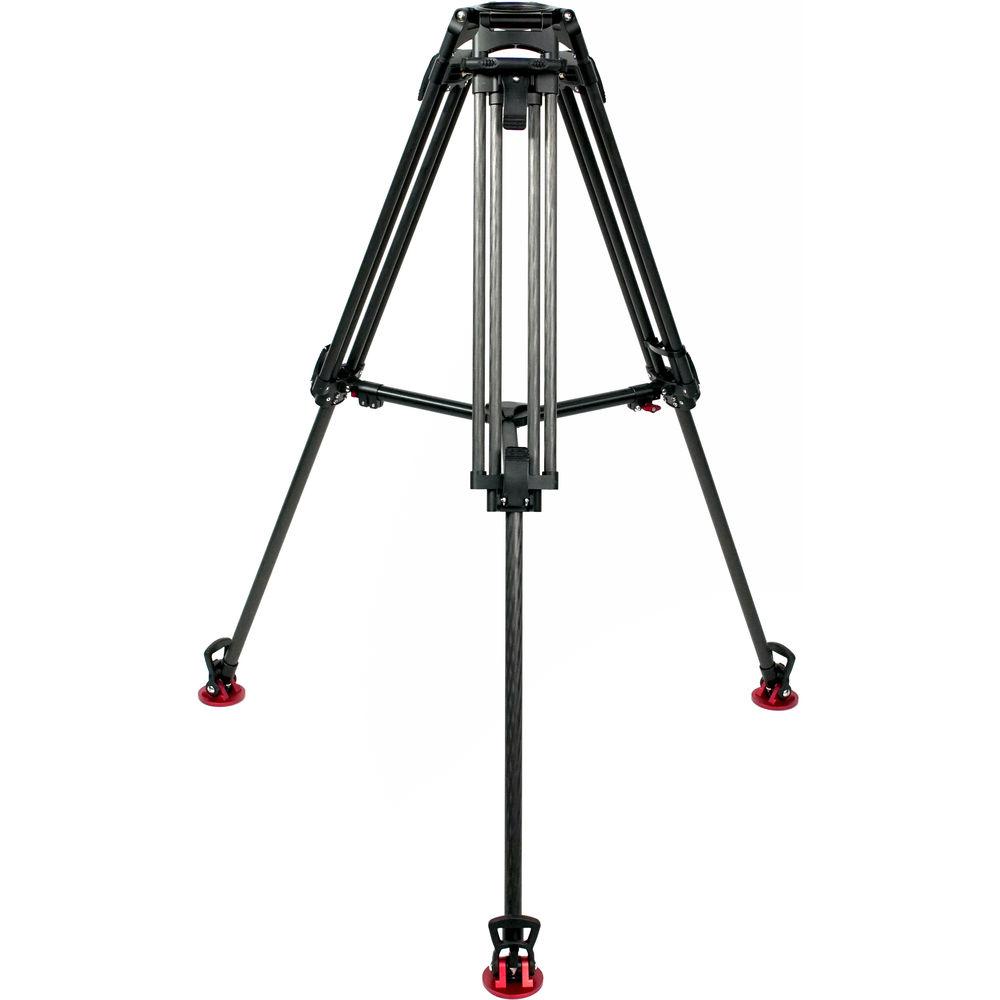

Product description Get a tripod system that stands up to the demands of ENG and EFP production with the 100CF2 100mm Carbon Fiber Tripod & Agile 12 Fluid Head System with E-Z-Load camera interface from OZEN. Comprising a 100CF2 two-stage carbon fiber tripod and an Agile 12 fluid head, this system works with 4.4 to 30.8 lb payloads. It offers 10-step counterbalance, 5/5 + 0 pan/tilt fluid drag, and working heights ranging from 31.9 to 68.8" using the included, removable MLS100 mid-level spreader. If you need to go even further up or down, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 29.9 to 71.3". The tripod is equipped with deep-tread rubber feet and comes with a SoftCase 100, which has a carry strap and an internal pouch for storing the included pan bar. - 100CF2 100mm Two-Stage Carbon Fiber Tripod Give your camera solid feet to stand on with the 100CF2 100mm Carbon Fiber Tripod from OZEN. Designed for use with a separately available 100mm fluid head, this lightweight two-stage tripod supports a payload of 55 pounds and offers working heights ranging from 25.6 to 62.5" using the included, removable mid-level spreader. If you need to go even further up or down, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 23.6 to 65".
For greater rigidity, the 100CF2's molded carbon fiber leg tubes are pin-secured to their anchors—no glued joints. Highly visible twist-lock brakes are used to secure the legs into place. Moreover, the 100CF2 comes equipped with deep-tread rubber feet for better traction on smooth surfaces. - Payload capacity of 55 pounds

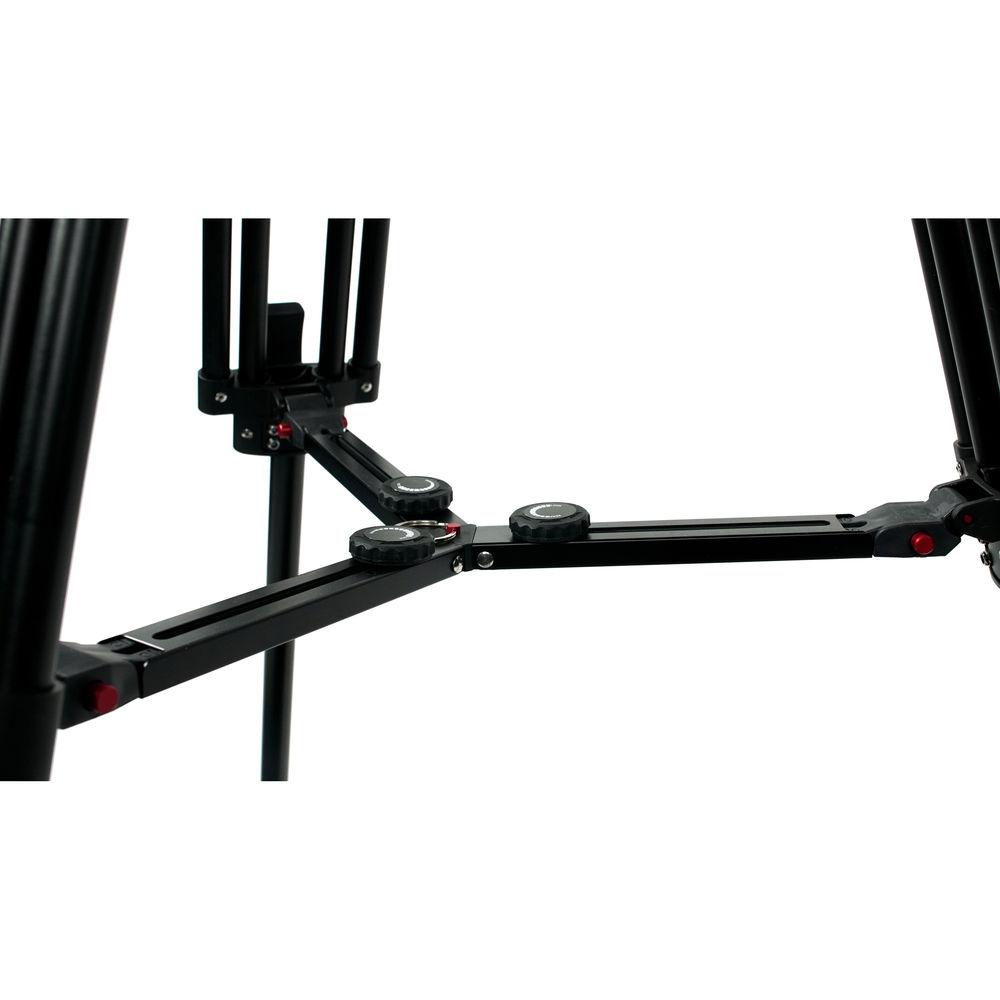

- Removable MLS100 mid-level spreader and deep-tread rubber feet
- Carbon fiber tubes are pinned to their joints, not glued
- Flip-lock brakes are operator-adjustable for wear
- Compatible with Agile 10, 12, and 15 fluid heads (available separately)

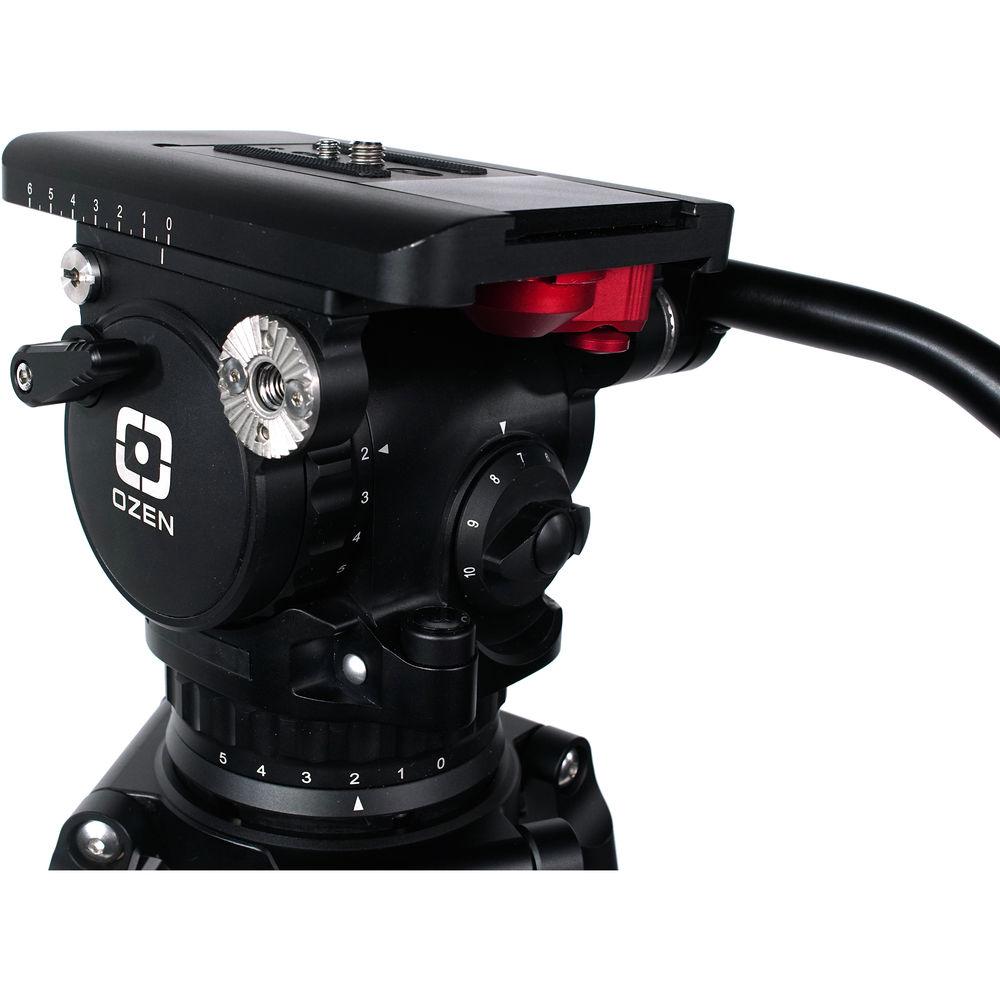

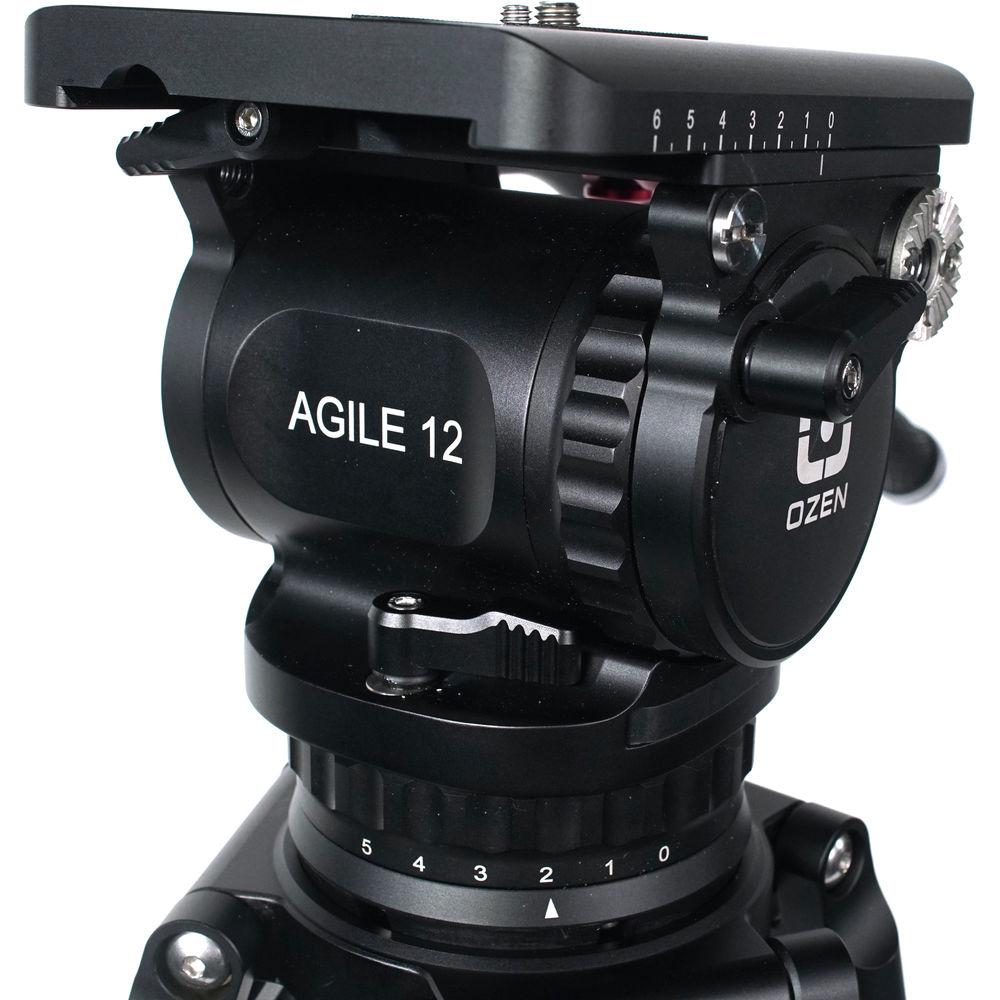

- Agile 12 Fluid Head Smooth your pans and tilts with the Agile 12 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 12 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 10 steps. The Agile 12's versatile design enables you to quickly change camcorder configurations within a payload range of 4.4 to 30.8 pounds.
The Agile 12 is equipped with a 5/5 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows. - Ergonomic pan/tilt fluid drag and counterbalance controls
- Distinguishable, 90° opposed pan and tilt brakes
- Replaceable pan bar rosettes for longer fluid head usability
- Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
- Telescopic pan bar included
- Soft Case for Heavy-Duty 75mm and 100mm Systems The OZEN Soft Case is a replacement case for heavy-duty 75mm and 100mm systems. This is the case typically included with 75AL2HD, 75CF2HD, 100AL2, and 100CF2 tripod systems. The case has an internal pouch for storing a pan bar and carry strap.
In the Box Bundle Items 100CF2 100mm Two-Stage Carbon Fiber Tripod svwruxucusrydf - Mls100 Mid-Level Spreader Replacement In Case Of Loss Or Non-Warranteed Damage To Mls100 Spreader In
- Limited 2-Year Warranty, Extendable to 4 Years with Product Registration
Agile 12 Fluid Head - Spare Camera Plate Screws
- Limited 2-Year Warranty; Extendable to 4 Years with Product Registration
Soft Case for Heavy-Duty 75mm and 100mm Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the OZEN 100CF2 100mm Carbon Fiber Tripod & Agile 12 Fluid Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 100CF2 100mm Two-Stage Carbon Fiber Tripod
| | | Head Mount Type | 100 mm Bowl | | Load Capacity | 55 lb / 24.95 kg | | Maximum Working Height | 62.5" / 158.75 cm with Optional Contender Spreader | | Minimum Working Height | 25.6" / 65.02 cm with Optional Contender Spreader | | Materials | Carbon Fiber | | Weight | 7.9 lb / 3.58 kg | | | | Leg Lock Type | Flip Lock | | Leg Sections | 3 | | Feet Features | Rubber | | Spreader | Mid-Level | - Agile 12 Fluid Head
| | | Base Mount | 100 mm Half Ball | | | | Drag Control | Pan: Variable 5-Step Plus 0
Tilt: Variable 5-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
