User manual
OZEN 100CF2HD 100mm Carbon Fiber Tripod

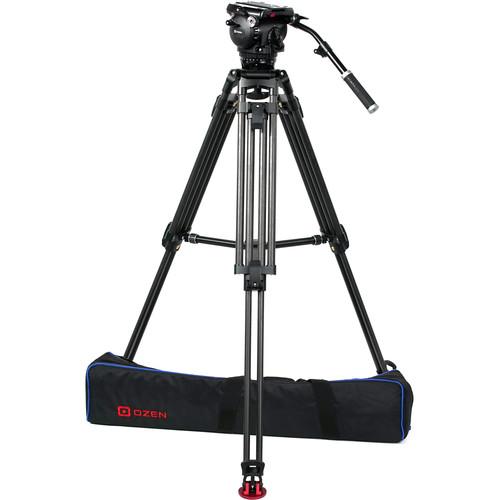

User Manual for OZEN 100CF2HD 100mm Carbon Fiber Tripod & Agile 18S Fluid Head System

• Product category: Tripod Systems OZEN
• Brand: OZEN
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OZEN Tripod Systems

Product description

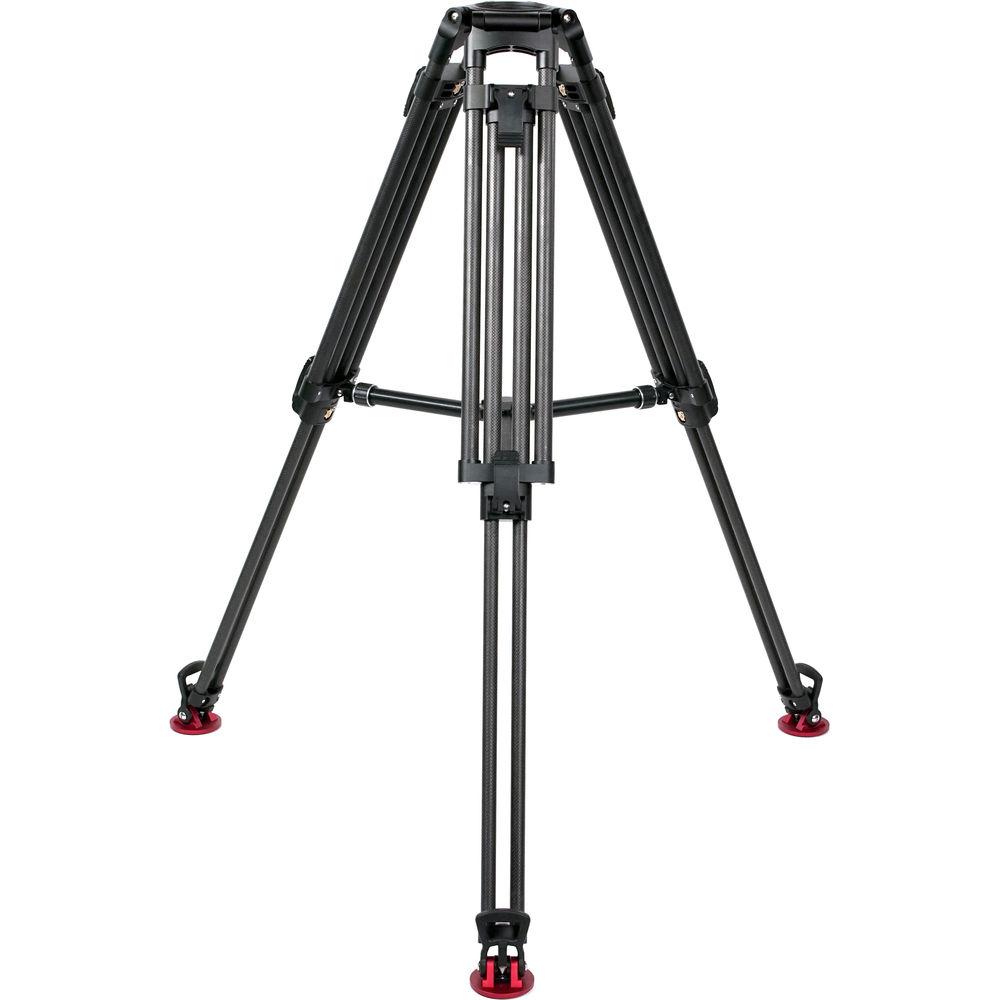

• 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod
  • OZEN Camera Support
  Give your camera solid feet to stand on with the 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod from OZEN. Designed for heavy-payload and high-fluid-drag applications, this two-stage tripod supports up to 99 pounds and offers working heights ranging from 20 to 60". For greater rigidity, the 22mm diameter carbon fiber tripod leg tubes are pin-secured to their anchors—no glued joints. Flip brake levers are used to lock the legs into place, making for fast deployment and stowage. Moreover, the 100CF2HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces.
  • For use with separately available 100mm fluid heads
  • Carbon fiber leg tubes are lighter and stiffer than aluminum, resist damage from minor impacts, and have less flex when using high increments of fluid drag
  • Carbon fiber tubes are pinned to their joints, not glued

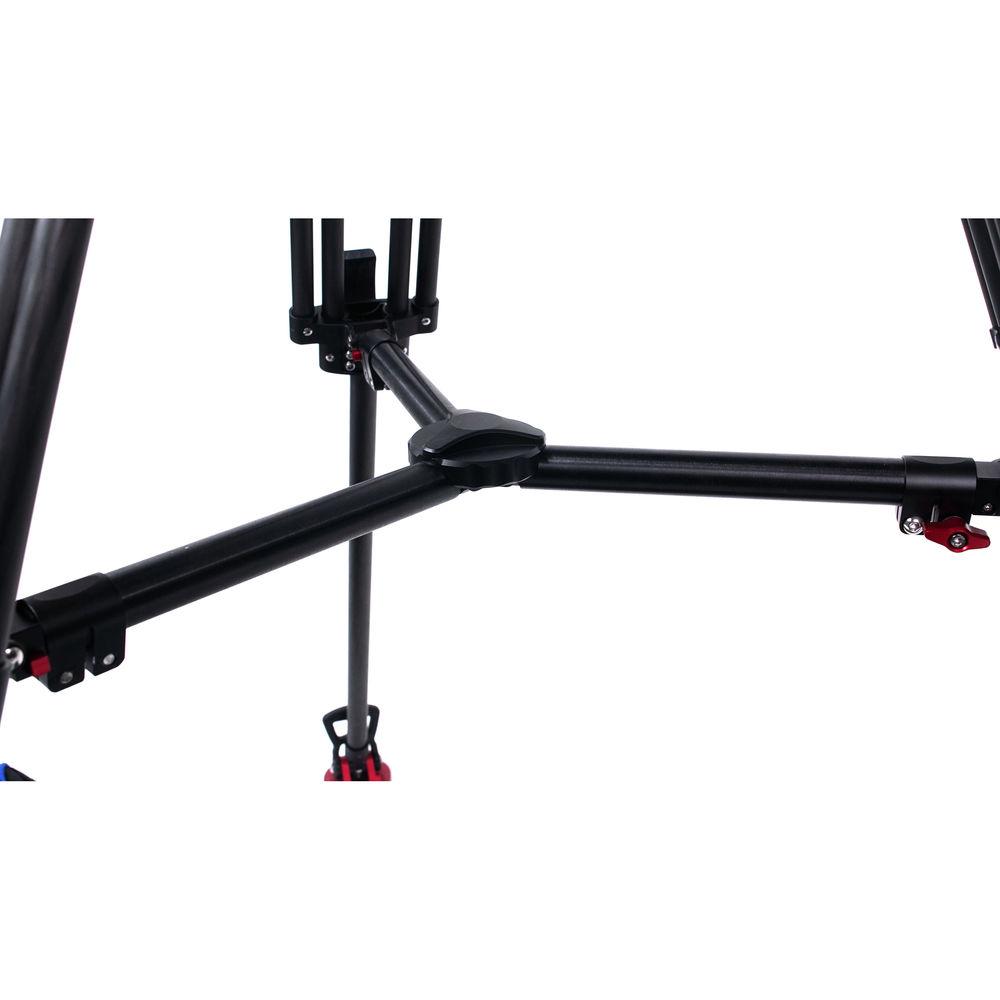

  • Flat and angled spreader positions
  • Payload capacity of 99 pounds
  • Conspicuous red flip brake levers for fast deployment and stowage
  • Brake adjustment mechanism
• Agile 18S Fluid Head Smooth your pans and tilts with the Agile 18S Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 18S is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 16 steps. The Agile 18S's versatile design enables you to quickly change camcorder configurations within a payload range of 4.4 to 48.4 pounds.

  The Agile 18S is equipped with a 7/7 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the S-Loc camera mounting interface, which enhances the front-to-rear balance adjustment range to accommodate exceptionally front- or back-heavy camera setups.
  • Ergonomic pan/tilt fluid drag and counterbalance controls
  • Distinguishable, 90° opposed pan and tilt brakes
  • Replaceable pan bar rosettes for longer fluid head usability
  • Illuminated bubble level
  • Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
  • Two telescopic pan bars included
• Soft Case for Two-Stage Heavy-Duty 100mm Systems for 100HD2 Tripod The OZEN Soft Case for Two-Stage Heavy-Duty 100mm Systems for 100HD2 Tripod is a spare/replacement part. Users will appreciate the internal pouch for storing a pan bar and carry strap.
  • Replacement Soft Case 100HD2 included w/systems configured with 100AL2HD or 100CF2HD tripod

• Replacement Contender Heavy-Duty Mid- Level Spreader Replacement In Case Of Loss Or Non-Warranteed D

• Limited 2-Year Warranty, Extendable to 4 Years with Product Registration

• Camera Plate

• 2 x Telescopic Pan Bars

• Spare Camera Plate Screws

• Limited 2-Year Warranty; Extendable to 4 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod

  Head Mount Type	100 mm Bowl
  Load Capacity	99 lb / 44.91 kg
  Maximum Working Height	60" / 152.40 cm (with Spreader)
  Minimum Working Height	20" / 50.80 cm (with Spreader)
  Folded Length	28" / 71.12 cm
  Materials	Carbon Fiber
  Weight	10.9 lb / 4.94 kg

  Leg Lock Type	Flip Lock
  Leg Sections	3
  Feet Features	Rubber
  Spreader	Mid-Level

• Agile 18S Fluid Head

  Base Mount	100 mm Half Ball

  Drag Control	Pan: Variable 7-Step Plus 0 Tilt: Variable 7-Step Plus 0
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 30 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
