User Manual for OZEN 100CF2HD 100mm Carbon Fiber Tripod & Agile 20 Fluid Head System Click to enlarge the picture
Contents of the user manual for the OZEN 100CF2HD 100mm Carbon Fiber Tripod
- Product category: Tripod Systems OZEN
- Brand: OZEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OZEN Tripod Systems
 |
User manual for the OZEN 100CF2HD 100mm Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OZEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OZEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OZEN product will considerably shorten its lifespan!
|

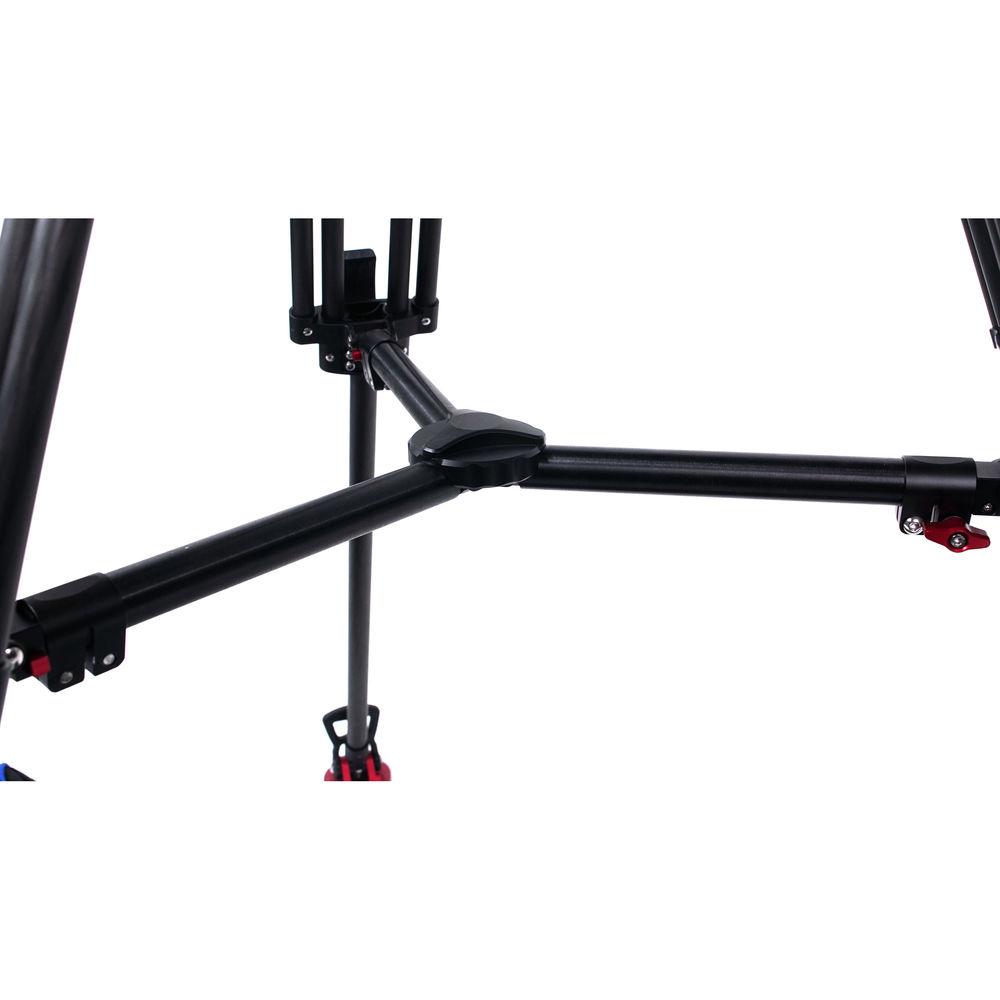

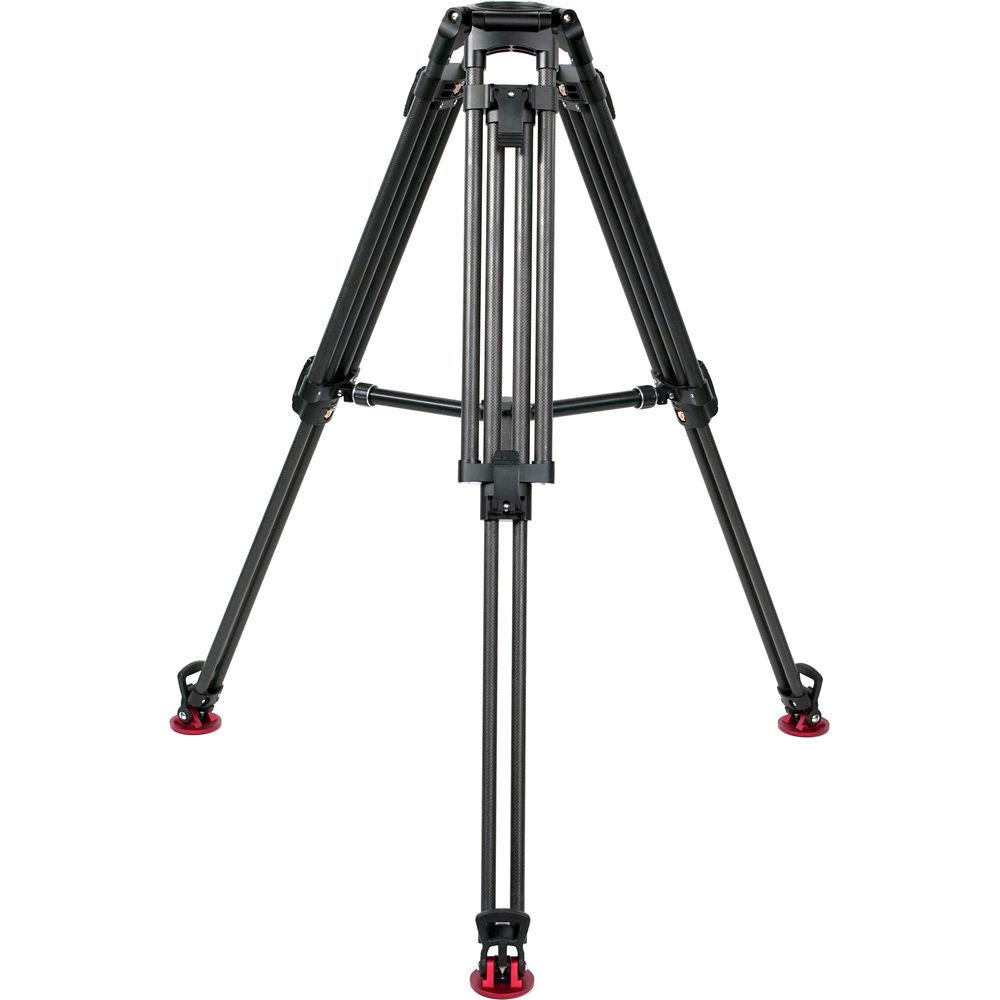

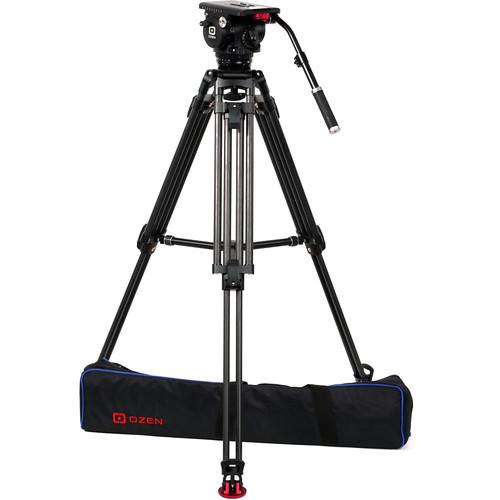

Product description Get a tripod system that stands up to the demands of ENG and EFP production with the 100CF2HD 100mm Carbon Fiber Tripod & Agile 20 Fluid Head System with E-Z-Load camera interface from OZEN. Comprising a 100CF2HD 100mm two-stage, heavy-duty carbon fiber tripod and an Agile 20 fluid head, this system works with 8.8 to 61.6 lb payloads. It offers 16-step counterbalance, 9/9 + 0 pan/tilt fluid drag, and working heights ranging from 28.2 to 68.2". The 100CF2HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces. Included with the system is a SoftCase 100HD2, which has a carry strap and an internal pouch for storing the included pan bars. - 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod Give your camera solid feet to stand on with the 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod from OZEN. Designed for heavy-payload and high-fluid-drag applications, this two-stage tripod supports up to 99 pounds and offers working heights ranging from 20 to 60". For greater rigidity, the 22mm diameter carbon fiber tripod leg tubes are pin-secured to their anchors—no glued joints. Flip brake levers are used to lock the legs into place, making for fast deployment and stowage. Moreover, the 100CF2HD comes equipped with a Contender heavy-duty mid-level spreader, as well as with deep-tread rubber feet for better traction on smooth surfaces.
- For use with separately available 100mm fluid heads
- Carbon fiber leg tubes are lighter and stiffer than aluminum, resist damage from minor impacts, and have less flex when using high increments of fluid drag
- Carbon fiber tubes are pinned to their joints, not glued
- Flat and angled spreader positions
- Payload capacity of 99 pounds
- Conspicuous red flip brake levers for fast deployment and stowage
- Brake adjustment mechanism

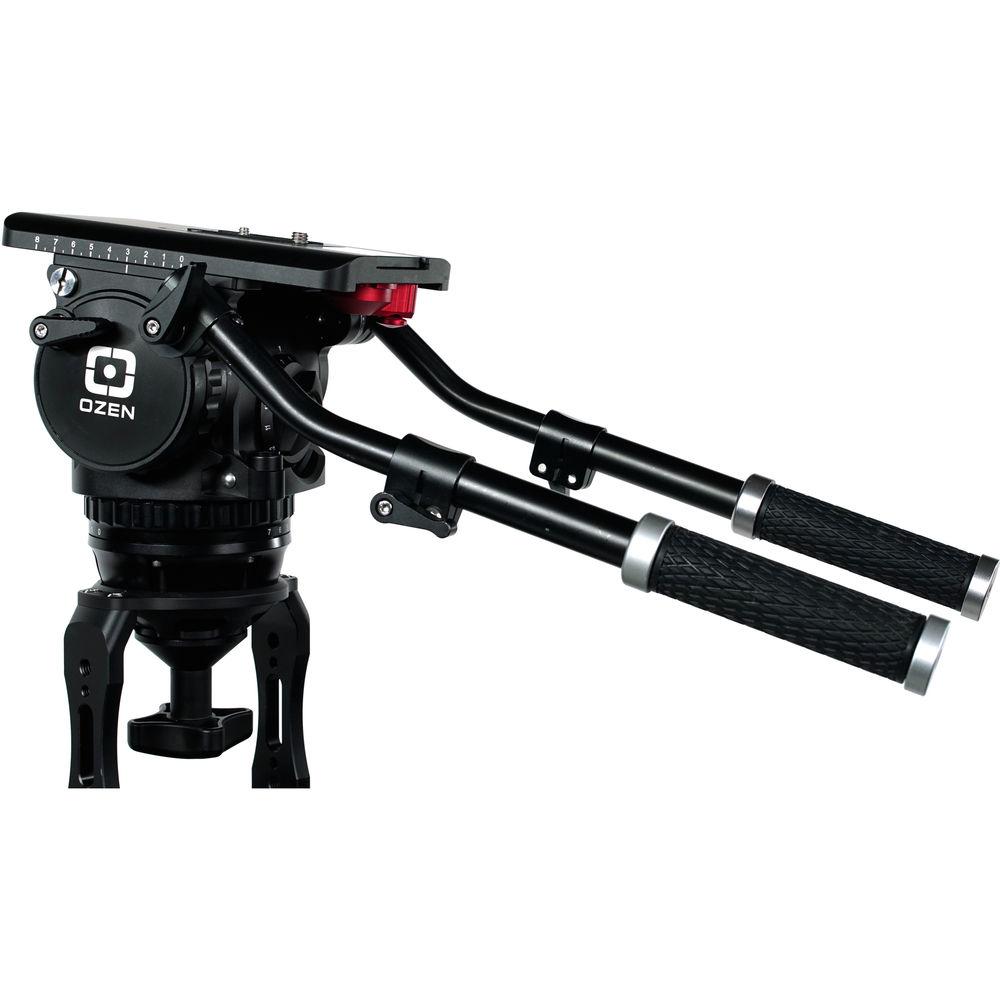

- Agile 20 Fluid Head Smooth your pans and tilts with the Agile 20 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 20 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 16 steps. The Agile 20's versatile design enables you to quickly change camcorder configurations within a payload range of 8.8 to 61.6 pounds.
The Agile 20 is equipped with a 9/9 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows. - Ergonomic pan/tilt fluid drag and counterbalance controls
- Distinguishable, 90° opposed pan and tilt brakes
- Replaceable pan bar rosettes for longer fluid head usability
- Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
- Two telescopic pan bars included
- Soft Case for Two-Stage Heavy-Duty 100mm Systems for 100HD2 Tripod The OZEN Soft Case for Two-Stage Heavy-Duty 100mm Systems for 100HD2 Tripod is a spare/replacement part. Users will appreciate the internal pouch for storing a pan bar and carry strap.
- Replacement Soft Case 100HD2 included w/systems configured with 100AL2HD or 100CF2HD tripod
In the Box Bundle Items 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod easraqzqzyrfrqarryxaeuuwwucxzxxxvv - Replacement Contender Heavy-Duty Mid- Level Spreader Replacement In Case Of Loss Or Non-Warranteed D
- Limited 2-Year Warranty, Extendable to 4 Years with Product Registration
Agile 20 Fluid Head - Spare Camera Plate Screws
- Limited 2-Year Warranty; Extendable to 4 Years with Product Registration
Soft Case for Two-Stage Heavy-Duty 100mm Systems for 100HD2 Tripod Table of Contents
|
Upload User Manual
Have you got an user manual for the OZEN 100CF2HD 100mm Carbon Fiber Tripod & Agile 20 Fluid Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 100CF2HD 100mm Two-Stage, Heavy-Duty Carbon Fiber Tripod
| | | Head Mount Type | 100 mm Bowl | | Load Capacity | 99 lb / 44.91 kg | | Maximum Working Height | 60" / 152.40 cm (with Spreader) | | Minimum Working Height | 20" / 50.80 cm (with Spreader) | | Folded Length | 28" / 71.12 cm | | Materials | Carbon Fiber | | Weight | 10.9 lb / 4.94 kg | | | | Leg Lock Type | Flip Lock | | Leg Sections | 3 | | Feet Features | Rubber | | Spreader | Mid-Level | - Agile 20 Fluid Head
| | | Base Mount | 100 mm Half Ball | | | | Drag Control | Pan: Variable 9-Step Plus 0
Tilt: Variable 9-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
