User Manual for OZEN 75AL2 75mm Aluminum Tripod & Agile 8 Fluid Head System Click to enlarge the picture
Contents of the user manual for the OZEN 75AL2 75mm Aluminum Tripod &
- Product category: Tripod Systems OZEN
- Brand: OZEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OZEN Tripod Systems
 |
User manual for the OZEN 75AL2 75mm Aluminum Tripod & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OZEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OZEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OZEN product will considerably shorten its lifespan!
|

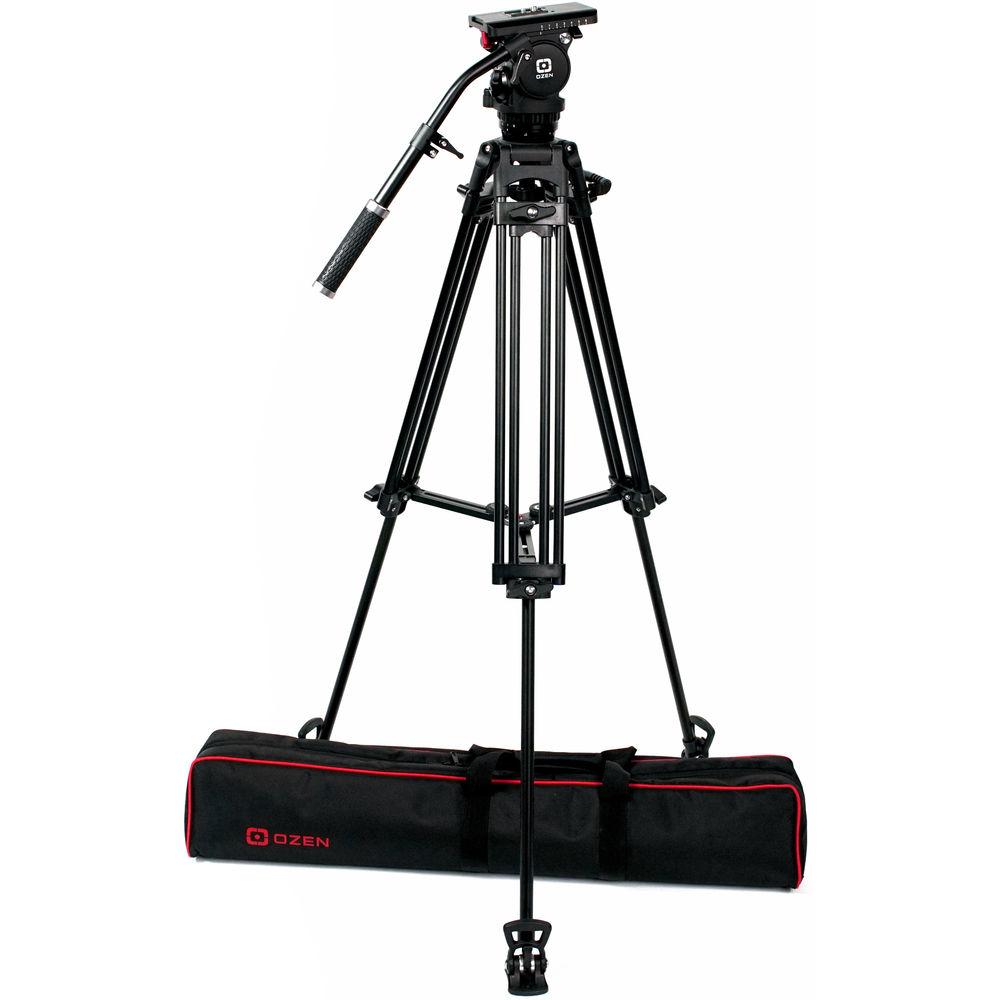

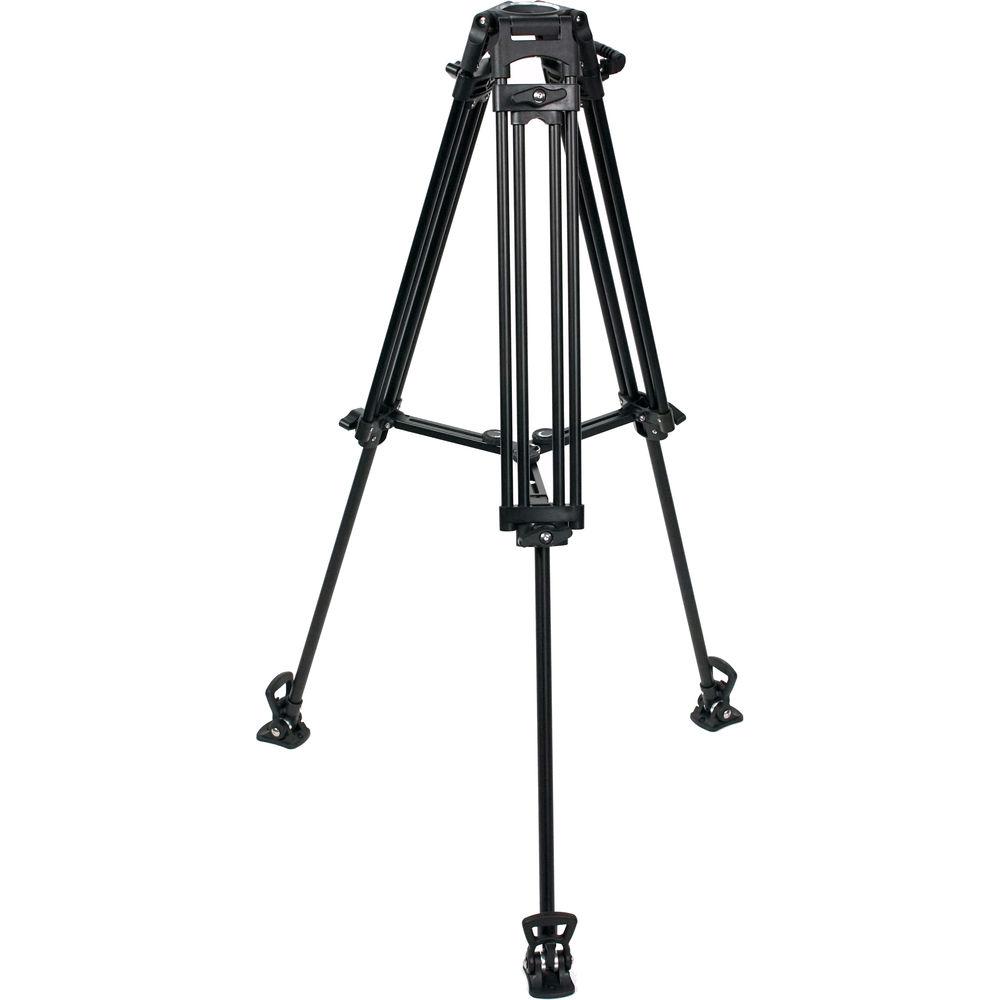

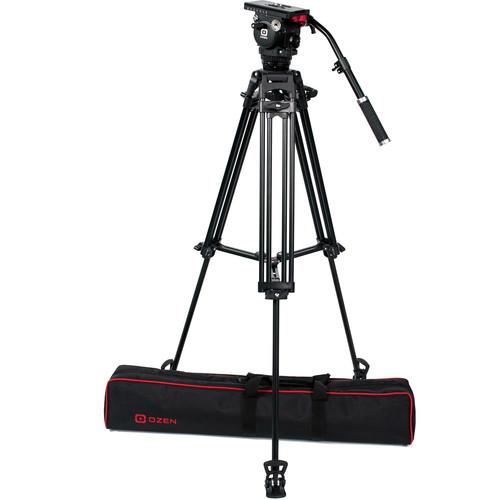

Product description Get a tripod system that stands up to the demands of ENG and EFP production with the 75AL2 75mm Aluminum Tripod & Agile 8 Fluid Head System with E-Z-Load camera interface from OZEN. Comprising a 75AL2 75mm two-stage anodized aluminum tripod and an Agile 8 fluid head, this system works with 2.2 to 22 lb payloads. It offers 10-step counterbalance, 5/5 + 0 pan/tilt fluid drag, and working heights ranging from 29 to 66". The two-stage tripod comes equipped with a fixed, extending mid-level spreader and wide rubber feet. Also included is a SoftCase 75, which has a carry strap and an internal pouch for storing the included pan bar. - 75AL2 75mm Two-Stage Aluminum Tripod Give your camera solid feet to stand on with the 75AL2 75mm Aluminum Tripod from OZEN. Designed for use with a separately available 75mm fluid head, this lightweight two-stage tripod supports a payload of 33 pounds and offers working heights ranging from 22 to 59". For greater rigidity, the anodized aluminum tripod legs are pin-secured to their anchors—no glued joints. Twist-lock brakes are used to lock the legs into place. Moreover, the 75AL2 comes equipped with wide rubber feet and a non-detachable, extending mid-level spreader that enables you to use the tripod safely on uneven surfaces.
- Payload capacity of 33 pounds
- Extending mid-level spreader and wide rubber feet
- Anodized aluminum tubes are pinned to their joints, not glued
- Brake levers are adjustable for wear

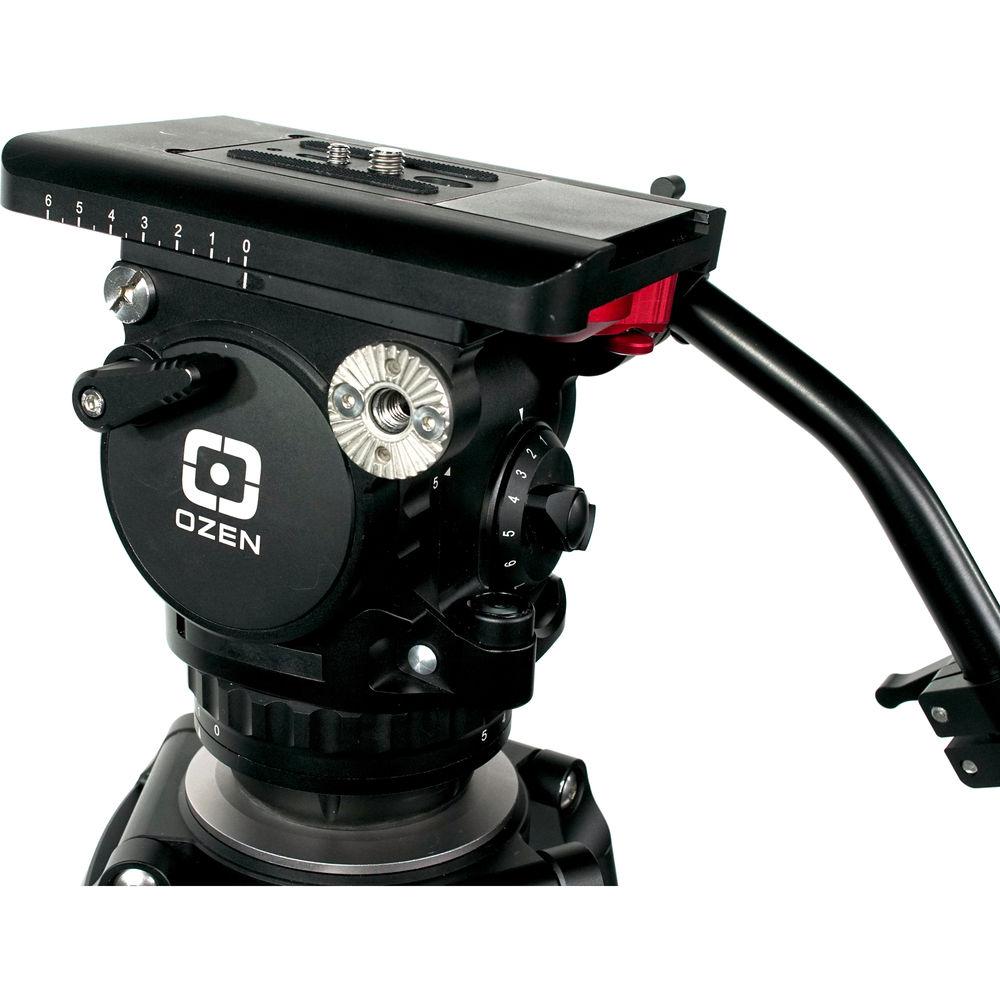

- Agile 8 Fluid Head Smooth your pans and tilts with the Agile 8 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 8 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 10 steps. The Agile 8's versatile design enables you to quickly change camcorder configurations within a payload range of 2.2 to 22 pounds.
The Agile 8 is equipped with a 5/5 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. The considerable amount of fluid drag available at higher increments enables experienced operators to acquire full-zoom, pan/tilt-intensive images that are indistinguishable from those acquired in close. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows. - Ergonomic pan/tilt fluid drag and counterbalance controls
- Distinguishable, 90° opposed pan and tilt brakes
- Replaceable pan bar rosettes for longer fluid head usability
- Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
- Telescopic pan bar included
- Soft Case for 75mm Systems The OZEN Soft Case is a replacement case for 75mm tripod systems. It is typically included with systems configured with 75AL2, 75CF2, and 75CF3 tripods. The case has an internal pouch for storing a pan bar and carry strap.
In the Box Bundle Items 75AL2 75mm Two-Stage Aluminum Tripod bequfaxdecvcbbxcaqcvrsbrbffabxdsacq - Limited 2-Year Warranty, Extendable to 4 Years with Product Registration
Agile 8 Fluid Head - Spare Camera Plate Screws
- Limited 2-Year Warranty; Extendable to 4 Years with Product Registration
Soft Case for 75mm Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the OZEN 75AL2 75mm Aluminum Tripod & Agile 8 Fluid Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 75AL2 75mm Two-Stage Aluminum Tripod
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 33 lb / 14.97 kg | | Maximum Working Height | 59" / 149.86 cm | | Minimum Working Height | 22" / 55.88 cm | | Folded Length | 26.7" / 67.82 cm | | Materials | Aluminum | | Weight | 5.6 lb / 2.54 kg | | | | Leg Lock Type | Twist Lock | | Leg Sections | 3 | | Feet Features | Rubber | | Spreader | Mid-Level | - Agile 8 Fluid Head
| | | Base Mount | 75 mm Half Ball | | | | Drag Control | Pan: Variable 5-Step Plus 0
Tilt: Variable 5-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
