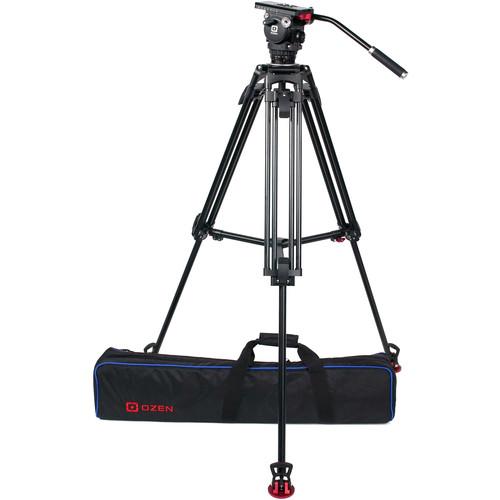

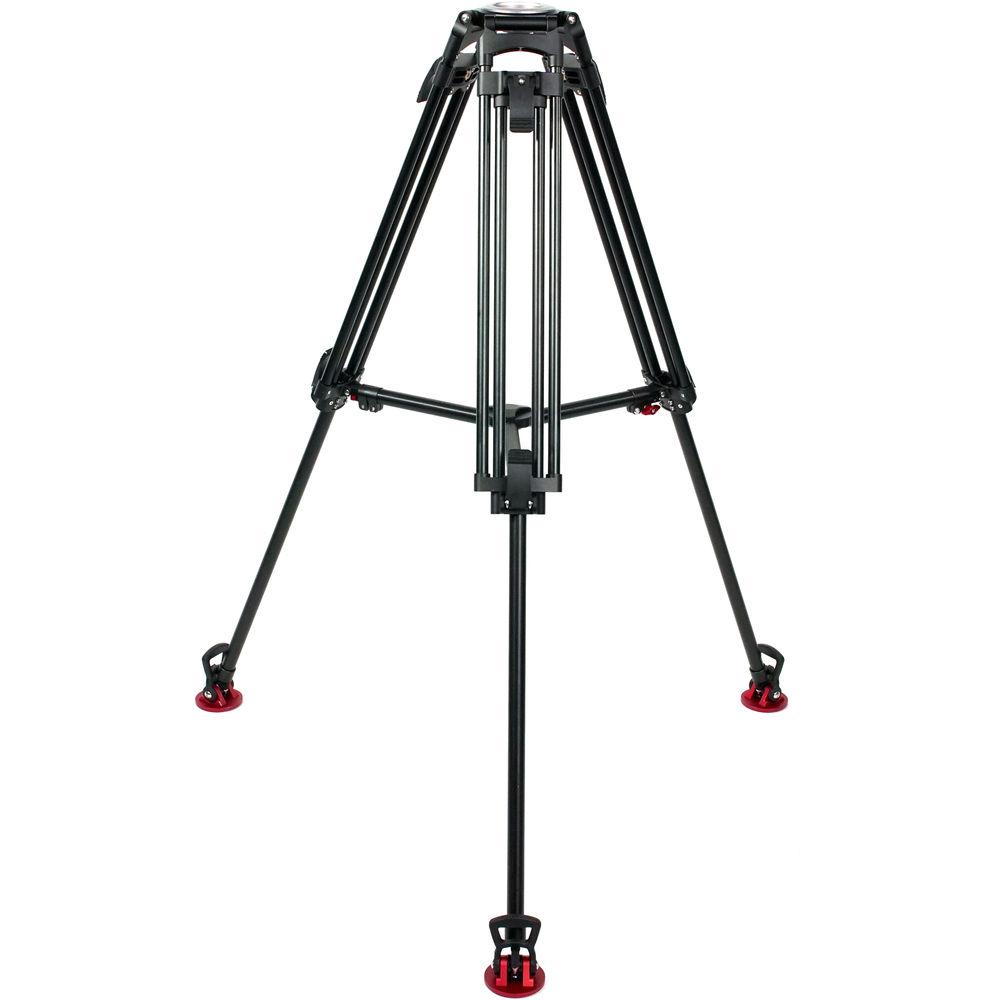

Product description Get a tripod system that stands up to the demands of ENG and EFP production with the 75AL2HD 75mm Aluminum Tripod & Agile 6 Fluid Head System with E-Z-Load camera interface from OZEN. Comprising a 75AL2HD 75mm two-stage, heavy-duty anodized aluminum tripod and an Agile 6 fluid head, this system works with 2.2 to 17.6 lb payloads. It offers 8-step counterbalance, 3/3 + 0 pan/tilt fluid drag, and working heights ranging from 30.8 to 67.8" using the included, removable MLS100 mid-level spreader. If you need to go even further up, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 30.8 to 71.8". The two-stage tripod is equipped with deep-tread rubber feet and comes with a SoftCase 100, which has a carry strap and an internal pouch for storing the included pan bar. - 75AL2HD 75mm Two-Stage, Heavy-Duty Aluminum Tripod Give your camera solid feet to stand on with the 75AL2HD 75mm Two-Stage, Heavy-Duty Aluminum Tripod from OZEN. Designed for use with a separately available 75mm fluid head, this two-stage tripod supports a payload of 55 pounds and offers working heights ranging from 24 to 61" using the included, removable MLS100 mid-level spreader. If you need to go even further up, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 24 to 65".
For greater rigidity, the 75AL2HD's anodized aluminum leg tubes are pin-secured to their anchors—no glued joints. Highly visible flip brake levers are used to lock the legs into place. Moreover, the 75AL2HD comes equipped with deep-tread rubber feet for better traction on smooth surfaces. - Payload capacity of 55 pounds

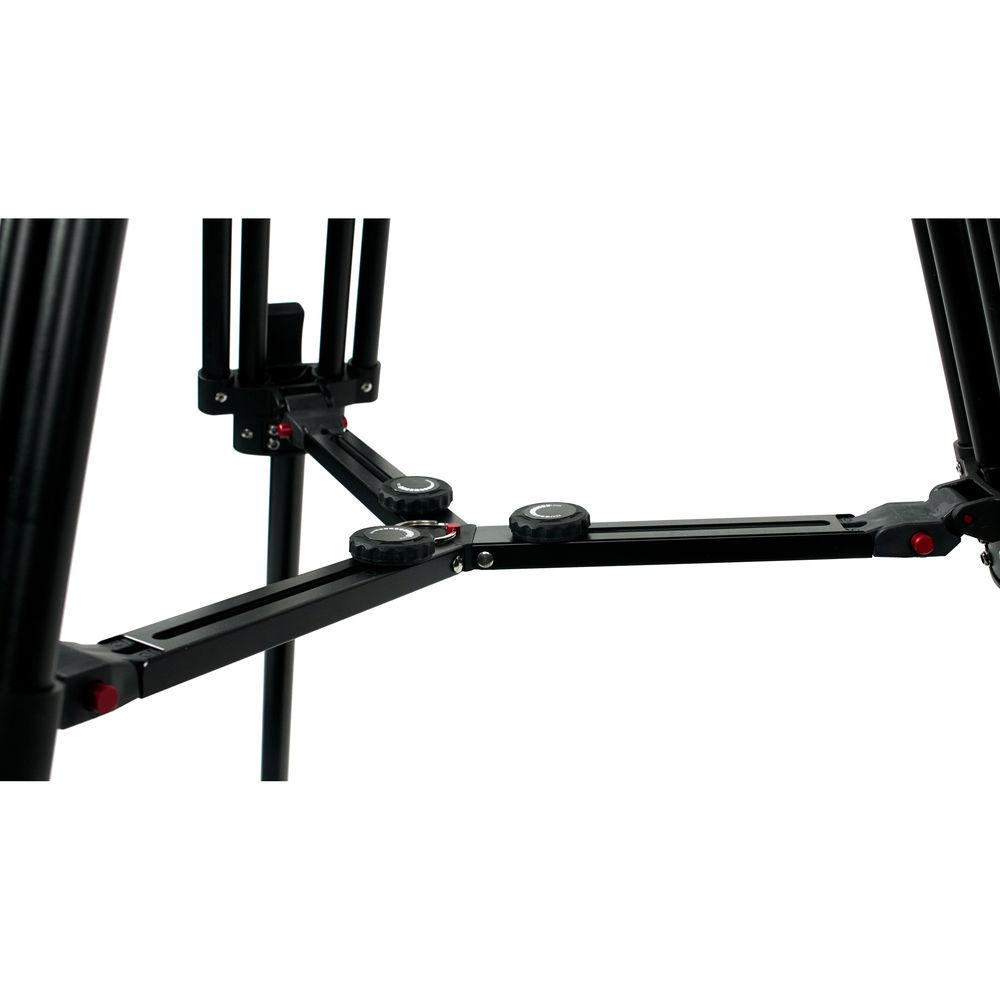

- Removable MLS100 mid-level spreader
- Anodized aluminum tubes are pinned to their joints, not glued
- Flip-lock brakes are operator-adjustable for wear

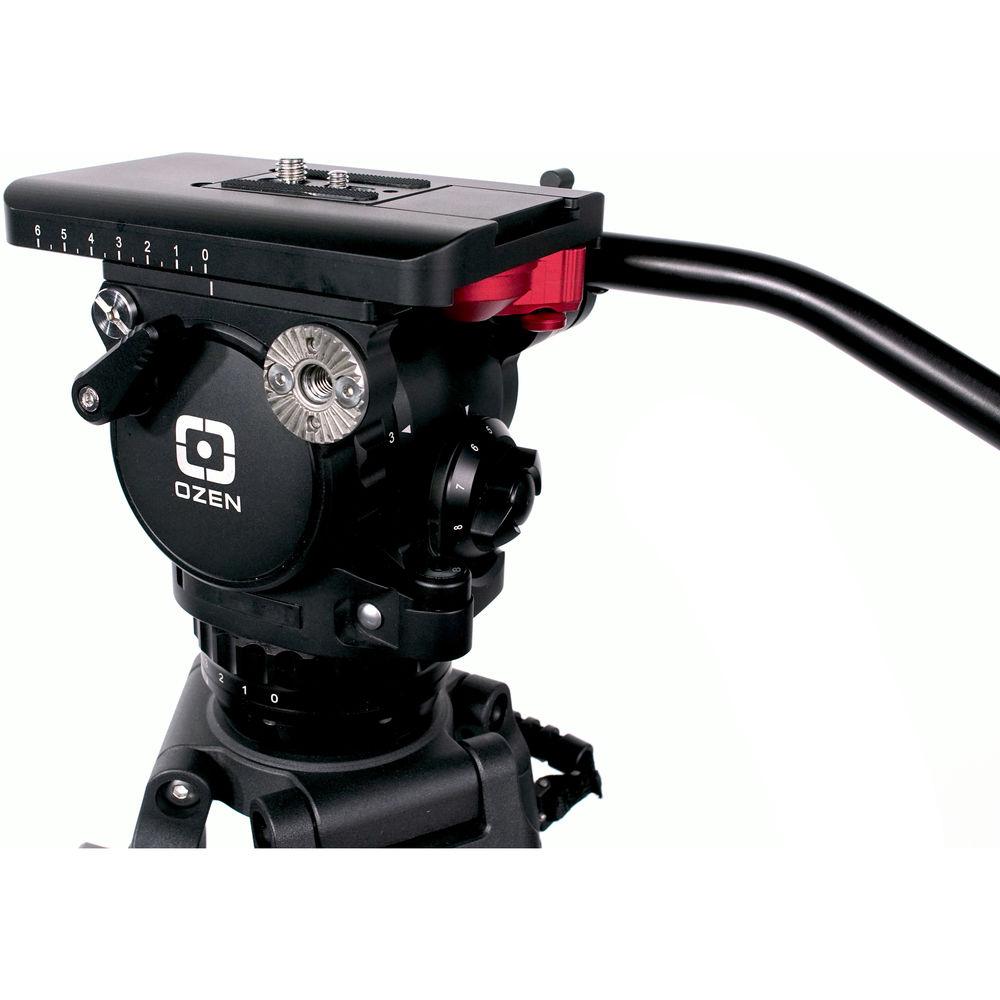

- Agile 6 Fluid Head Smooth your pans and tilts with the Agile 6 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 6 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 8 steps. The Agile 6's versatile design enables you to quickly change camcorder configurations within a payload range of 2.2 to 17.6 pounds.
The Agile 6 is equipped with a 3/3 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows. - Ergonomic pan/tilt fluid drag and counterbalance controls
- Distinguishable, 90° opposed pan and tilt brakes
- Replaceable pan bar rosettes for longer fluid head usability
- Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
- Soft Case for Heavy-Duty 75mm and 100mm Systems The OZEN Soft Case is a replacement case for heavy-duty 75mm and 100mm systems. This is the case typically included with 75AL2HD, 75CF2HD, 100AL2, and 100CF2 tripod systems. The case has an internal pouch for storing a pan bar and carry strap.
In the Box Bundle Items 75AL2HD 75mm Two-Stage, Heavy-Duty Aluminum Tripod tfuqavzfscydfbfua - Replacement Contender Heavy-Duty Mid- Level Spreader Replacement In Case Of Loss Or Non-Warranteed D
- Limited 2-Year Warranty, Extendable to 4 Years with Product Registration
Agile 6 Fluid Head - Spare Camera Plate Screws
- Limited 2-Year Warranty; Extendable to 4 Years with Product Registration
Soft Case for Heavy-Duty 75mm and 100mm Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the OZEN 75AL2HD 75mm Aluminum Tripod & Agile 6 Fluid Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 75AL2HD 75mm Two-Stage, Heavy-Duty Aluminum Tripod
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 55 lb / 24.95 kg | | Maximum Working Height | 61" / 154.94 cm | | Minimum Working Height | 24" / 60.96 cm (with Spreader) | | Materials | Aluminum | | Weight | 9.4 lb / 4.26 kg | | | | Leg Lock Type | Flip Lock | | Leg Sections | 3 | | Feet Features | Rubber | | Spreader | Mid-Level | - Agile 6 Fluid Head
| | | Base Mount | 75 mm Half Ball | | | | Drag Control | Pan: Variable 3-Step Plus 0
Tilt: Variable 3-Step Plus 0 | | Drag Type | Fluid | | Vertical Tilt | +90
