OZEN 75CF2HD 75mm Carbon Fiber Tripod

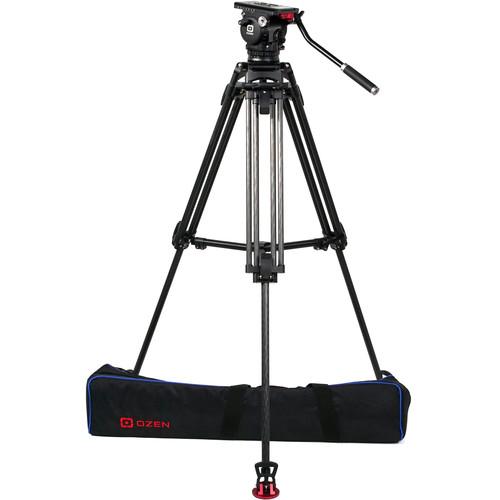

User Manual for OZEN 75CF2HD 75mm Carbon Fiber Tripod & Agile 6 Fluid Head System

• Product category: Tripod Systems OZEN
• Brand: OZEN
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OZEN Tripod Systems

Product description

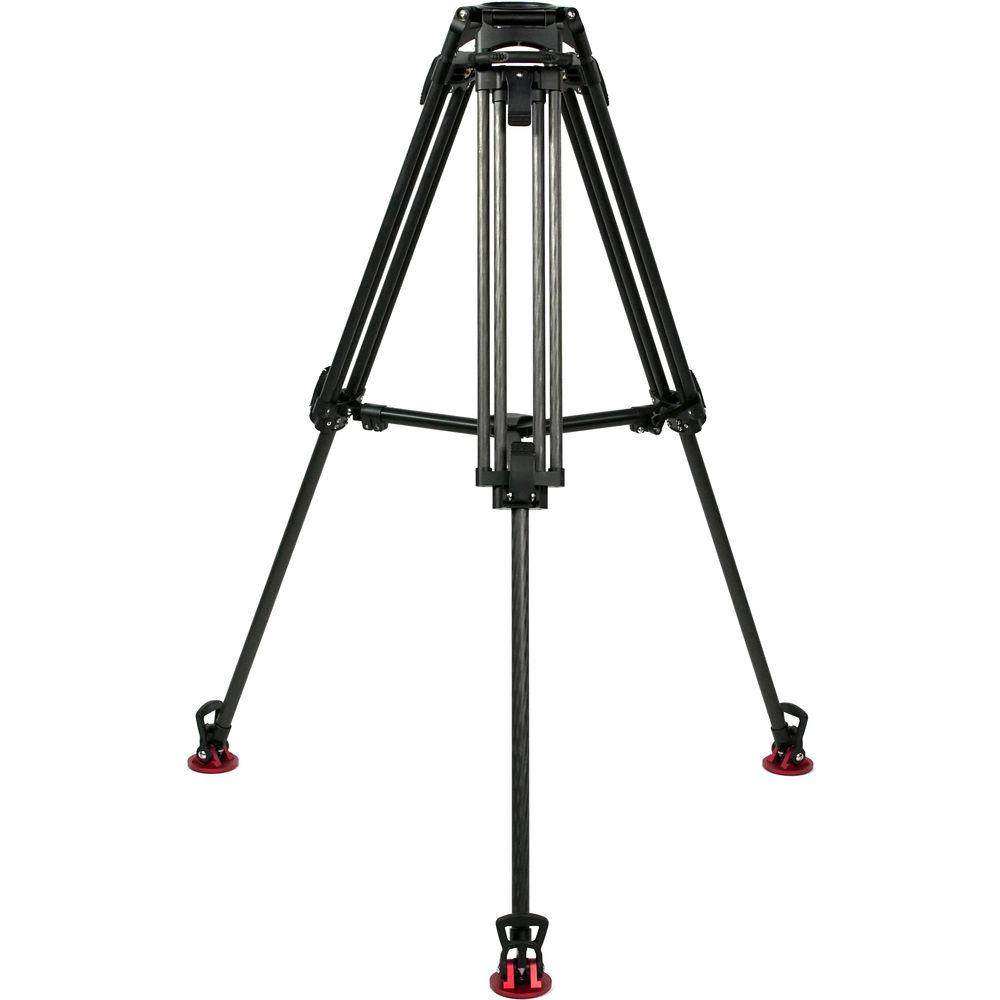

• 75CF2HD 75mm Two-Stage, Heavy-Duty Carbon Fiber Tripod
  • OZEN Camera Support
  Give your camera solid feet to stand on with the 75CF2HD 75mm Two-Stage, Heavy-Duty Carbon Fiber Tripod from OZEN. Designed for use with a separately available 75mm fluid head, this two-stage tripod supports a payload of 55 pounds and offers working heights ranging from 24 to 61" using the included, removable MLS100 mid-level spreader. If you need to go even further up, you can replace the included spreader with the separately available Contender heavy-duty mid-level spreader, which gives you a range of 24 to 65".

  For greater rigidity, the 75CF2HD's carbon fiber leg tubes are pin-secured to their anchors—no glued joints. Highly visible flip brake levers are used to lock the legs into place. Moreover, the 75CF2HD comes equipped with deep-tread rubber feet for better traction on smooth surfaces.
  • Payload capacity of 55 pounds

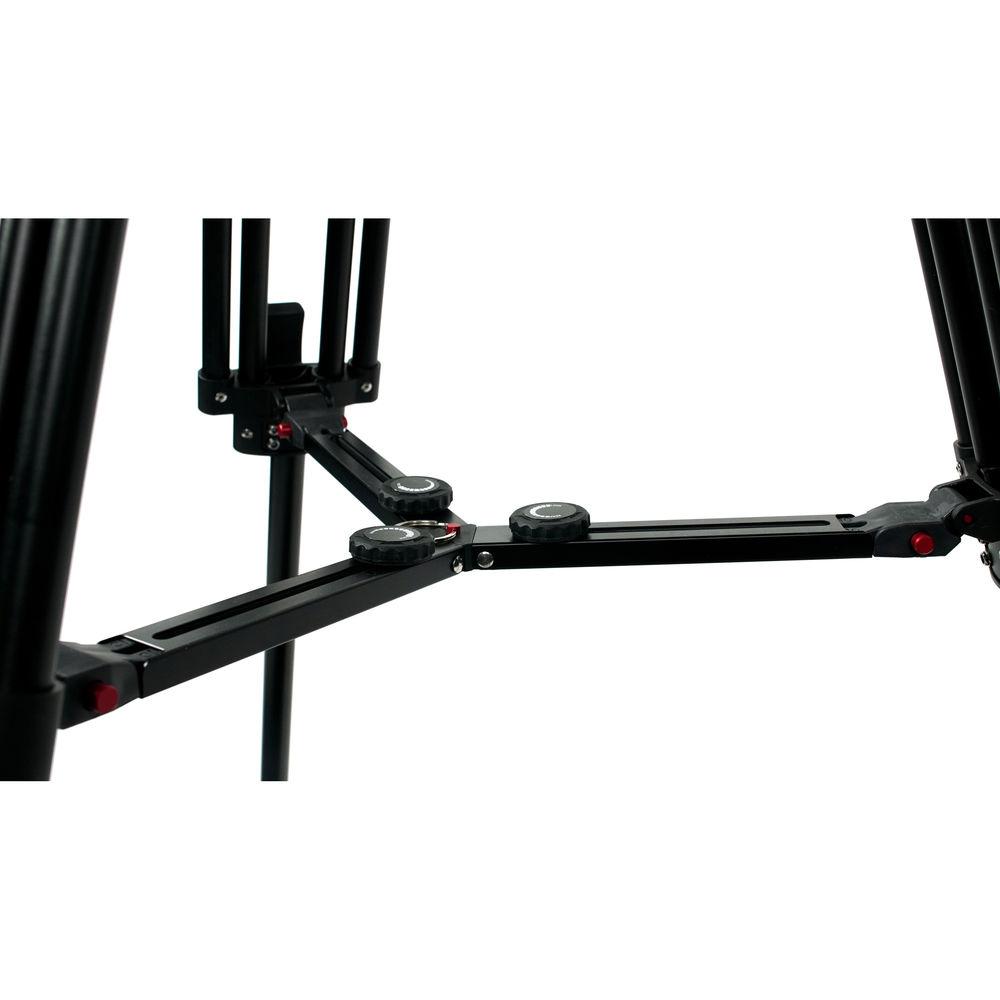

  • Removable MLS100 mid-level spreader
  • Deep-tread rubber feet
  • Molded carbon fiber tubes are pinned to their joints, not glued
  • Flip-lock brakes are operator-adjustable for wear

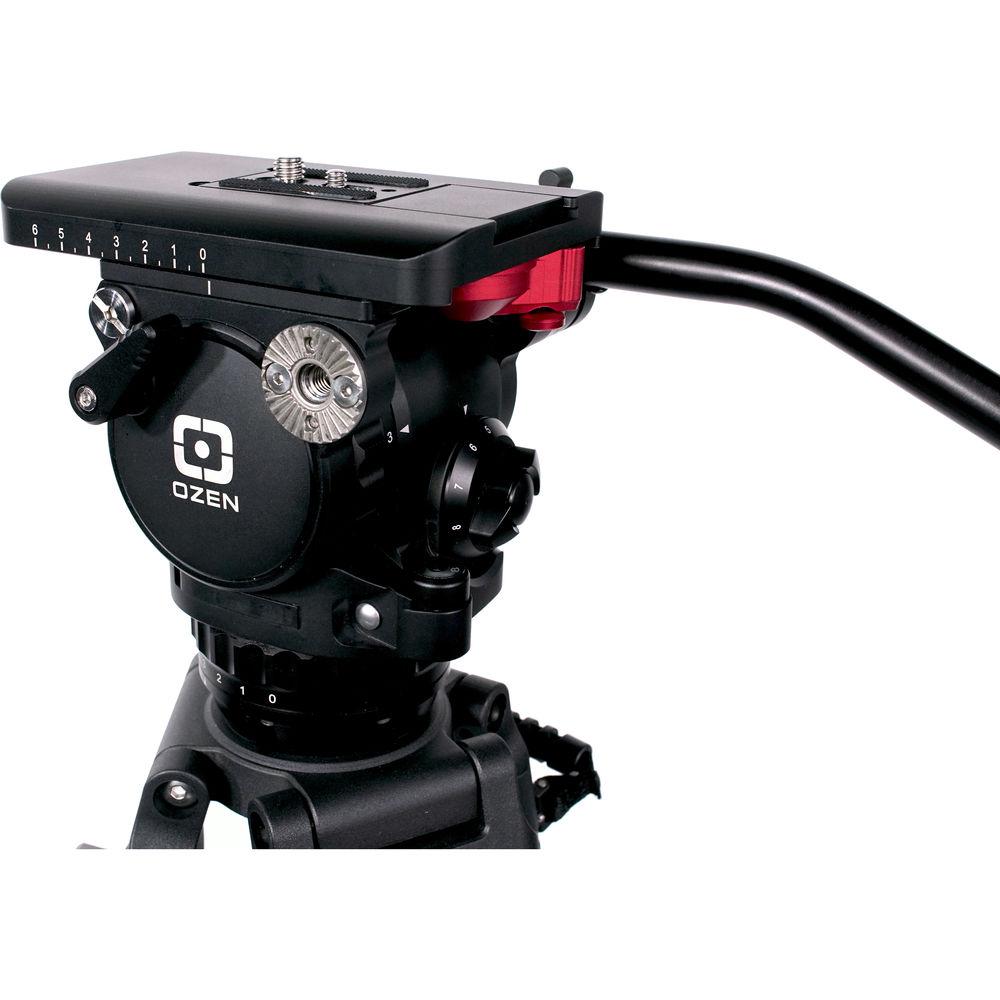

• Agile 6 Fluid Head Smooth your pans and tilts with the Agile 6 Fluid Head from OZEN. Designed for fast setup in ENG- and EFP-style shooting scenarios, the Agile 6 is equipped with a CNC-machined dial mechanism for crisp, repeatable counterbalance adjustment in 8 steps. The Agile 6's versatile design enables you to quickly change camcorder configurations within a payload range of 2.2 to 17.6 pounds.

  The Agile 6 is equipped with a 3/3 + 0 fluid drag mechanism and offers a tilt range of 90 to -80°. This fluid head uses the full-sized E-Z Load camera mounting interface, which is compatible with the industry-standard spring-loaded, capture-type interface and fits the pace of shoot & scoot workflows.
  • Ergonomic pan/tilt fluid drag and counterbalance controls
  • Distinguishable, 90° opposed pan and tilt brakes
  • Replaceable pan bar rosettes for longer fluid head usability
  • Illuminated bubble level
  • Constructed of CNC-machined and anodized aluminum with stainless steel fasteners
  • Pan bar included
• Soft Case for Heavy-Duty 75mm and 100mm Systems The OZEN Soft Case is a replacement case for heavy-duty 75mm and 100mm systems. This is the case typically included with 75AL2HD, 75CF2HD, 100AL2, and 100CF2 tripod systems. The case has an internal pouch for storing a pan bar and carry strap.

• Replacement Contender Heavy-Duty Mid- Level Spreader Replacement In Case Of Loss Or Non-Warranteed D

• Limited 2-Year Warranty, Extendable to 4 Years with Product Registration

• Camera Plate

• Pan Bar

• Spare Camera Plate Screws

• Limited 2-Year Warranty; Extendable to 4 Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 75CF2HD 75mm Two-Stage, Heavy-Duty Carbon Fiber Tripod

  Head Mount Type	75 mm Bowl
  Load Capacity	55 lb / 24.95 kg
  Maximum Working Height	61" / 154.94 cm
  Minimum Working Height	24" / 60.96 cm (with Spreader)
  Materials	Carbon Fiber
  Weight	8.9 lb / 4.04 kg

  Leg Lock Type	Flip Lock
  Leg Sections	3
  Feet Features	Rubber
  Spreader	Mid-Level

• Agile 6 Fluid Head

  Base Mount	75 mm Half Ball

  Drag Control	Pan: Variable 3-Step Plus 0 Tilt: Variable 3-Step Plus 0
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 37 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
