Product description
Pacific Image Delivers Super Scanning Solutions Read More
180214 PF video
180222 PF long video
Cleaning Inside Your Scanner

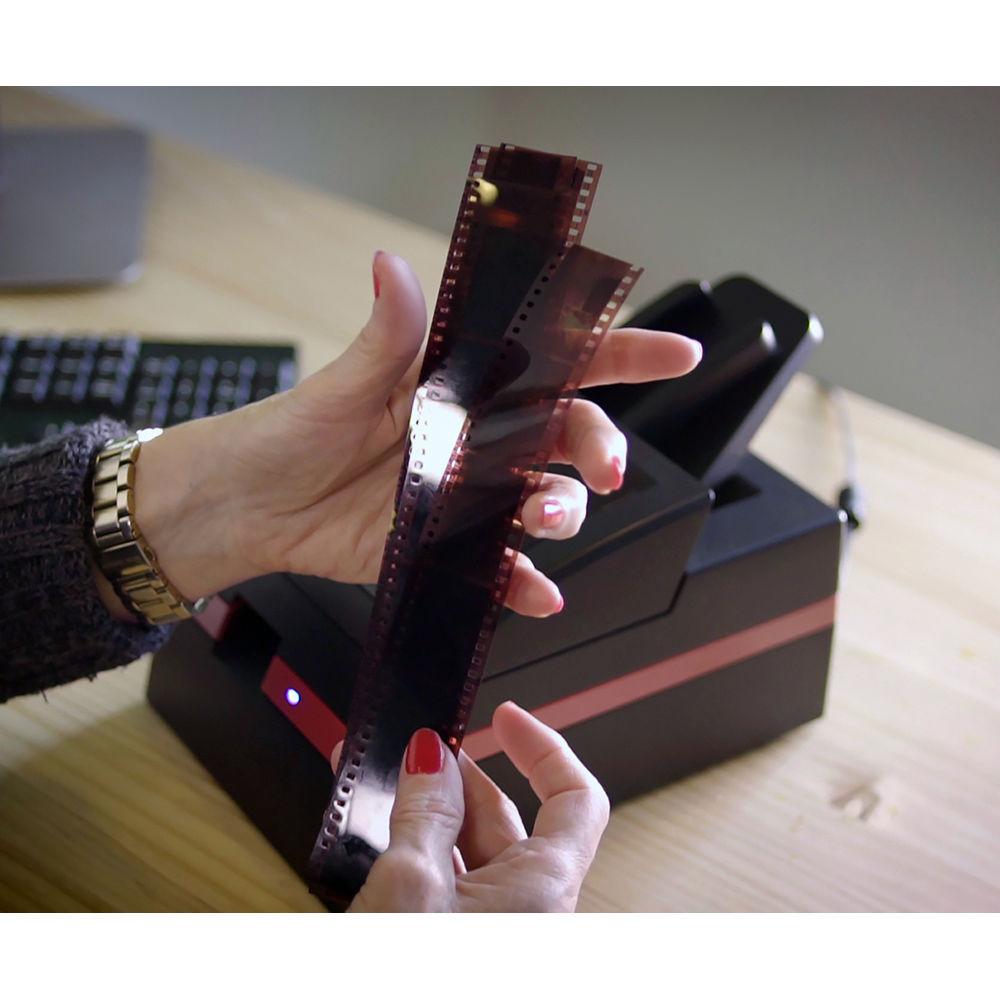

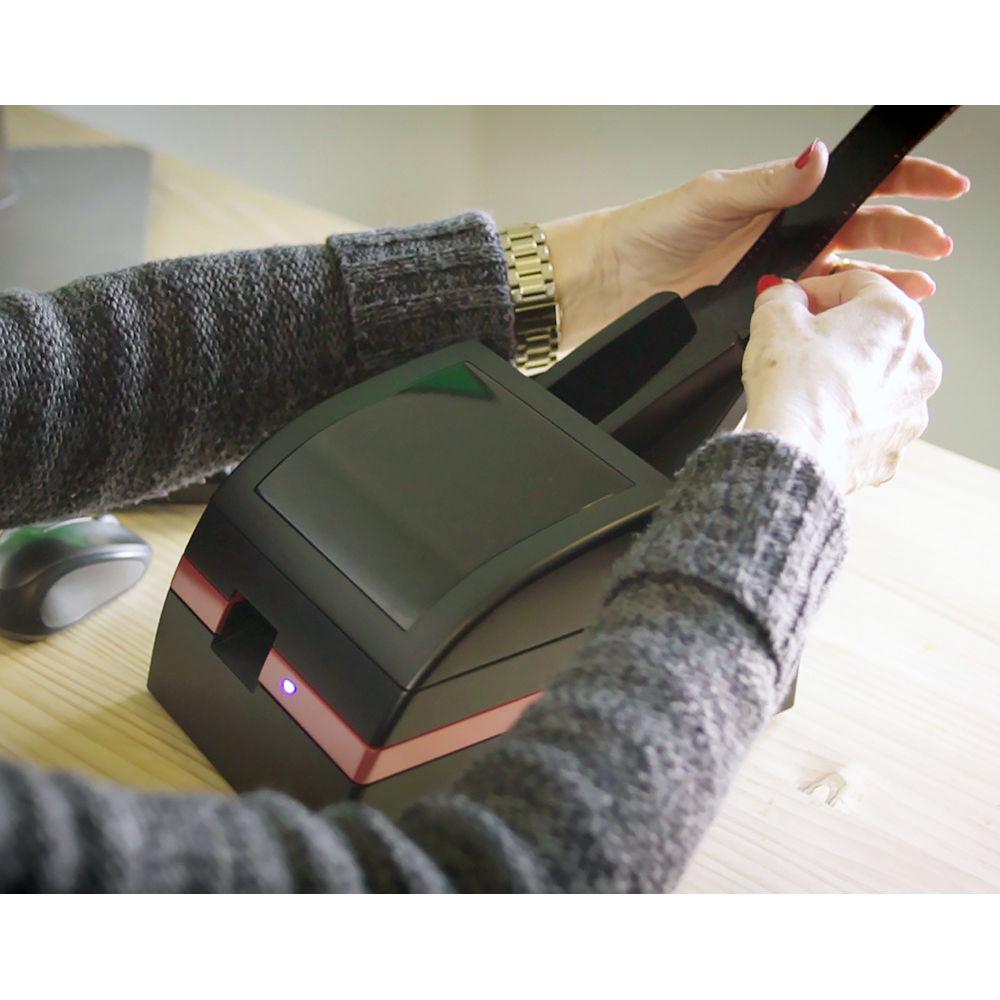

Loading Your Negatives
Organizing and Scanning Your Negatives
Troubleshooting

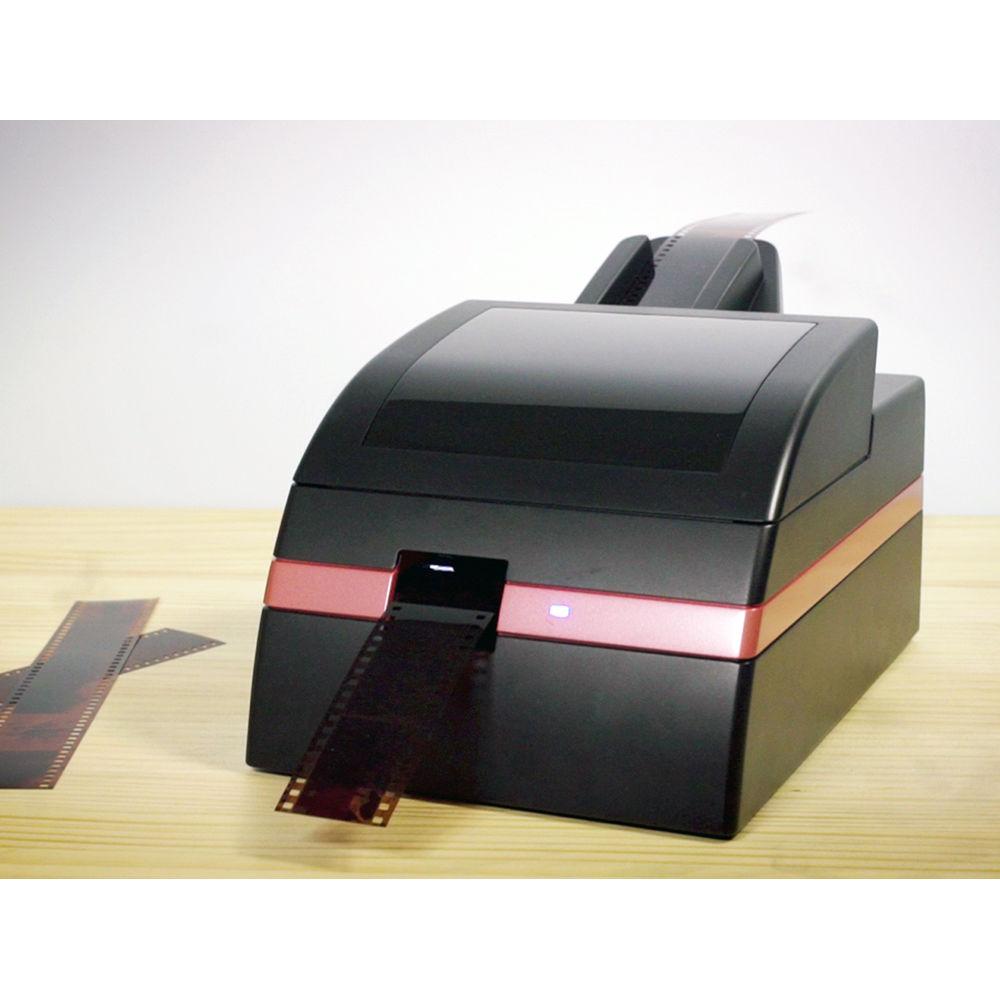

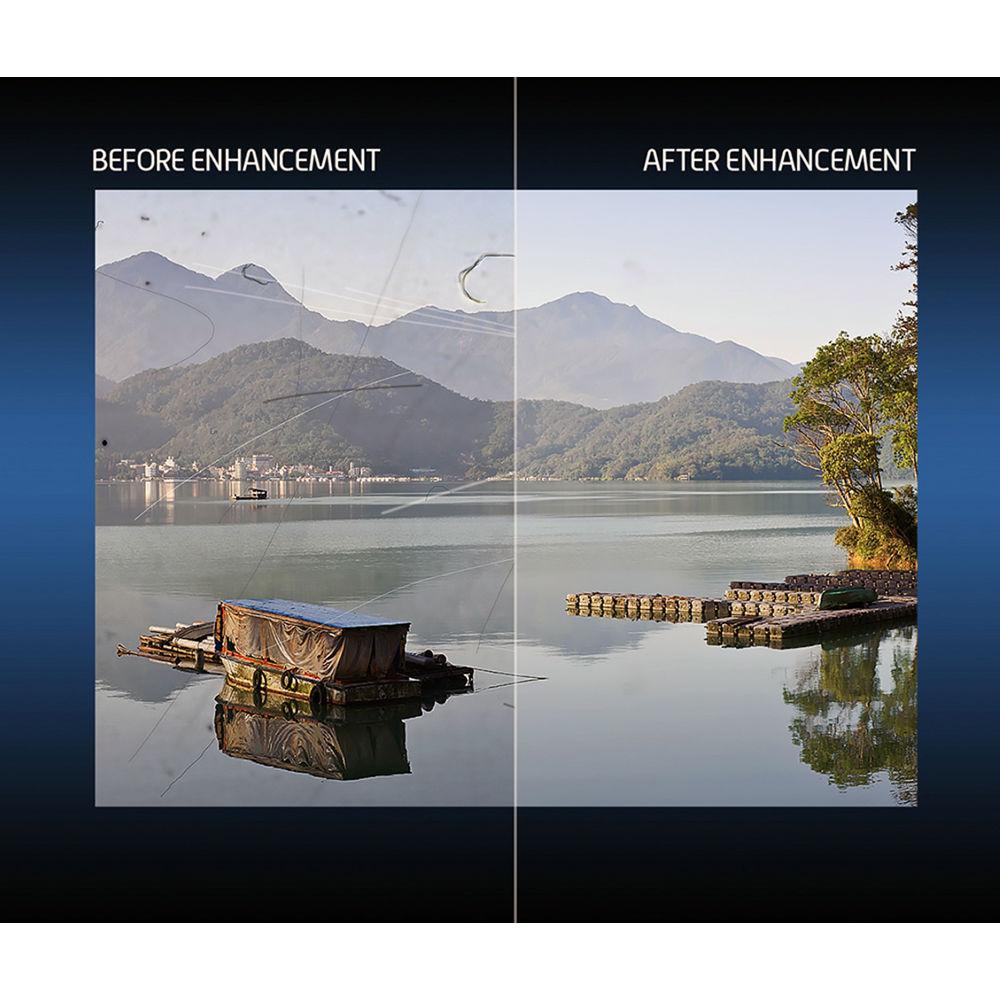

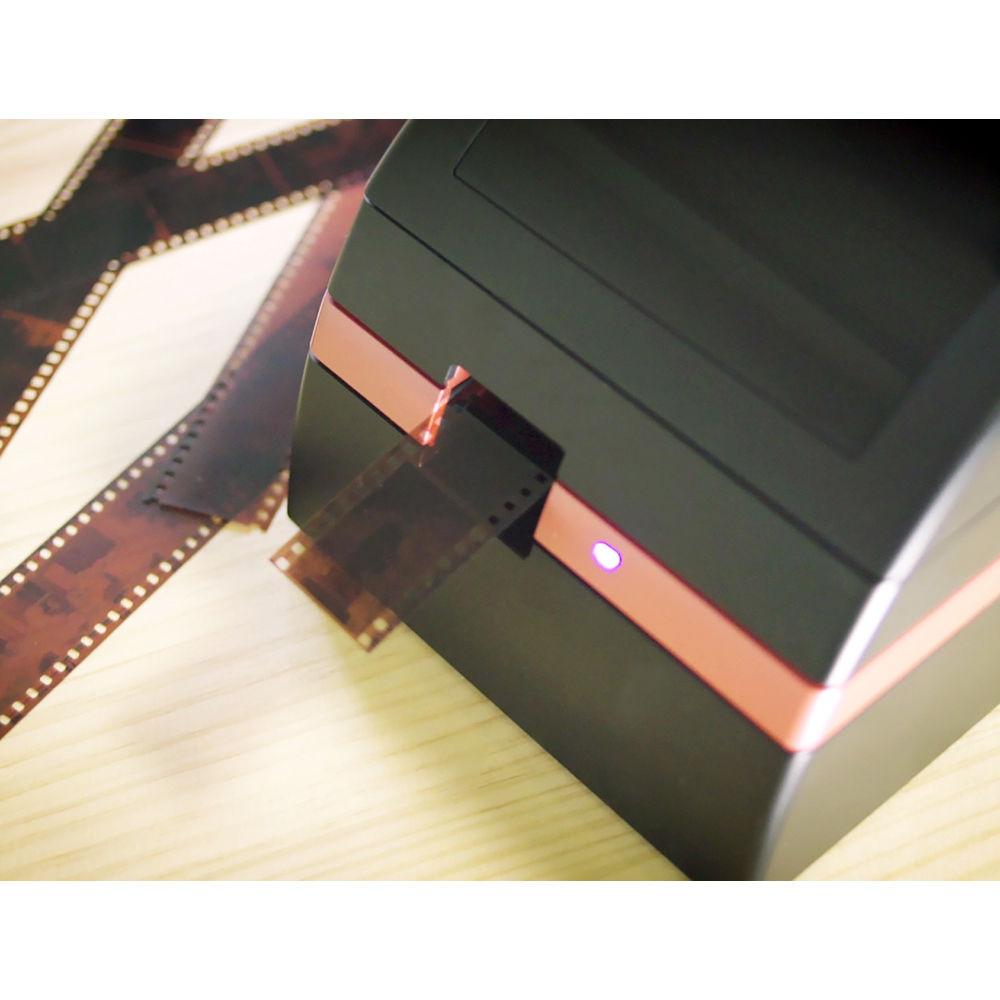

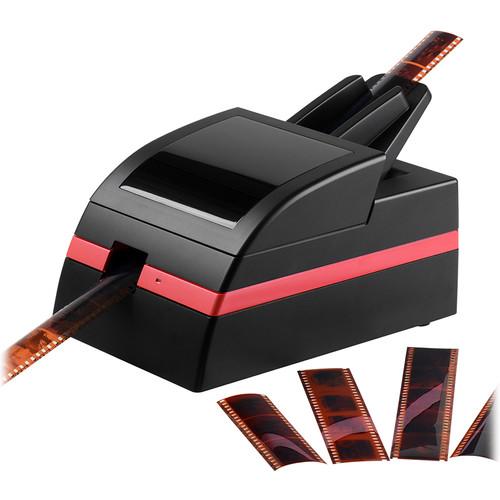

Designed for fast an efficient scanning of up to 60 sequential frames, the PowerFilm from Pacific Image is a sleek film scanner optimized for automatic batch scanning. Compatible with 35mm strips of color negatives, color positives, or B&W negatives, this scanner can be set to automatically digitize up to 10 strips of six frames with one command. Up to 24MP scans can be made for the greatest quality, or a lower resolution 6MP setting can be used for faster scanning speeds of approximately 24 seconds per scan. Operating the scanner is CyberView PF 135 software, available as a download from Pacific Image, which enables choosing between 8- and 16-bit settings, selecting JPG or TIF file formats, as well as giving control over brightness, contrast, and color settings. Additionally, MagicTouch Technology can be used to automatically remove dust and scratches using IR illumination, and a Multipass Xposure setting will make three sequential scanning passes and composite the frames to noticeably increase detail. UPC: 649899001912 In the Box Pacific Image PowerFilm Scanner
Film Feeder
Universal AC Adapter
Interchangeable Plugs (US/EU/UK)
USB 2.0 Cable
Limited 1-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Pacific Image PowerFilm Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Pacific Image PowerFilm Specs
Film/Print Format
35 mm Film Strips
Light Source
1 x White LED 1 x Infrared LED
Maximum Scan Area
0.94 x 1.42" / 24 x 36 mm
Color Depth
16-Bit (Internal)
Batch Scan Support
Yes, 10 35 mm Film Strips
Exposure Control
Auto/Manual
Output File Format
JPEG, TIFF
Computer Interface
USB 2.0 (USB Type-A)
OS Compatibility
macOS 10.7 or Later Windows 7 or Later
Image Resolution
24 MP
Type
Linear CCD
Power Source
AC Adapter
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC at 1.5 A
Operating Temperature
50 to 104°F / 10 to 40°C
Operating Humidity
15 to 76%
Dimensions (W x H x D)
9.1 x 6.2 x 5.0" / 232.0 x 157.0 x 128.0 mm
Weight
4.2 lb / 1.9 kg
Package Weight
6.15 lb
Box Dimensions (LxWxH)
15.95 x 13.6 x 9.35"
