User Manual for Padcaster Starter Kit for 10.5" iPad Pro Click to enlarge the picture
Contents of the user manual for the Padcaster Starter Kit for 10.5" iPad
- Product category: Tablet Attachment Cases & Kits Padcaster
- Brand: Padcaster
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Padcaster Tablet Attachment Cases & Kits
 |
User manual for the Padcaster Starter Kit for 10.5" iPad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Padcaster product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Padcaster user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Padcaster product will considerably shorten its lifespan!
|

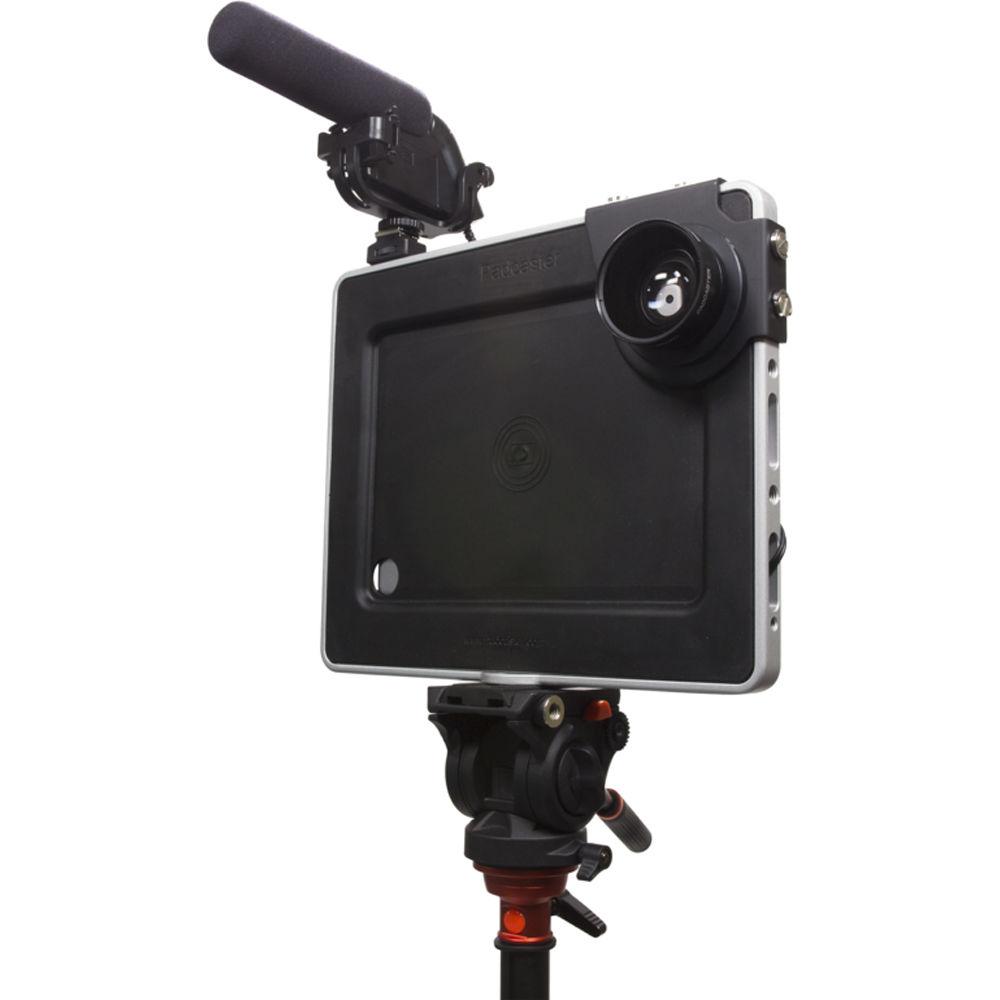

Product description The Padcaster Starter Kit for 10.5" iPad Pro is designed for users that need a portable and rugged kit for broadcasting tasks. With a plethora of included accessories, the Padcaster Starter Kit allows you to turn your iPad into a professional all-in-one production module. This kit comes with a protective Padcaster Case, a unidirectional microphone kit, and audio splitter. Inside you'll also find a .45x wide angle lens and a fluid head tripod/monopod duo for an immersive and balanced video. Additionally, you'll find a padded backpack to keep your iPad and accessories safe. - Case for iPad Pro 10.5" The Padcaster Case is designed to allow you to improve the quality of video shot using an iPad Pro 10.5". The lightweight, brushed aluminum frame has 1/4"-20 and 3/8"-16 threaded holes around the edges for attaching external microphones, lights, and other accessories. This allows for greater creative control over filming.
The Padcaster Case can also be attached to a tripod, monopod, or shoulder mount using the tripod thread and locking-pin hole. By removing the insert, you can use the frame as a DSLR cage for added versatility.
The lens bracket has a built-in 72mm thread and a 72-58mm step-down ring that allows you to attach lenses with rear threads of 72mm or 58mm. A cold shoe adapter for accessories like LED lights and microphones is also included, as well as a special camera mount screw that allows you to use the frame as a DSLR cage. - Brushed aluminum frame with 1/4"-20 and 3/8"-16 threaded holes around the edges
- Tripod thread and locking pin hole allow you to connect it to a tripod, monopod, or shoulder mount
- Urethane insert allows a snug fit for an iPad Pro 10.5"
- Take out the insert to use the Padcaster as a DSLR cage
- Lens bracket allows you to attach a user-supplied lens to the Padcaster

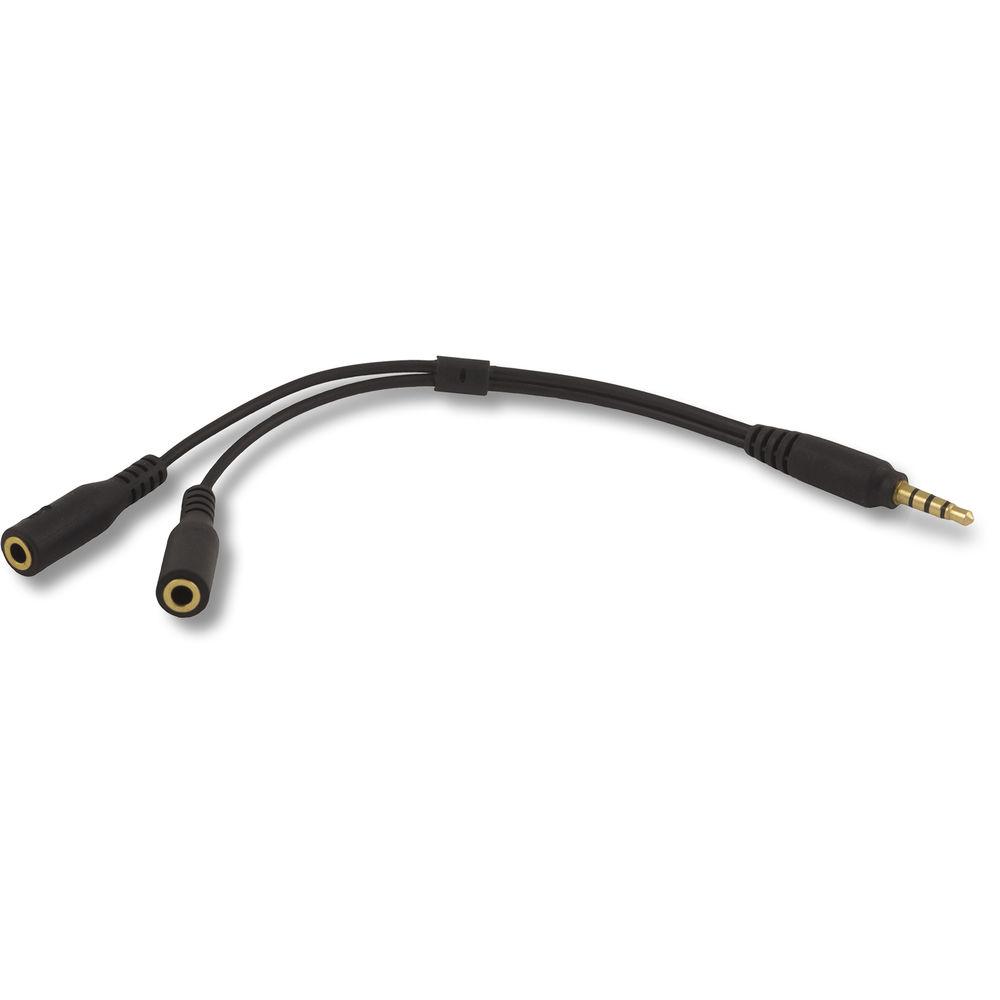

UPC: 687748130765 - Dual Mic/Headphone Jack Listen and record with the Dual Mic/Headphone Jack from the Padcaster. This Y-splitter has a 3.5mm TRRS male connector on one end and female 3.5mm microphone and headphone connectors on the other, enabling you to record and monitor simultaneously. UPC: 756519389555

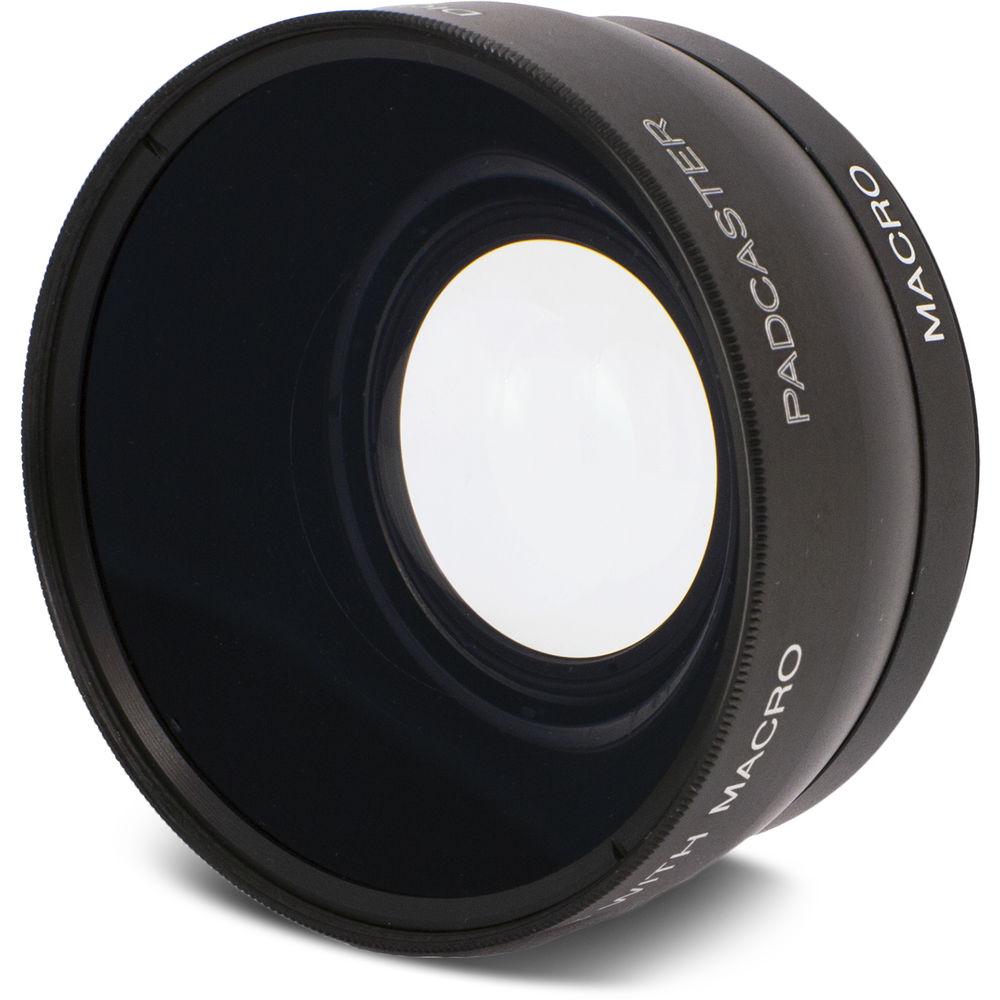

- Wide-Angle Lens Expand your field of view with a Wide-Angle Lens from the Padcaster. This 0.45x lens attaches to your Padcaster's lens bracket with its 58mm thread. It accepts 62mm filters and the front of the lens unscrews, leaving a macro lens for close-up photography. UPC: 756519389531

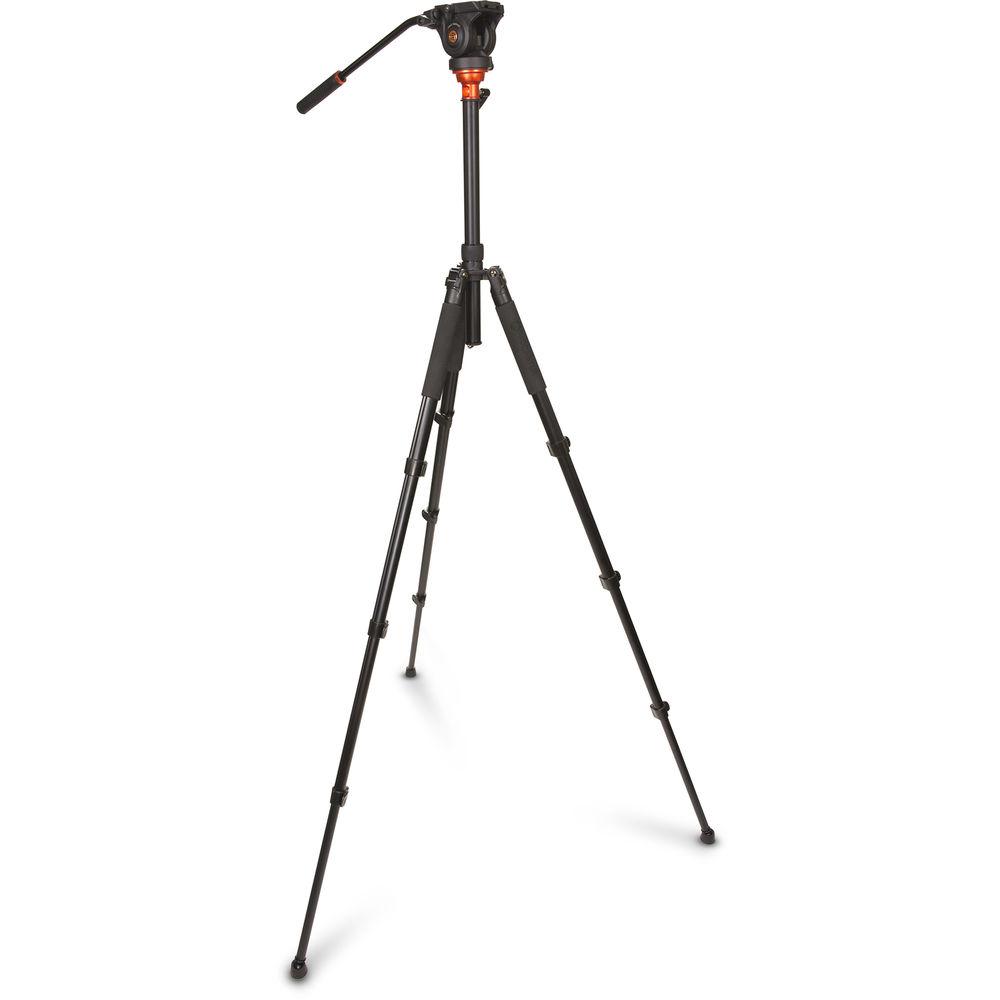

- Fluid Head Tripod/Monopod Rugged and portable, the Fluid Head Tripod/Monopod from Padcaster is designed for use with their iPad line, Smartphone Verse products, and most anything else with a camera. Built using aluminum, it can endure a wide range of shooting situations and its back-folding legs make it compact enough to clip onto your backpack.
Featuring a fluid pan and tilt head that can support up to 13.2 pounds, your devices will be secure and balanced. There are also two ball-level adjustments to help ensure your shots are horizontally and vertically level, even if the ground beneath you isn't. With three leg sections and a telescoping center column, the Padcaster Fluid Head Tripod/Monopod can extend to 71" and folds down to 22" for compact travel and storage. If you're looking for even more of an on-the-go solution, unscrew one of the tripod legs and attach it to the removable center column to create a monopod.
Additional features include a 3/8"-16 accessory interface to mount other equipment, removable spike feet for improved stability and grip while shooting outdoors, a spring-loaded hook to add extra weight for greater stability, a spare 3/8"-16 screw pre-mounted in the tripod head, and a weatherproof zipper carry bag for added protection against the elements. General Features - Fluid head with 25° angle adjustment
- Converts to a monopod with pan and tilt functionality
- Removable center column for underling mounting
- Three-section, clip-locking legs
- Telescoping center column with spring-loaded hook for adding weight
- Standard quick-release plate with permanent stopping plug holds 1/4"-20 screw in place
- 3/8"-16 expansion interface on head
- Includes weatherproof zipper carry bag

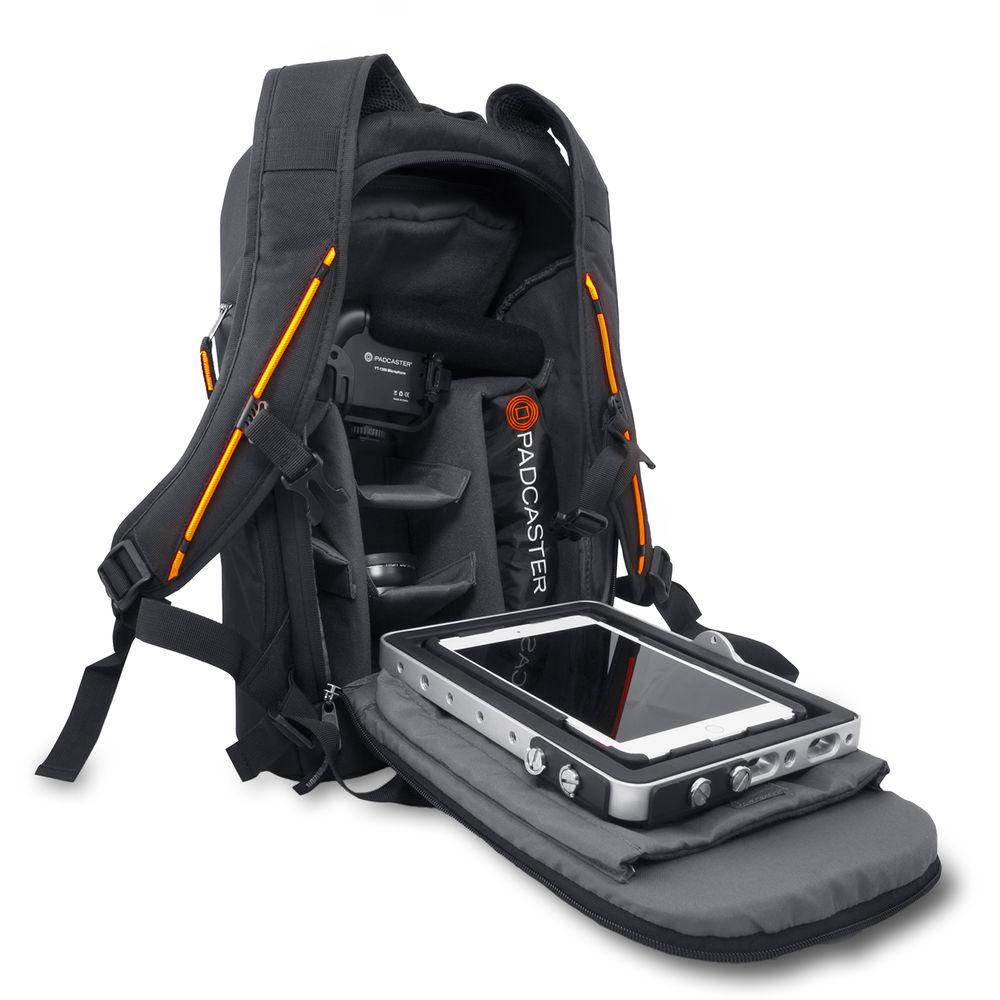

UPC: 014567407561 - Backpack Carry your mobile media gear on the go with the Padcaster Backpack. This bag is made from rugged, water-resistant nylon and is fully padded to keep your gear safe. Inside, five hook-and-loop dividers let you configure the interior as you like it, and the removable zipper pouch gives you another option for internal storage. An exterior pocket can be found on one side and a mesh water bottle holder on the other, and the back sports a clip for attaching your tripod. An elastic rain cover is included for further protection. UPC: 687748130802
In the Box Bundle Items Case for iPad Pro 10.5" tqyaczqqezwttwwsxaxaacfbxzw - Lens Bracket with 72-58mm Step-Down Ring
- 4 x Hand-Tightening Lenscaster Mounting Screws
- Limited Lifetime Warranty
Dual Mic/Headphone Jack - Limited Lifetime Warranty
Wide-Angle Lens - Limited Lifetime Warranty
Fluid Head Tripod/Monopod - Limited Lifetime Warranty
Backpack - Limited Lifetime Warranty

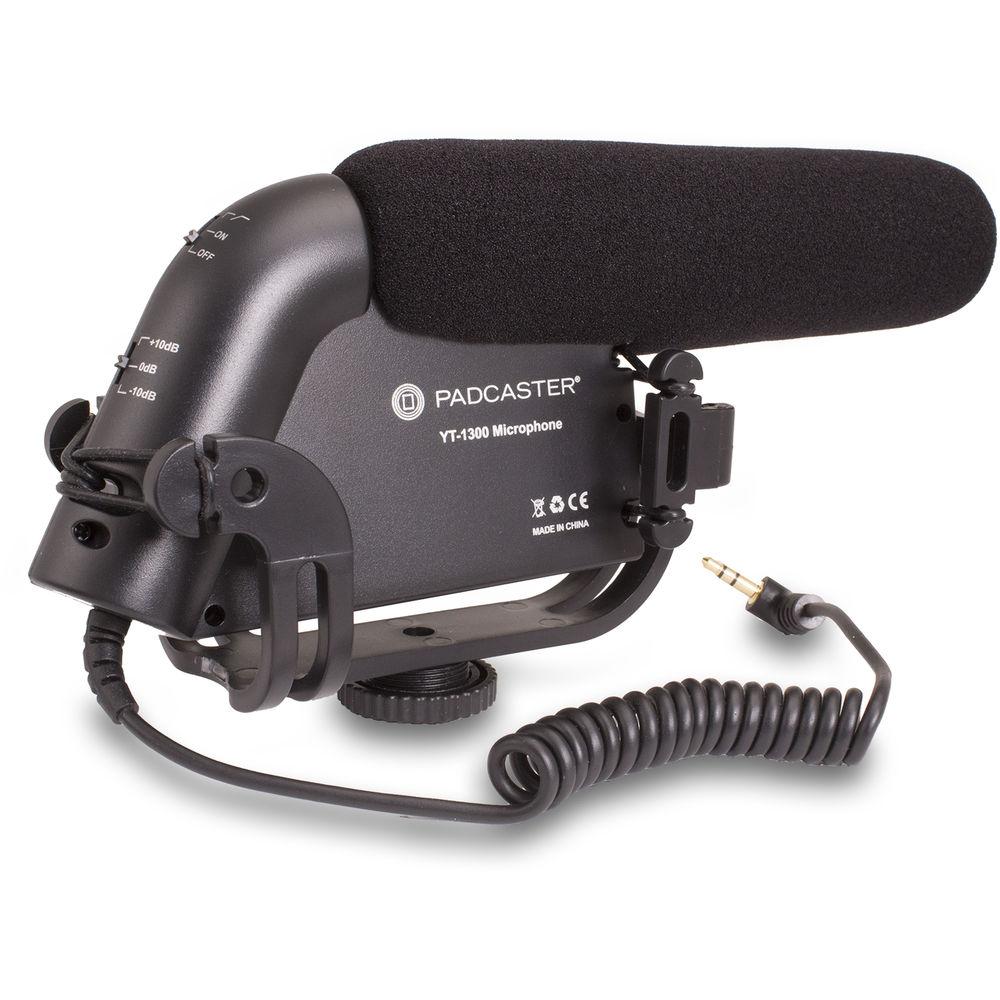

Also Includes - Unidirectional Microphone Kit
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Padcaster Starter Kit for 10.5" iPad Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Case for iPad Pro 10.5"
| Compatibility | iPad Pro 10.5" | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 13.7 x 13.3 x 3.3" | - Dual Mic/Headphone Jack
| Connector 1 | 3.5mm TRRS, male | | Connector 2 | 3.5mm headphone, female | | Connector 3 | 3.5mm microphone, female | | Dimensions | Not specified by manufacturer | | Weight | 1.0 oz / 28.3 g | | | | Box Dimensions (LxWxH) | 3.4 x 2.3 x 0.3" | - Wide-Angle Lens
| Magnification | 0.45x | | Thread Size | 58mm | | Dimensions | 1.0 x 1.0 x 1.0" / 2.5 x 2.5 x 2.5 cm | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 4.4" | - Fluid Head Tripod/Monopod
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 24.0 x 6.0 x 5.0" | - Backpack
| Material | Nylon | | Dimensions | 18.0 x 15.0 x 13.0" / 45.7 x 38.1 x 33.0 cm | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 19.1 x 10.7 x 6.1" |
