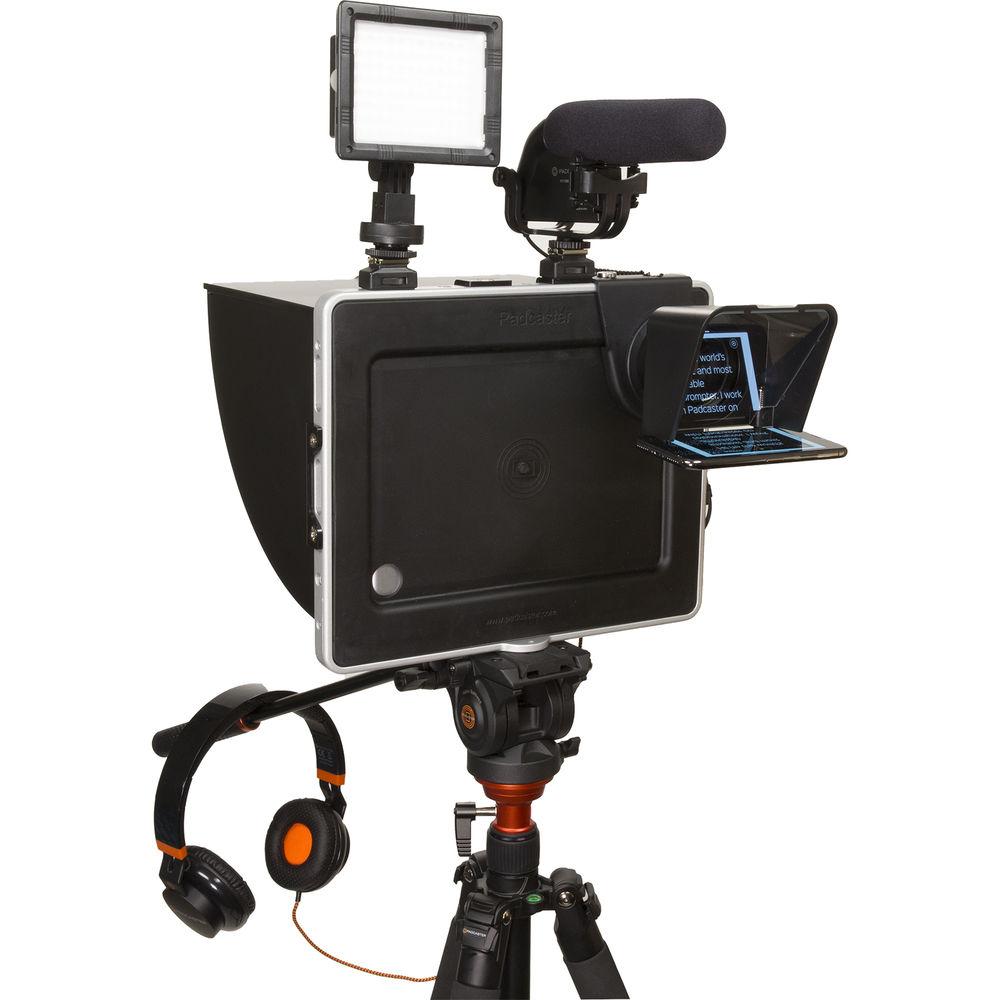

User Manual for Padcaster Studio for 7.9" iPad mini Click to enlarge the picture
Contents of the user manual for the Padcaster Studio for 7.9" iPad mini
- Product category: Tablet Attachment Cases & Kits Padcaster
- Brand: Padcaster
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Padcaster Tablet Attachment Cases & Kits
 |
User manual for the Padcaster Studio for 7.9" iPad mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Padcaster product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Padcaster user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Padcaster product will considerably shorten its lifespan!
|

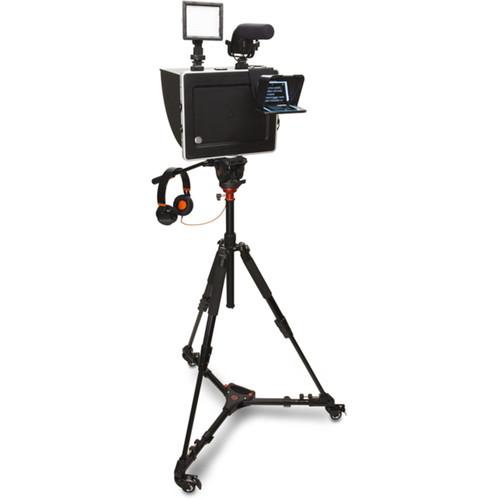

Product description The Padcaster Studio for 7.9" iPad mini is designed for users that need a portable and rugged kit for broadcasting tasks. With a plethora of included accessories, the Podcaster Studio allows you to turn your iPad into a professional all-in-one production module. This kit comes with a protective Padcaster Case, 2x telephoto and .45x wide angle lenses, and three microphones (unidirectional, stick, and lavalier). There's also an audio splitter and a pair of stereo headphones to ensure your production's audio sounds accurate. Other useful accessories include an LED light, a combination tripod/monopod, green screen, Parrot Teleprompter for smartphones, a padded backpack, and more. - Wide-Angle Lens Expand your field of view with a Wide-Angle Lens from the Padcaster. This 0.45x lens attaches to your Padcaster's lens bracket with its 58mm thread. It accepts 62mm filters and the front of the lens unscrews, leaving a macro lens for close-up photography. UPC: 756519389531
- Tele Lens Get up close to the action with a Tele Lens from the Padcaster. This 2x lens attaches to your Padcaster's lens bracket with its 58mm thread. It accepts 62mm filters. UPC: 687748130598
- YT-1300 Shotgun Mic Capture rich sound on the go with the YT-1300 Shotgun Mic from Padcaster. This condenser shotgun microphone has a three-position level control with stops at -10dB, 0dB, and 10dB, enabling you to adjust for soft, medium, and loud sources. The two-step high pass filter has 80Hz and flat positions for reducing "rumble," and the included windscreen helps get rid of pops and wind noise. For safety and security, the YT-1300 has an integrated shock mount with a hot shoe adapter. A 9V battery is required.
- Dual Mic/Headphone Jack Listen and record with the Dual Mic/Headphone Jack from the Padcaster. This Y-splitter has a 3.5mm TRRS male connector on one end and female 3.5mm microphone and headphone connectors on the other, enabling you to record and monitor simultaneously. UPC: 756519389555
- Lav Mic Capture detailed sound with a Lav Mic from THE PADCASTER. This omnidirectional lavalier microphone can be used on stage, in conference rooms, for interviews, and more. It's designed for wide dynamic range and flat frequency response, and comes with a detachable tie clip and windscreen. The cable is 22' long and an AG10 battery is included. UPC: 756519389548
- On-Ear Stereo Headphones The Padcaster On-Ear Stereo Headphones are designed to deliver robust sound with its 40mm speakers. A 4.9' braided cable and compact folding design make these headphones suitable for a variety of listening situations, including educational settings, computer use, music, podcasts, and more. The leatherette ear cushions and adjustable headband are built to ensure a snug and comfortable fit that's also easy to clean. UPC: 687748130611
- XP-38 LED Light Shine a light on your videos with the XP-38 LED Light from Padcaster. This daylight-balanced light features variable brightness and has a swivel neck for easy adjustment. It accepts AA or Canon lithium-ion batteries and comes with a cold shoe adapter for mounting to the Padcaster frame. UPC: 014567407554

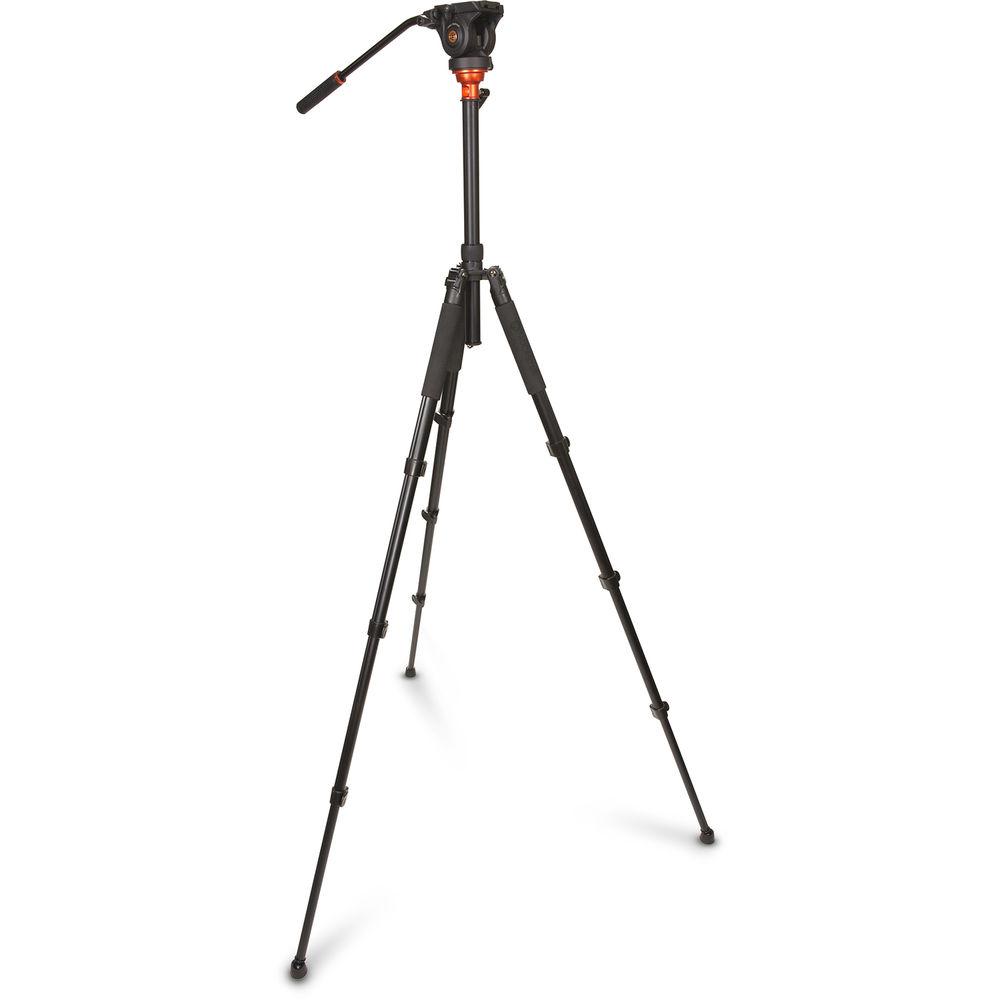

- Fluid Head Tripod/Monopod Rugged and portable, the Fluid Head Tripod/Monopod from Padcaster is designed for use with their iPad line, Smartphone Verse products, and most anything else with a camera. Built using aluminum, it can endure a wide range of shooting situations and its back-folding legs make it compact enough to clip onto your backpack.
Featuring a fluid pan and tilt head that can support up to 13.2 pounds, your devices will be secure and balanced. There are also two ball-level adjustments to help ensure your shots are horizontally and vertically level, even if the ground beneath you isn't. With three leg sections and a telescoping center column, the Padcaster Fluid Head Tripod/Monopod can extend to 71" and folds down to 22" for compact travel and storage. If you're looking for even more of an on-the-go solution, unscrew one of the tripod legs and attach it to the removable center column to create a monopod.
Additional features include a 3/8"-16 accessory interface to mount other equipment, removable spike feet for improved stability and grip while shooting outdoors, a spring-loaded hook to add extra weight for greater stability, a spare 3/8"-16 screw pre-mounted in the tripod head, and a weatherproof zipper carry bag for added protection against the elements. General Features - Fluid head with 25° angle adjustment
- Converts to a monopod with pan and tilt functionality
- Removable center column for underling mounting
- Three-section, clip-locking legs
- Telescoping center column with spring-loaded hook for adding weight
- Standard quick-release plate with permanent stopping plug holds 1/4"-20 screw in place
- 3/8"-16 expansion interface on head
- Includes weatherproof zipper carry bag
UPC: 014567407561 - Dolly Wheels Keep your shots rolling smooth with the Padcaster Dolly Wheels. This tripod dolly is able to support up to 35 lbs. It features 3" ball-bearing rubber and metal casters with step-on brakes for easy locking and unlocking. The whole thing folds up to 24 by 7" and fits into an included heavy-duty canvas carry bag.
- Green Screen Kit Enhance your shot's background with the Green Screen Kit from Padcaster. This screen is green front and back, and measures 5 x 7'. It's also designed to be portable and can fold down into the included storage bag. This pop-up green screen is an easy-to-use accessory for shooting interviews or small objects. You can hang this screen vertically or horizontally with the included stand, which is adjustable between 30 and 90".
- Collapses into storage bag

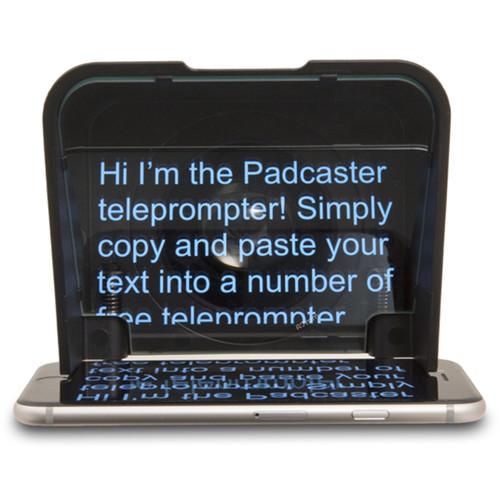

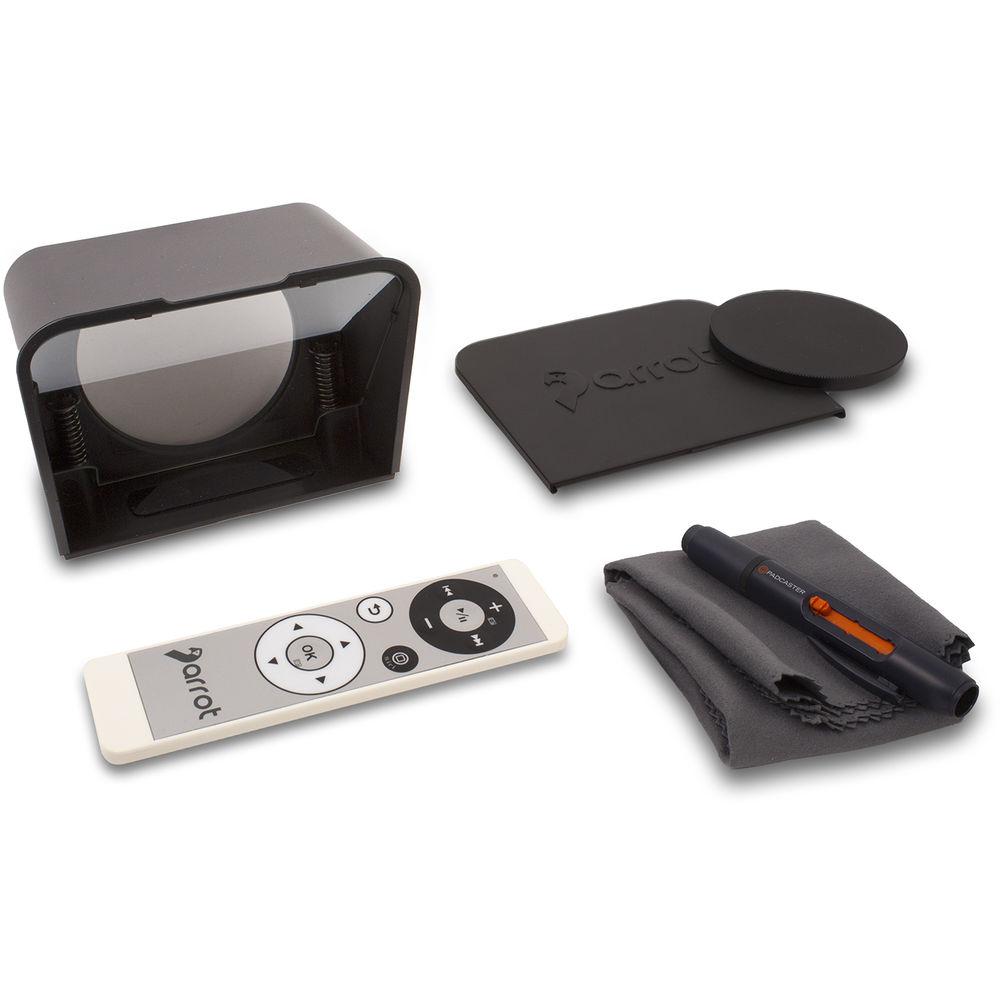

UPC: 014567407585 - V2 Kit by Padcaster Record your interviews, intros, and announcements anywhere in a snap with the Parrot Teleprompter V2 Kit by Padcaster. The teleprompter utilizes any Android or iOS smartphone running the downloadable Parrot Teleprompter app, or other teleprompting app, and the 70/30 beamsplitter glass clearly displays your text.
The setup is quick and easy. The Padcaster comes with 13 step-down rings in 37, 40.5, 43, 46, 49, 52, 55, 58, 62, 67, 72, 77, and 82mm sizes, which allow the hood to be mounted onto most threaded lenses. Your smartphone easily slips into the tray below the hood and clamps in place under the glass. A Bluetooth remote that pairs with your phone is included to start, pause, speed up, slow down, or stop the scroll, increase or decrease font size, and even control other media apps like a music player. The remote includes a button-type CR?2032 battery.
The Padcaster also comes with a lens-cleaning kit and a front and back cover to protect the glass when not in use. - Compact, lightweight smartphone teleprompter for Android or iOS smartphones
- 37, 40.5, 43, 46, 49, 52, 55, 58, 62, 67, 72, 77, and 82mm step-down rings are included to fit most lenses with front threads
- Utilizes 70/30 beamsplitter teleprompter glass
- Bluetooth remote pairs with smartphone for start, pause, speed up, slow down, or stop the scroll, increase or decrease font size, or control other media apps like a music player
- Includes glass cleaning kit and front and back covers to protect the glass
- The 58mm step-down ring threads into the rear cover, and an included 58mm screw-on cover screws onto the 58mm filter thread adapter to keep dust from entering the unit when not in use
UPC: 637665990287 - Backpack Carry your mobile media gear on the go with the Padcaster Backpack. This bag is made from rugged, water-resistant nylon and is fully padded to keep your gear safe. Inside, five hook-and-loop dividers let you configure the interior as you like it, and the removable zipper pouch gives you another option for internal storage. An exterior pocket can be found on one side and a mesh water bottle holder on the other, and the back sports a clip for attaching your tripod. An elastic rain cover is included for further protection. UPC: 687748130802

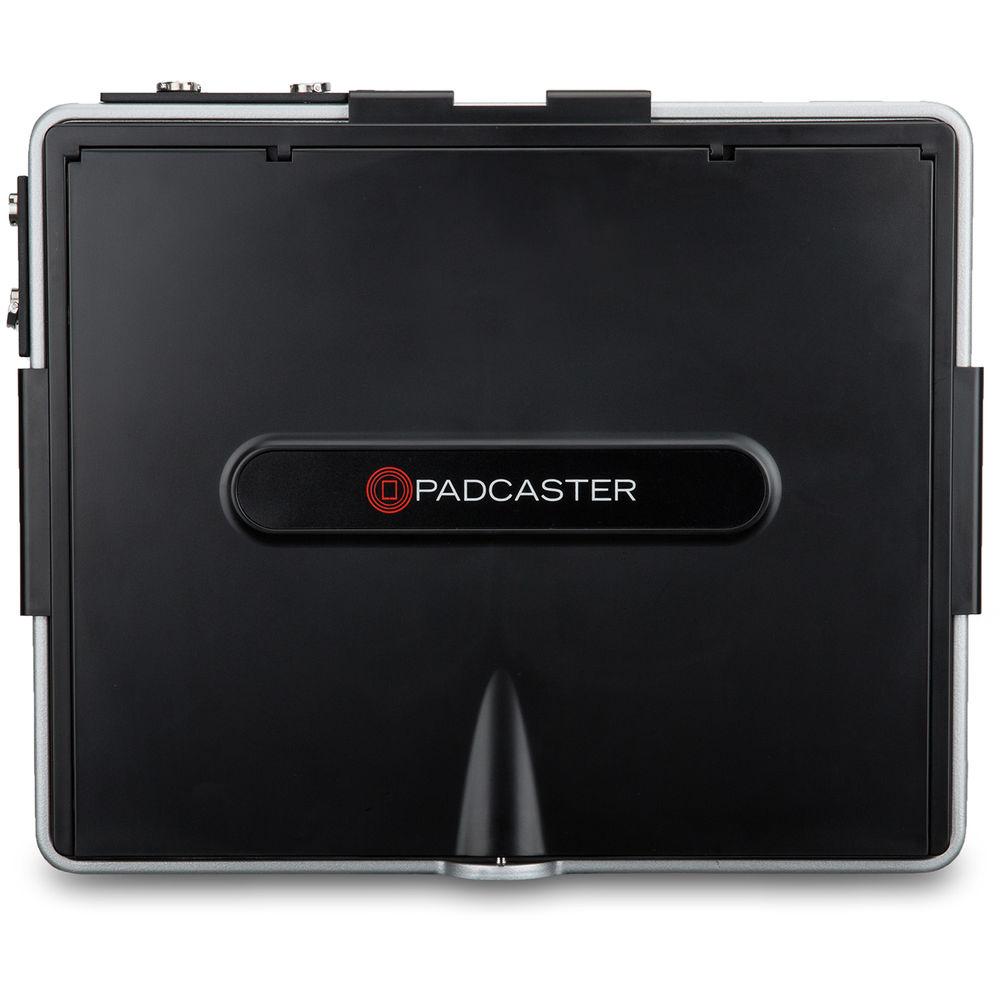

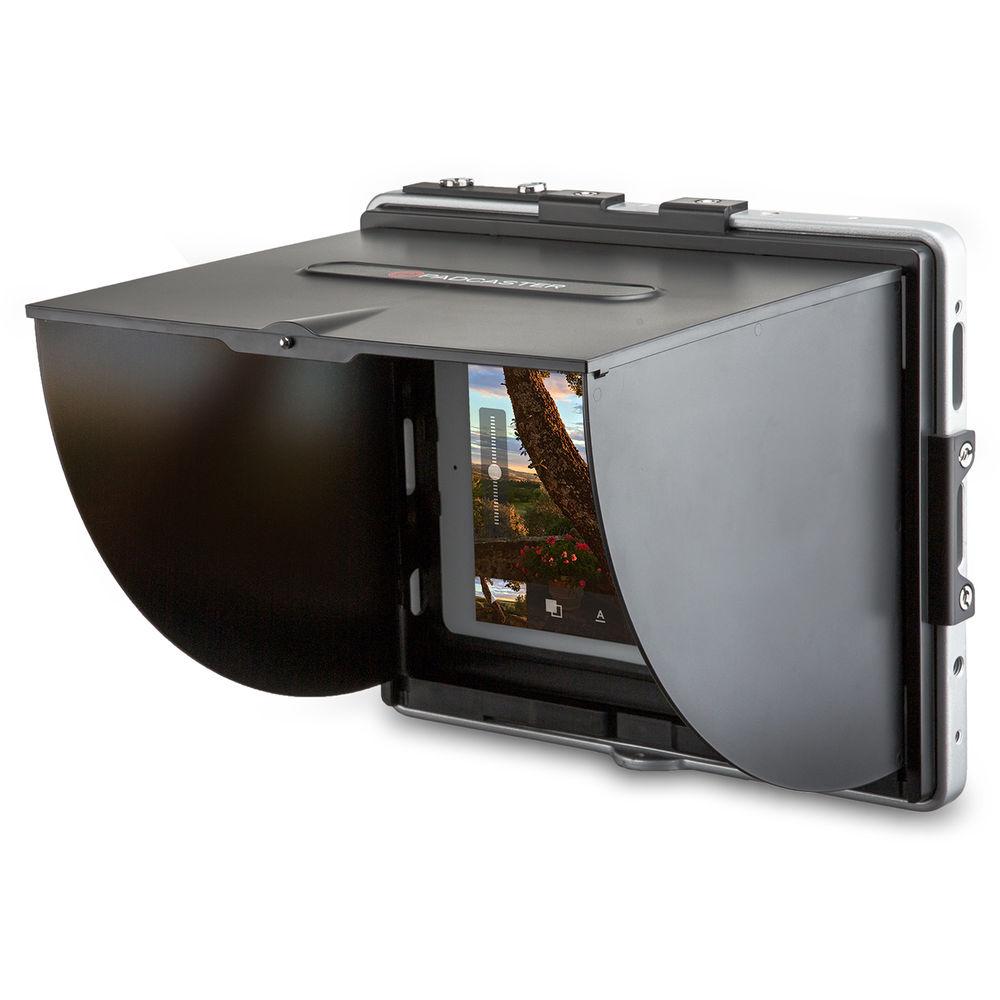

- Supershade The Padcaster Supershade is designed to work with the 9.7 or 10.5" Padcaster, so you can have a fully functional teleprompter or viewfinder with your iPad. This shade has a hard-plastic cover that minimizes glare from the sun, studio lighting, and similar conditions.
It also functions as a durable hard case and privacy barrier. If you pull open the top, you can lock the side flaps to create total coverage from unwanted light and unwelcome bystanders. Alternatively, you can fold in the flaps and snap the lid closed to lock the Supershade shut and protect your iPad from damage.
The Supershade doubles as an integrated stand for easy screen viewing. Simply flip it upside-down, and you get full access to review your footage. This shade not only attaches to select Padcaster models, but it also features mounting screws that provide six additional 1/4"-20 threads for connecting your favorite accessories. - Gives three sides of coverage from light
- Functions as a hard case when closed
- Doubles as a table or laptop iPad stand
- Provides six additional 1/4"-20 threads for more gear
UPC: 687748130918 In the Box Bundle Items Wide-Angle Lens txbtburwaztvcbbxxd - Limited Lifetime Warranty
Tele Lens - Limited Lifetime Warranty
YT-1300 Shotgun Mic - Limited Lifetime Warranty
Dual Mic/Headphone Jack - Limited Lifetime Warranty
Lav Mic - Limited Lifetime Warranty
On-Ear Stereo Headphones - Limited Lifetime Warranty
XP-38 LED Light - Limited Lifetime Warranty
Fluid Head Tripod/Monopod - Limited Lifetime Warranty
Dolly Wheels - Limited Lifetime Warranty
Green Screen Kit - Limited Lifetime Warranty
V2 Kit by Padcaster txbtburwaztvcbbxxd - Parrot Teleprompter Remote by Padcaster
- Mounting Ring Set (37, 40.5, 43, 46, 49, 52, 55, 58, 62, 67, 72, 77, and 82mm)
- Screw-On Cover for 58mm Filter Thread Adapter
Backpack - Limited Lifetime Warranty
Supershade - Limited Lifetime Warranty

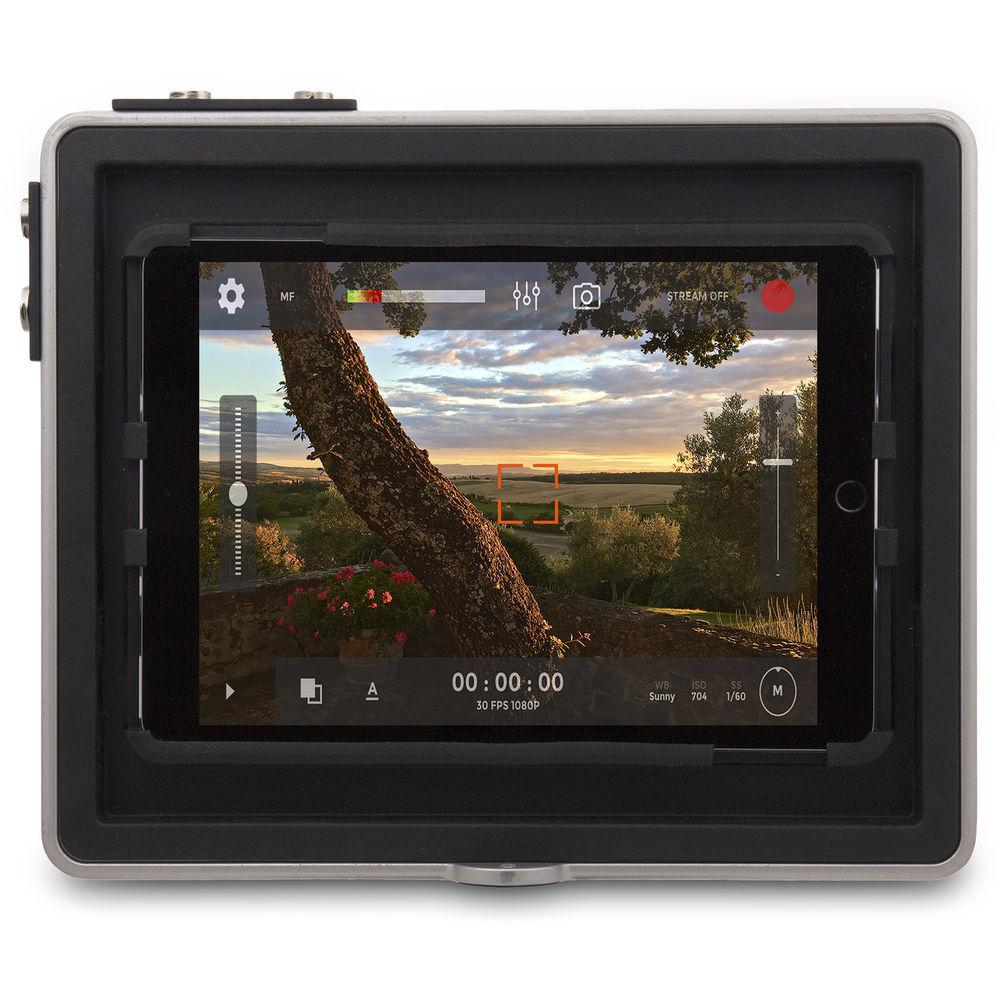

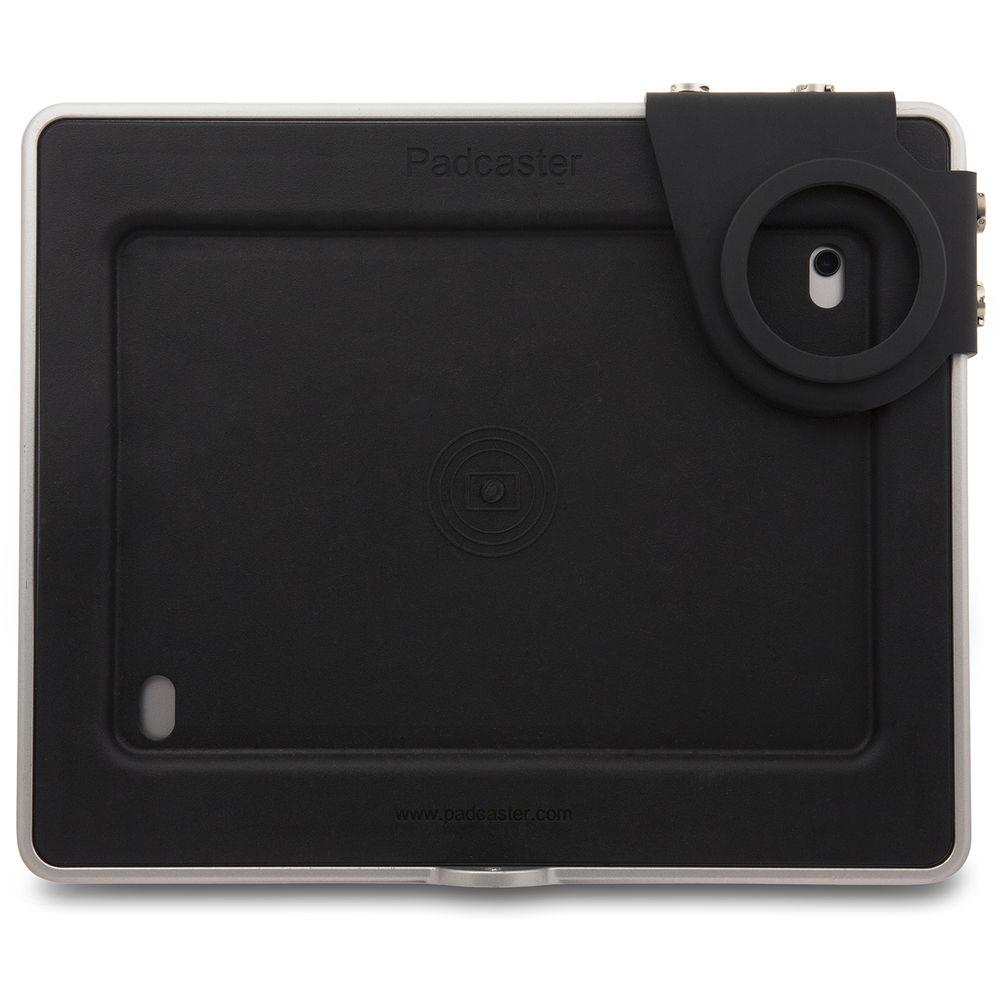

Also Includes - 7.9" Padcaster Case
- Stick Microphone with Clamp System
- Light-Blocking Lens Sticker
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Padcaster Studio for 7.9" iPad mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wide-Angle Lens
| Magnification | 0.45x | | Thread Size | 58mm | | Dimensions | 1.0 x 1.0 x 1.0" / 2.5 x 2.5 x 2.5 cm | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 4.4" | - Tele Lens
| Magnification | 2x | | Thread Size | 58mm | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 3.3 x 3.2 x 2.8" | - YT-1300 Shotgun Mic
| Battery Type | 1 x 9 V (not included) | | Dimensions | Not specified by manufacturer | | Weight | 12 oz / 340 g | | | | Box Dimensions (LxWxH) | 10.3 x 6.4 x 4.6" | - Dual Mic/Headphone Jack
| Connector 1 | 3.5mm TRRS, male | | Connector 2 | 3.5mm headphone, female | | Connector 3 | 3.5mm microphone, female | | Dimensions | Not specified by manufacturer | | Weight | 1.0 oz / 28.3 g | | | | Box Dimensions (LxWxH) | 3.4 x 2.3 x 0.3" | - Lav Mic
| Polar Pattern | Omnidirectional | | Battery Type | AG10 | | Cable Length | 22' (6.7 m) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.7 x 3.0 x 1.5" | - On-Ear Stereo Headphones
| | | Driver Size | 1.57" / 40 mm | | Design | On-Ear (Supra-aural) | | Earcup Style | Closed-Back | | | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | 113 dB | | Impedance | 32 Ohms | | Active Noise Cancellation | No | | Foldable | Yes | | | | Audio Connector | 1/8" (3.5 mm) TRS Straight | | | | Design | Single-Sided | | Color | Orange | | In-Line Remote/Microphone | No | | Type | Braided | | Cable Length | 4.92' / 1.5 m | | | | Material of Construction | Leatherette | | | | Box Dimensions (LxWxH) | 6.8 x 6.0 x 3.0" | - XP-38 LED Light
| Batteries | Accepts AA and Canon lithium-ion batteries | | Dimensions | Not specified by manufacturer | | Weight | 0.75 lb (0.34 kg) | | | | Box Dimensions (LxWxH) | 7.4 x 7.2 x 4.9" | - Fluid Head Tripod/Monopod
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 24.0 x 6.0 x 5.0" | - Dolly Wheels
| Load Capacity | 35.0 lb (15.9 kg) | | Wheel Diameter | 3.0" (7.6 cm) | | Dimensions | 20.0 x 14.0 x 7.0" (50.8 x 35.6 x 17.8 cm) | | Weight | 5.0 lb (2.3 kg) | | | | Box Dimensions (LxWxH) | 22.1 x 7.1 x 7.1" | - Green Screen Kit
| Height Adjustment Range | Stand: 30 to 90" / 76.2 to 228.6 cm | | Screen Dimensions | 5 x 7' / 1.5 x 2.1 m | | Weight | 8 lb / 3.6 kg | | | | Box Dimensions (LxWxH) | 30.0 x 20.5 x 9.1" | - V2 Kit by Padcaster
| | | Beamsplitter Ratio | 70/30 | | Beamsplitter Shape | Rectangular | | Beamsplitter Material | Glass | | Anti-Reflective Coating | Yes | | Lens Opening | 2.3" / 58 mm 58mm default, comes with 37, 40.5, 43, 46, 49, 52, 55, 58, 62, 67, 72, 77, and 82mm | | | | Wireless Range | 32.8' / 10 m | | | | Material of Construction | Plastic | | Dimensions | 4.5 x 4.0 x 3.0" / 11.4 x 10.2 x 7.6 cm Hood depth tapers from 3 to 1.5" | | Weight | 6.4 oz / 181 g | | | | Box Dimensions (LxWxH) | 7.2 x 6.5 x 4.0" | - Backpack
| Material | Nylon | | Dimensions | 18.0 x 15.0 x 13.0" / 45.7 x 38.1 x 33.0 cm | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 19.1 x 10.7 x 6.1" | - Supershade
| Compatibility | 9.7 and 10.5" Padcaster | | | | Box Dimensions (LxWxH) | 13.7 x 10.8 x 1.7" |
