User Manual for Padcaster Ultimate Studio for 2017 2018 iPad Air 1 Click to enlarge the picture
Contents of the user manual for the Padcaster Ultimate Studio for 2017 2018
- Product category: Tablet Attachment Cases & Kits Padcaster
- Brand: Padcaster
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Padcaster Tablet Attachment Cases & Kits
 |
User manual for the Padcaster Ultimate Studio for 2017 2018 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Padcaster product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Padcaster user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Padcaster product will considerably shorten its lifespan!
|
Product description Turn your 2017/2018 iPad Air 1 into a portable production module with the Ultimate Studio kit from the Padcaster. This kit is centered around the Padcaster Case, which has 1/4"-20 and 3/8"-16 threaded holes and a cold shoe adapter around the edges of its aluminum frame that let you attach various accessories like lights, microphones, and more. A threaded mount around the camera enables the attachment of lenses with 72mm rear threads, and a step-down ring lets you attach 58mm-threaded lenses as well. A tripod, green screen, and mini teleprompter are included along with a padded backpack to carry all your gear. - Case for 2017/2018 iPad Air 1 The Padcaster Case is designed to allow you to improve the quality of video shot using an 2017/2018 iPad Air 1. The lightweight, brushed aluminum frame has 1/4"-20 and 3/8"-16 threaded holes around the edges for attaching external microphones, lights, and other accessories. This allows for greater creative control over filming.
The Padcaster Case can also be attached to a tripod, monopod, or shoulder mount using the tripod thread and locking-pin hole. By removing the insert, you can use the frame as a DSLR cage for added versatility.
The lens bracket has a built-in 72mm thread and a 72-58mm step-down ring that allows you to attach lenses with rear threads of 72mm or 58mm. A cold shoe adapter for accessories like LED lights and microphones is also included, as well as a special camera mount screw that allows you to use the frame as a DSLR cage. - Brushed aluminum frame with 1/4"-20 and 3/8"-16 threaded holes around the edges
- Tripod thread and locking pin hole allow you to connect it to a tripod, monopod, or shoulder mount

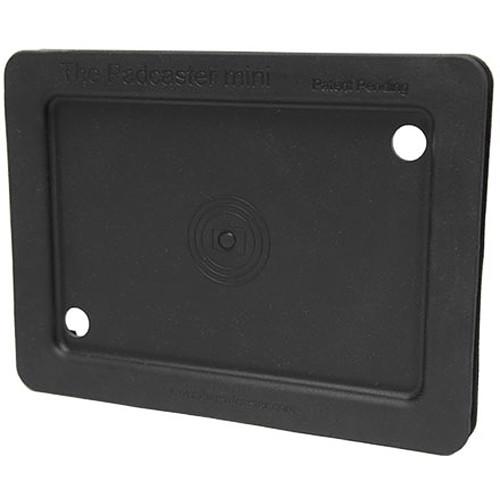

- Urethane insert allows a snug fit for an 2017/2018 iPad Air 1
- Take out the insert to use the Padcaster as a DSLR cage
- Lens bracket allows you to attach a user-supplied lens to the Padcaster
UPC: 687748130550 - Wide-Angle Lens Expand your field of view with a Wide-Angle Lens from the Padcaster. This 0.45x lens attaches to your Padcaster's lens bracket with its 58mm thread. It accepts 62mm filters and the front of the lens unscrews, leaving a macro lens for close-up photography. UPC: 756519389531

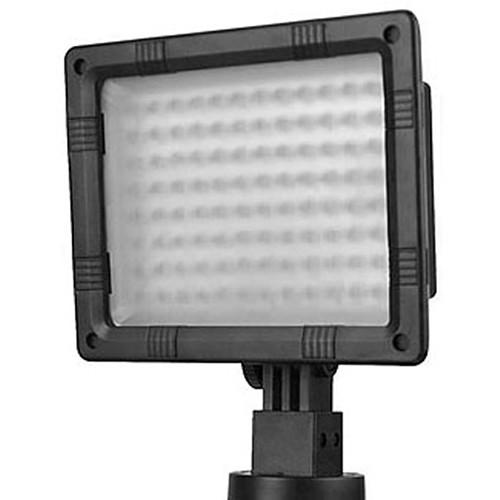

- XP-38 LED Light Shine a light on your videos with the XP-38 LED Light from Padcaster. This daylight-balanced light features variable brightness and has a swivel neck for easy adjustment. It accepts AA or Canon lithium-ion batteries and comes with a cold shoe adapter for mounting to the Padcaster frame. UPC: 014567407554
- YT-1300 Shotgun Mic Capture rich sound on the go with the YT-1300 Shotgun Mic from Padcaster. This condenser shotgun microphone has a three-position level control with stops at -10dB, 0dB, and 10dB, enabling you to adjust for soft, medium, and loud sources. The two-step high pass filter has 80Hz and flat positions for reducing "rumble," and the included windscreen helps get rid of pops and wind noise. For safety and security, the YT-1300 has an integrated shock mount with a hot shoe adapter. A 9V battery is required.
- Dual Mic/Headphone Jack Listen and record with the Dual Mic/Headphone Jack from the Padcaster. This Y-splitter has a 3.5mm TRRS male connector on one end and female 3.5mm microphone and headphone connectors on the other, enabling you to record and monitor simultaneously. UPC: 756519389555

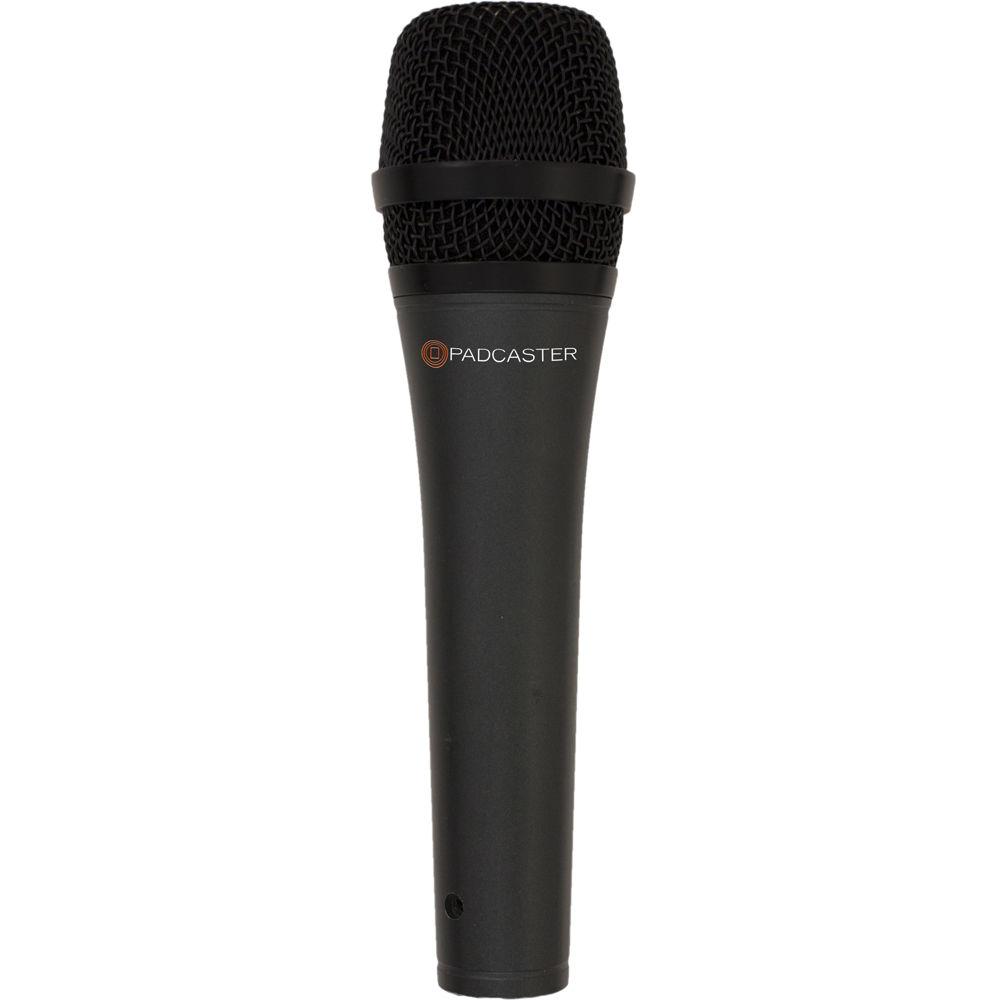

- Stick Mic Kit Capture dynamic live audio with a Stick Mic Kit from The Padcaster. Designed for solid lows and clear highs, this microphone's cardioid patterns are designed to reduce unwanted feedback when used live.
Included with the Stick Mic is a cable and mounting kit. The 12' cable has a female XLR connector on one end and a 3.5mm male mini jack on the other for plugging into your mobile device. A hook-and-loop strap secures the cable. Also included is a Padcaster Three-Piece Clamp system for securing your mic to the side of your Padcaster rig. UPC: 014567407592 - Lav Mic Capture detailed sound with a Lav Mic from THE PADCASTER. This omnidirectional lavalier microphone can be used on stage, in conference rooms, for interviews, and more. It's designed for wide dynamic range and flat frequency response, and comes with a detachable tie clip and windscreen. The cable is 22' long and an AG10 battery is included. UPC: 756519389548

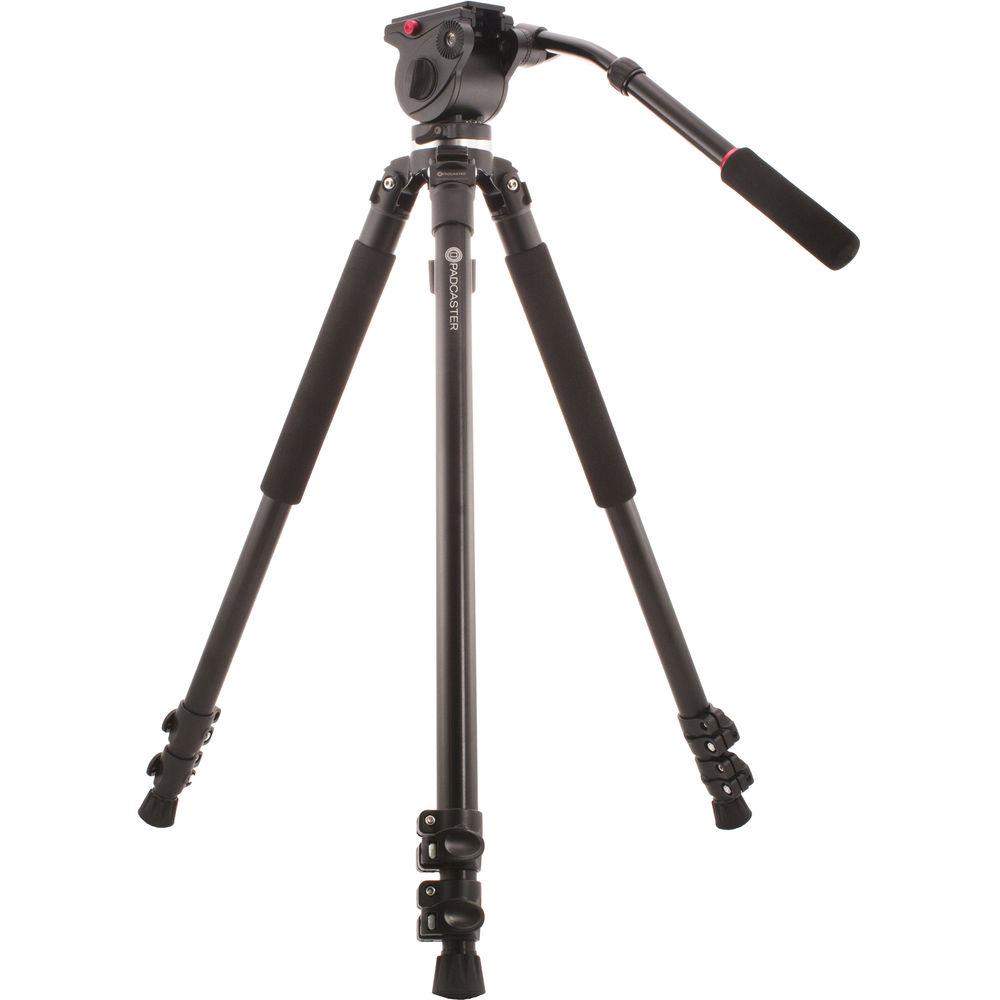

- VT-16 Fluid Head Tripod Add stability to your photos and videos with the VT-16 Fluid Head Tripod from Padcaster. This aluminum tripod features a 65mm solid metal fluid ball head with leveling ball indicator for easy adjustments in a variety of situations. The removable quick-release plate has an adjustable locking pin, giving you two points of contact when securing your equipment. A water-resistant carry case and adjustable shoulder strap are included.

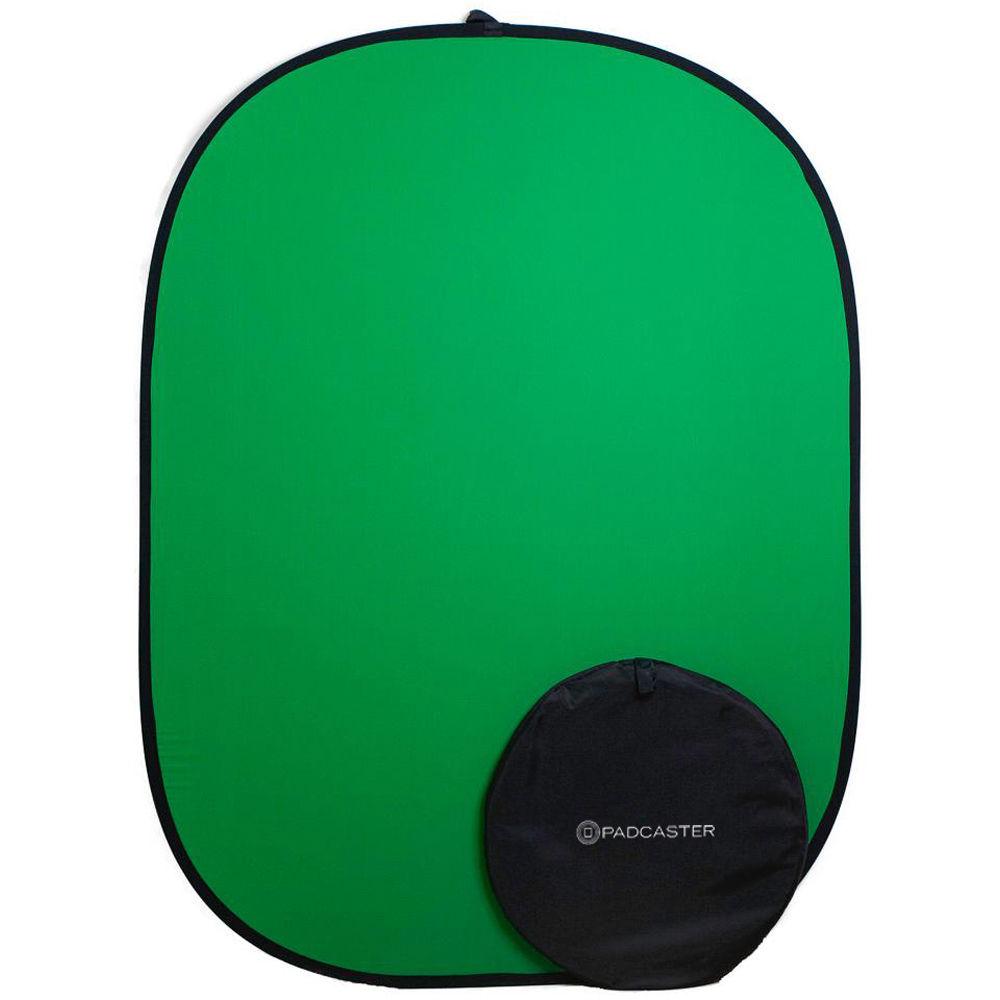

- Green Screen Enhance your shot's background with a Green Screen from the Padcaster. This portable screen measures 5 x 7' but folds down into its own storage bag.

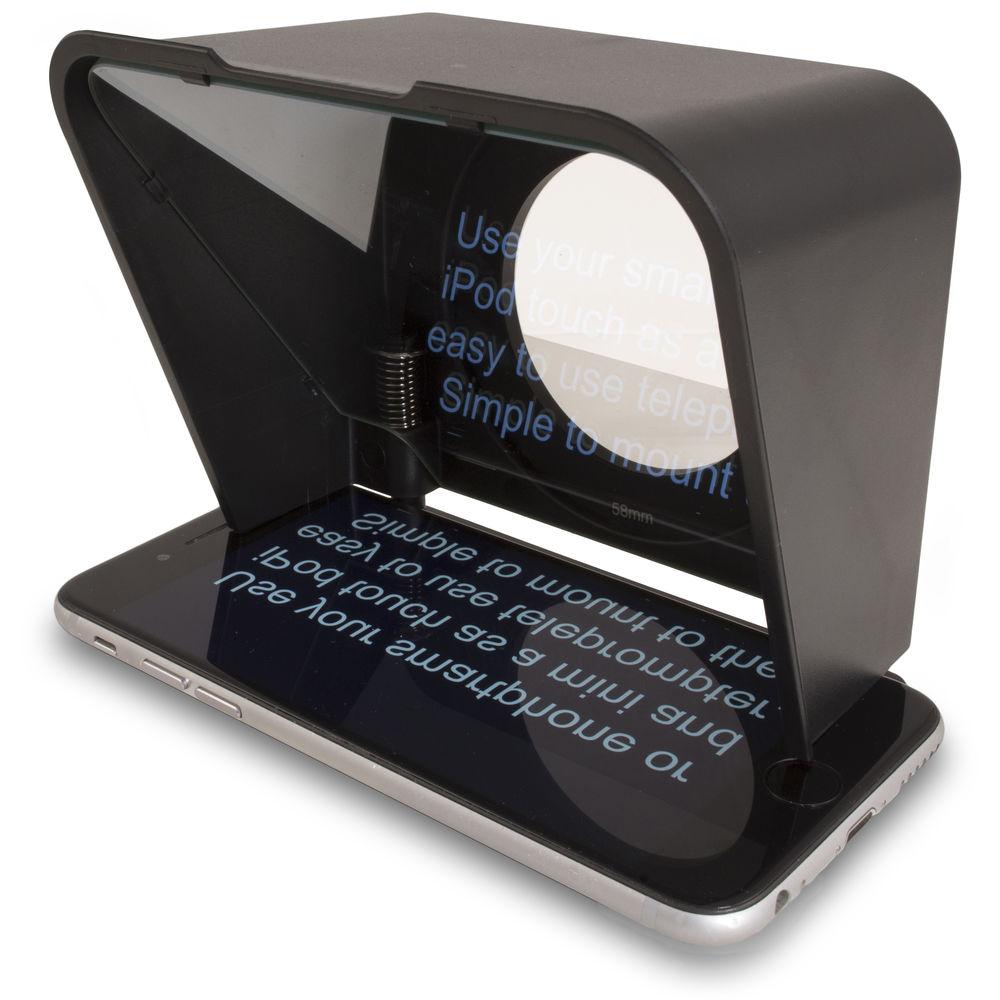

- Mini Teleprompter The Padcaster Mini Teleprompter is an ultra-compact single-piece prompter designed for use with smartphones as well as the Padcaster. When used as a standalone prompter with a smartphone, it secures directly onto a camera lens via a cutout on the rear.
A comprehensive set of filter thread adapter rings is included that allows for compatibility with a wide variety of lenses. Simply attach one of the rings onto the lens, and the prompter then simply snaps onto the ring from the rear. And it allows you to insert a phone into a slot in front. The phone serves as the prompting monitor and reflects scrolling text onto an included 70/30 beamsplitter glass. Most phones are supported, and any of various prompting software can be downloaded at the App Store or Google Play. - Key Features
-
- Ultra-compact smartphone prompter - supports most phones
- Secures directly onto camera lens via included filter thread adapters
- 70/30 beamsplitter glass
- Includes front and rear caps that protect the glass
- Can also be used with the Padcaster
UPC: 687748130864 Backpack Carry your mobile media gear on the go with the Padcaster Backpack. This bag is made from rugged, water-resistant nylon and is fully padded to keep your gear safe. Inside, five hook-and-loop dividers let you configure the interior as you like it, and the removable zipper pouch gives you another option for internal storage. An exterior pocket can be found on one side and a mesh water bottle holder on the other, and the back sports a clip for attaching your tripod. An elastic rain cover is included for further protection. UPC: 687748130802 In the Box Bundle Items Case for 2017/2018 iPad Air 1 zucqtqqbvxbqfztzardvwabwrbebqsebusqy - Lens Bracket with 72-58mm Step-Down Ring
- 4 x Hand-Tightening Lenscaster Mounting Screws
- Limited Lifetime Warranty
Wide-Angle Lens - Limited Lifetime Warranty
XP-38 LED Light - Limited Lifetime Warranty
YT-1300 Shotgun Mic - Limited Lifetime Warranty
Dual Mic/Headphone Jack - Limited Lifetime Warranty
Stick Mic Kit - 12' XLR to 3.5mm Mini Cable
- Limited Lifetime Warranty

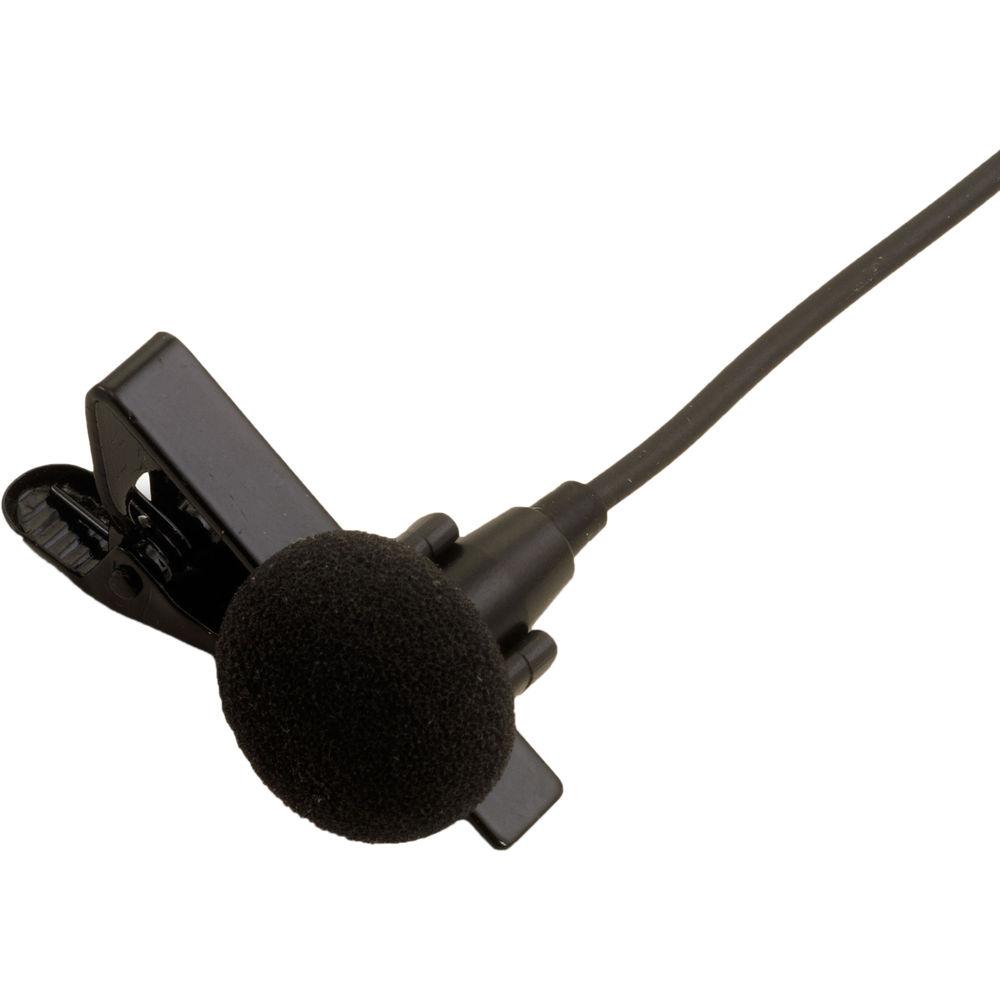

Lav Mic - Limited Lifetime Warranty
VT-16 Fluid Head Tripod - Limited Lifetime Warranty
Green Screen - Limited Lifetime Warranty
Mini Teleprompter - 49mm Filter Thread Adapter Ring
- 52mm Filter Thread Adapter Ring
- 55mm Filter Thread Adapter Ring
- 58mm Filter Thread Adapter Ring
- 62mm Filter Thread Adapter Ring
- 67mm Filter Thread Adapter Ring
- 72mm Filter Thread Adapter Ring
- 77mm Filter Thread Adapter Ring
- 82mm Filter Thread Adapter Ring
Backpack - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Padcaster Ultimate Studio for 2017 2018 iPad Air 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Case for 2017/2018 iPad Air 1
| Compatibility | 2017/2018 iPad Air 1 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 14.0 x 10.9 x 2.3" | - Wide-Angle Lens
| Magnification | 0.45x | | Thread Size | 58mm | | Dimensions | 1.0 x 1.0 x 1.0" / 2.5 x 2.5 x 2.5 cm | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 4.4" | - XP-38 LED Light
| Batteries | Accepts AA and Canon lithium-ion batteries | | Dimensions | Not specified by manufacturer | | Weight | 0.75 lb (0.34 kg) | | | | Box Dimensions (LxWxH) | 7.4 x 7.2 x 4.9" | - YT-1300 Shotgun Mic
| Battery Type | 1 x 9 V (not included) | | Dimensions | Not specified by manufacturer | | Weight | 12 oz / 340 g | | | | Box Dimensions (LxWxH) | 10.3 x 6.4 x 4.6" | - Dual Mic/Headphone Jack
| Connector 1 | 3.5mm TRRS, male | | Connector 2 | 3.5mm headphone, female | | Connector 3 | 3.5mm microphone, female | | Dimensions | Not specified by manufacturer | | Weight | 1.0 oz / 28.3 g | | | | Box Dimensions (LxWxH) | 3.4 x 2.3 x 0.3" | - Stick Mic Kit
| | | Connector 1 | XLR, female | | Connector 2 | 3.5mm, male | | Cable Length | 12.0' (3.7 m) | | | | Dimensions | Not specified by manufacturer | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 8.75 x 4.8 x 3.25" | - Lav Mic
| Polar Pattern | Omnidirectional | | Battery Type | AG10 | | Cable Length | 22' (6.7 m) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.7 x 3.0 x 1.5" | - VT-16 Fluid Head Tripod
| Bowl Diameter | 65mm | | Material | Aluminum | | Dimensions | 7 x 7 x 31" (18 x 18 x 79 cm) | | Weight | 10 lb (4.5 kg) | | | | Box Dimensions (LxWxH) | 30.5 x 6.0 x 6.0" | - Green Screen
| Dimensions | 5.0 x 7.0' (1.5 x 2.1 m) | | Weight | 8.0 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 30.3 x 30.2 x 0.6" | - Mini Teleprompter
| Material | 70/30R beamsplitter glass | | Bracket | 72mm for Padcaster | | Dimensions | 6.0 x 6.0 x 6.0" (15.2 x 15.2 x 15.2 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Box Dimensions (LxWxH) | 7.4 x 7.2 x 5.0" | - Backpack
| Material | Nylon | | Dimensions | 18.0 x 15.0 x 13.0" / 45.7 x 38.1 x 33.0 cm | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 19.1 x 10.7 x 6.1" |
