User Manual for Padcaster Verse-X Click to enlarge the picture
Contents of the user manual for the Padcaster Verse-X
- Product category: Smartphone Attachment Cases & Kits Padcaster
- Brand: Padcaster
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Padcaster Smartphone Attachment Cases & Kits
 |
User manual for the Padcaster Verse-X contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Padcaster product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Padcaster user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Padcaster product will considerably shorten its lifespan!
|

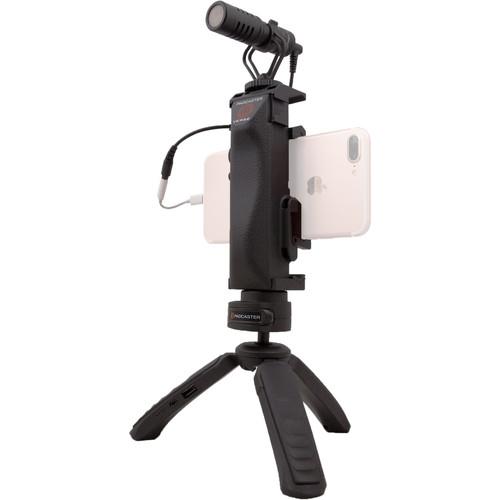

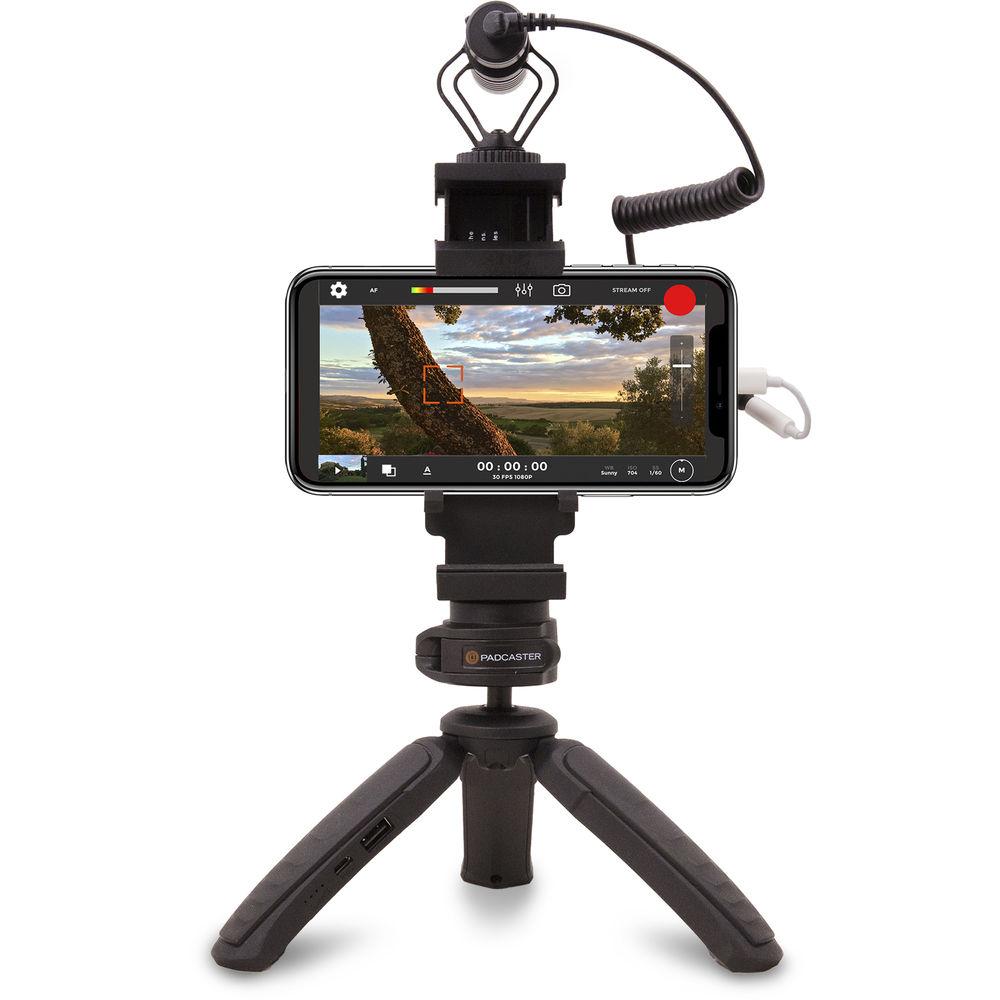

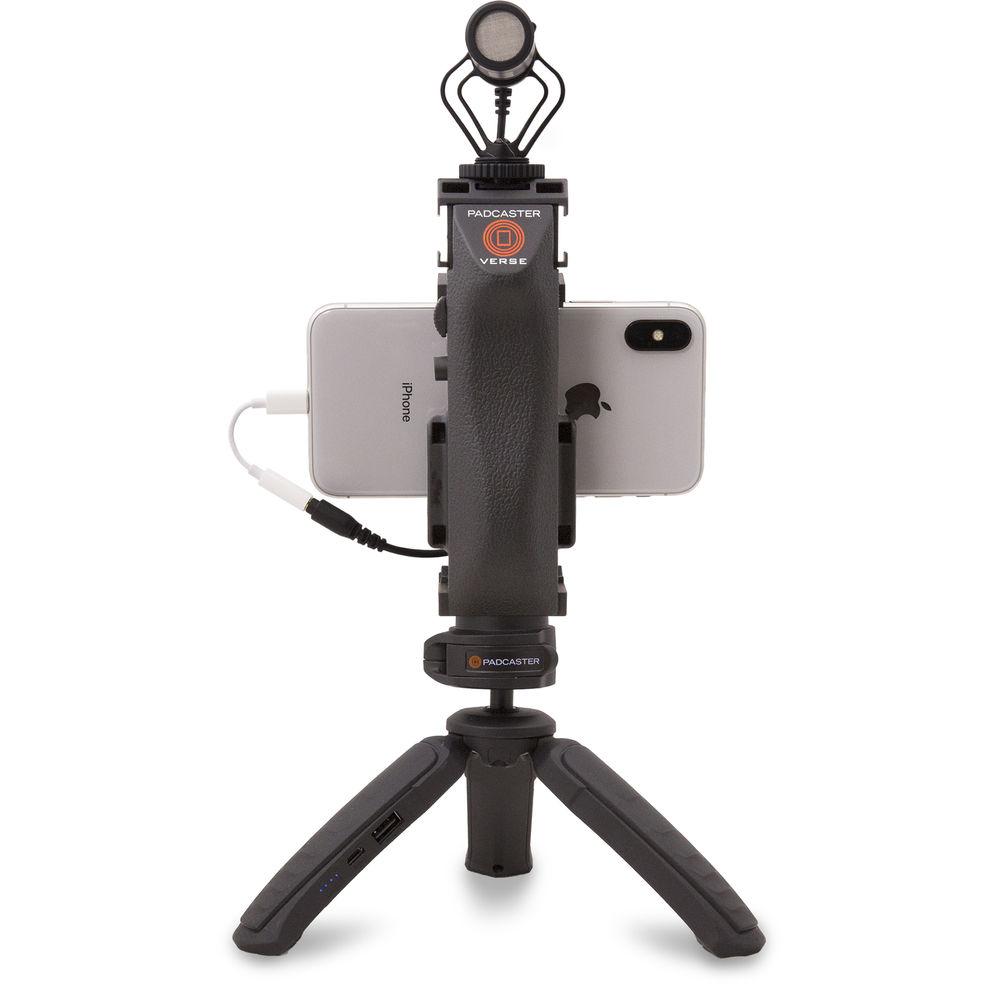

Product description New Releases from Padcaster: Teleprompter and Mobile Video Read More Designed as an all-in-one mobile video solution for smartphones, the Padcaster Verse-X is a manufacturer's bundle that includes their Verse Grip, X-POD, Mini Microphone, and Dual Mic/Headphone Splitter.

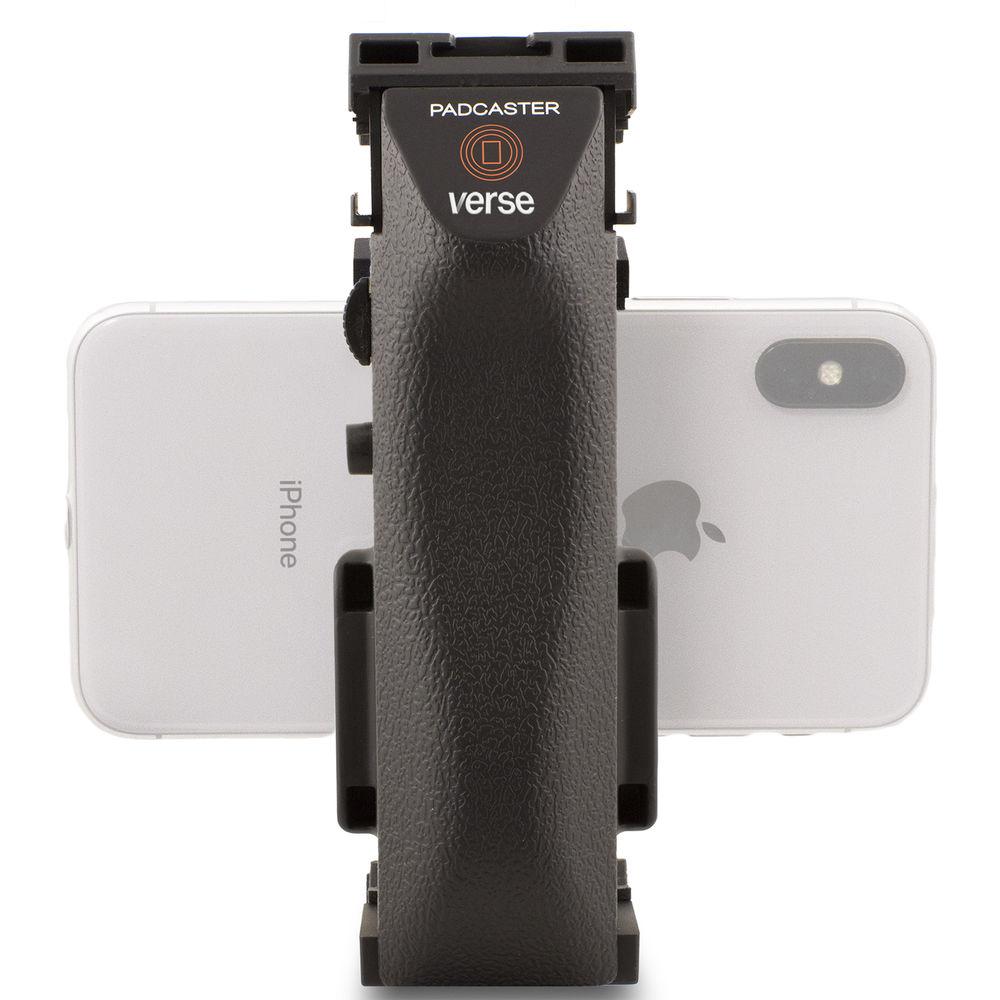

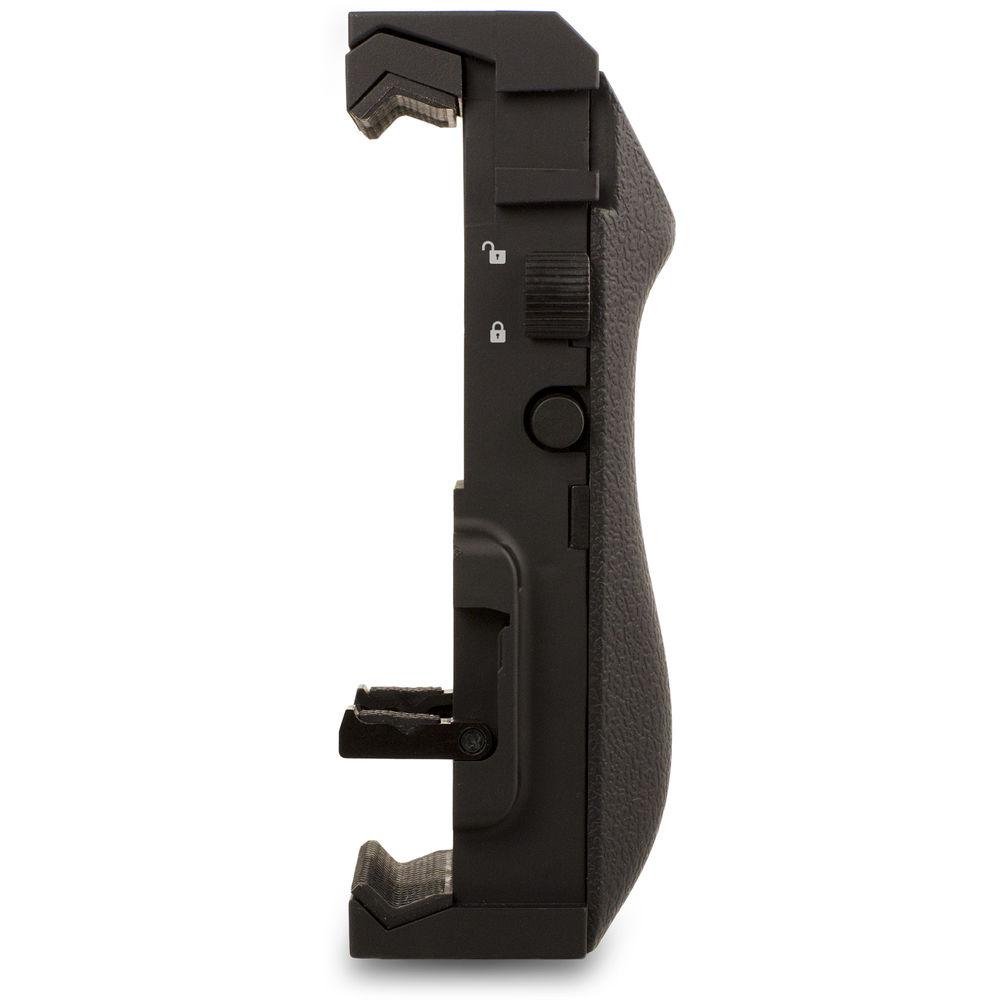

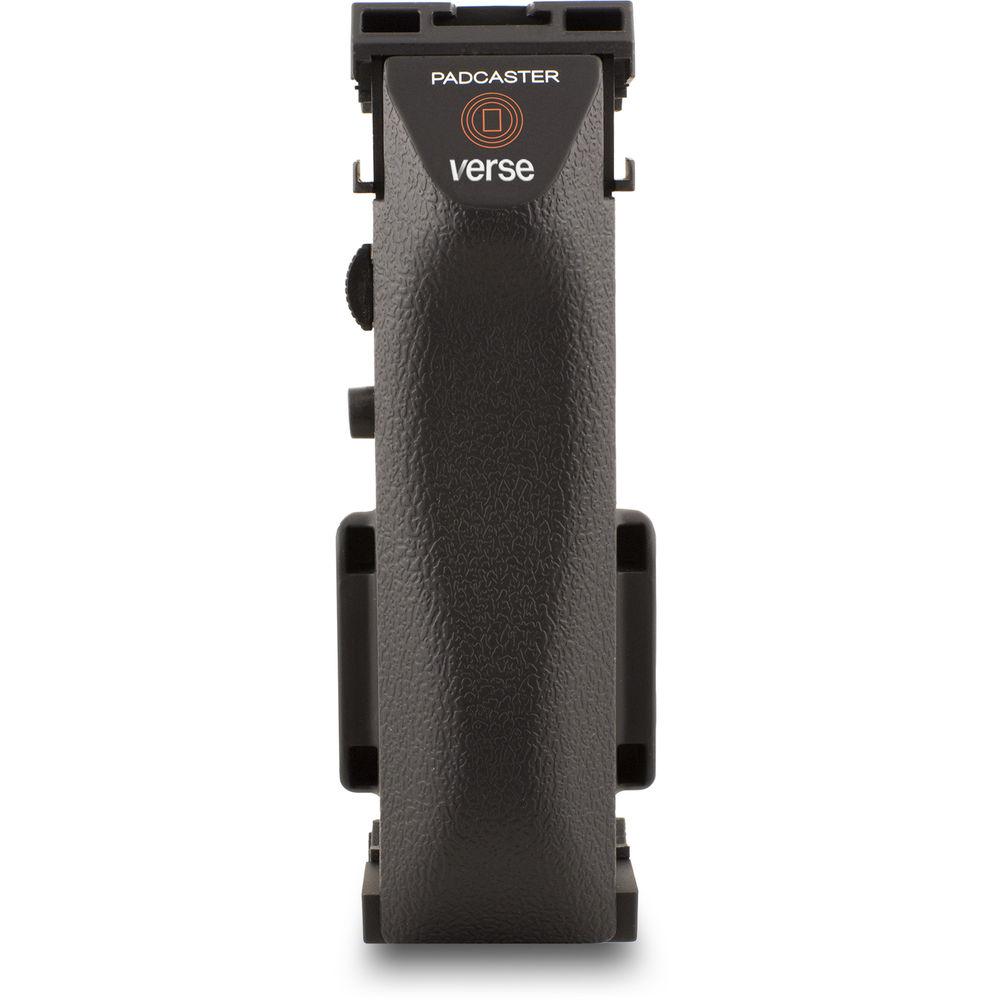

The Padcaster Verse Grip is a small and portable all-in-one mobile video case for Apple, Android, and other smartphones and small tablets up to 5.31" wide. Despite its small size, which allows it to fit into pockets, it supports a wide range of compatible phones and tablets, and can even accommodate phones while in their case. Thanks to three cold shoe mounts, you can attach accessories such as mics and lights, while the overall ergonomic design allows for user-friendly operating for shooting photos or videos with one hand. If you prefer to work while secured to a tripod, the Verse Grip also has an integrated 1/4"-20 tripod thread that works with most standard supports.

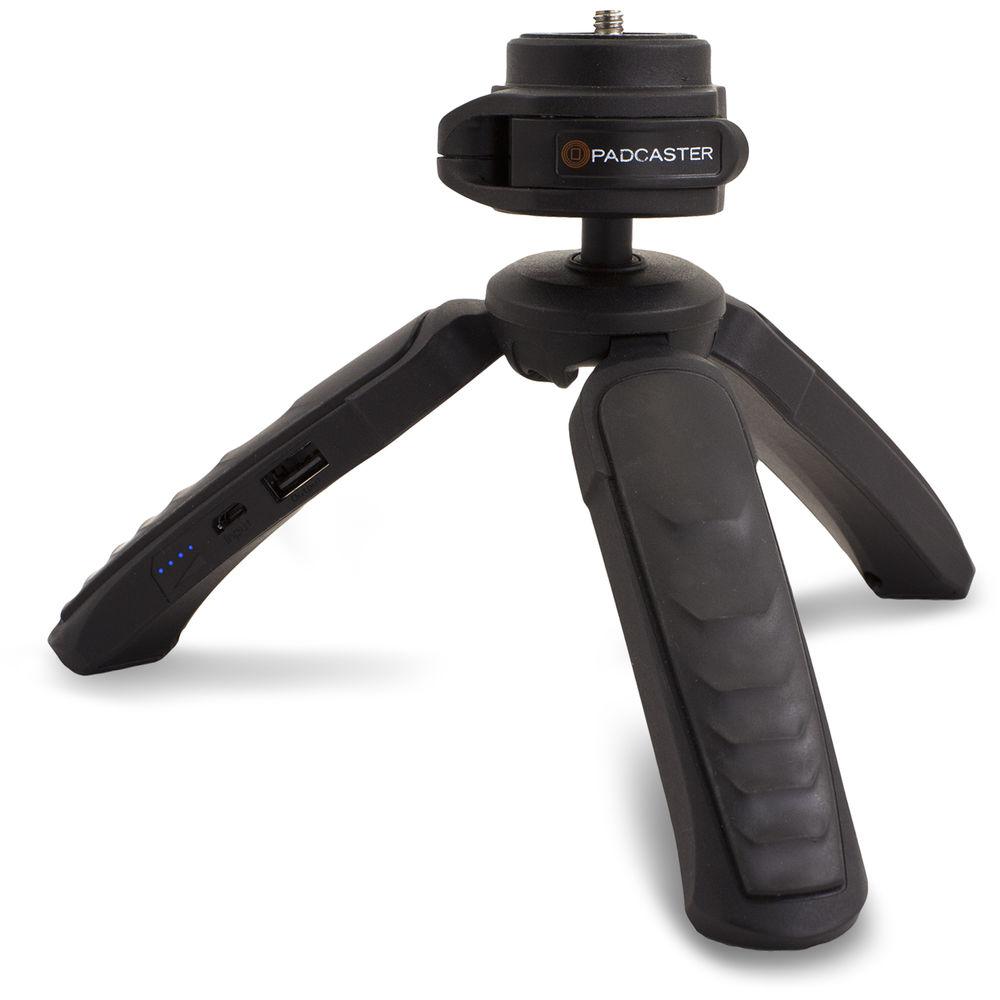

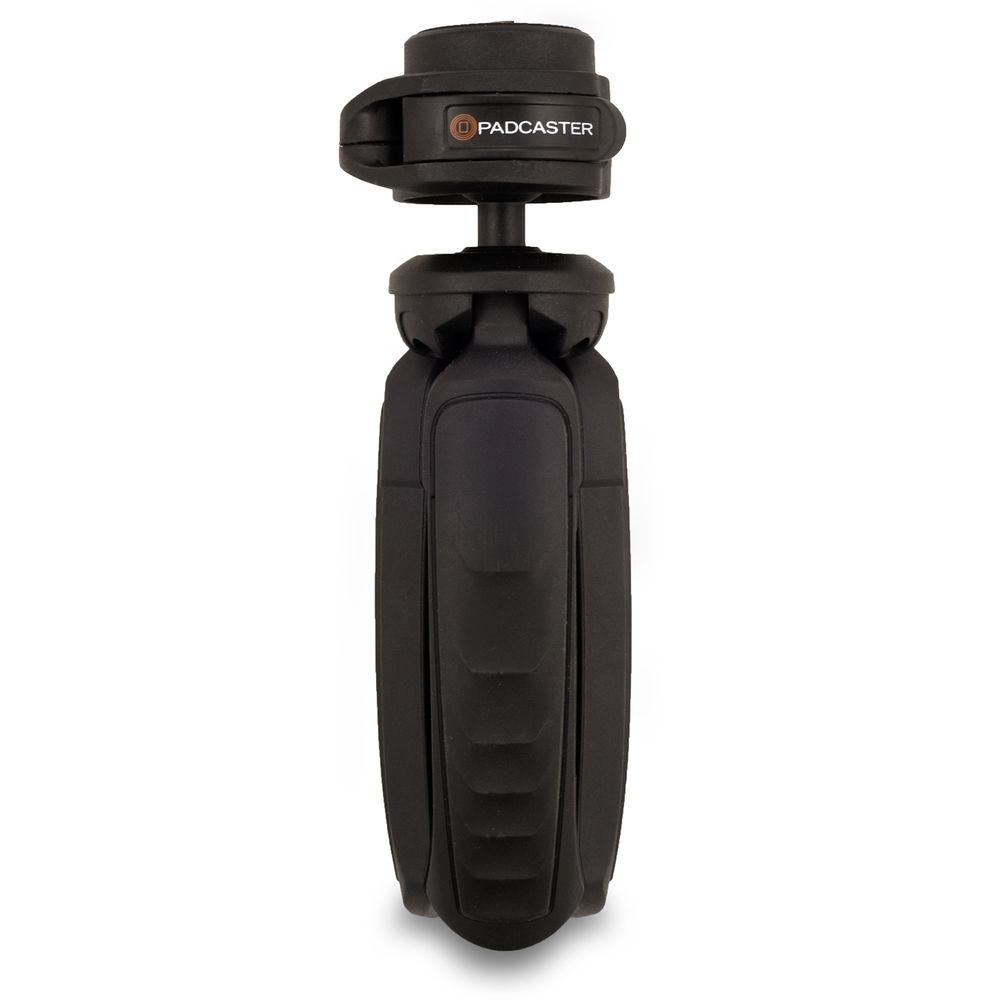

Padcaster's X-POD is a mini-tripod and pistol-grip combo that has a ball head with built-in leveler that can tilt up to 90° and rotate a full 360°. Its legs fold together to become a pistol grip for cameras or smartphones with 1/4"-20 adapters. One of the legs conceals a 3200mAh battery and USB port for keeping your device charged. A three-prong action cam adapter is included, as is a mini LED work light.

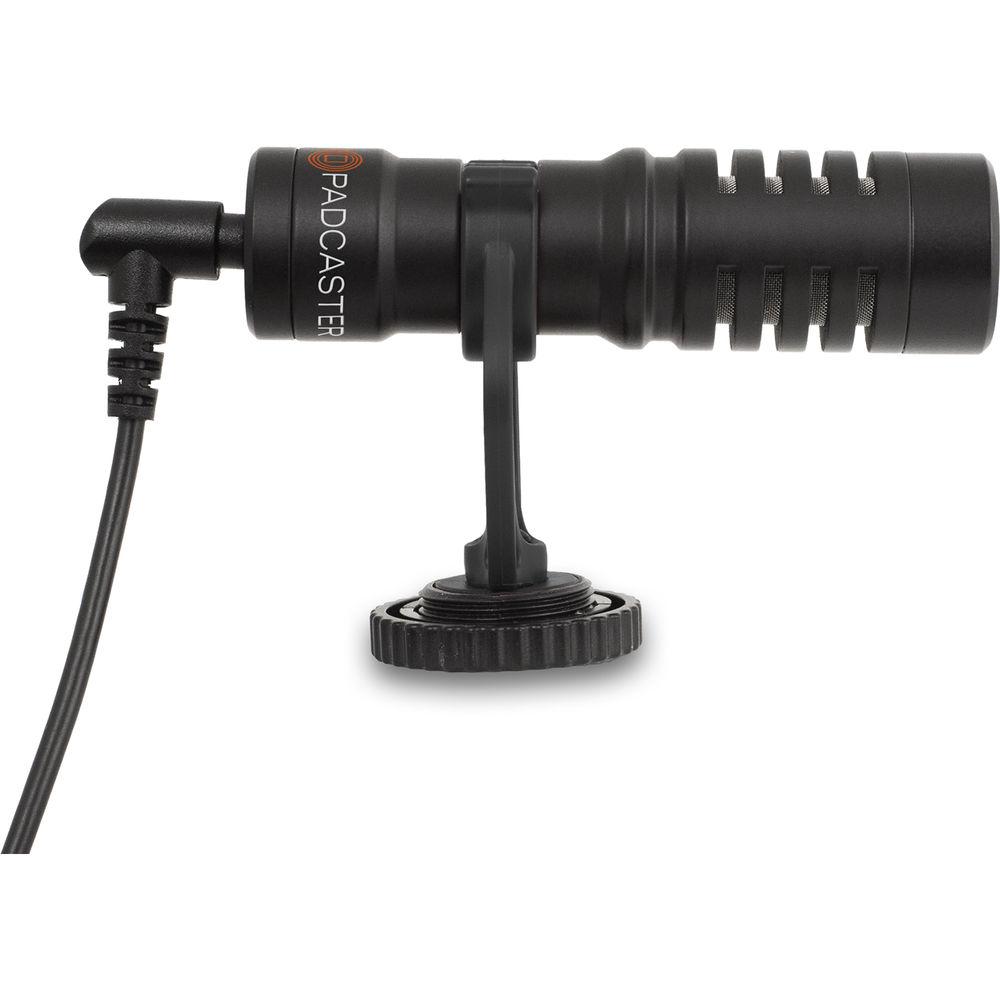

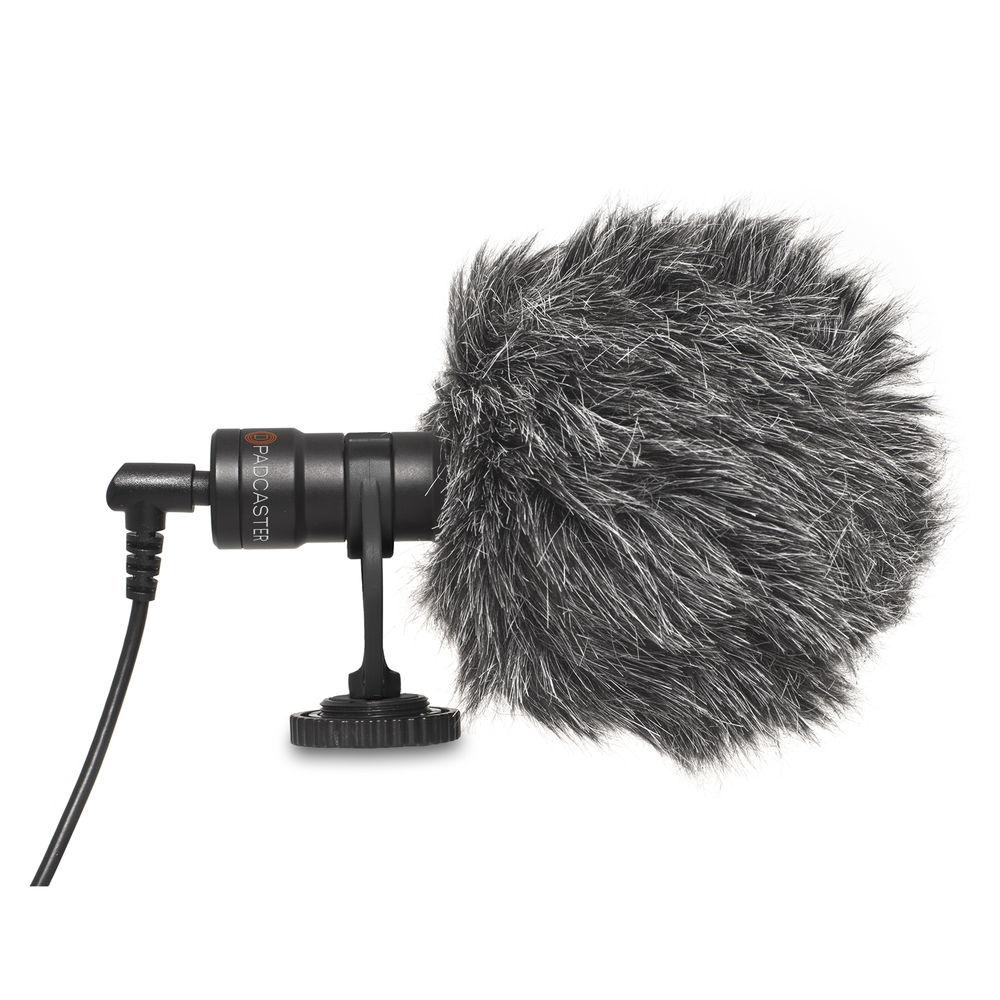

Padcaster's Mini Mic is a compact, lightweight, aluminum electret condenser and transducer mic. It can be used to capture audio for mobile devices such as smartphones, DSLRs, camcorders, audio recorders, computers, and more. Featuring a plug-and-play design, the Padcaster Mini Microphone requires no batteries and includes a shockmount to help reduce unwanted handling noise, a built-in cold shoe mount, a fuzzy windscreen, and a draw-string bag for storage. For your convenience, the 3.5mm TRS and TRRS cables are also included.
The Padcaster Dual Mic/Headphone Splitter is a Y-splitter cable with a 3.5mm male TRRS connector on one end and 3.5mm female microphone and headphone connectors on the other, enabling you to simultaneously record and monitor audio. General Features Verse Grip - Compatible with Apple, Android, and other smartphones
- Compatible with small tablets up to 5.31" wide
- Three built-in cold shoe mounts
X-POD - Mini-tripod with built-in leveler
- Pistol-grip functionality
- Built-in 3200mAh battery with USB output
- Includes 3-Prong Action Cam Adapter
- Includes LED Mini Work Light
Mini Microphone - Electret condenser transducer
- Frequency Response: 35 to 18 kHz ±3dB
- Sensitivity: -42dB ±1dB / 0dB = 1V/Pa, 1 kHz
- Signal-to-Noise Ratio: 76dB SPL
- 3.5mm TRS and TRRS connection
Dual Mic/Headphone Splitter - TRRS 3.5mm mini plug connects to device
- 3.5mm mini headphone output
- 3.5mm mini microphone input
UPC: 748528506153 In the Box Padcaster Verse-X Padcaster Verse Grip X-POD Mobile Media Support deuvecyvdrrdddbsssauvfefee PCVMM01 Mini Microphone Dual Mic/Headphone Jack Photography Accessories for Your iPad Todd Vorenkamp 02/21/2019 Table of Contents
|
Upload User Manual
Have you got an user manual for the Padcaster Verse-X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPadcaster Verse X Specs | | | Compatibility | Apple, Android, and other smartphones/tablets up to 5.31" / 13.5 cm | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Camera Connector | 1/4"-20 (built-in)
3-prong action cam (included) | | Tilt | 90° | | Rotation | 360° | | Battery Capacity | 3200 mAh | | Ports | Input: 1 x micro-USB
Output: 1 x USB Type-A | | Dimensions | 6.0 x 2.0 x 2.0" / 15.2 x 5.1 x 5.1 cm | | Weight | 2.0 lb / 0.9 kg | | | | Type | Electret condenser transducer | | Polar Pattern | Cardioid | | Frequency Response | 35 Hz to 18 kHz ±3 dB | | Sensitivity | -42 dB ±1 dB / 0 dB = 1 V/Pa, 1 kHz | | Signal to Noise Ratio | 76 dB SPL | | Connector | 1/8" / 3.5 mm TRS and TRRS | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Connector 1 | 3.5mm TRRS, male | | Connector 2 | 3.5mm headphone, female | | Connector 3 | 3.5mm microphone, female | | Dimensions | Not specified by manufacturer | | Weight | 1.0 oz / 28.3 g | | | | Package Weight | 2.06 lb | | Box Dimensions (LxWxH) | 12.0 x 6.6 x 6.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
