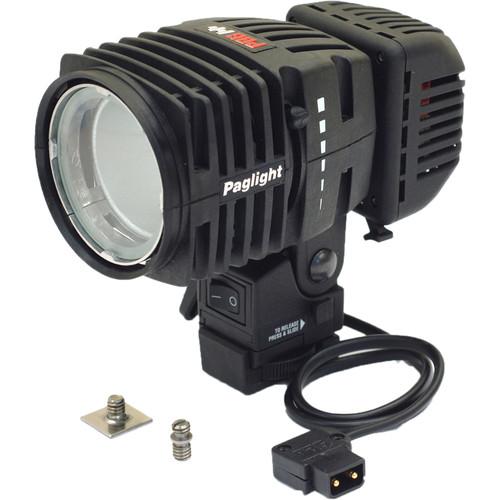

User Manual for PAG 9965LD Paglight Camera Light with LED, Dimmer Click to enlarge the picture
Contents of the user manual for the PAG 9965LD Paglight Camera Light with
- Product category: On Camera Lights PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG On Camera Lights
|
User manual for the PAG 9965LD Paglight Camera Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|
Product description The PAG 9965LD Paglight Camera Light with LED, Dimmer (D-Tap Lead, 20") is a 12V broadcast/ENG/EFP lighting unit. Interchangeable plug-in lamp-holders that fit at the back of the lamp body allow various types and powers of lamps to be fixed without handling the lamp. Its Dimmer Unit can be interchanged for halogen or HMI lamp-holders as required.
The LED unit gives an output of 850 lux at 6.6’ (2m) with 11W of power consumption. You can control the output to produce a steady transition from spot to flood. Its dimming facility gives you precise control over light intensity. Light intensity can also be controlled by using the spot and flood feature of the reflector. Paglight Camera Light unit reflectors flood out to 62° from a spot angle of 22.6°.
The LED version focuses the output of the emitters using an integrated bulls-eye lens suspended in the parabolic reflector in order to achieve light intensity over long distances. Color temperature of the output is a perfect blend for daylight. The Paglight Camera Light unit dissipates heat from the finned emitter probe using heat-transfer chambers instead of heavy aluminum heat sinks. Thus, the lamp head and the LED unit can be handled comfortably even after long hours of use.
Every Paglight Camera Light unit consists of a LED Dimmer Unit, a Power Base with lead and connector, a camera-shoe plate for fitting the camera, and a male-to-male stud adaptor (1/4” BSW), for fixing the shoe-plate to the Power Base. The Power Base for mounting the light to the camera is a low profile, pre-wired, hot-shoe base. It also includes a lamp protector. - Interchangeable plug-in lamp-holders - fit at the back of the lamp body, allow various types and powers of lamps to be fixed without handling lamp
- Dimmer Unit can be interchanged - halogen or HMI lamp-holders
- LED unit - output of 850 lux at 6.6' (2m), 11W power consumption
- Control output - produce a steady transition from spot to flood
- Dimming facility gives precise control over light intensity
- Reflectors - flood out to 62° from a spot angle of 22.6°, help control light intensity using spot and flood feature, 45mm diameter
- To achieve light intensity over long distances - LED version focuses the output of the emitters using an integrated bulls-eye lens suspended in the parabolic reflector
- Color temperature - daylight
- Heat dissipation - from the finned emitter probe using heat-transfer chambers instead of heavy aluminum heat sinks; lamp head and LED unit can be handled comfortably even after long hours of use
- Unit consists of a LED Dimmer Unit, a Power Base with lead and connector, a camera-shoe plate for fitting the camera, and a male-to-male stud adaptor (1/4" BSW), for fixing the shoe-plate to the Power Base
- Power Base - low profile, pre-wired, hot-shoe base, for mounting the light to the camera
- Includes a lamp protector
In the Box PAG 9965LD Paglight Camera Light with LED, Dimmer (D-Tap Lead, 20") Interchangeable Plug-in Lamp-holder LED Dimmer Unit Reflector Diffuser Power Base 20" (500mm) D-Tap Lead Camera-shoe Plate 1/4" BSW Male-to-male Stud Adaptor Lamp Protector Limited 2-Year Warranty User Manual PDF 237.6kbzbbatefystdrybu Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG 9965LD Paglight Camera Light with LED, Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9965LD Specs | | | Power Input Connector | D-Tap | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 6.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
