User Manual for PAG L90 90Wh V-Mount Slim Battery Click to enlarge the picture
Contents of the user manual for the PAG L90 90Wh V-Mount Slim Battery
- Product category: On Camera Batteries PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG On Camera Batteries
 |
User manual for the PAG L90 90Wh V-Mount Slim Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|

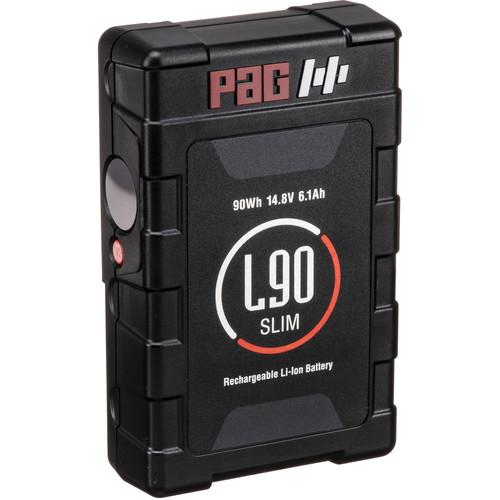

Product description The PAG L90 90Wh V-Mount Slim Battery is designed for use with small digital cinema cameras, especially when mounted to gimbals or drones. It has a capacity of 90Wh and a continuous current-draw capability of 10A. With built-in firmware, the battery manages its own charge and discharge safely. It can be charged using any V-Mount Li-ion charger.The battery features orientation-sensing numeric Run-Time and Capacity Display positioned on the side. The display characters rotate automatically according to the battery’s orientation to ensure legibility. Run-time is displayed to a resolution of 1 minute and capacity is displayed in 1% increments.The L90 communicates automatically with different camera data systems and displays its remaining capacity in the camera viewfinder and LCD. Firmware can be updated easily in the field via the contacts. The battery case is manufactured from high-impact, injection-molded polycarbonate. Additionally, the internal case design protects the cell-pack against damaging impact.The battery features a multi-level electronic protection system which is fail-safe and guards against conditions that reduce battery life. The circuits are conformally coated for protection and ensure the operation of the safety systems in the event of damage to the battery. - Designed to withstand the vibration of drone-mounted applications
- Run-Time and Capacity Display
- Intelligent battery that manages its own charge and discharge safely
- Auto-compatible with camera data systems and viewfinder displays
- Independently UN tested and flight-friendly design
- Inter-cell separation offers additional protection
- Cells have welded interconnections of low-resistance nickel strap
- Protection system circuit is conformally coated for protection and ensure operation of the safety systems in the event of damage to the battery
In the Box PAG L90 90Wh V-Mount Slim Battery Limited 2-Year Warranty Data Sheet PDF 234.7kbdwecaacdev Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG L90 90Wh V-Mount Slim Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG L90 Specs | Capacity | 6.1 Ah nominal, 90 Wh | | Battery Cells | Sealed Lithium-Ion rechargeable cells | | Battery Connector | V-Mount | | Voltage | 14.8V nominal
8 cells connected in series/parallel (4S2P)
Each cell has a nominal voltage of 3.7 V | | Output Current | 10 A | | Charge Voltage | 16.8 V | | Construction | High-impact polycarbonate injection moldings | | Integrated Protection System | 3 Over-current
2 Over-voltage
2 Under-voltage
3 Thermal (including non-resetting thermal fuse) | | Temperature Range | Charging: 32 to 104°F (0 to 40°C), Optimum: 50 to 86°F (10 to 30°C)
Discharging: -4 to 122°F (-20 to 50°C), Optimum: 41 to 104°F (5 to 40°C)
Storage: 14 to 104°F (-10 to 40°C), Optimum: 32 to 68°F (0 to 20°C) | | Overall Dimensions (H x W x D) | 5.5 x 3.34 x 1.37" (140 x 85 x 35 mm) | | Weight | 20 oz (567 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 6.8 x 3.9 x 2.7" |
