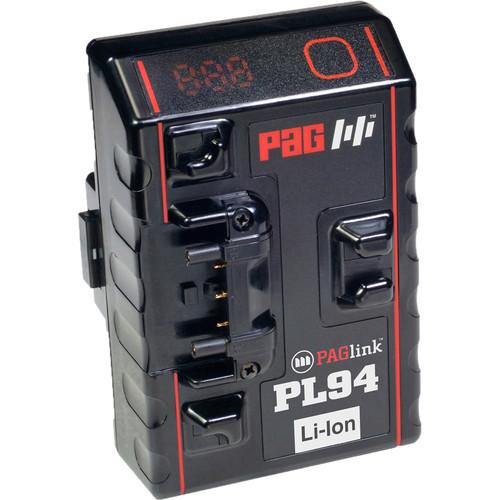

Product description The PAGlink HC-PL94T Time Battery Gold Mount (14.8V, 94Wh) from PAG is a lithium-ion battery featuring a linking design that allows multiple units to be attached and used together. The capacities of all the units combine to provide a higher current draw and a longer run-time than if the individual units are used consecutively. A single unit supports a 10A draw while two units combine to provide a 12A draw.

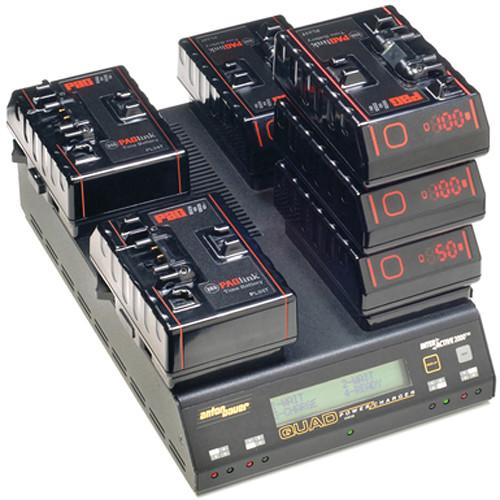

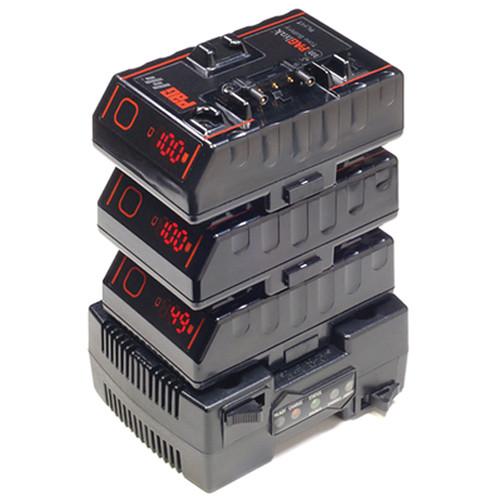

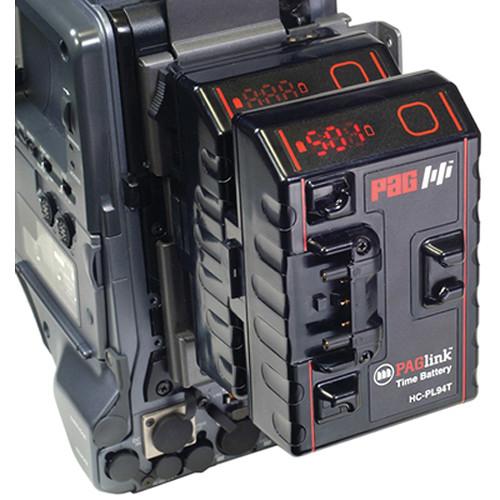

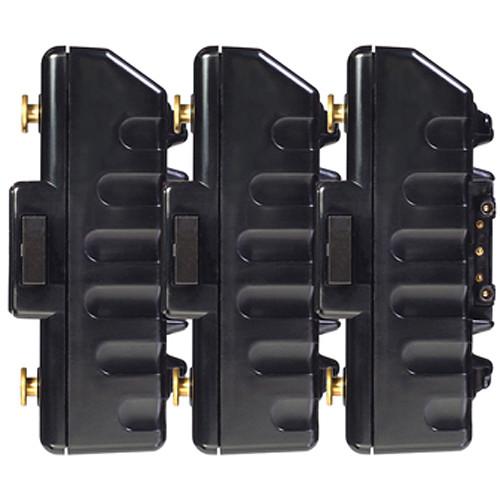

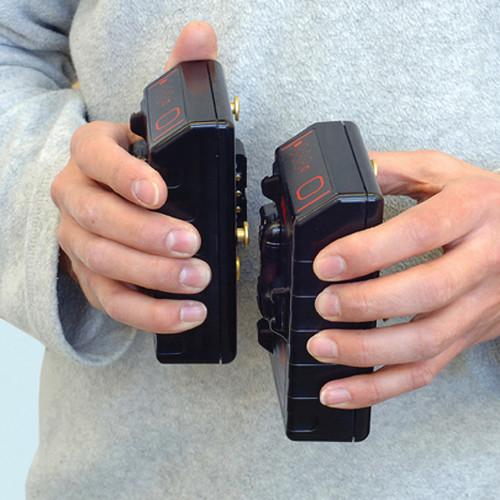

Multiple units can be attached together when being used and when being charged. They're compatible with PAG and Gold mount (Anton Bauer) lithium-ion chargers. Up to eight can be linked per channel on select PAG chargers and up to four on Gold mount chargers (up to six with the right firmware). They stop charging once topped-off, so you can safely leave them on the charger rather than let them self-discharge on the shelf. Combined units form a network and communicate with one another to provide safe and efficient output. For example, when two units that have the highest states of charge in the group are linked one to the other, they are used as the ones to provide power to the camera, while the remaining units in the group wait in stand-by. Combined packs support hot swapping for continuous power supply. The HC-PL94T is also capable of sending capacity data to all supporting cameras.

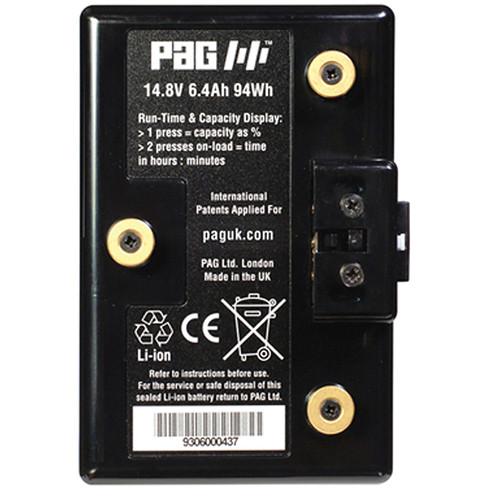

The HC-PL94T features a numeric run-time and capacity display which maintains accuracy by tracking performance and adjusting calibration values to compensate for the aging of the cells. Run-time is expressed in hours and minutes and can be switched to a percentage figure. When linked for use, run-time is displayed for the entire pack. When being charged, each battery displays its individual status. The display characters can be changed at the press of a button for the character type more legible for you.
The battery cells have no memory effect and are completely recyclable. The case is made from high-impact, injection-molded polycarbonate which is used for motorcycle helmets, and the interior of the case is designed to protect the cells from damaging impact. The battery uses a fail-safe electronic system with an electrolyte-resistant coating on its protection circuit. The system features three over-current, two over-voltage, two under-voltage, and three thermal safety shutdown systems, including a non-resetting thermal fuse. To support a long working life, the battery's front and rear contact assemblies are external to the battery case and can be replaced if damaged. PAGlink batteries are capable of working in temperatures as low as -20°C.
The HC-PL94T is UN-tested and is unrestricted in quantity by air transport legislation. You can carry as many with you on board as you can fit in your hand-luggage. The HC-PL94T can only be linked with other HC-PL94T Gold mount units. - Key Features
-
- 14.8V, 94Wh Gold mount lithium-ion battery
- Multiple units can be linked together for higher current draw and longer run times
- Single unit supports 10A draw; two units combine to support 12A draw
- Numeric run-time (hh/mm or %) and capacity display with accuracy maintenance feature
- When multiple units are linked, run-time is displayed for the entire group
- Capable of sending capacity data to all supporting cameras
- No memory effect
- High-impact, injection-molded polycarbonate case
- Case interior designed to protect the cells from damaging impact
- Fail-safe electronic system
- Unrestricted in quantity for hand-luggage carry-on
- Replaceable contact assemblies
- Capable of working in temperatures as low as -20°C
In the Box PAG PAGlink HC-PL94T Time Battery Gold Mount (14.8V, 94Wh) Limited 2-Year Warranty Guides & Manuals feqquyxvdywaesyusdebrwsw Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink HC-PL94T Time Battery Gold Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the PAG PAGlink HC-PL94T Time Battery Gold Mount can be downloaded in PDF format at the link stated below.
Technical parametersPAG HC-PL94T Specs | Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 94 Wh | | Amp-Hours | 6400 mAh | | Output Voltage | 14.8 VDC | | Maximum Load | 150 W, 10 A | | Charging Voltage | 16.8 VDC | | Storage Temperature | 14 to 104°F / -10 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 5.0 x 3.4 x 2.3" / 127.0 x 94.0 x 58.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.775 lb | | Box Dimensions (LxWxH) | 6.85 x 3.85 x 2.7" |
