User Manual for PAG PAGlink Micro Charger with Wall, USB, & Car Adapters Click to enlarge the picture
Contents of the user manual for the PAG PAGlink Micro Charger with Wall,
- Product category: Chargers PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG Chargers
 |
User manual for the PAG PAGlink Micro Charger with Wall, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|

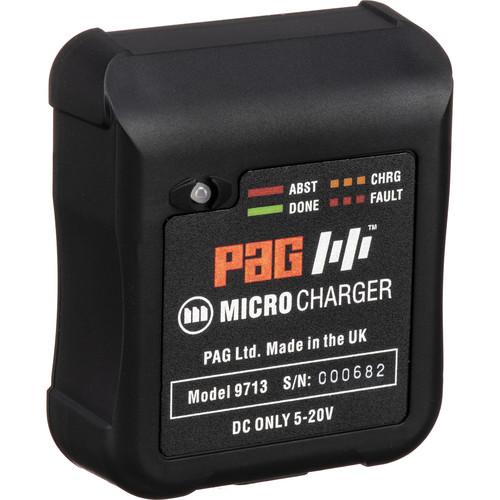

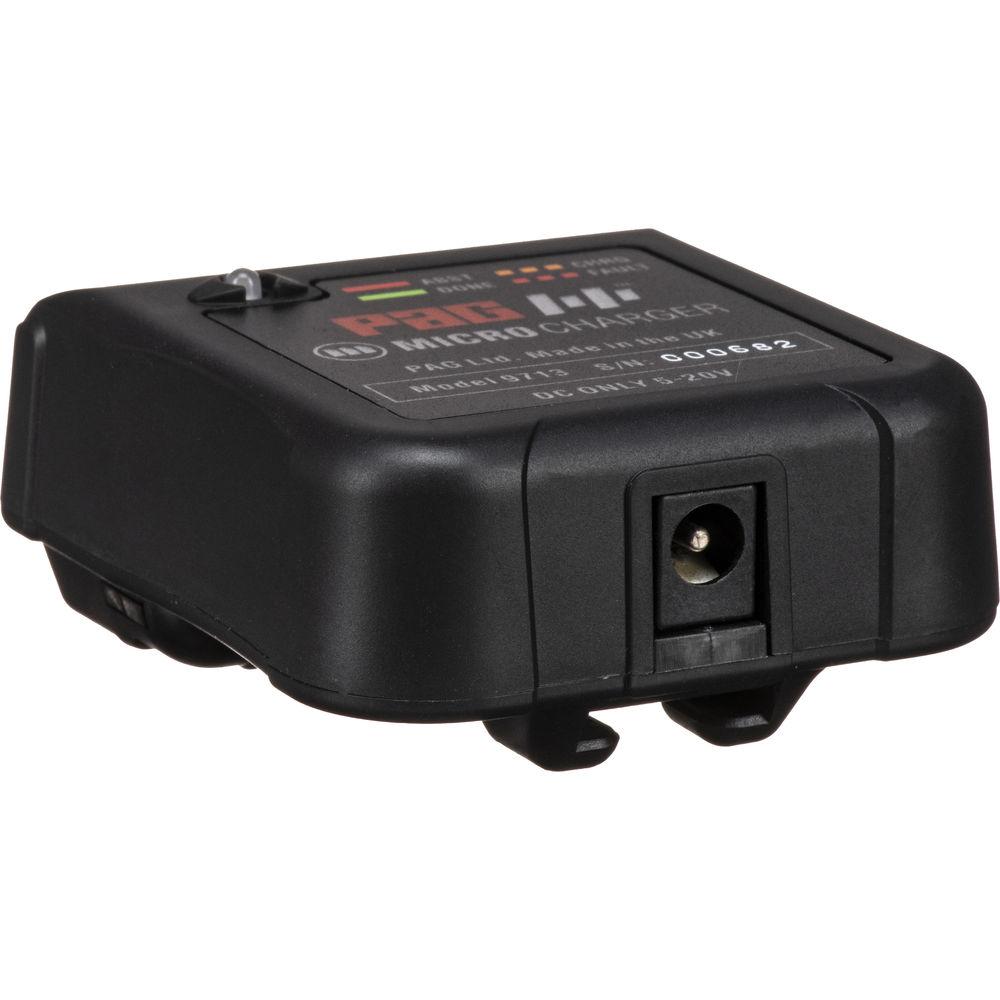

Product description The ultra-compact PAGlink Micro Charger with Wall, USB & Car Adapters (Gold Mount) from PAG is designed to charge up to four PAGlink batteries. Select PAGLink batteries may be charged individually or linked, some other batteries can be charged individually.

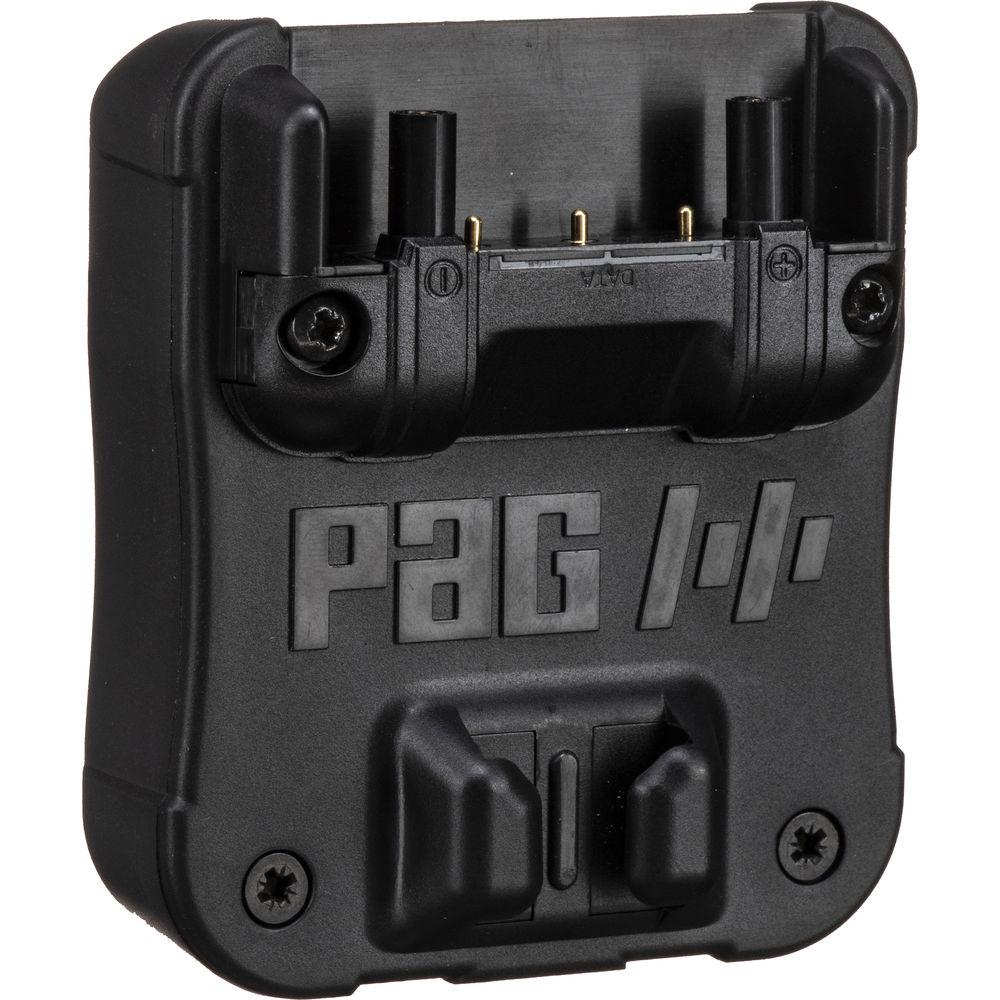

Clip the Micro Charger's Gold mount shoe over the battery contacts, then charge using 100-240 VAC power supply, the USB charging cable, or the car dashboard cable. Interchangeable plug adapters are included with the power supply for use worldwide. The PAGLink Micro Charger features tri-color LED status displays and a power-failure safety shut-down function. Using the Micro Charger, two fully discharged PAGlink batteries will be fully charged in approximately eight hours, and one battery will charge in 4 hours. Charging times for 150Wh batteries, and when using USB power, will be longer. - Features
-
- Super-compact, lightweight design
- Charges up to four PAGLink Gold mount batteries
- LED charging-status displays
- Charges via AC power supply, USB charging cable, or car dashboard cable
- Charges one 96Wh battery in four hours, charges two in eight hours
- Includes 110-220V power supply with international adapters
- Compatible, Linking Batteries
-
- 9306 PAGlink PL94T
- 9313 PAGlink 150T
- Compatible, Non-Linking Batteries
-
- 9310A PAG L95e/L96e
- 9305A PAG L96T

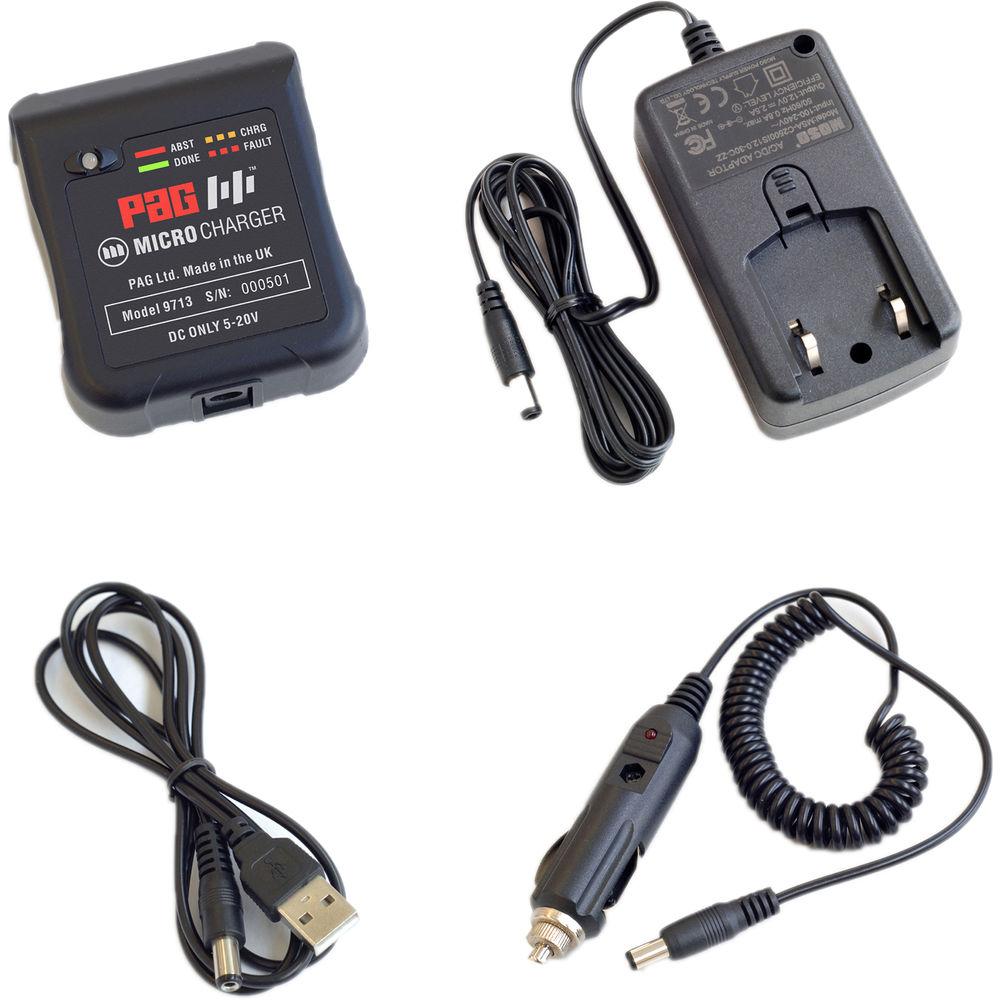

In the Box PAG PAGlink Micro Charger with Wall, USB, & Car Adapters (Gold Mount) AC Power Supply USB Charging Cable Car Charging Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink Micro Charger with Wall, USB, & Car Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9713 Specs | | | Power Input | DC: 5-20 V
USB: 2 A | | Power Supply Unit | 100-240 VAC (auto-selected)
50-60 Hz | | Connector | DC: 2.1 mm (PP90), any polarity | | Maximum Power Consumption | 35 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Charging Shoe Only:
2.9 x 2.4 x 1.3" / 73 x 62 x 33 mm | | Weight | 2.6 oz / 75 g | | | | Package Weight | 0.865 lb | | Box Dimensions (LxWxH) | 6.1 x 3.1 x 2.55" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
