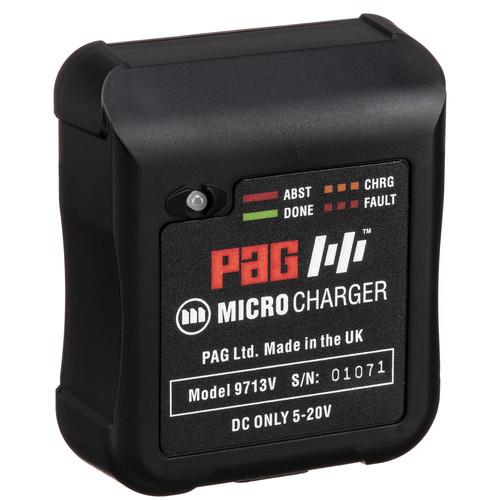

Product description The ultra-compact PAGlink Micro Charger with Wall, USB & Car Adapters (V-Mount) from PAG is designed to charge up to four PAGlink batteries. Select PAGLink batteries may be charged individually or linked, some other batteries can be charged individually.

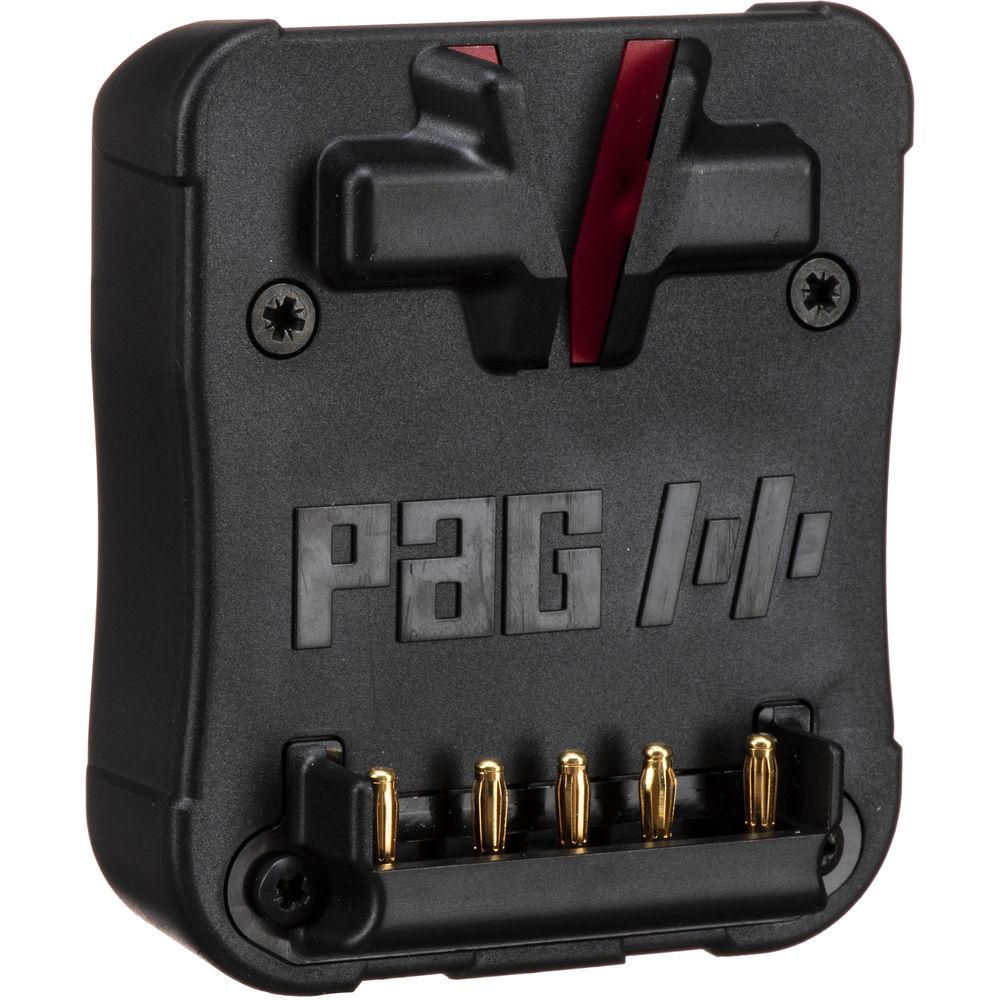

Clip the Micro Charger's V-mount shoe over the battery contacts, then charge using 100-240 VAC power supply, the USB charging cable, or the car dashboard cable. Interchangeable plug adapters are included with the power supply for use worldwide. The PAGLink Micro Charger features tri-color LED status displays and a power-failure safety shut-down function. Using the Micro Charger, two fully discharged PAGlink batteries will be fully charged in approximately eight hours, and one battery will charge in 4 hours. Charging times for 150Wh batteries, and when using USB power, will be longer. - Features
-
- Super-compact, lightweight design
- Charges up to four PAGLink V-mount batteries
- LED charging-status displays
- Charges via AC power supply, USB charging cable, or car dashboard cable
- Charges one 96Wh battery in four hours, charges two in eight hours
- Includes 110-220V power supply with international adapters
- Compatible, Linking Batteries
-
- 9303 PAGlink PL9
- 9304 PAGlink PL96T
- 9308 PAGlink PL150e
- 9309 PAGlink PL150T
- Compatible, Non-Linking Batteries
-
- 9307V PAG L90 Slim
- 9310V PAG L95e
- 9305V PAG L96T
- Sony V-Mount lithium-ion
In the Box PAG PAGlink Micro Charger with Wall, USB, & Car Adapters (V-Mount) AC Power Supply USB Charging Cable Car Charging Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink Micro Charger with Wall, USB, & Car Adapters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9713V Specs | | | Power Input | DC: 5-20 V
USB: 2 A | | Power Supply Unit | 100-240 VAC (auto-selected)

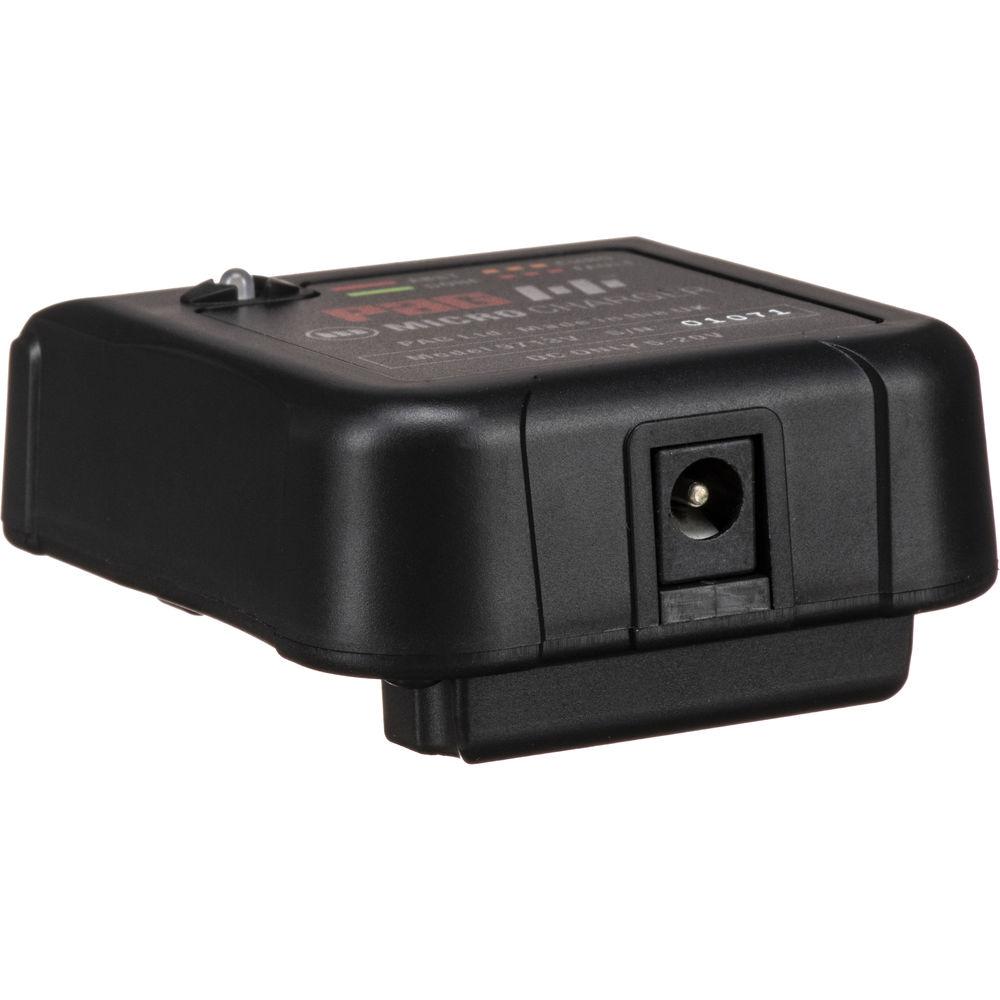

50-60 Hz | | Connector | DC: 2.1 mm (PP90), any polarity | | Maximum Power Consumption | 35 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Charging Shoe Only:
2.9 x 2.4 x 1.2" / 73 x 62 x 31 mm | | Weight | 2.6 oz / 75 g | | | | Package Weight | 0.855 lb | | Box Dimensions (LxWxH) | 6.05 x 3.1 x 2.6" |
