Product description

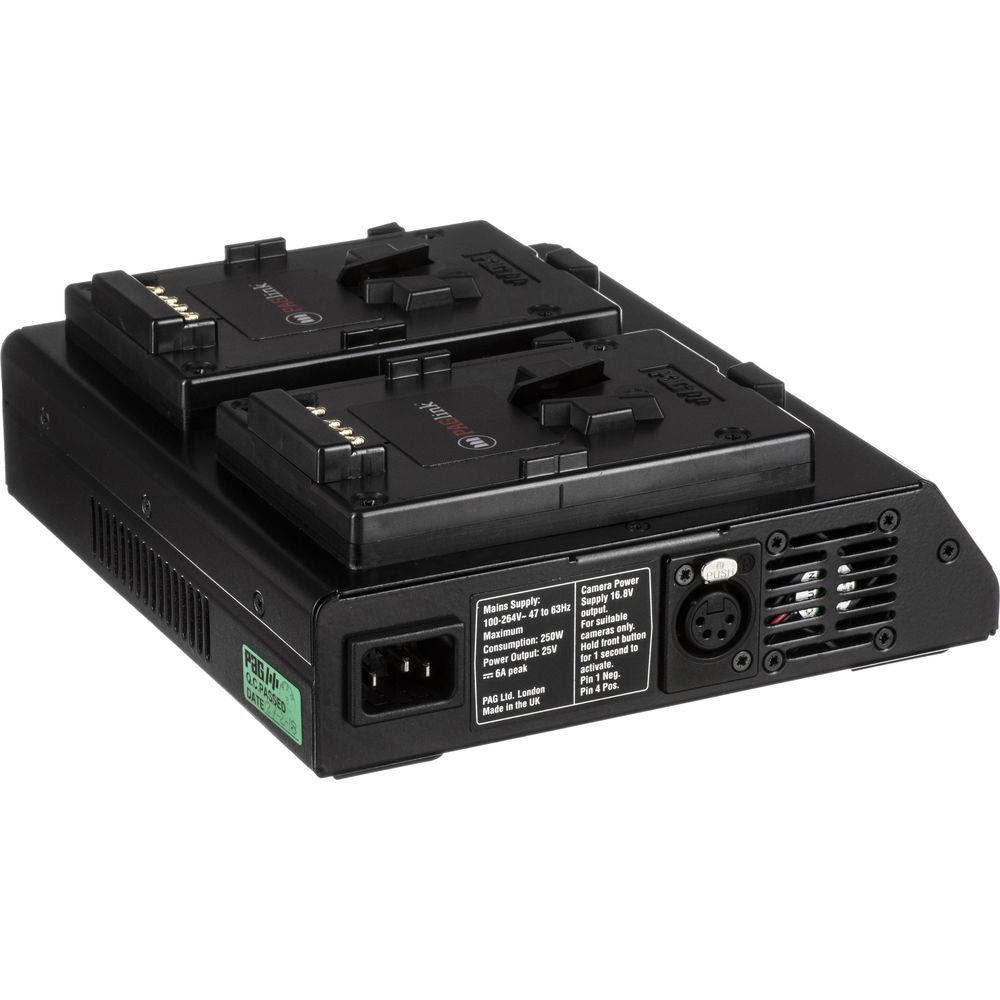

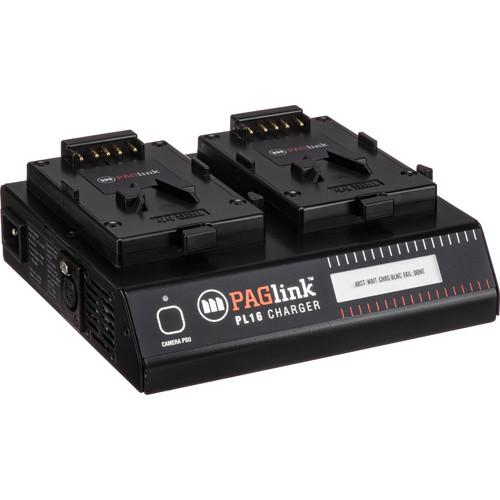

The V-mount version PAGlink PL16 Charger from PAG is a lightweight, compact charger with two battery bays. With this charger, carrying several chargers with you can be a thing of the past. The PAGlink PL16 can charge up to 16 PAGlink batteries (select models), stacked up 8 per battery bay. When charging two batteries only, it provides simultaneous charging. When stacking up multiple units, this intelligent charger recharges the most depleted batteries first, and can fully charge eight batteries in 12 hours. The PL16 also features a handy, 16.8 VDC built-in power supply with a 4-pin XLR output to provide constant power to select cameras. To aid you in determining which battery will be ready first when stacked up, each PAGlink battery displays its percentage-charged status. Once fully topped up, individual batteries will automatically stop charging. The PAGlink PL16's recovery function will automatically recover Li-ion batteries if their cut-out feature has been tripped.
    Key Features
    • Charges two batteries simultaneously
    • Charges up to 16 batteries (select PAGlink models) stacked up 8 per bay; charges most depleted batteries first
    • 4-pin XLR, 16.8 VDC power supply
    • Compact, lightweight, rugged construction and quiet operation
In the Box PAG PAGlink PL16 Charger for V-Mount Batteries
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the PAG PAGlink PL16 Charger for V-Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    PAG 9707 Specs

    Battery Bays 2 x V-mount
    AC Power Source 100-240 VAC, 50-60 Hz
    Maximum Power Consumption 220 W
    Output Power Battery Charger: 16.8 VDC, 6 A (approx. 100 W)
    AC Power Supply: 16.8 VDC, maximum 5.5 A (90 W)
    AC Power Supply Port: 4-pin XLR
    Dimensions 3.0 x 8.3 x 7.5" / 7.5 x 21.0 x 19.0 cm
    Weight 3 lb / 1.4 kg
