User Manual for PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion Battery Click to enlarge the picture
Contents of the user manual for the PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion
- Product category: On Camera Batteries PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG On Camera Batteries
|
User manual for the PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|

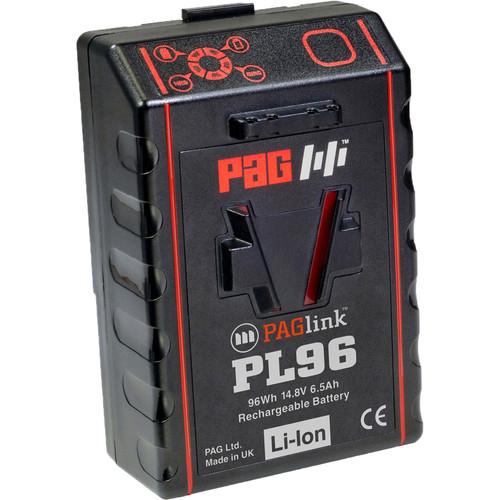

Product description The PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion Battery is a linking battery -- it can be attached and directly connected to up to seven more other PAGlink-series batteries. It can be used while linked and charged while linked. The point of linking is to combine the capacities of all the batteries to achieve very high capacities and a higher current-draw capability. Linked batteries form a high speed serial network that enables the batteries to communicate with one another so to control charge and discharge. The network allows linked batteries to act as one when communicating with the camera. The PL96e (and other PAGlink batteries) can be used with HD broadcast cameras, digital cine cameras, 3D camera set-ups, and DSLRs.
Please note: no more than 3 batteries are recommended to be linked for use on-camera, but up to 8 can be linked off-camera and for charging. - Key Features
-
- Heavy duty contacts successfully support high-drain applications
- Maximum rated continuous output is 8A individually, 12A when linked
- 5 LED run-time and capacity indicator shows camera run-time in hours and minutes
- When the battery is linked, run-time is displayed for the total of all connected
- In a linked set-up, the rear battery can be hot-swapped for uninterrupted camera power
- Enhanced low temperature performance allows PAGlink batteries to operate at -4°F (20°C)
- Lithium-ion cells have no memory effect; the battery is totally recyclable
- Viewfinder Compatibility
- Supports four battery status standards for the communication of capacity data to the camera viewfinder:
- SMB (Sony)
- I2C (IDX)
- Reversed SMB (RED)
- Analogue 0V to 5V (Anton Bauer)
- Battery adapts automatically when connected to a viewfinder
- Certification and Transportation
-
- Independently tested and certified to comply with UN standards
- 96 Wh capacity is suitable for transport on passenger aircraft, in hand-luggage, without quantity restriction
- Charging
-
- Compatible chargers: PAG PL16, PAGlink Cube, PAG Micro Charger, Sony chargers
- Most any reputable V-mount lithium-ion charger can be used
- State-of-charge is displayed as a percentage, in 6 increments
- Typically, eight fully discharged batteries fully charge in ten hours
- Protection / Safety Shut Down Systems
-
- 3 over-current shutdown systems
- 2 over-voltage shutdown systems
- 2 under-voltage shutdown systems
- 3 thermal shutdown systems, including a non-resetting thermal fuse
- Fail-safe electronic protection system features Parylene coated circuits to protect against electrolyte
In the Box PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion Battery Limited 2-Year Warranty User Manual PDF 708.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink PL96e 14.8V V-Mount Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG PL96e Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 96 Wh | | Amp-Hours | 6.5 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 8 A | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Dimensions (W x H x D) | 5.2 x 3.3 x 2.0" / 133.0 x 84.0 x 50.0 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.5 x 3.9 x 2.5" |
