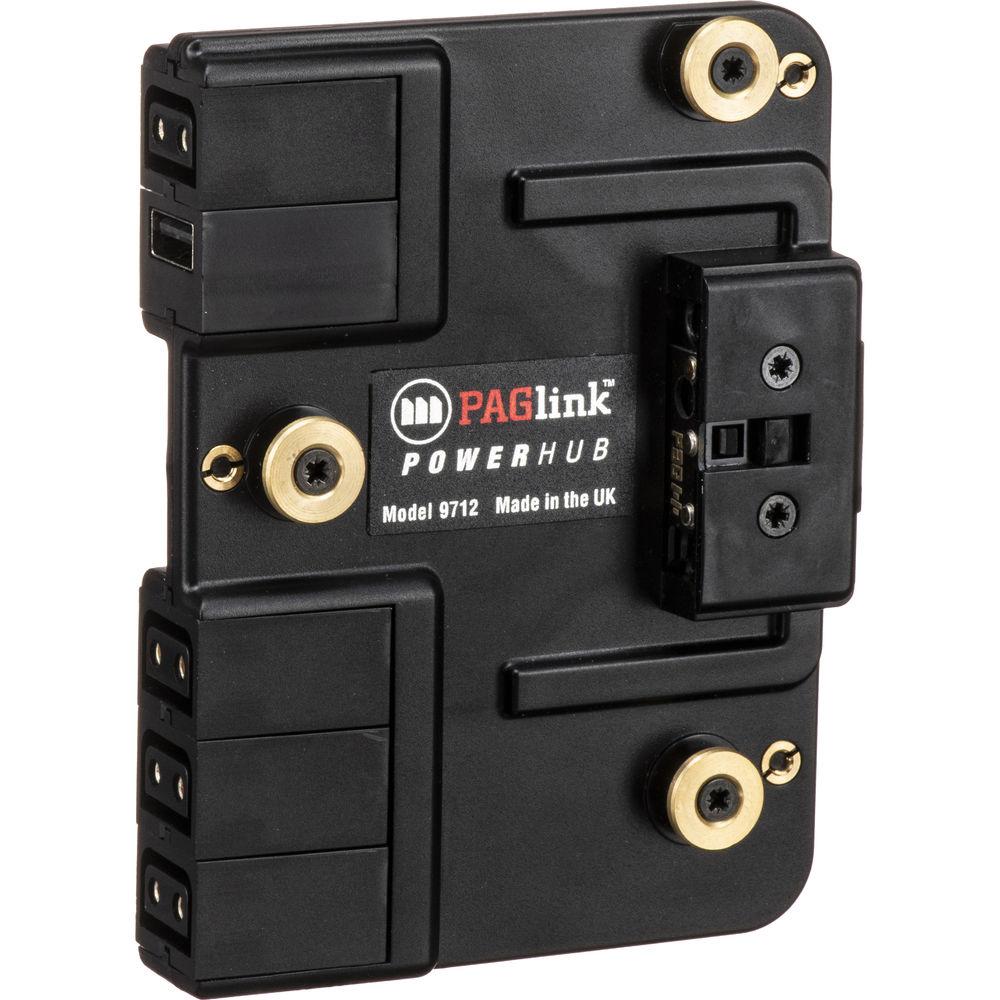

Product description The PAG PAGlink PowerHub for PAGlink Gold Mount Batteries is a battery pass-through device that provides five swappable outlet ports to power accessories. The PowerHub only works with PAGlink batteries (not included) and is designed to be sandwiched between two PAGlink batteries with the same mount. Do not mount the PowerHub directly on your camera as its outlet ports will not work.

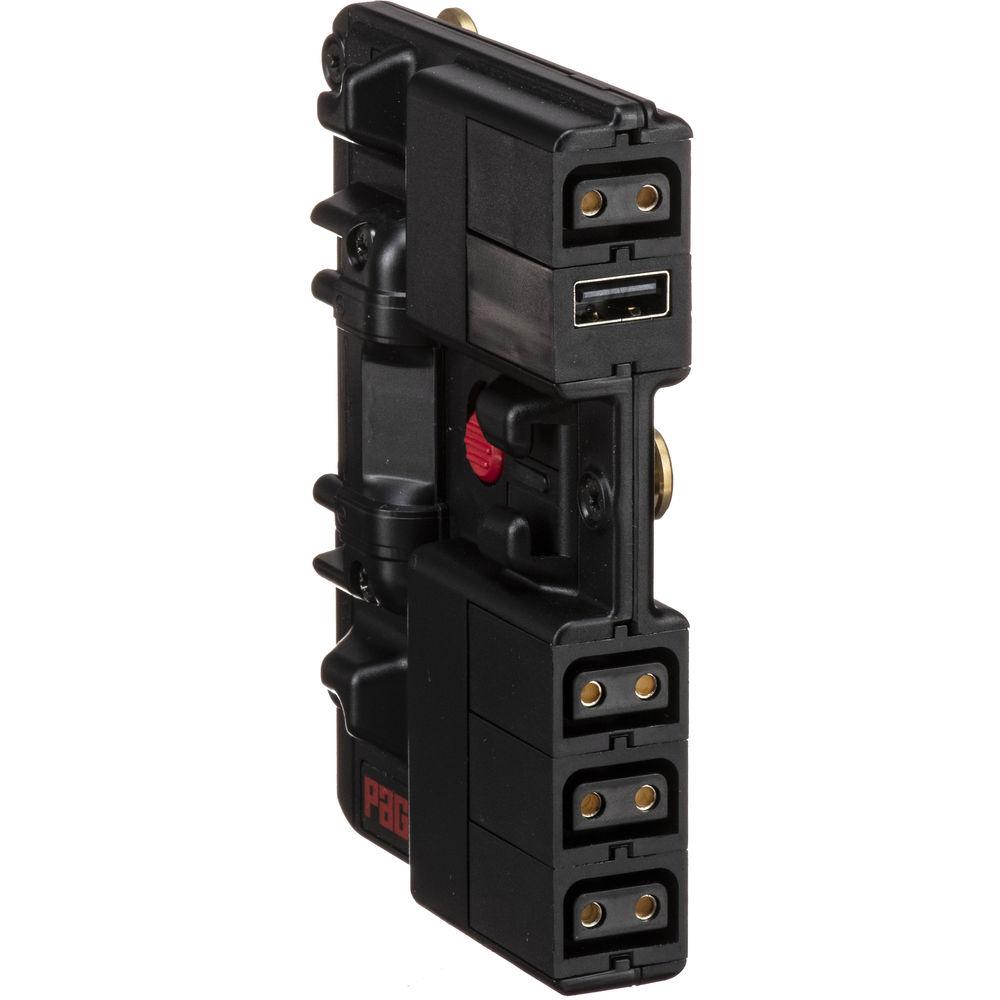

Once mounted on the camera-mounted PAGlink battery, the PowerHub allows you to stack another Gold Mount PAGlink battery, and hot swap that battery so your camera doesn't shut down when changing batteries. Supplied with four removable D-Tap and one removable USB output port, you can configure the ports as best suits your working practice. Optional ports for LEMO, Hirose, and other connectors are available. The D-Tap connectors are unregulated and generally suitable for 12V accessories, and the USB port is regulated to deliver 5V. - Can be used between batteries to maintain the hot swap feature
- Adds less than half an inch to the depth of the two batteries
- Provides power to multiple 12V camera accessories
- Includes four D-Tap outputs for 12V camera accessories
- Includes regulated USB module for 5V output
- Optional 2-pin LEMO, 4-pin Hirose, and 2.1mm (PP90) output modules are available in addition to the D-Tap and USB modules that come with the unit
- The PowerHub is only compatible with PAGlink batteries and will not function properly when used with other batteries
In the Box PAG PAGlink PowerHub for PAGlink Gold Mount Batteries 4 x D-Tap Port USB Port Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink PowerHub for PAGlink Gold Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9712 Specs | Output Ports | 4 x D-Tap, 12 V
1 x USB Type-A, 5 V | | Dimensions | 4.49 x 3.5 x 0.98" / 11.4 x 8.9 x 2.5 cm | | Weight | 4.9 oz / 140 g | | | | Package Weight | 0.345 lb | | Box Dimensions (LxWxH) | 4.65 x 3.5 x 1.0" |
