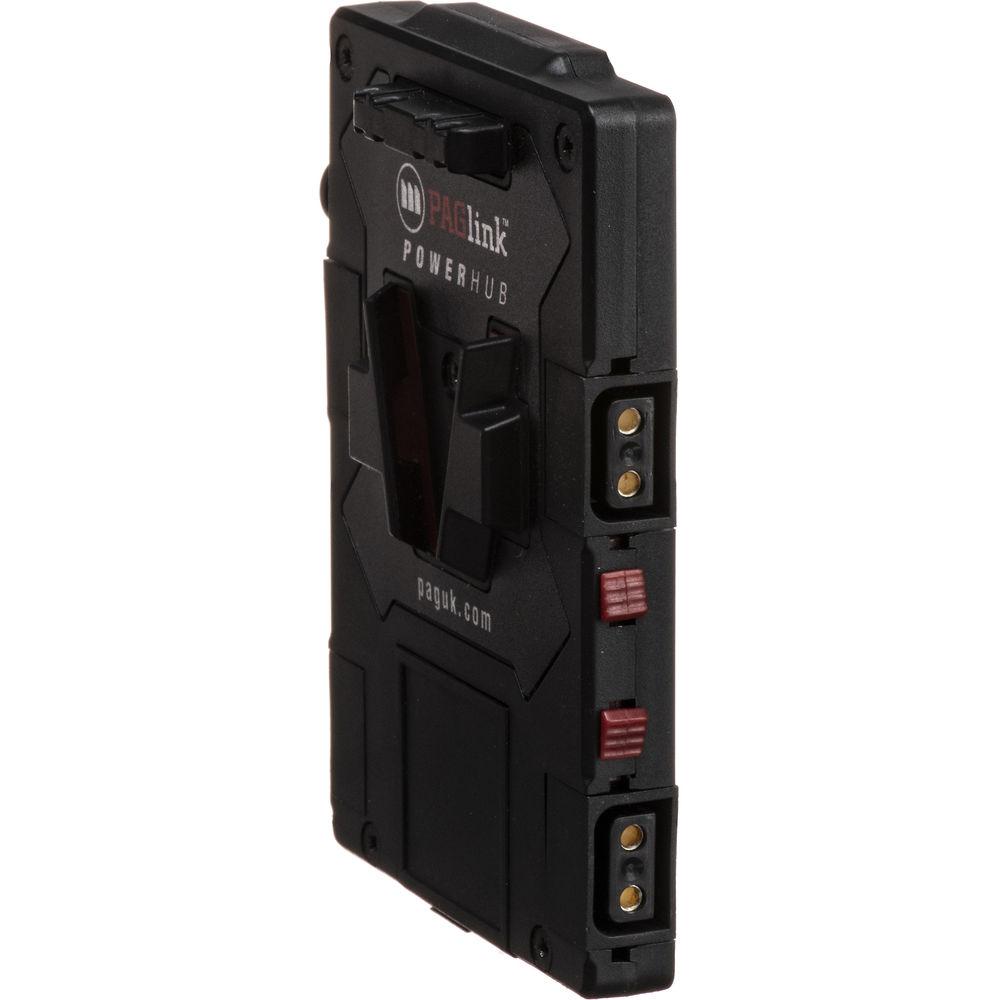

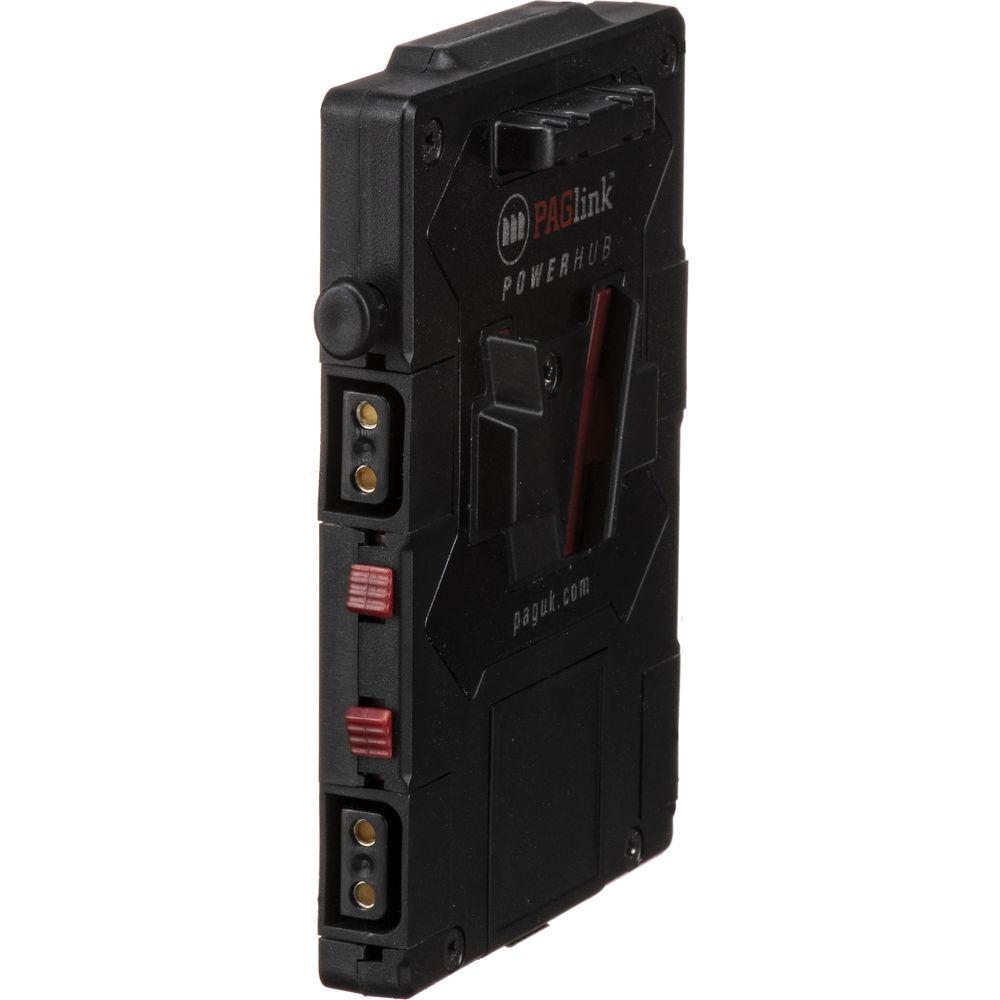

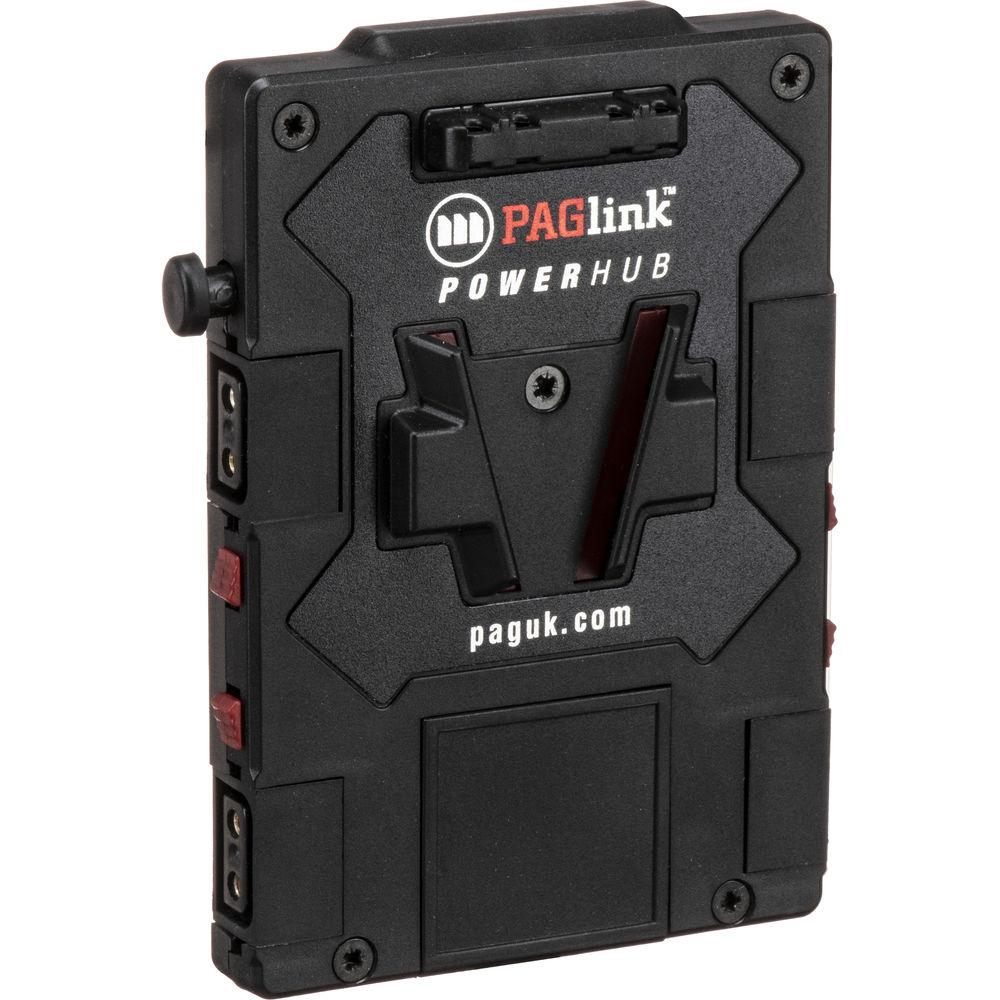

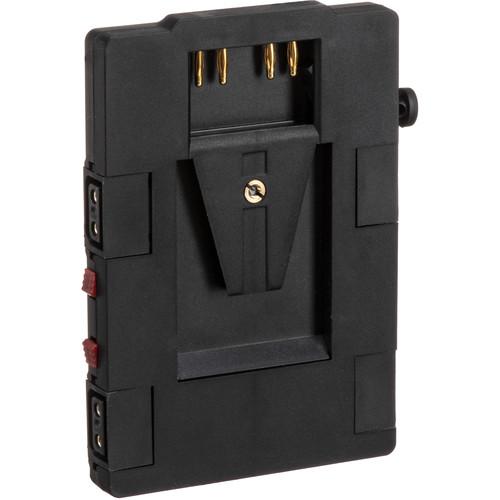

User Manual for PAG PAGlink PowerHub for PAGlink V-Mount Batteries Click to enlarge the picture
Contents of the user manual for the PAG PAGlink PowerHub for PAGlink V-Mount
- Product category: Battery Mounting Plates PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG Battery Mounting Plates
 |
User manual for the PAG PAGlink PowerHub for PAGlink V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|
Product description The PAG PAGlink PowerHub for PAGlink V-Mount Batteries is a battery pass-through device that provides five swappable outlet ports to power accessories. The PowerHub only works with PAGlink batteries (not included) and is designed to be sandwiched between two PAGlink batteries with the same mount. Do not mount the PowerHub directly on your camera as its outlet ports will not work.
Once mounted on the camera-mounted PAGlink battery, the PowerHub allows you to stack another V-Mount PAGlink battery, and hot swap that battery so your camera doesn't shut down when changing batteries. Supplied with four removable D-Tap and one removable USB output port, you can configure the ports as best suits your working practice. Optional ports for LEMO, Hirose, and other connectors are available. The D-Tap connectors are unregulated and generally suitable for 12V accessories, and the USB port is regulated to deliver 5V. - Can be used between batteries to maintain the hot swap feature
- Adds less than half an inch to the depth of the two batteries
- Provides power to multiple 12V camera accessories
- Includes four D-Tap outputs for 12V camera accessories
- Includes regulated USB module for 5V output
- Optional 2-pin LEMO, 4-pin Hirose, and 2.1mm (PP90) output modules are available in addition to the D-Tap and USB modules that come with the unit
- The PowerHub is only compatible with PAGlink batteries and will not function properly when used with other batteries
In the Box PAG PAGlink PowerHub for PAGlink V-Mount Batteries 4 x D-Tap Port USB Port Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAGlink PowerHub for PAGlink V-Mount Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9709 Specs | Output Ports | 4 x D-Tap, 12 V
1 x USB Type-A, 5 V | | Dimensions | 4.4 x 3.2 x 0.7" / 11.2 x 8.3 x 1.8 cm | | Weight | 3.5 oz / 100 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.6 x 3.55 x 0.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
