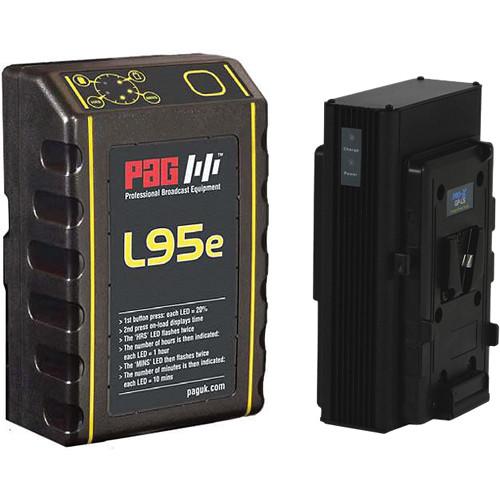

User Manual for PAG PAL95EK1 PAG & Switronix Power Kit 1 Click to enlarge the picture
Contents of the user manual for the PAG PAL95EK1 PAG & Switronix Power
- Product category: On Camera Batteries PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG On Camera Batteries
|
User manual for the PAG PAL95EK1 PAG & Switronix Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|
Product description The PAG & Switronix PAL95EK1 is a power kit for professionals using V-Mount power technology. This kit features a PAG battery and Switronix single charger. - PAG 9310V Power Circle Lithium Ion Battery The PAG 9310V is a 14.8VDC 95 Wh lithium ion battery. it features a Power Circle display, high voltage and light weight construction. This model offers V-Mount connectivity.
- Power Circle Display
- The PAG Power Circle is a micro-driven coulemetric capacity indicator that displays charge status in terms of percentage. If the battery is 100% charged, then all 4 segments of the Power Circle will be lit.
- High Quality Cells
- Pag uses specially selected cells for enhanced voltage hold-up characteristics. Tests show that within as little as 30 cycles these cells out-perform other cell types, which were chosen primarily for their initially higher capacity.
- 14.8 Volts
- The 14.8VDC 6.5Ah pack has a capacity of 95 watt-hours and yet weighs only 745g. The result is increased run-time for both a camcorder and a camera light up to 35W.
- Construction
- The battery cells are protected by a case made from high impact resistant ABS plastic designed to ensure that the battery withstands the rigors of multi-environmental use.
- Core SWX GP-LS Single Position Charger The Core SWX GP-LS combines all the functionality of a single position V-Mount charger and a 12VDC 90W camera power supply. It features multi-chemistry charging with a variety of brand name capability.
- DC Power Supply
- The GP-LS will operate as an AC adaptor for 12VDC equipment as well as a battery charger.
- Multi-Chemistry
- This device will charge NiCD, NiMH and Lithium Ion batteries simultaneously.
UPC: 184323000401 In the Box - 9310V Power Circle Lithium Ion Battery zcyadvyyvt
- Limited 18-Month Warranty
- Core SWX - GP-LS Single Position Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PAL95EK1 PAG & Switronix Power Kit 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PAG 9310V Power Circle Lithium Ion Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 95 Wh | | Output Voltage | 14.8 VDC | | Dimensions (W x H x D) | 3.4 x 1.9 x 5.1" / 86.0 x 47.0 x 130.0 mm | | Weight | 1.6 lb / 0.8 kg | | | | Box Dimensions (LxWxH) | 6.6 x 3.8 x 2.45" | - Core SWX GP-LS Single Position Charger
| Power Supply | Yes | | Battery Bays | 1 | | Type of Charging | Single | | Diagnostics | None | | Connections/Interface | Sony V-Mount Type
4-Pin XLR (x 1) | | Power Requirements | 90-240VAC, 50/60Hz | | Dimensions (WxHxD) | 4.2 x 2.5 x 3"
10.9 x 5 x 7.9cm | | Weight | 1.4 lbs
645g | | | | Box Dimensions (LxWxH) | 8.1 x 5.35 x 4.9" |
