User Manual for PAG PL150 Series 150Wh Intelligent Linking Gold Mount Battery Click to enlarge the picture
Contents of the user manual for the PAG PL150 Series 150Wh Intelligent Linking
- Product category: On Camera Batteries PAG
- Brand: PAG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PAG On Camera Batteries
|
User manual for the PAG PL150 Series 150Wh Intelligent Linking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PAG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PAG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PAG product will considerably shorten its lifespan!
|

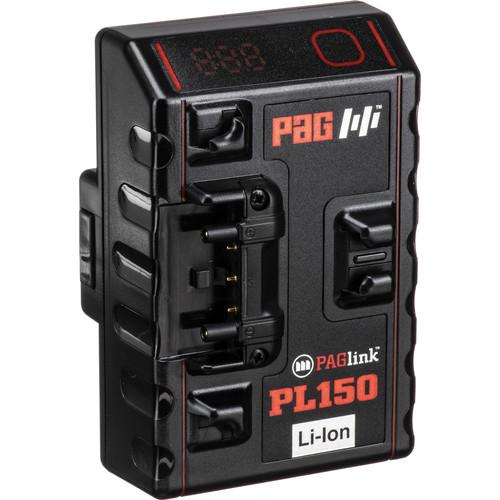

Product description The PL150 Series 150Wh Intelligent Linking Gold Mount Battery from PAGlink is suitable for powering any broadcast or digital cinema camera, and multiple accessories, for extended periods. It can draw up to 12A when batteries are linked and capacity is doubled to a massive 300Wh by linking just 2 batteries. The batteries run-time is increased for applications where changing the battery is not an option.
The protection system circuit is conformally-coated to protect the battery, and ensure operation of the safety systems in the event of damage to the battery. Alternatively, the gold mount battery can be hot-swapped for continuous power and can be charged using reputable Li-ion chargers. - Draws up to 12A when the batteries are linked
- Hot-swap batteries for continuous power
- Numeric runtime & capacity display or 5-light indicator
- Auto-communication with multiple camera data systems for in-viewfinder capacity display
- Manages own charge and discharge safely
- Heavy duty pin-type contacts for high-load applications
- Tested to UN standards by an independent authority
- Fail-safe electronic protection system, conformally coated
- Battery firmware can be updated in the field by the user, via the battery contacts
In the Box PAG PL150 Series 150Wh Intelligent Linking Gold Mount Battery Limited 2-Year Warranty Brochure PDF 383.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG PL150 Series 150Wh Intelligent Linking Gold Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG PL150 Specs | Capacity | 10 Ah nominal, 150 Wh | | Format | Gold mount | | Battery Cells | Premium grade, high-capacity, sealed Lithium-Ion rechargeable cells | | Voltage | 14.8 V nominal, 12 cells connected in series/parallel
Each cell has a nominal voltage of 3.7 V | | Output Current | Rated maximum continuous output current is 10 A (12 A for two or more linked batteries) | | Charge Voltage | 16.8 V | | Run Time | 5-light indicator, which shows a prediction of remaining run-time, on-load, using a combination of lights, to a resolution of 10 minutes, and capacity in 20% blocks. | | Construction | High-impact polycarbonate injection moldings designed to protect the cells from impact damage
Battery case is sealed | | User Replaceable | Latching Mechanism: Can be replaced in the event of damage, without opening the sealed battery case | | Protection | Safety Shutdown Systems
3 over-current
2 over-voltage
2 under-voltage
3 thermal (including non-resetting thermal fuse) | | Temperature Range | Discharging: -4 to 122°F (-20 to 50°C)
Optimum: 50 to 104°F (10 to 40°C)
Charging: 32 to 113°F (0 to 45°C)
Optimum: 50 to 104°F (10 to 40°C)
Storage: 14 to 104°F (-10 to 40°C)
Optimum: 32 to 68°F (0 to 20°C) | | Dimensions | 5 x 3.4 x 2.2" (13 x 9 x 5.5 cm) | | Weight | 1.7 lb (0.77 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 6.5 x 3.8 x 2.4" |
