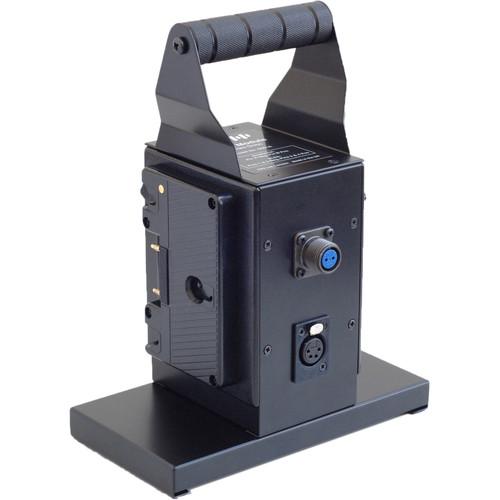

Product description The Gold Mount PAG Series Power Module can be used to power 30V LED lights without using any 30V batteries or chargers. You can connect the Gold Mount camera batteries, typically rated at 14.8V, by connecting them in series using a PAG Series Power Module which will produce an output equivalent to their combined voltages. The Module features a strong yet lightweight mild steel construction, suitable for any production environment. It incorporates a heavy-duty handle, and can be carried with the batteries connected. - Power 30V lighting without the need to purchase 30V batteries and chargers
- Combine the voltages of Gold Mount camera batteries
- Achieve continuous power by hot swapping PAGlink and PAG L96 series batteries
- Output via two XLR4 or Amphenol connectors
In the Box PAG Series Power Module (Gold Mount) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG Series Power Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9581A Specs | Input Connectors | 2 x Gold Mount | | Output Connectors | 2 x XLR4 (Amphenol connectors also available) | | Batteries | PAGlink or PAG L96 Series Gold Mount Li-ion batteries (sold separately)
Note: Batteries must be in the same state of charge. | | Safety | Designed for low voltage use only (40 VDC maximum) | | Operating Temperature Range | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions (H x W x D) | 9.9 x 4.3 x 6.9" (25.0 x 10.8 x 17.4 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 14.1 x 11.0 x 6.9" |
