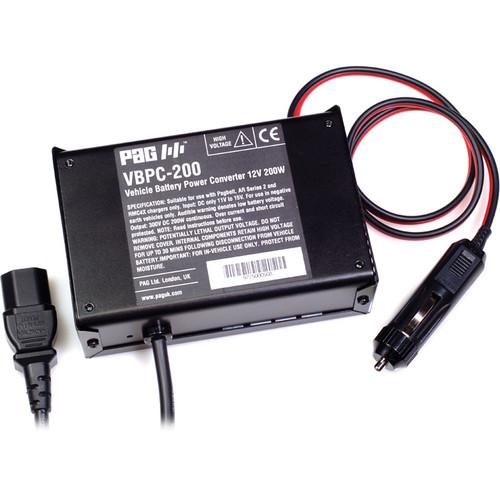

Product description The 200W VBPC-200 Vehicle Battery Power Converter from PAG is a small, lightweight, economic unit that converts the vehicle’s 12V battery output to 300VDC. The battery power converter is designed for powering equipment by employing switched-mode conversion (where no mains transformer is used). The converter provides a powerful 200W continuous output and allows short term use of up to 250W (up to 5 minutes). The power is sufficient to run PAG battery chargers and the integral chargers of all Pagbelts.
The VBPC-200 Battery Power Converter is suitable for use with the PAGlink PL16 charger, RMC4X rack-mountable chargers, AR Series 2, Freelancer, Quasar, Pulsar, 12V AR Series, MC124, and the PAGbelt integral charger. The unit is fitted with a lead terminated with a standard IEC plug, for connection to the charger, and a lead terminated with a connector suitable for a vehicle’s cigar lighter socket. An amber LED indicates connection to the vehicle battery. To turn the unit off, simply disconnect it from the cigar lighter socket. The vehicle cigar lighter socket and wiring harness is capable of carrying a minimum current of 20A.
The converter incorporates an audible warning system, which operates when the vehicle battery needs to be boosted by starting the vehicle’s engine. However, if the vehicle’s engine is not started and the battery voltage continues to fall, then the unit will switch-off (latch-out), thereby leaving sufficient power to start the vehicle. Unplugging the unit will reset the latch. Then, reconnect the unit after boosting the vehicle battery. Note: Converter is not suitable for 9702, 9702V, and 9708 PAG Cube Chargers - Powers a wide range of PAG chargers from your vehicle battery via the cigar lighter socket
- 200W continuous output (250W for 5 minutes)
- Audible low battery voltage warning and latch-out system
In the Box PAG VBPC-200 Vehicle Battery Power Converter (200W) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PAG VBPC-200 Vehicle Battery Power Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPAG 9775 Specs | Dimensions (H x W x D) | 5.6 x 3.7 x 1.8" (141.0 x 94.0 x 45.0 mm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.1 x 5.2 x 2.5" |
