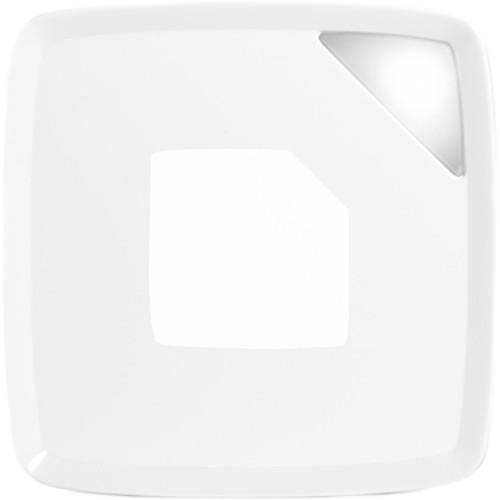

User Manual for Palette Cube Click to enlarge the picture
Contents of the user manual for the Palette Cube
- Product category: Misc. Accessories Palette
- Brand: Palette
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palette Misc. Accessories
 |
User manual for the Palette Cube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palette product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palette user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palette product will considerably shorten its lifespan!
|

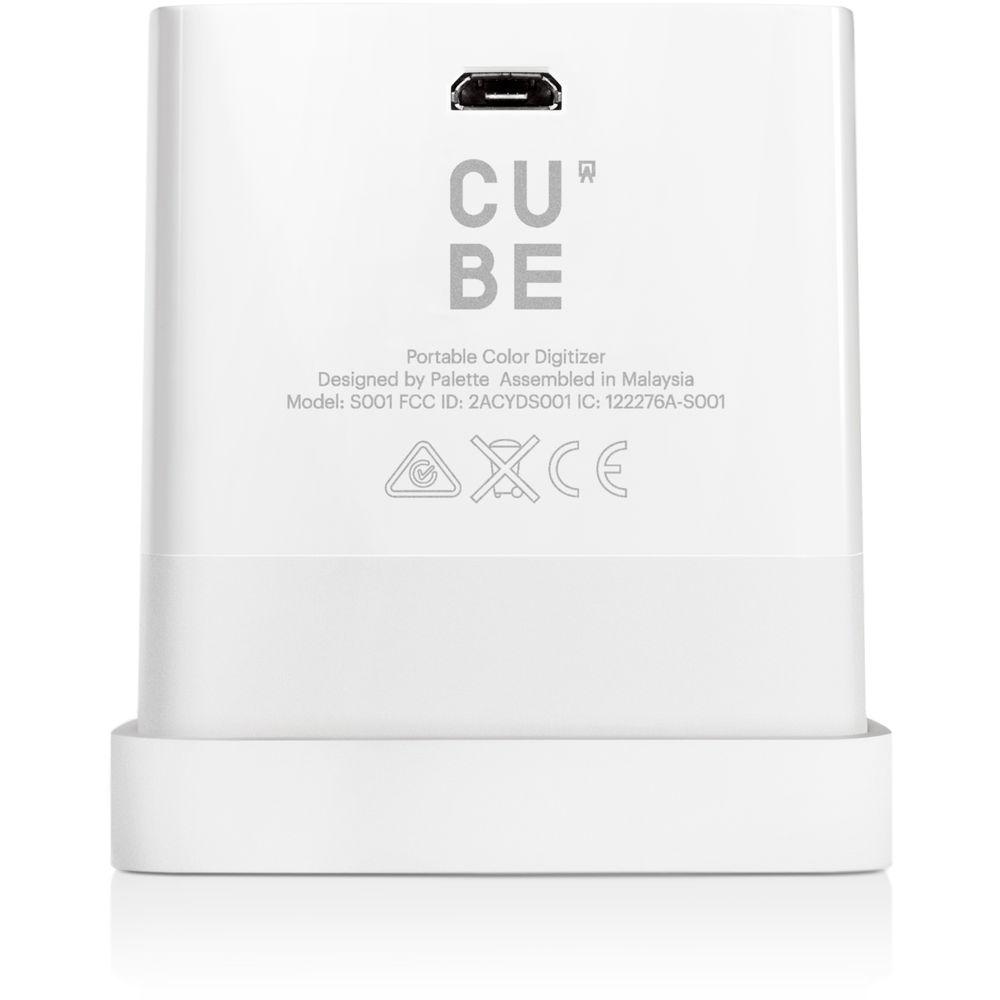

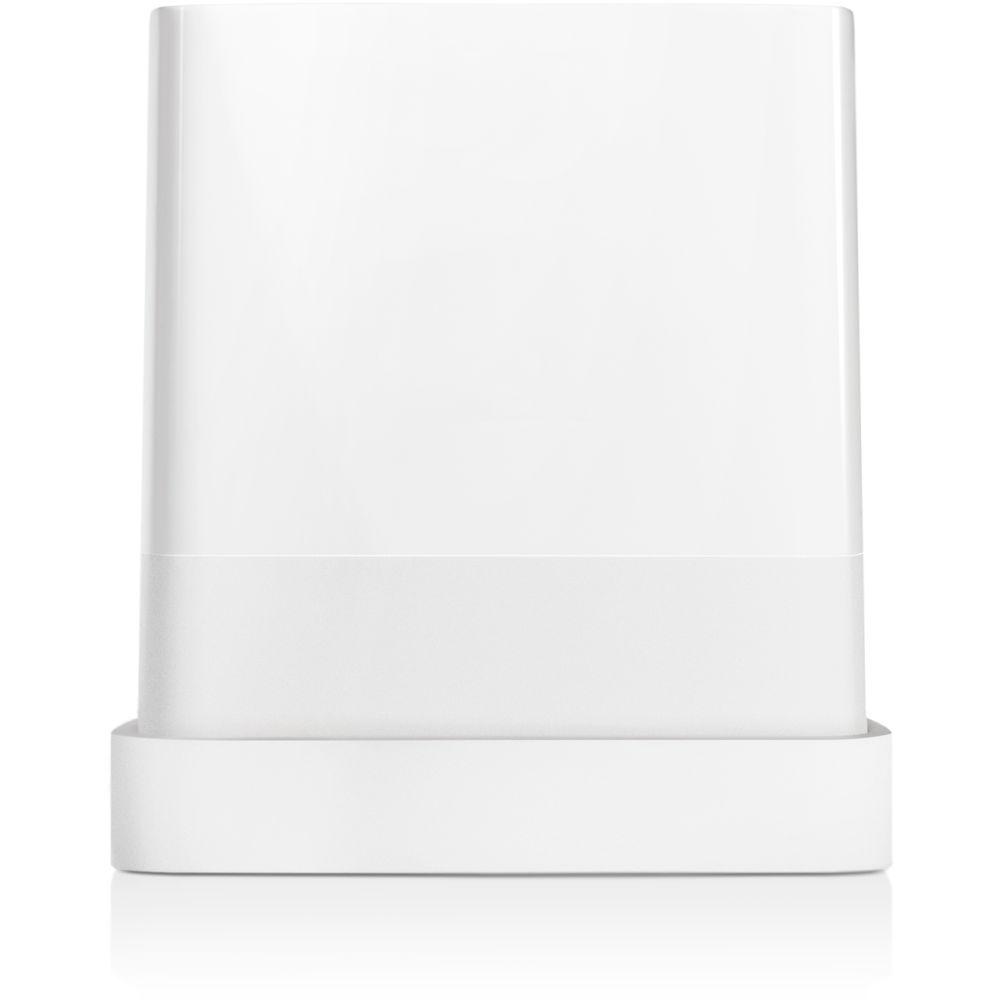

Product description - CUBE - Portable Color Digitizer
Capture colors on the go with the arctic white Palette Cube. This portable device allows you to record ambient light, temperature, and color data for any physical object. Simply place your Cube on the color you'd like to record and press the button, and the Cube stores all the data needed to reproduce that exact color. It can store up to 20 colors internally, as well as connecting to the Cube smartphone app via Bluetooth 4.0. The Cube also syncs in real time with Adobe Creative Cloud for use with Illustrator and Photoshop, including built-in libraries like Pantone.

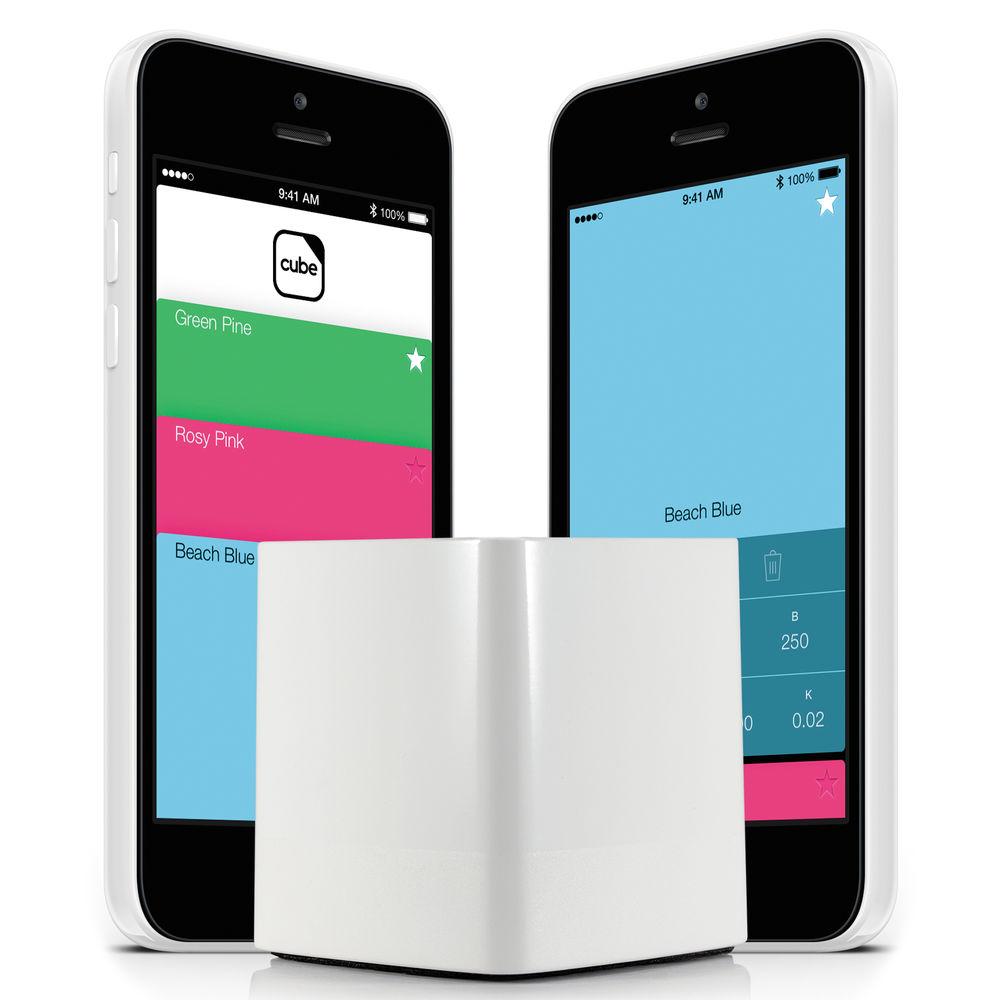

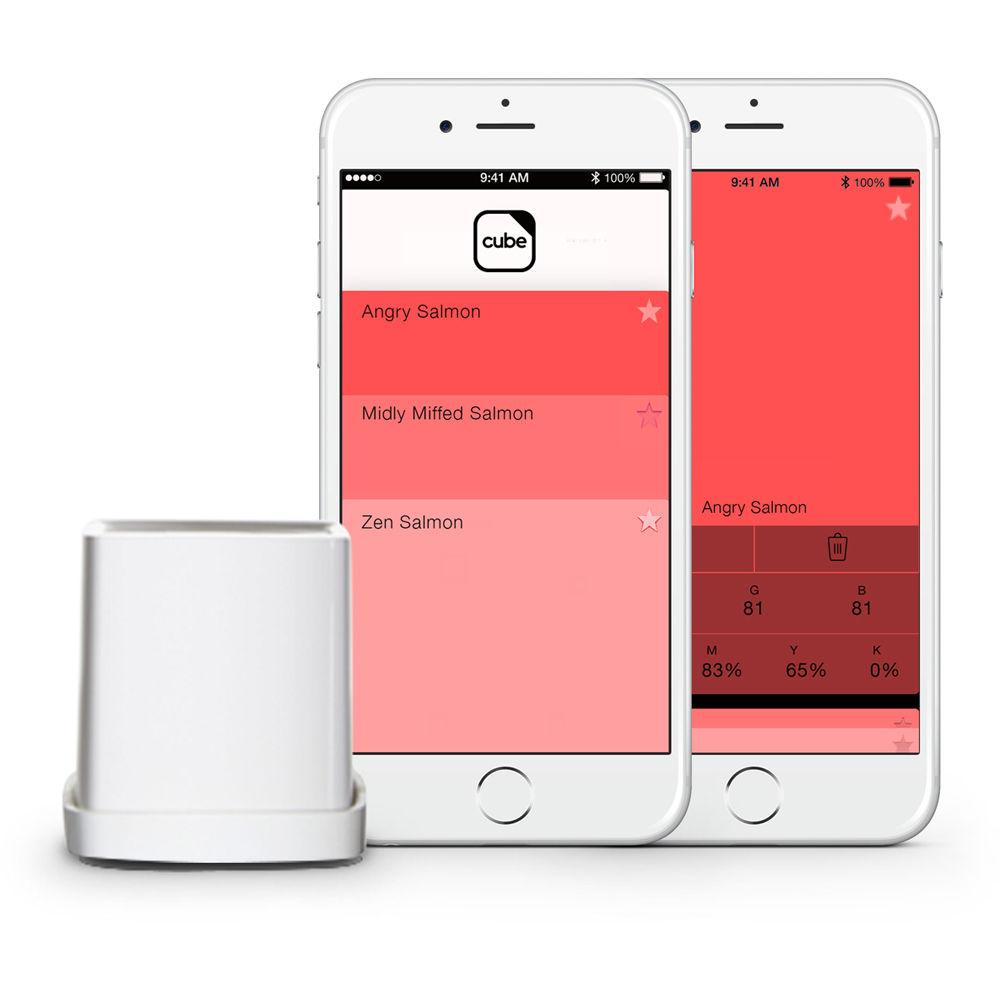

The Cube Link App stores your Cube's colors and data, providing you with detailed L*a*b*/RGB/CMYK/HEX/LRV color information about each capture. It matches colors to paint and color databases and allows you to star and tag your colors so you can easily sort by project, color family, and more. It also reveals ambient temperature, provides light intensity readings, shows battery level, and prompts you when your Cube requires calibration.
The Cube's internal battery is capable of up to 7,000 captures on a single charge, and can remain on standby for up to three months. Its "always-on" design allows for quick wake-up and capture. It comes with a USB sync and charging cable as well as a cap that doubles as a recalibration surface. - Paint Matching
- Behr, Benjamin Moore, CIL, Crown, Donald Kaufman, Dunn Edwards, Ecos, Farrow & Ball, Glidden, Interpon, JPMA, Kelly Moore, PPG, RAL, Silk and Sherwin-Williams
- Color Reference Standards
- British Standards and RAL
- Artist's Palettes
- COPIC, Holbein, Montana and Molotow
UPC: 721802197650 In the Box Palette Cube (Arctic White) Calibration Cap Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palette Cube in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalette SM-ARCTIC Specs | System Requirements | Mobile:
Apple devices running iOS 7 and up
Android devices running Android 4.3 and up with Bluetooth 4.0 or better
Mac/PC:
Windows 7 and higher
Mac OS X 10.10 and higher
Requires Bluetooth 4.0 and above and/or USB | | Sensors | Color (L*a*b*, RGB, CMYK)
Temperature (°F / C)

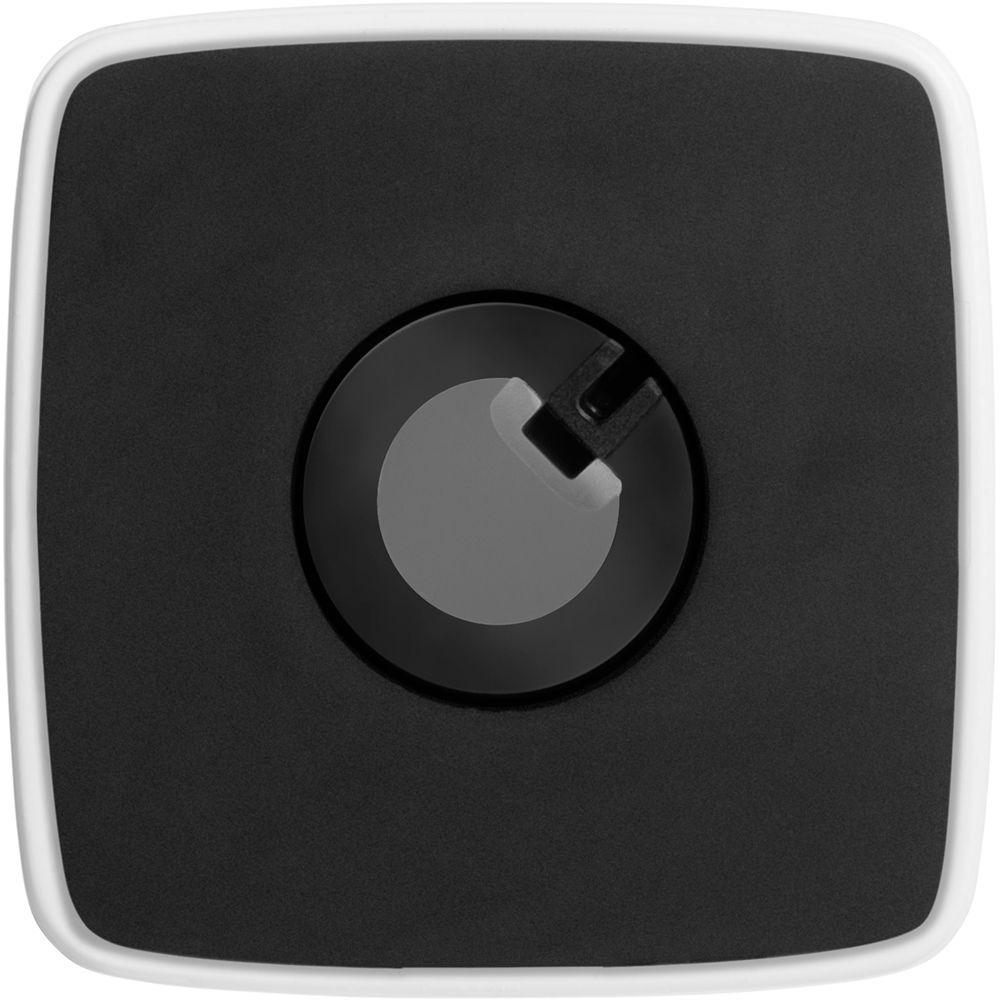

Ambient light (Lux) | | Aperture | 0.50" (12.64 mm) | | Performance | Average Color Accuracy: 1.0 delta-E | | Storage | Up to 20 colors | | Bluetooth Specification | Bluetooth 4.0 Low Energy | | Connection | Micro-USB | | Battery | Built-in rechargeable lithium-ion battery | | Battery Life | Capture: Up to 15 hours (7,000 captures)
Standby: Up to 3 months | | Dimensions | 2.17 x 1.97 x 1.97" (55.00 x 50.00 x 50.00 mm) | | Weight | 1.76 oz (50.00 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.2 x 3.1 x 3.0" |
