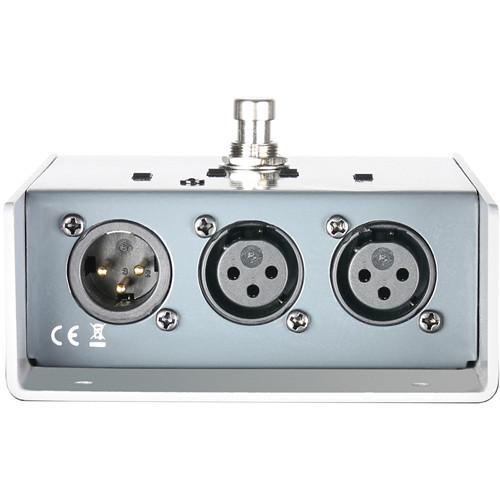

User Manual for Palmer ABI Balanced Line Input Switcher Click to enlarge the picture
Contents of the user manual for the Palmer ABI Balanced Line Input Switcher
- Product category: Level Matching Transformers Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Level Matching Transformers
 |
User manual for the Palmer ABI Balanced Line Input Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|
Product description The ABI Balanced Line Input Switcher from Palmer provides level adjustment of microphone or line signals. By toggling between the two inputs, the input permits signal comparison and connects the two sources to a single input. Three slide switches select 15 dB of attenuation for input A, and 6, 15, or 21 dB for input B. A ground-lift switch eliminates the earth-loop hum and a red LED indicates the active input. The switcher features a solid metal casing with extended edges for protecting the inputs and outputs. Pre-drilled holes can be used for mounting the unit into a rack or onto a pedalboard. - LED indicator for active input
- Pre-drilled mounting holes
In the Box Palmer ABI Balanced Line Input Switcher Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer ABI Balanced Line Input Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PEABI Specs | Type | Passive switcher | | Channels | 2 | | Input Connections | 2 x XLR | | Output Connectors | 1 x XLR | | Transformer Outputs | None | | Controls | Input pad, ground lift | | Indicators | Channel number | | Operating Voltage | 9 V block battery (not included) | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 3.9 x 4.7 x 2.4" / 100.0 x 120.0 x 60.0 mm | | Weight | 1.52 lb / 0.69 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
