User Manual for Palmer EINS 1W All-Tube Guitar Amplifier Head Click to enlarge the picture
Contents of the user manual for the Palmer EINS 1W All-Tube Guitar Amplifier
- Product category: Guitar Amplifiers Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Guitar Amplifiers
 |
User manual for the Palmer EINS 1W All-Tube Guitar Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

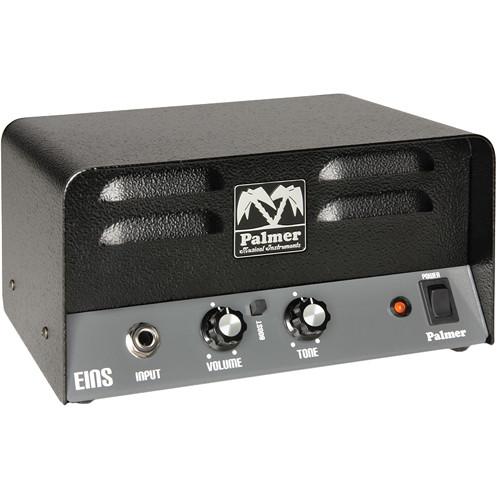

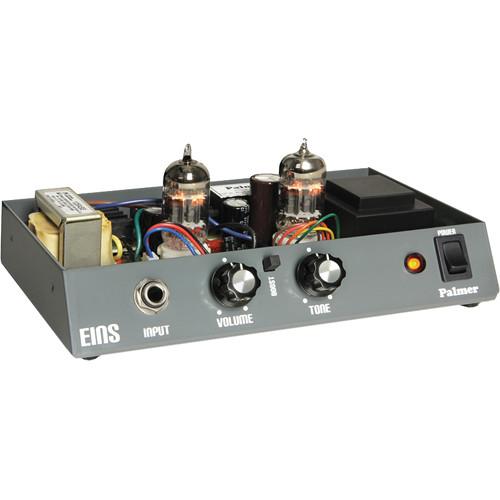

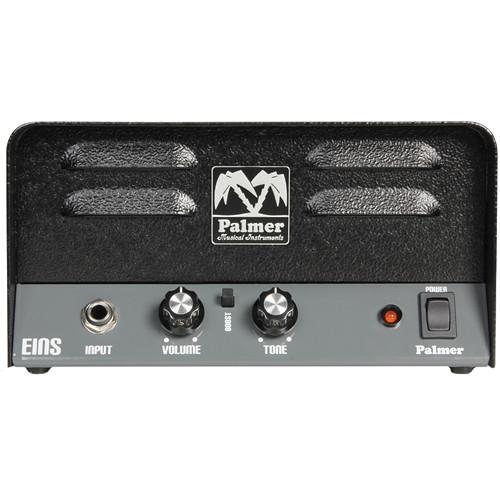

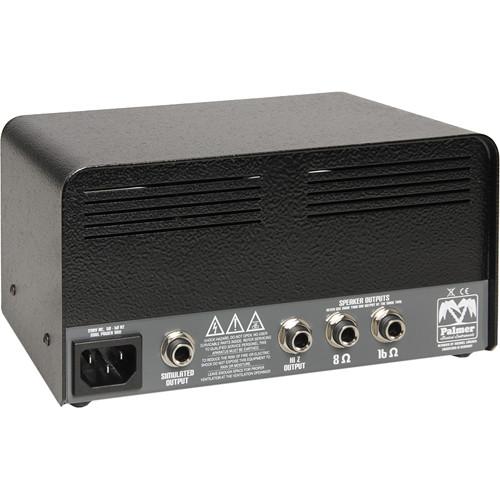

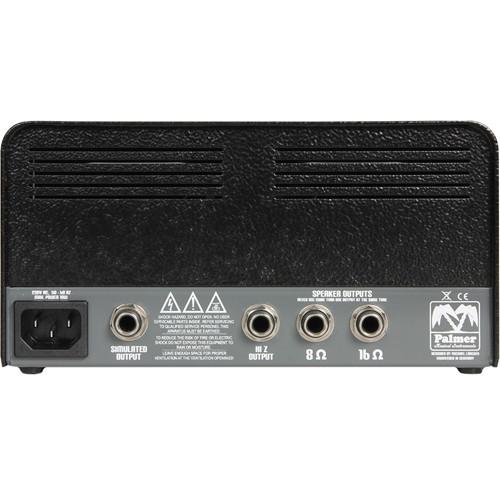

Product description The EINS from Palmer is a versatile 1W guitar amplifier with all-tube Class A circuitry designed for professional use. Using an ECC83 preamp tube and an ECC82 in the power stage as the standard setup, the amp produces rich harmonics with organic breakup, and is highly responsive to touch and picking dynamics. The volume can be cranked for power amp saturation to create a wide range of overdriven tones, including intense crunch and distortion, but without the ear-splitting levels. Other tube configurations can be used to achieve varying results, enabling you to tailor the amp's response to suit your preference for more gain or cleaner tones with more headroom. The EINS features separate 8- and 16-Ohm speaker outputs, as well as a hi-Z output which can be connected to the input of another amplifier to be power boosted or used as a preamp, or even used on your pedalboard as an overdrive/distortion pedal. Additionally, an integrated loadbox makes it safe to use the amp without connecting it to a speaker cabinet. A speaker simulated output allows you to easily connect the output of the amp directly to your audio interface for recording or plugging into a PA system. In the Box Palmer EINS 1W All-Tube Guitar Amplifier Head Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer EINS 1W All-Tube Guitar Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PEINS Specs | | | Inputs | 1 | | Input Connectors | 1/4" / 6.3 mm Jack | | Input Impedance | 1 MOhm | | | | Outputs | 4 | | Output Connectors | 1/4" / 6.3 mm Jack | | Output Impedance | Speaker out: 8 and 16 Ohms
Simulated out: 4 kOhms
Hi-Z out: 3.3 MOhms | | | | Type | Guitar amplifier head | | Technology | Tube | | Class | A | | Channels | 1 | | Indicators | Power | | Controls | Tone, Level | | Tubes | Preamp tubes: 1 x ECC83
Power amp tubes: 1 x ECC82 | | Rectifier | Solid state | | Operating Voltage | 230 VAC | | Power | 1 W | | Power Consumption | 10 W | | Material | Sheet steel | | Dimensions (W x D x H) | 8.1 x 5.0 x 4.3" / 206.0 x 128.0 x 108.0 mm | | Weight | 5.4 lb / 2.5 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
