User Manual for Palmer FAT50 50W Tube Guitar Combo Amplifier Click to enlarge the picture
Contents of the user manual for the Palmer FAT50 50W Tube Guitar Combo
- Product category: Guitar Amplifiers Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Guitar Amplifiers
 |
User manual for the Palmer FAT50 50W Tube Guitar Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

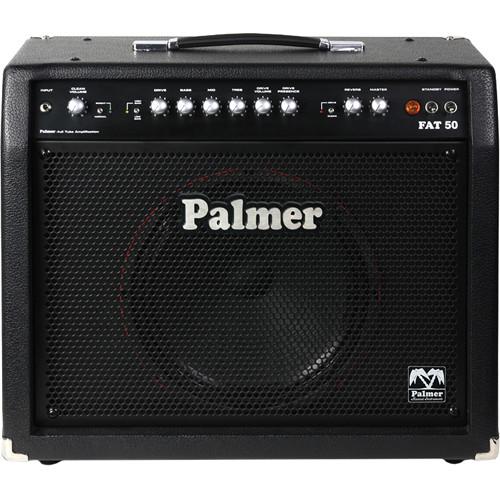

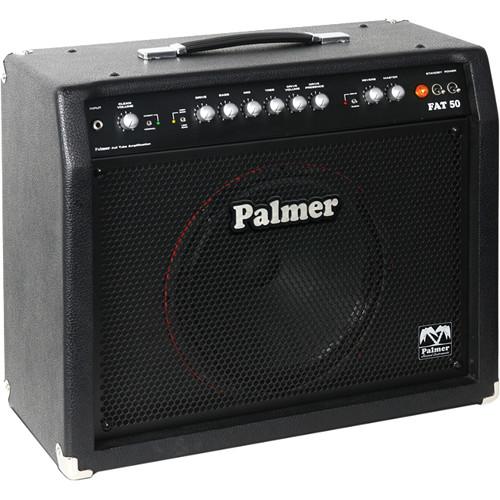

Product description The FAT50 50W Guitar Combo Amplifier from Palmer features an all-tube, dual-channel design offering a variety of distinct and highly individual sounds with definition, saturation, and dynamic clean tones. A high-gain circuit provides plenty of overdrive, and using the amp's versatile features, you can shape your sound to accommodate a wide range of playing styles. The FAT50 incorporates two 6L6 tubes to drive its power section, and four ECC83 tubes for its preamp. Separate Clean and Drive channels each feature switchable high/low gain, and normal/bright output, as well as individual channel volume controls. A drive level control is included to regulate the amount of gain on the amp's Drive channel, while both channels share tone-shaping bass, mid, treble, and presence controls. A tube-driven effects loop with a mix control allows you to incorporate additional effects, and a built-in spring reverb can be used to further enhance your sound. An included four-button FT4 footswitch provides easy access to control channel switching, gain, reverb, and master volume functions. In the Box Palmer FAT50 50W Tube Guitar Combo Amplifier FAT F4 Footswitch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer FAT50 50W Tube Guitar Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PFAT50 Specs | | | Inputs | 1 | | Input Connectors | 1/4" / 6.3 mm Jack | | Input Impedance | 1 MOhm | | | | Outputs | 2 | | Output Connectors | 1/4" / 6.3 mm Jack | | Output Impedance | 8, 16 Ohms | | | | Type | Combo Amplifier | | Technology | Tube | | Class | A/B | | Power | 50 W | | Power Consumption | 150 W | | Channels | Clean

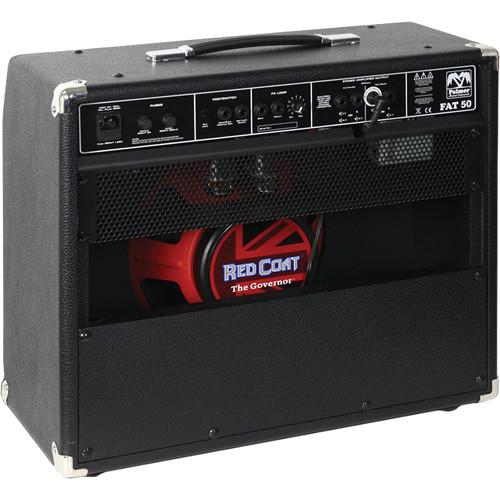

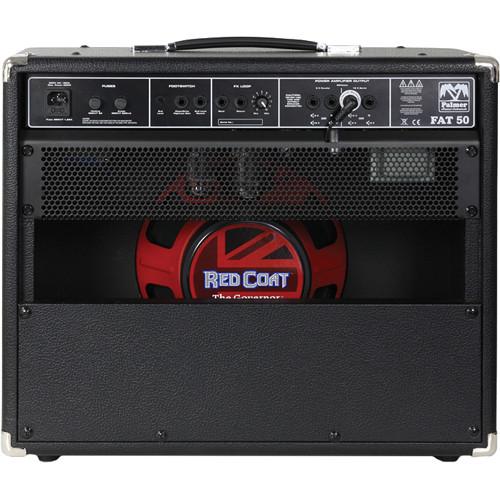

Drive | | Speaker | Type: Eminence Governor
Diameter: 12.0" / 304.8 mm
Impedance: 16 Ohms | | Indicators | Gain, Drive, Power | | Tubes | Power Amp: 2 x 6L6
Preamp: 4 x ECC83 | | Operating Voltage | Integrated: 115 to 230 VAC | | Material | Plywood | | Dimensions (W x D x H) | 22.8 x 10.6 x 19.7" / 580.0 x 270.0 x 500.0 mm | | Weight | 52.0 lb / 23.6 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
