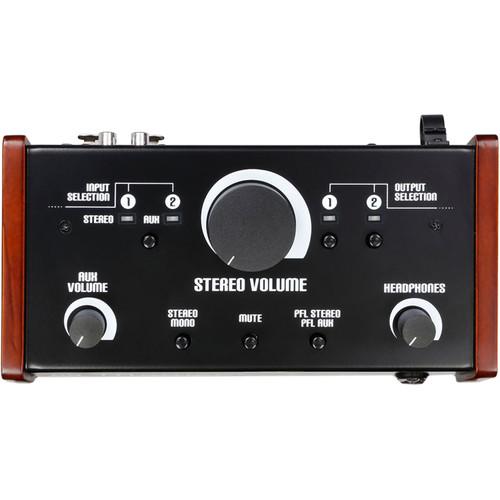

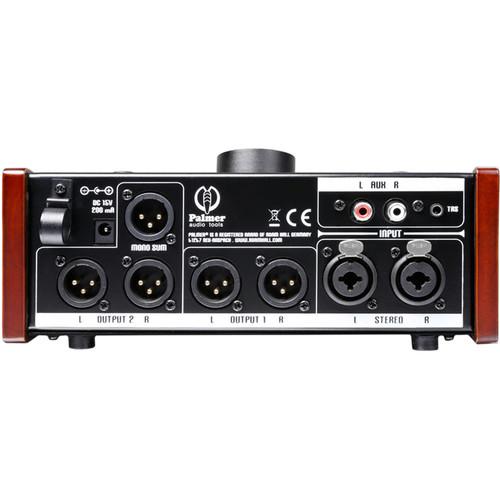

Product description Palmer's Monicon L Passive Monitor Controller is an analog device that connects computers or audio interfaces, via stereo aux inputs (L/R RCA sockets, and a 3.5mm TRS jack for unbalanced inputs) or stereo inputs with combo XLR-1/4" balanced sockets, to two sets of self-powered monitors. The power supply is used for the LEDs, which indicate input and output selection, and for the headphone amplifier. The layout makes switching and level changes easy, with its push-button switches and large volume and headphone knobs.

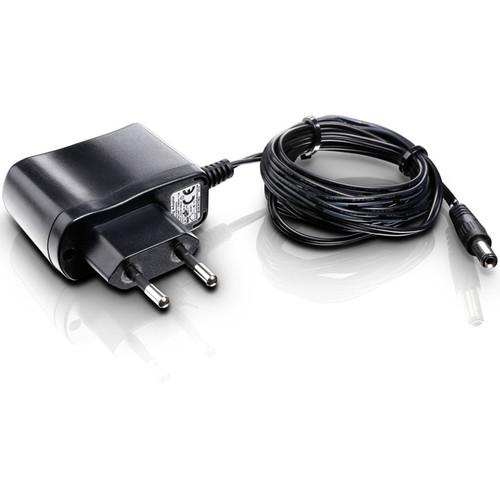

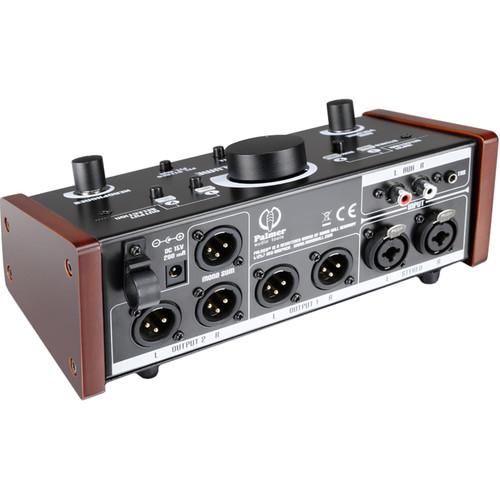

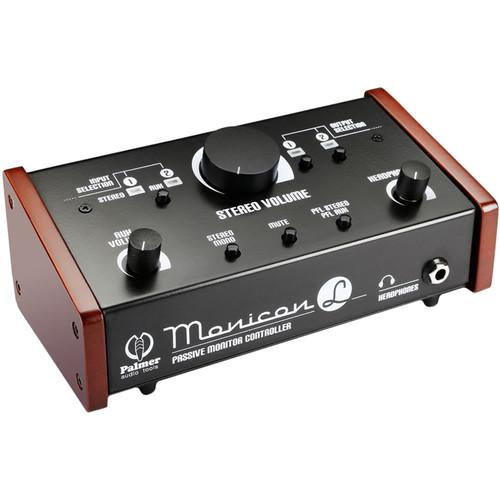

You can A/B outputs one and two, or listen to both simultaneously using output selector switches. The mono XLR output is always active and enables you to connect an additional speaker or sum a stereo output. PFL mode facilitates stereo and main aux input monitoring regardless of onboard level settings. In the Box Palmer Monicon L Passive Monitor Controller DC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer Monicon L Passive Monitor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PMONICON L Specs | Circuitry | Passive | | Inputs | Balanced
2 x combo XLR-1/4"
Aux (unbalanced):
1 x TRS 3.5 mm
2 x mono RCA | | Maximum Input Level | +20 dBu | | Input Impedance | 5 kOhms unbalanced
10 kOhms balanced | | Output Connectors | 5 x XLR: (4 x balanced; 1 x unbalanced) | | Maximum Output Level | +20 dB | | Output Impedance | 600 Ohms | | Frequency Response | 10 Hz to 40 kHz | | THD | 0.001% | | Output Attenuation | Attenuator: 85 dB
Attenuator + mute: 112 dB | | Controls | 2 x output selection
Input selection (stereo or aux)
PFL (stereo and aux)
Mute
Stereo/mono
Headphones level
Auxiliary volume
Main volume | | Cabinet Construction | Sheet steel
Wood | | Cabinet Finish | Powder-coated | | Dimensions (W × H × D) | 8.6 x 3.0 x 3.9" / 21.8 x 7.7 x 10.0 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 11.3 x 5.0 x 3.9" |
