User Manual for Palmer MONICONW Passive Monitor Controller Click to enlarge the picture
Contents of the user manual for the Palmer MONICONW Passive Monitor Controller
- Product category: Studio Monitor Controllers Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Studio Monitor Controllers
 |
User manual for the Palmer MONICONW Passive Monitor Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

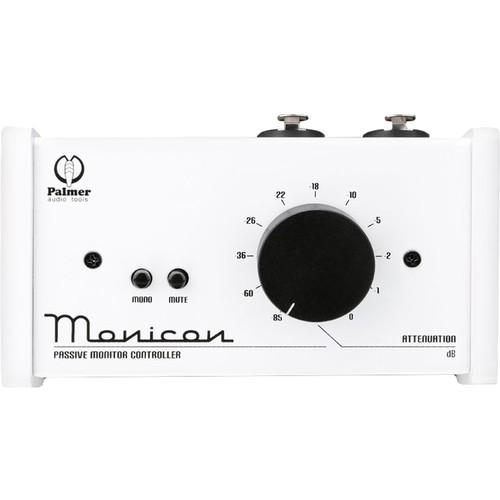

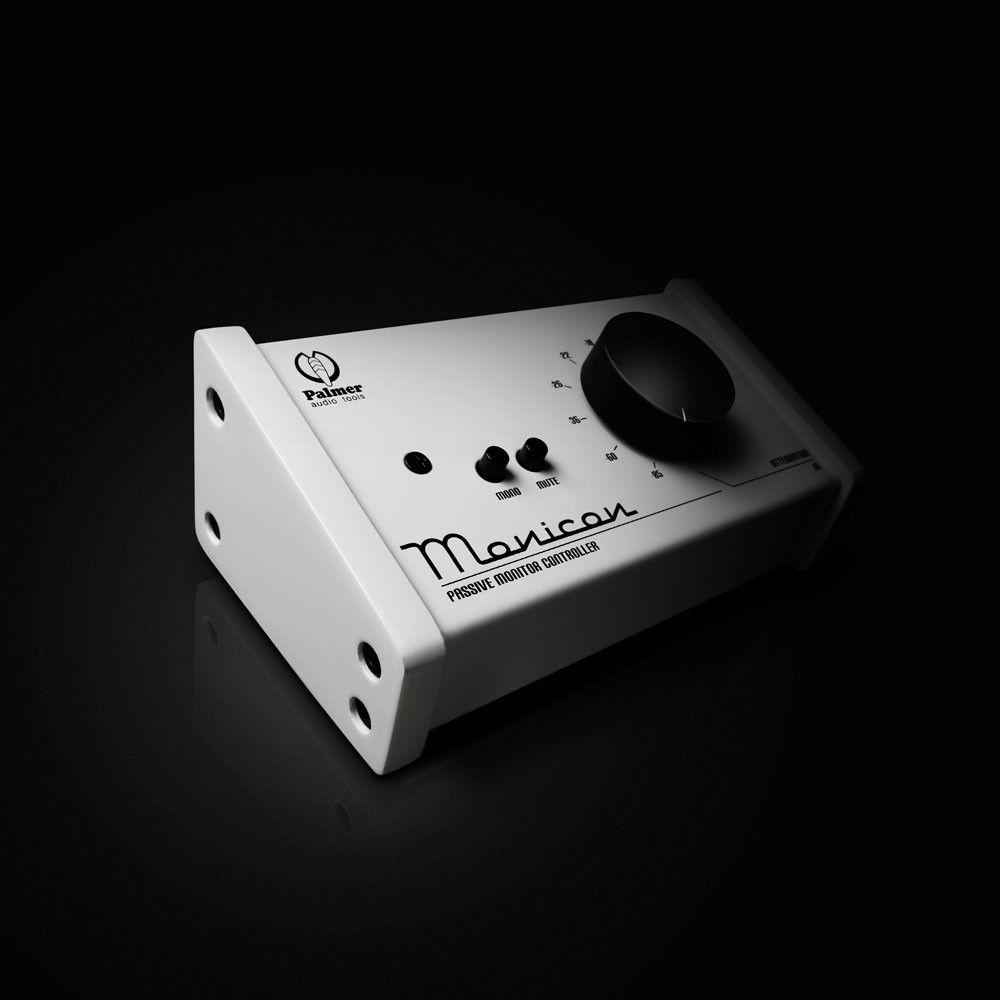

Product description Styled in a limited edition white finish, the Palmer MONICONW is a passive monitor controller with an oversized control knob that is designed to be inserted between the stereo output of a notebook, PC, or audio interface and the inputs of a pair of active studio monitors.

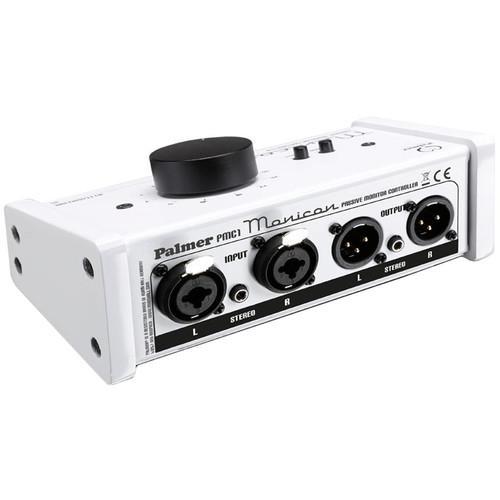

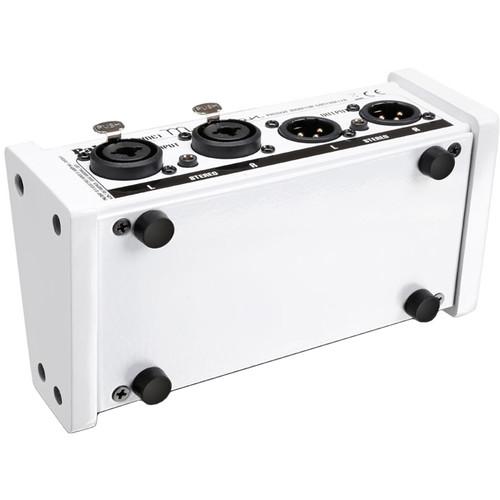

The fully passive circuit design uses only a few components so as to ensure that the sound is not detrimentally affected by the monitor controller. To accommodate both professional and consumer equipment, the rear panel of the device features pairs of XLR/TRS combo connectors for the input and output as well as a 3.5mm TRS stereo input and a 3.5mm TRS stereo output connector. In the Box Palmer MONICONW Passive Monitor Controller (Limited Edition White) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer MONICONW Passive Monitor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer Pmonicon Specs | Product Type | Monitor Controller | | Design | Passive | | Channels | 1 | | Inputs | 2 x XLR/TRS combo connectors
1 x 1/8" (3.5 mm) stereo TRS | | Line Max Input Level | 20 dBu | | Input Impedance | 10 kOhms (balanced), 5 kOhms (unbalanced) | | Outputs | 2 x XLR/TRS combo connectors
1 x 1/8" (3.5 mm) stereo TRS | | Output Level | 20 dB | | Output Impedance | 600 Ohms | | Frequency Response | 10 Hz to 40 kHz | | THD | 0.001% | | Attenuation | (Attenuator) 85 dB, (Attenuator + Mute) 112 dB | | Controls | Mute, attenuation, mono | | Materials | Cabinet: wood, sheet steel
Surface: powder-coated metal | | Dimensions (W x H x D) | 6.46 x 2.44 x 3.34" / 164 x 62 x 85 mm | | Weight | 1.65 lb / 0.75 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.0 x 3.75 x 3.25" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
