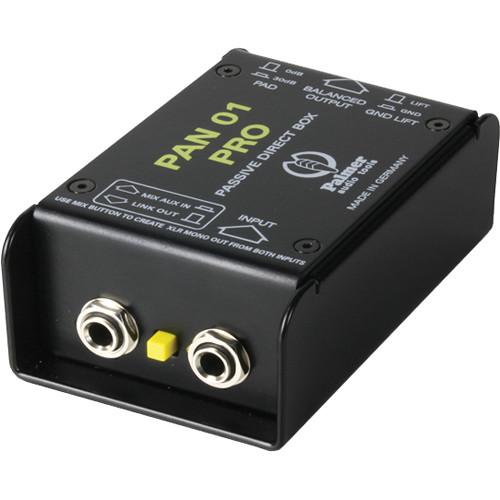

User Manual for Palmer PAN 01 PRO Professional Passive DI Box Click to enlarge the picture
Contents of the user manual for the Palmer PAN 01 PRO Professional Passive
- Product category: Direct Boxes Palmer
- Brand: Palmer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Palmer Direct Boxes
 |
User manual for the Palmer PAN 01 PRO Professional Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Palmer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Palmer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Palmer product will considerably shorten its lifespan!
|

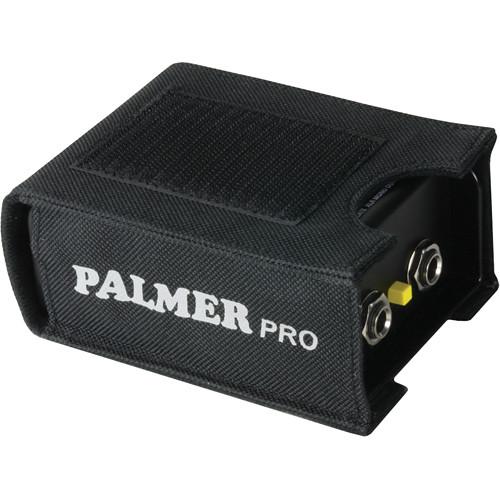

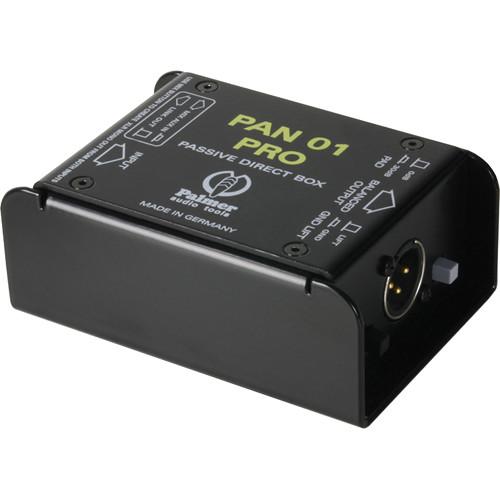

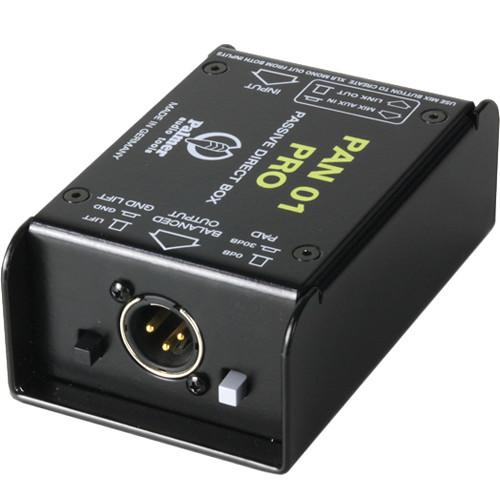

Product description The PAN 01 PRO Professional Passive DI Box features a 2mm steel housing and heavy duty metal switches for the PAD and ground lift functions, to withstand the rigors of the road and stage. The transformer has been completely redesigned and scaled-up with a larger magnet core for increased dynamic range and headroom, and a metal cover for improved shielding. Also, the PAN01 PRO's parallel out is switchable to double, as an additional input. This feature enables the summing of a stereo output (e.g. of a keyboard) with the resulting mono signal present at the PAN01 PRO's balanced XLR output. The PAN01 PRO comes with a reinforced nylon bag with cutouts for connecting the box inside the bag. In the Box Palmer PAN 01 PRO Professional Passive DI Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PAN 01 PRO Professional Passive DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PAN01PRO Specs | Type | Passive DI box, transformer balanced | | Input Connections | 2 x 6.3 mm input jack | | Output Connectors | 1 x XLR
1 x 6.3 mm Jack | | Input Level | 62 dBu max. | | Input Impedance | 68 kΩ | | Input Pad | 0 / -30 dB | | Output Level | 4 dB max | | Output Impedance | 200 Ω | | Controls | Merge, ground lift, attenuation | | Frequency Response | 20 to 40,000 Hz | | Ratio | 10:1 | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 2.91 x 1.7 x 4.4" / 74 x 43 x 111 mm | | Weight | 0.74 lb / 0.35 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
