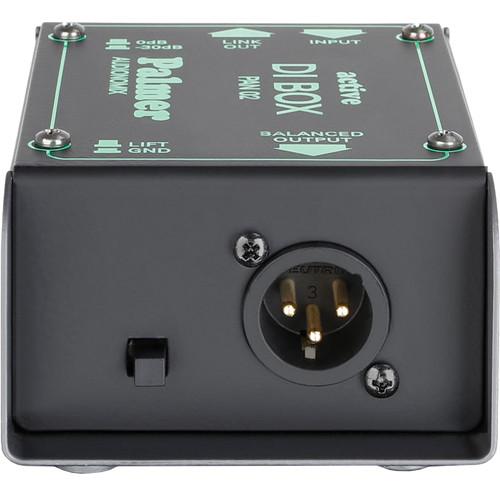

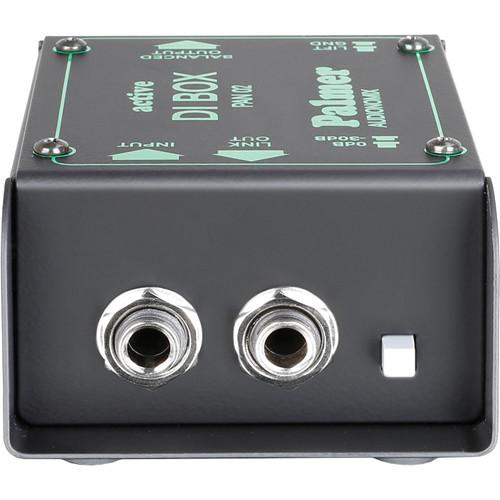

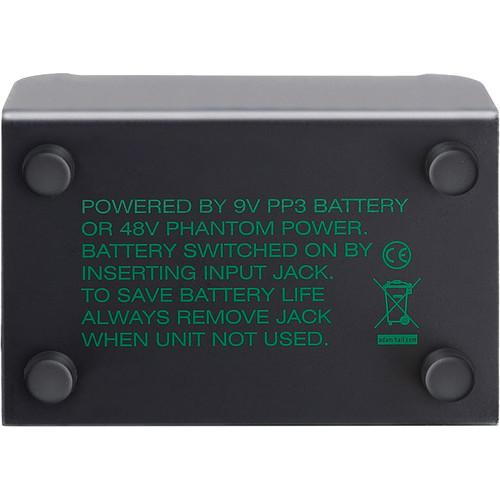

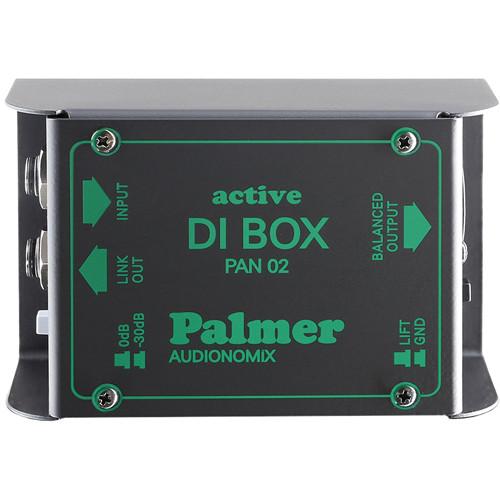

Product description This Palmer PAN 02 Active DI Box can be operated with 9V batteries or 48V phantom power. The unit features high-impedance input; and a higher output level than a passive DI box. The active circuitry allows for higher input impedance (up to 1 MOhm) and higher input sensitivity (the typical difference between in and out is -4 dB). The maximum output impedance with phantom power operation is +10 dB. The output is transformer-balanced, and the special "floating ground" circuitry enables ground lift even during phantom power operation. The metal case measures 2.91 x 1.7 x 4.4" (110 x 73 x 42 mm) In the Box Palmer PAN 02 Active DI Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Palmer PAN 02 Active DI Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPalmer PAN02 Specs | Type | Passive DI box, transformer-balanced | | Input Connections | 1 x 6.3 mm input jack | | Output Connectors | 1 x XLR
1 x 6.3 mm Jack | | Input Level | 45 dBu max. | | Input Impedance | 1 MOhms @ 60 Hz | | Input Pad | 0 / -30 dB | | Output Level | 4 dB max. | | Output Impedance | 600 Ohms | | Controls | Merge, ground lift, attenuation | | Frequency Response | 20 to 40000 Hz | | Ratio | 10:1 | | Material | Powder-coated sheet steel | | Dimensions (WxDxH) | 2.91 x 1.7 x 4.4" / 74 x 43 x 111 mm | | Weight | 0.74 lb / 0.35 kg |
